MCAIPC1
AMD Ryzen AI Max+ flagship — 140W desktop performance in a 220mm chassis
Powered by the AMD Ryzen™ AI Max+ 395 processor with up to 128GB LPDDR5x memory and quad-display support. A 220×220×83mm powerhouse with dual 10G + 2.5G LAN, quad M.2 NVMe, USB4, and PD3.1 — built for AI workloads, edge servers, and professional workstations.

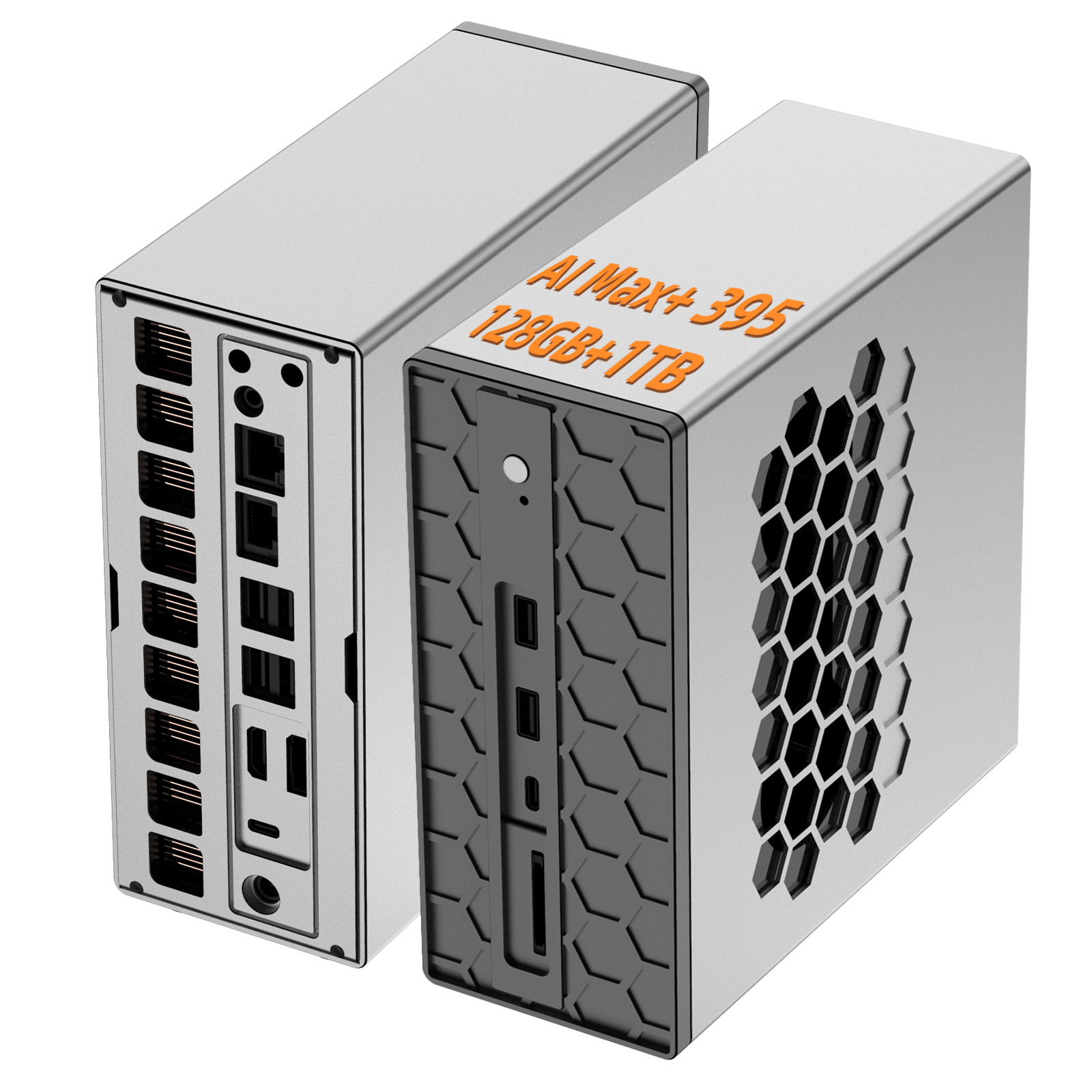

A closer look at MCAIPC1
Different product views highlight the enclosure design, interface layout, and installation details.
MCAIPC1
MCAIPC1
MCAIPC1
MCAIPC1
MCAIPC1
MCAIPC1
MCAIPC1
MCAIPC1
MCAIPC1
Industrial-grade configuration details
Available hardware configurations
Model
MCAIPC1
Processor
AMD Ryzen™ AI Max+ 395, TDP up to 140W
Memory
LPDDR5x 8533MT/s, 256-bit, up to 128GB
Storage
4x M.2 2280 PCIe 4.0 SSD
Display
1x HDMI 2.1 + 1x DP 2.1 + 2x USB4 (Quad Display)

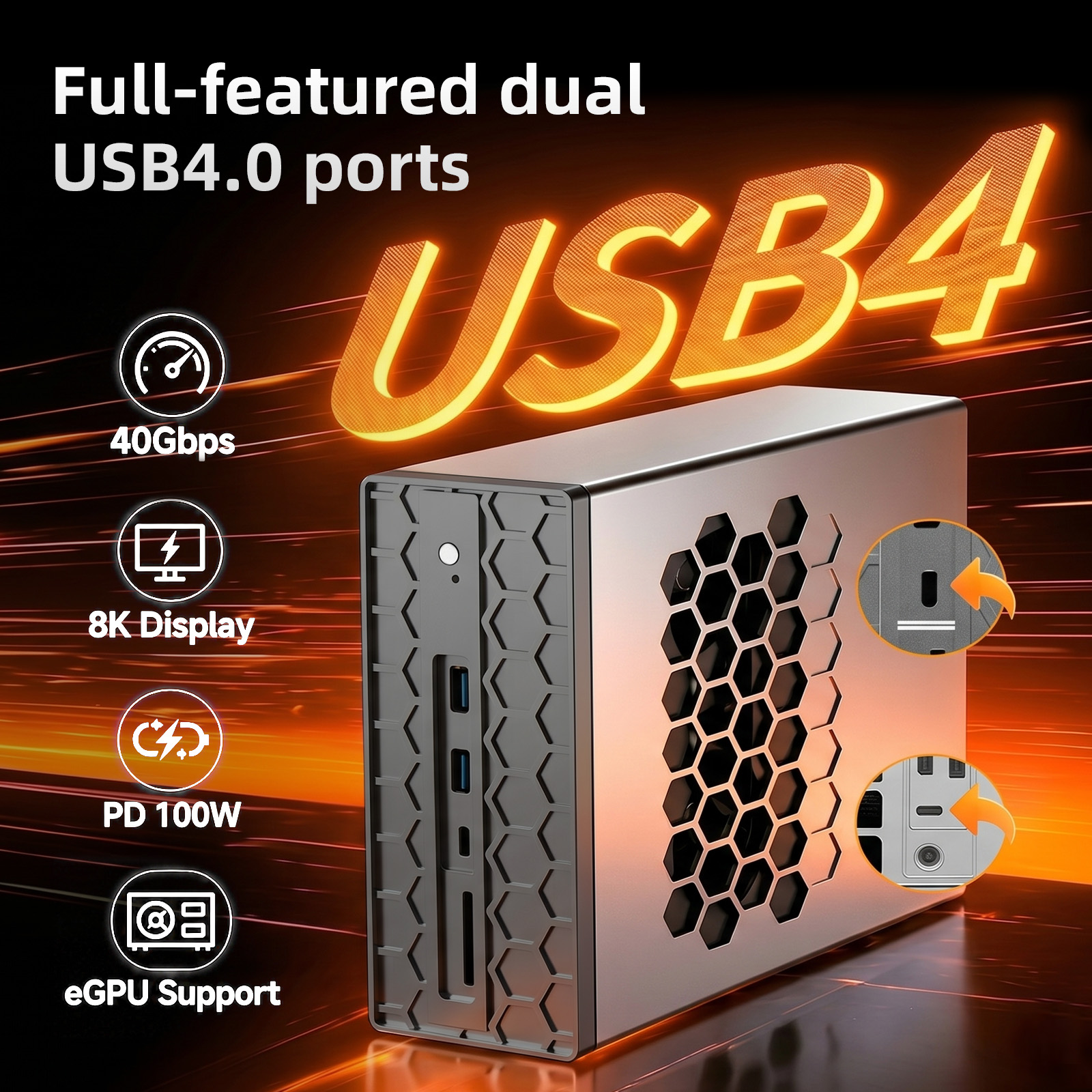

USB
2x USB4 + 6x USB3.0 (2x Front 10Gbps, 4x Rear)
Network
1x 10G LAN (AQC113) + 1x 2.5G LAN (Intel I226)
Power
8Pin ATX + 19V DC-IN + Type-C PD3.1 28V
Expansion
M.2 2230 PCIe (WiFi/BT), ARGB Header, FG Header

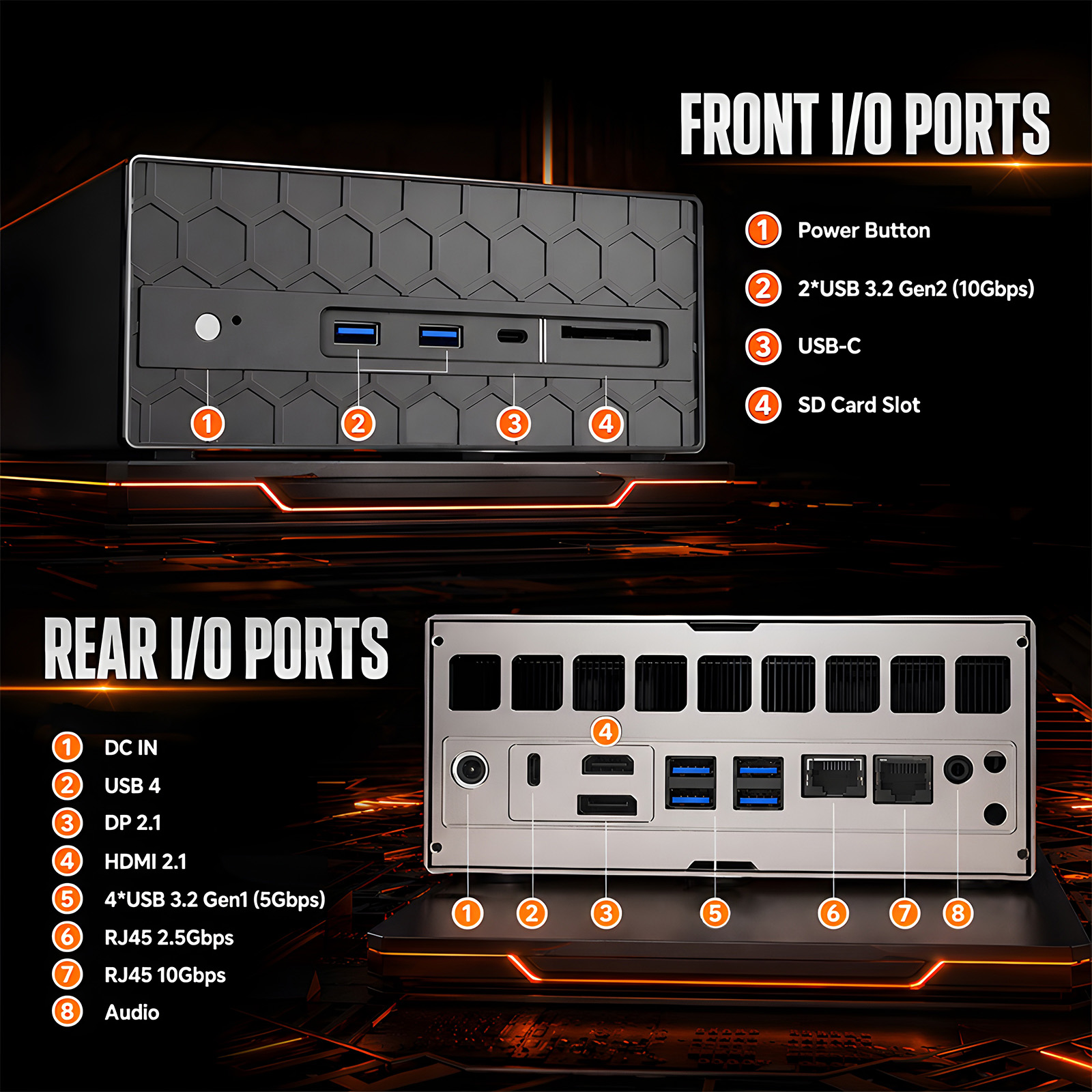

Front I/O
1 x USB4; 2 x USB 3.0 (10Gbps); 1 x SD card reader; 1 x combo audio jack; 1 x power button; 1 x Clear CMOS; 1 x CPU power selector (High / Medium / Low)
Rear I/O
1 x HDMI 2.1; 1 x DisplayPort 2.1; 1 x USB4 with PD 3.1 28V; 4 x USB 3.0; 1 x 2.5GbE RJ45; 1 x 10GbE RJ45; 1 x audio jack
Internal I/O
2 x fan headers (CPU and system); 1 x stereo speaker header (2W x 2); 1 x 5V ARGB header; 1 x fingerprint-module header; 1 x 8-pin ATX power input
BIOS
AMI BIOS in SPI flash ROM
Feature
Supports S0/S4/S5 power states (S3 not supported), USB wake, PXE, RTC power-on, Wake-on-LAN, and scheduled power-on
System
Windows 10 / Windows 11 / Linux
Dimensions
220 × 220 × 83 mm
Ready for control cabinets, edge gateways, and machine-side computing
Powered by the AMD Ryzen™ AI Max+ 395 processor with up to 128GB LPDDR5x memory and quad-display support. A 220×220×83mm powerhouse with dual 10G + 2.5G LAN, quad M.2 NVMe, USB4, and PD3.1 — built for AI workloads, edge servers, and professional workstations.
AI Max+ Platform
AMD Ryzen™ AI Max+ 395 with integrated NPU for edge AI inference and real-time workloads.
Quad 4K Display
Simultaneous output via HDMI 2.1, DP 2.1, and dual USB4 — ideal for video walls and control rooms.

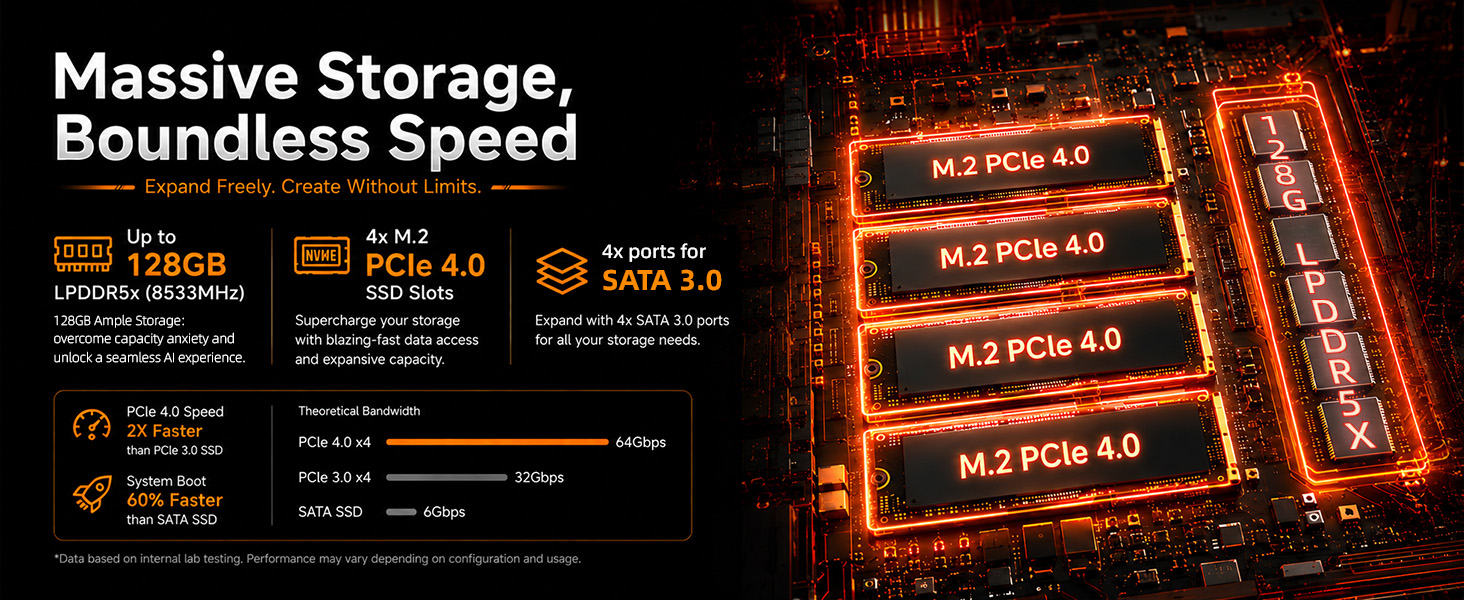

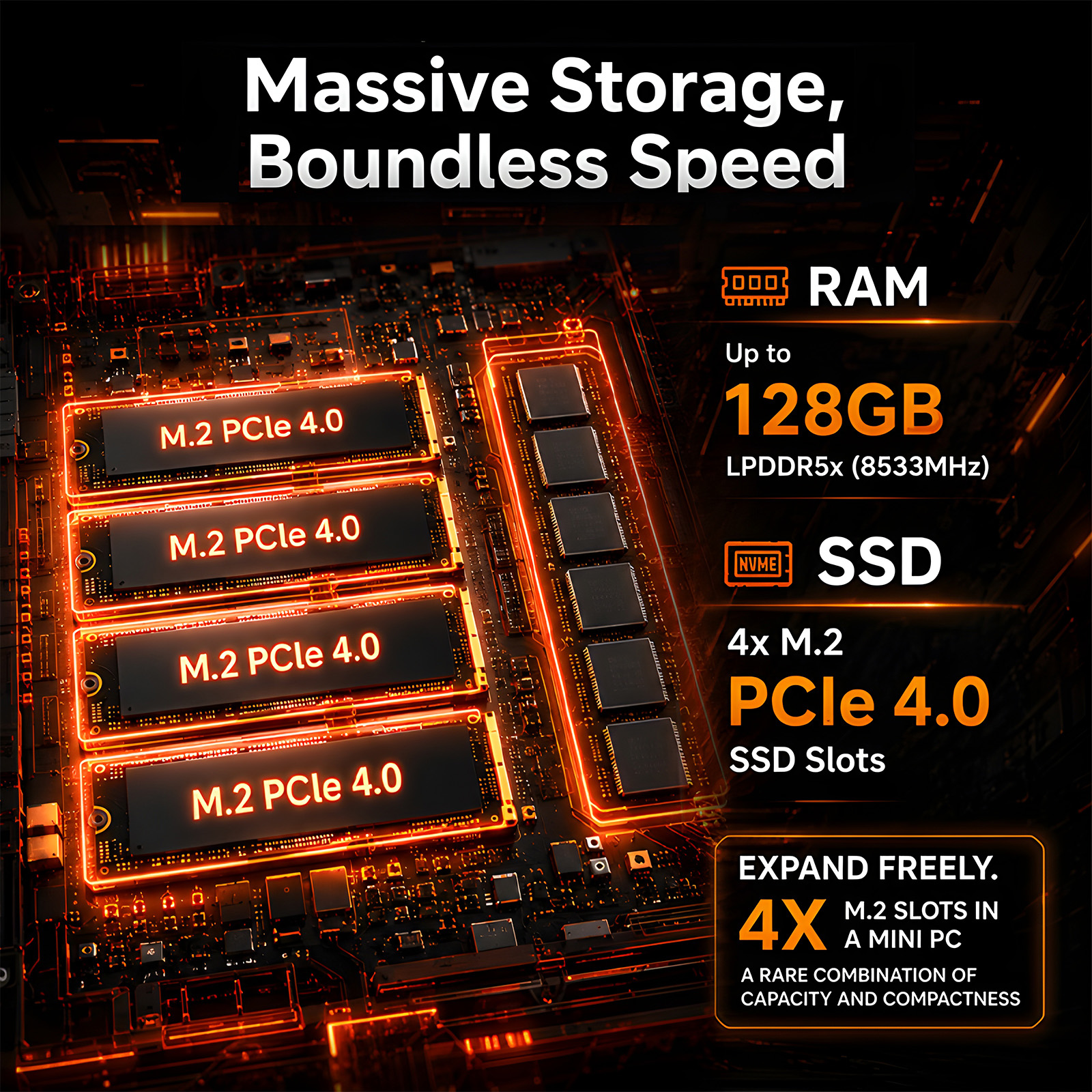

Quad M.2 RAID
4x PCIe 4.0 M.2 slots — up to 32TB total storage with flexible RAID configurations.

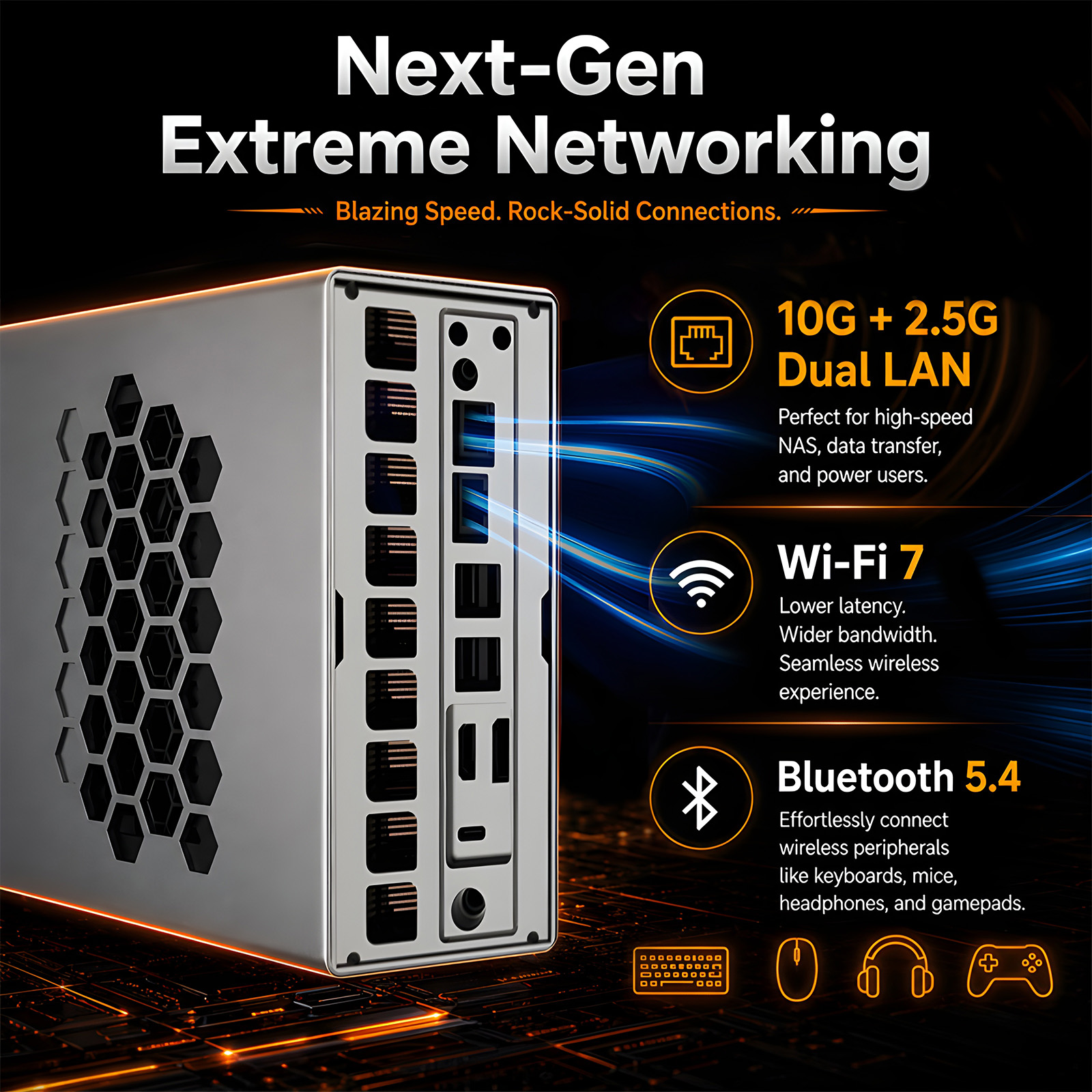

Dual High-Speed LAN
10GbE (AQC113) for backbone throughput plus 2.5GbE (I226) with PXE and WoL for enterprise deployment.
Triple Power Input
8Pin ATX, 19V DC barrel, and USB-C PD3.1 28V — deploy in server rooms, deskside, or mobile workstations.

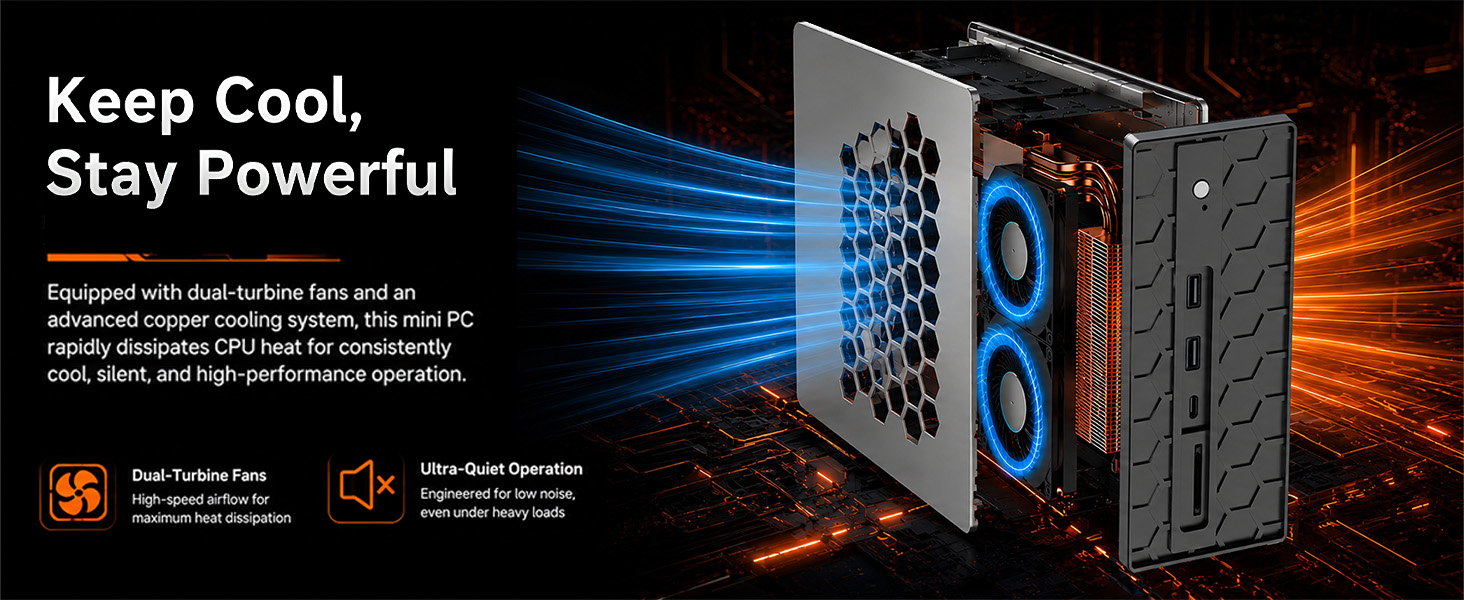

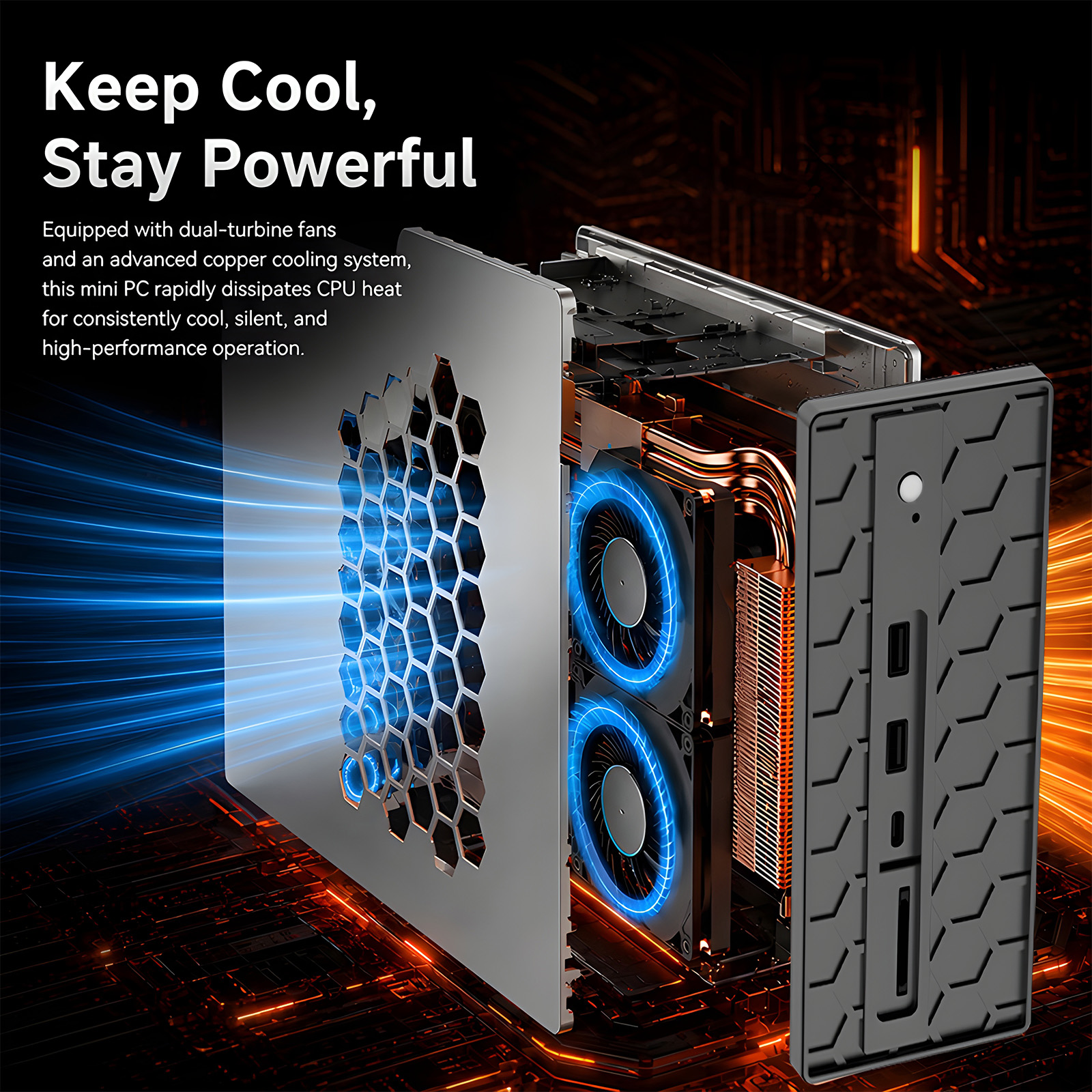

Advanced Cooling
Dual fan headers (CPU + System) with intelligent PWM curves for sustained 140W operation in a compact chassis.
AI Max+ Platform
Advanced Cooling
WiFi 7 + Bluetooth 5.4
Quad M.2 Storage Array
Interested in MCAIPC1?
Contact our team for pricing, lifecycle planning, customization, and bulk order support.
