Three mainboard series with configurable memory, networking, and chassis
MCAIPC2 is a configurable AI computer family spanning AXB35-02, AXB35-03, and AEB35-04 mainboards. Choose series-specific AMD processor platforms, LPDDR5 memory, 2.5GbE or dual 10GbE networking, and expansion through USB4, optional Flex I/O, or MCIO. Compatible desktop and tower enclosures offer internal or external power options; the configuration guide below shows which combinations are supported.

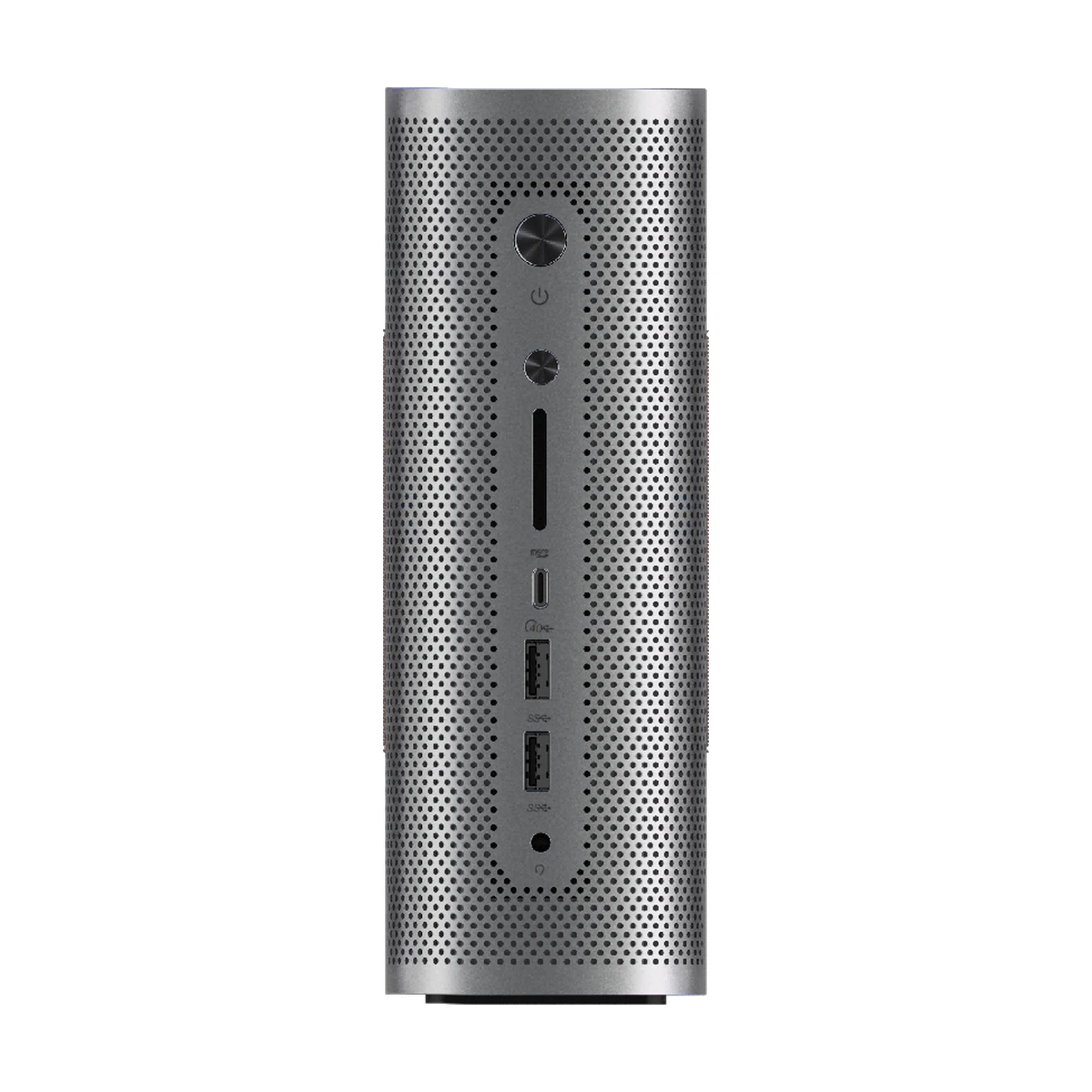

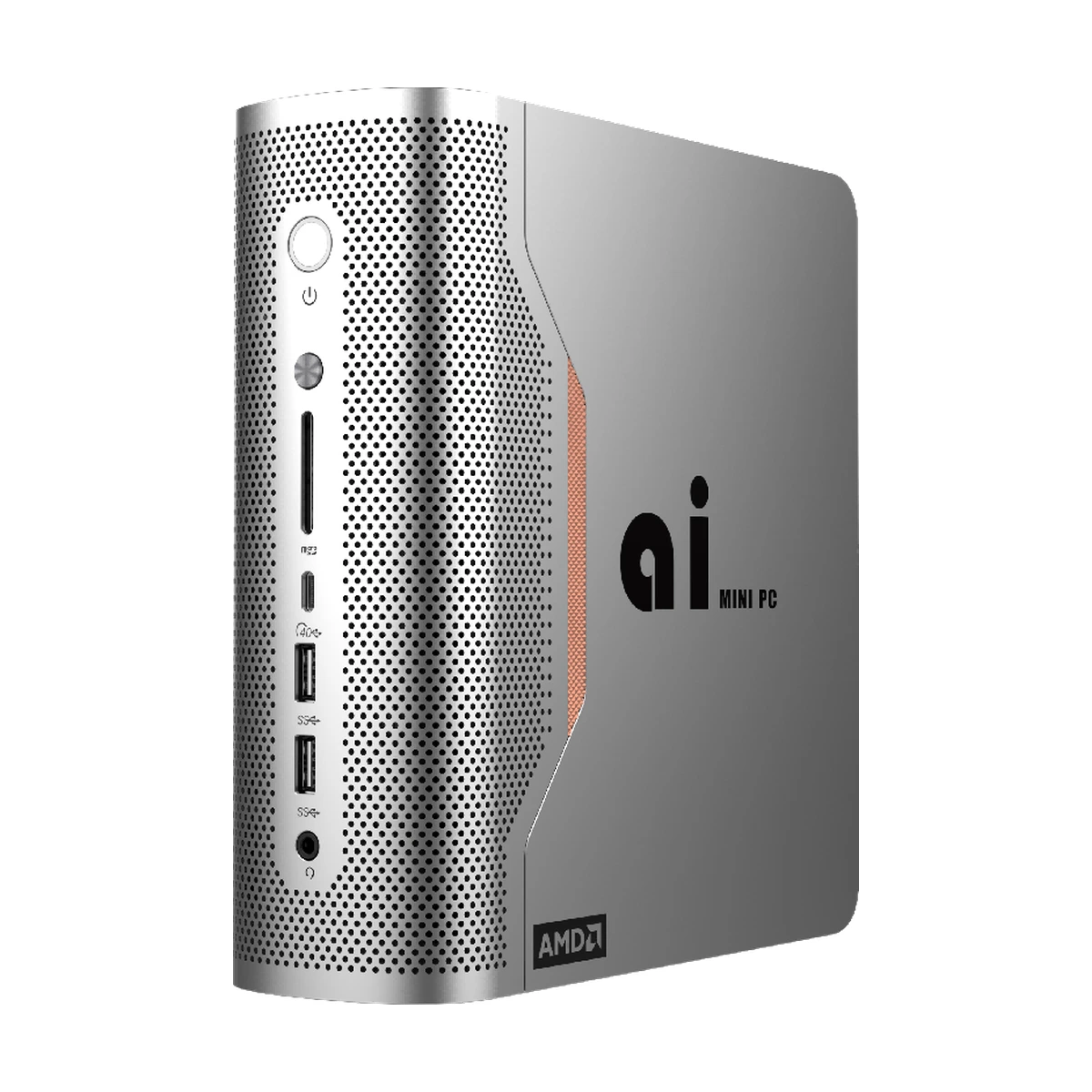

Different product views highlight the enclosure design, interface layout, and installation details.
MCAIPC2
AXB35-02: AMD FP11 Strix Halo, Ryzen AI Max 300; AXB35-03: AMD FP11 Strix/Gorgon Halo, Ryzen AI Max 300/400; AEB35-04: AMD FP10 Medusa Point (Zen 6)
AXB35-02: AMD integrated graphics; AXB35-03: Radeon 8000S series; AEB35-04: next-generation RDNA GPU, up to 50 TOPS, and XDNA 3 NPU, up to 100 TOPS
AXB35-02/-03: LPDDR5 8000 MT/s, up to 128 GB; AEB35-04: LPDDR5 9600 MT/s, 64 GB or 96 GB
AXB35-02: 2 x M.2 2280 PCIe 4.0 x4; AXB35-03: 2 x M.2 2280 plus optional M.2 2242/2280 for Flex I/O; AEB35-04: 2 x M.2 2280 PCIe 4.0 x4; SD 4.0 supported
AXB35-02: 1 x RJ45 2.5 GbE; AXB35-03 and AEB35-04: 2 x RJ45 10 GbE
Front, all series: 2 x USB 3.2 Gen 2 Type-A and 1 x USB4; rear: AXB35-02 has 1 x USB 3.2 Gen 2, 2 x USB 2.0 and 1 x USB4; AXB35-03/AEB35-04 have 1 x USB 3.2, 1 x USB 2.0 and 1 x USB4
AXB35-02/-03: front and rear combo jacks; AEB35-04: 1 x combo jack
AXB35-02/-03: HDMI 2.1, DP 1.4 and 2 x USB4; AEB35-04: HDMI 2.1, DP 2.0 and 2 x USB4
AXB35-03: optional M.2 Flex I/O for OCuLink or dual 80 Gbps USB4 data; AEB35-04: 1 x MCIO, PCIe 4.0 x8
M.2 2230 PCIe/USB module; AXB35-02 supports 2.4/5 GHz; AXB35-03/AEB35-04 support 2.4/5/6 GHz; Bluetooth 5.0 or later

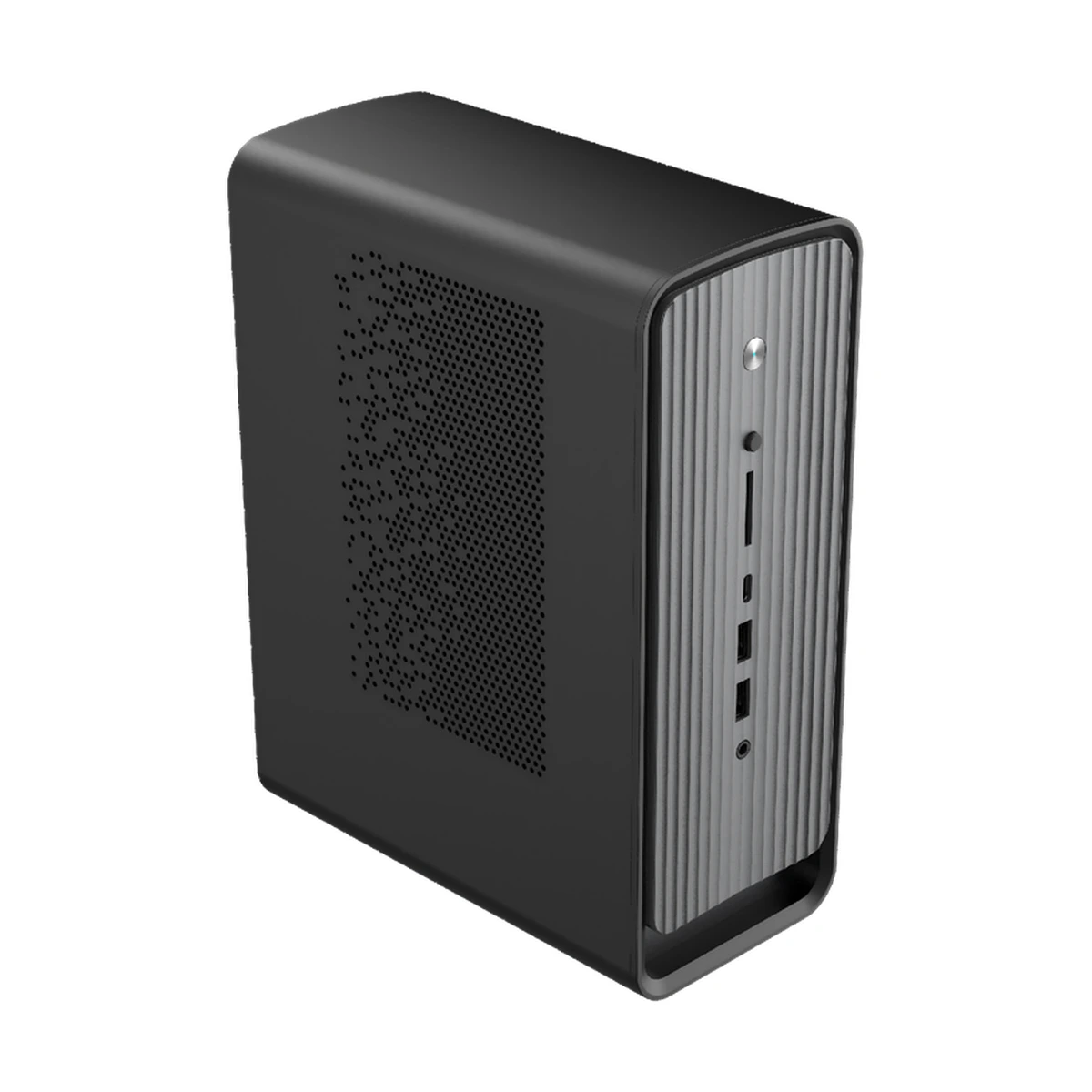

H01/H02/H03/H06/H07: internal 300/350 W Flex PSU; other documented chassis: 20 V / 12 A, 240 W external adapter
AXB35-02/-03: Windows 11; AEB35-04: Windows 11 or Linux
Chassis-dependent; see the chassis compatibility guide below for dimensions and power options.
Compare the three mainboard series, then find a compatible chassis. Memory, networking, display, and expansion options are specific to each series.
AMD FP11 Strix Halo · Ryzen AI Max 300
AMD FP11 Strix / Gorgon Halo · Ryzen AI Max 300 / 400
AMD FP10 Medusa Point · Zen 6
14 compatible chassis
AXB35-02 / AXB35-03 / AEB35-04
248.5 x 188.4 x 97.5 mm
Internal 300/350 W PSU; audio jack
AXB35-02 / AXB35-03
248.5 x 188.4 x 97.5 mm
Internal 300/350 W PSU; MOC fingerprint; audio jack
AXB35-02 / AXB35-03
248.5 x 188.4 x 97.5 mm
Internal 300/350 W PSU; ambient LED; audio jack
AXB35-02 / AXB35-03
203 x 192 x 70 mm
240 W external adapter; optional fingerprint; audio jack
AXB35-02 / AXB35-03
200 x 197.8 x 70 mm
240 W external adapter; optional fingerprint; audio jack
AXB35-02 / AXB35-03
248.5 x 188.4 x 97.5 mm
Internal 300/350 W PSU; MOC fingerprint; audio jack
AXB35-02 / AXB35-03
248.5 x 188.4 x 97.5 mm
Internal 300/350 W PSU; ambient LED; optional fingerprint
AXB35-02 / AXB35-03
206 x 186.5 x 126 mm
Liquid-cooled; optional 3.5-inch touch TFT; 240 W adapter
AXB35-02 / AXB35-03
188 x 190 x 69 mm
240 W external adapter; optional fingerprint; speakers vary
AXB35-02 / AEB35-04
200 x 197.8 x 70 mm
240 W external adapter; optional fingerprint; audio jack
AXB35-02
203 x 192 x 70 mm
240 W external adapter; MOC fingerprint; audio jack
AXB35-02
203 x 192 x 70 mm
240 W external adapter; MOC fingerprint; audio jack
AXB35-02
187 x 196.5 x 55.6 mm
240 W external adapter; optional fingerprint; audio jack
AXB35-02
200 x 197.8 x 70 mm
240 W external adapter; optional fingerprint; audio jack
MCAIPC2 is a configurable AI computer family spanning AXB35-02, AXB35-03, and AEB35-04 mainboards. Choose series-specific AMD processor platforms, LPDDR5 memory, 2.5GbE or dual 10GbE networking, and expansion through USB4, optional Flex I/O, or MCIO. Compatible desktop and tower enclosures offer internal or external power options; the configuration guide below shows which combinations are supported.
Choose AXB35-02, AXB35-03, or AEB35-04. Processor, graphics, NPU, memory, and operating-system support depend on the selected series.
AXB35-02 provides one 2.5GbE RJ45 port. AXB35-03 and AEB35-04 provide two 10GbE RJ45 ports, with different optional high-speed expansion interfaces.
Match the selected mainboard to a compatible chassis, with an internal 300/350 W Flex PSU or a 240 W external adapter. Fingerprint, lighting, and cooling options vary by enclosure.
Contact our team for pricing, lifecycle planning, customization, and bulk order support.
