MCAIPC3B
AMD Ryzen AI options compact AI PC
MCAIPC3B combines AMD Ryzen AI options, up to 64GB DDR5 SO-DIMM, dual 2.5GbE networking, and OCuLink expansion in a 132 x 132 x 50.5 mm enclosure. Dual PCIe 4.0 M.2 storage, HDMI, DisplayPort, and USB4 support local computing and professional desktop workloads.
Product Gallery
A closer look at MCAIPC3B
Different product views highlight the enclosure design, interface layout, and installation details.

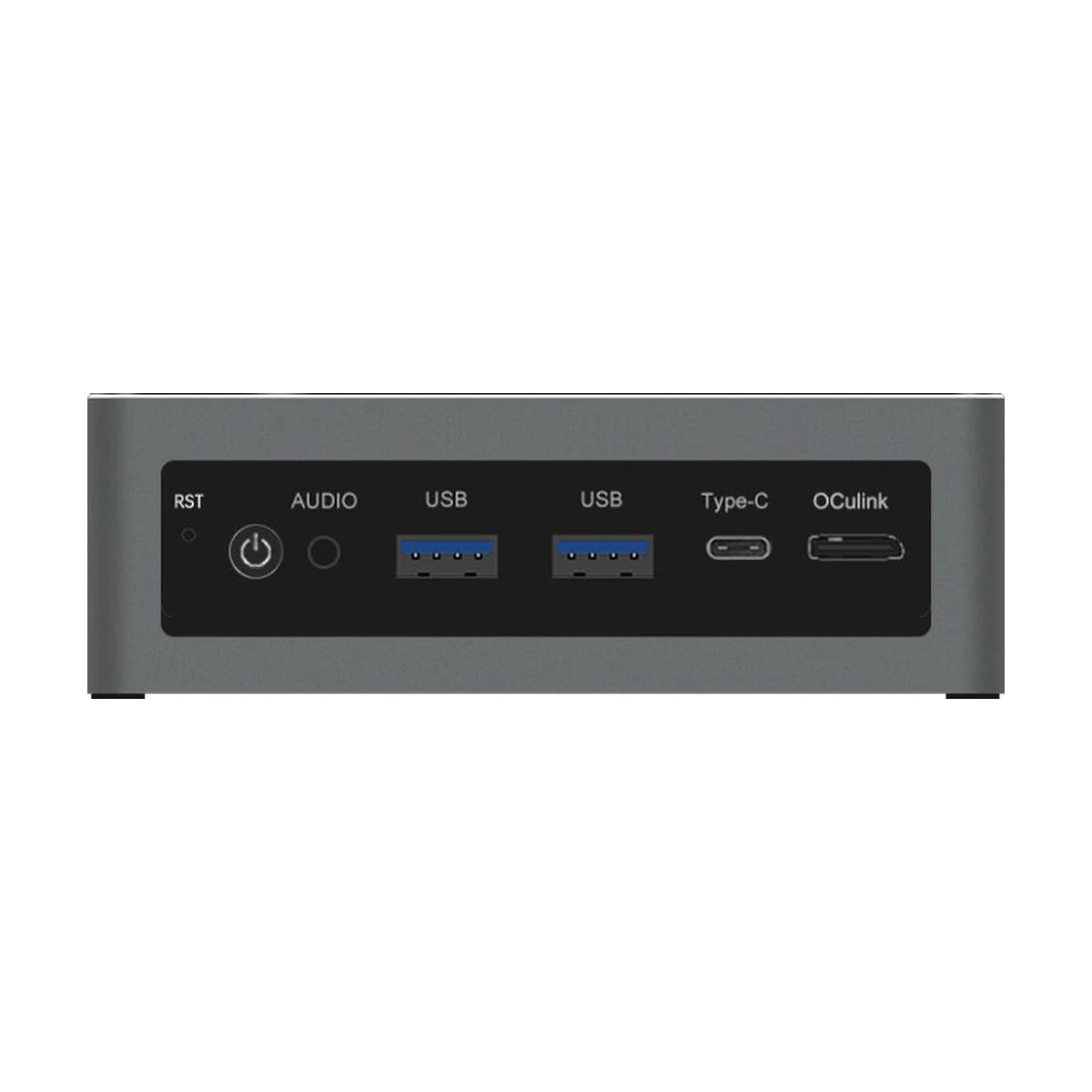

MCAIPC3B front panel

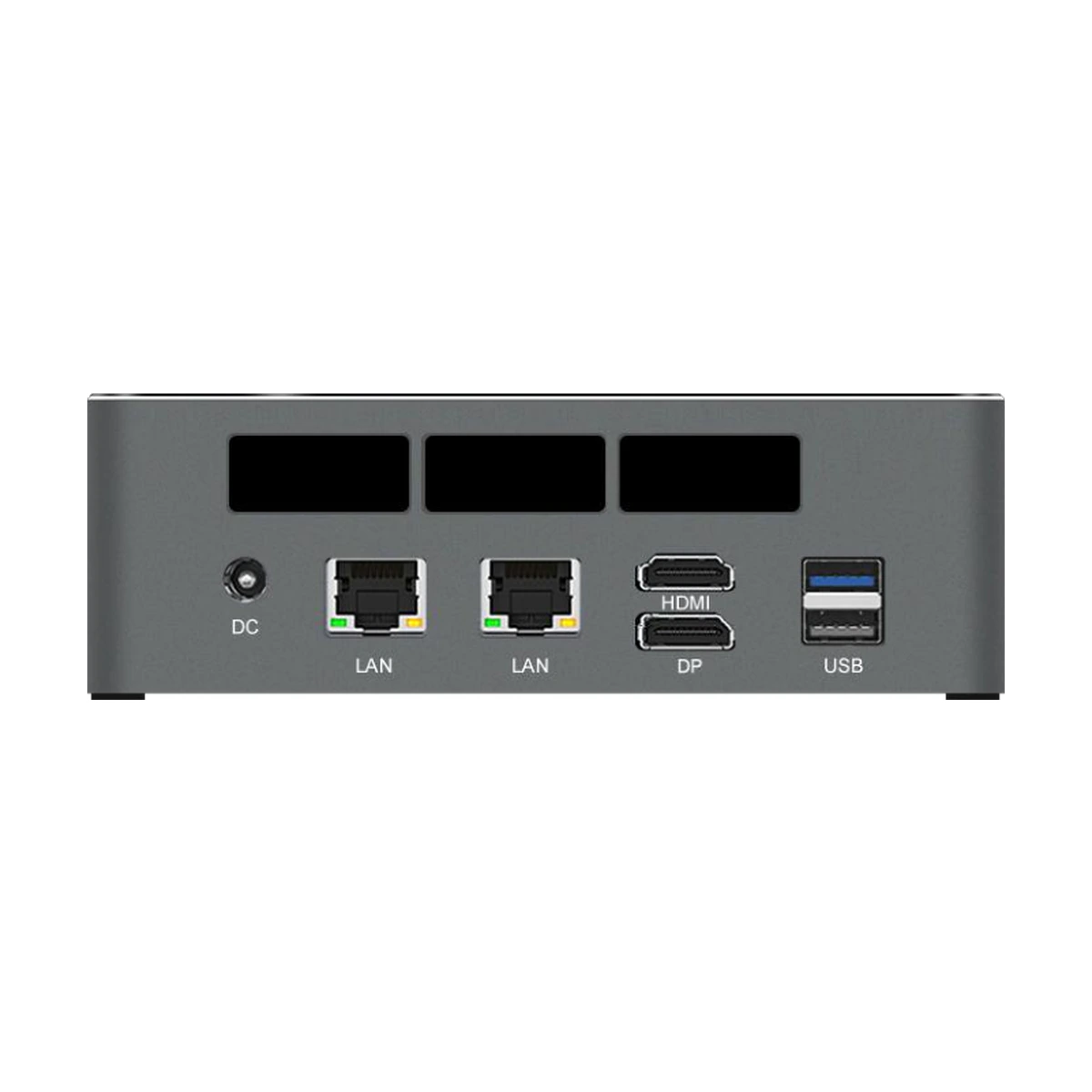

MCAIPC3B rear panel

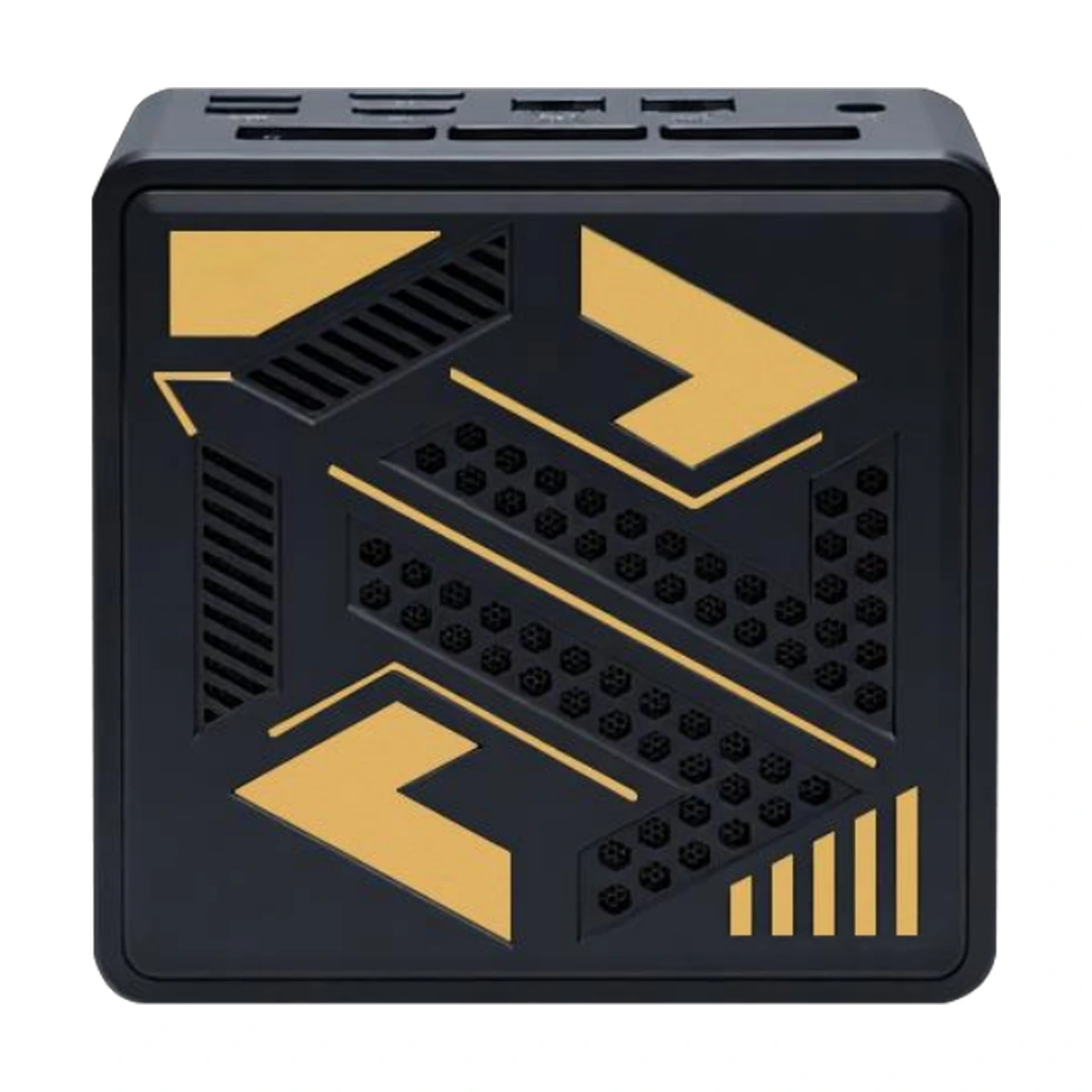

MCAIPC3B enclosure view
Technical Specifications
Industrial-grade configuration details
MCAIPC3B Specification Matrix
Available hardware configurations
Model
MCAIPC3B
CPU
AMD Ryzen AI 5 340; Ryzen AI 7 Pro 360; Ryzen AI 9 365; Ryzen AI 9 HX 370; Ryzen AI 9 HX 470
Graphics
AMD Radeon 880M / 890M
Memory
2 x DDR5 SO-DIMM slots, up to 5600 MT/s, max 64 GB
Storage - M.2 SSD
2 x M.2 2280 PCIe4.0 SSD
Network
2 x RJ45 2.5 GbE ports
USB
3 x USB3.0; 1 x USB2.0; 1 x USB4 Type-C
Audio
1 x audio combo jack, Realtek ALC869
Display
1 x HDMI2.1; 1 x DP2.1; 1 x USB4 Type-C display output
Front I/O - Ports & buttons
1 x power button; 1 x reset pinhole; 1 x audio jack; 2 x USB3.0; 1 x USB4 Type-C; 1 x OCuLink
Rear I/O - Ports
1 x DC input; 2 x RJ45 2.5 GbE; 1 x HDMI2.1; 1 x DP2.1; 1 x USB3.0; 1 x USB2.0
High-speed interface
1 x OCuLink
Wireless
Wi-Fi 6E; Bluetooth 5.2
Adapter
AC 100-240 V input; DC 19 V output (5.5 x 2.5 mm)
OS
Windows 10 / Windows 11 Pro
Dimensions
132 x 132 x 50.5 mm
Weight
Approx. 605 g
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCAIPC3B combines AMD Ryzen AI options, up to 64GB DDR5 SO-DIMM, dual 2.5GbE networking, and OCuLink expansion in a 132 x 132 x 50.5 mm enclosure. Dual PCIe 4.0 M.2 storage, HDMI, DisplayPort, and USB4 support local computing and professional desktop workloads.
Configurable Computing Platform
AMD Ryzen AI options. Processor and graphics configuration follows the selected model and order specification.
Dual 2.5GbE and Display I/O
Two 2.5GbE RJ45 ports, HDMI 2.1, DisplayPort 2.1, and USB4 display output connect network, desktop, and display workloads.
Storage and Expansion
Two M.2 2280 PCIe 4.0 SSD slots and OCuLink expansion support compatible storage and external devices.
