MCAIPC3C
Intel Core Ultra options compact AI PC
MCAIPC3C combines Intel Core Ultra options, up to 64GB DDR5 SO-DIMM, dual 2.5GbE networking, and OCuLink expansion in a 132 x 132 x 50.5 mm enclosure. Dual PCIe 4.0 M.2 storage, HDMI, DisplayPort, and USB4 support local computing and professional desktop workloads.
Product Gallery
A closer look at MCAIPC3C
Different product views highlight the enclosure design, interface layout, and installation details.

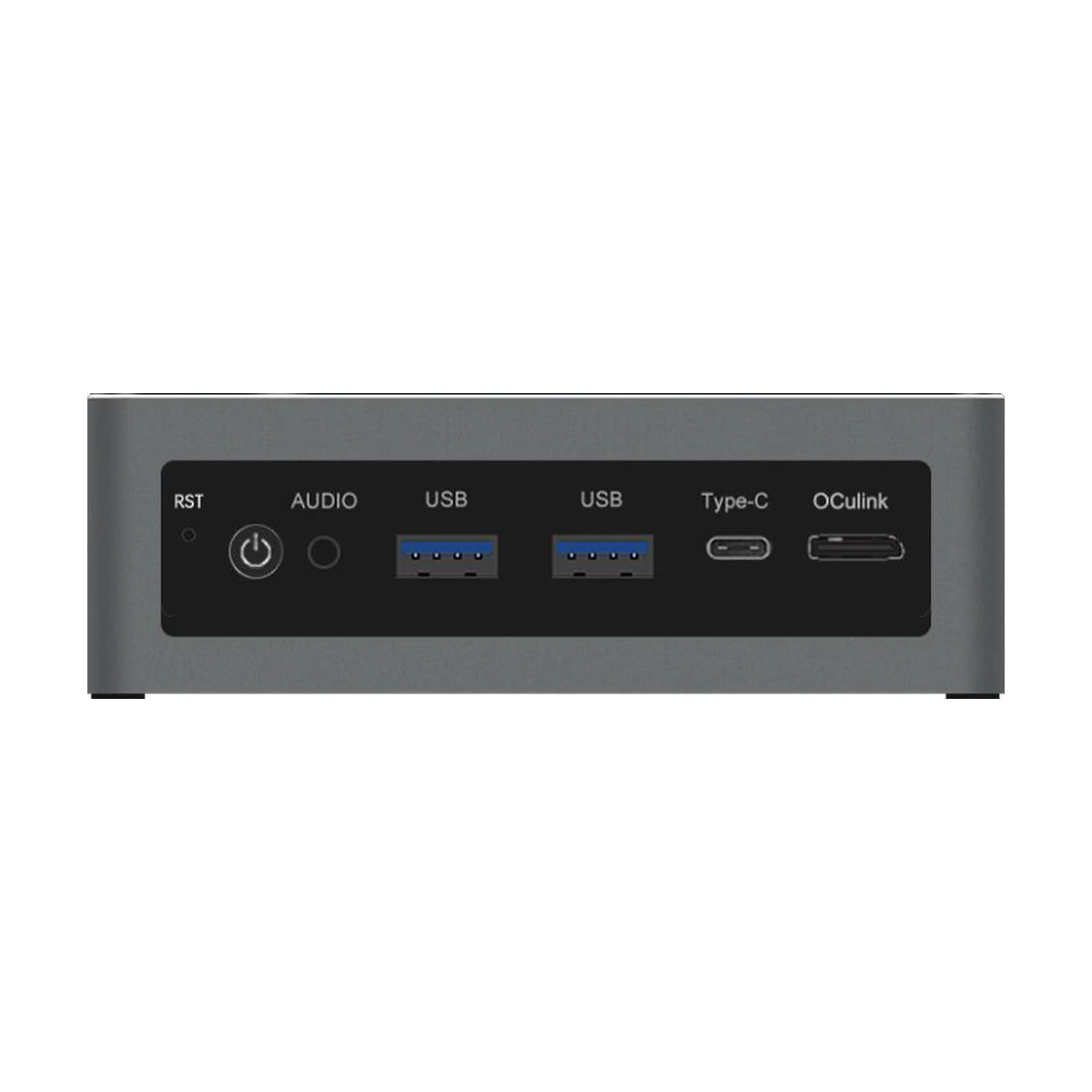

MCAIPC3C front panel

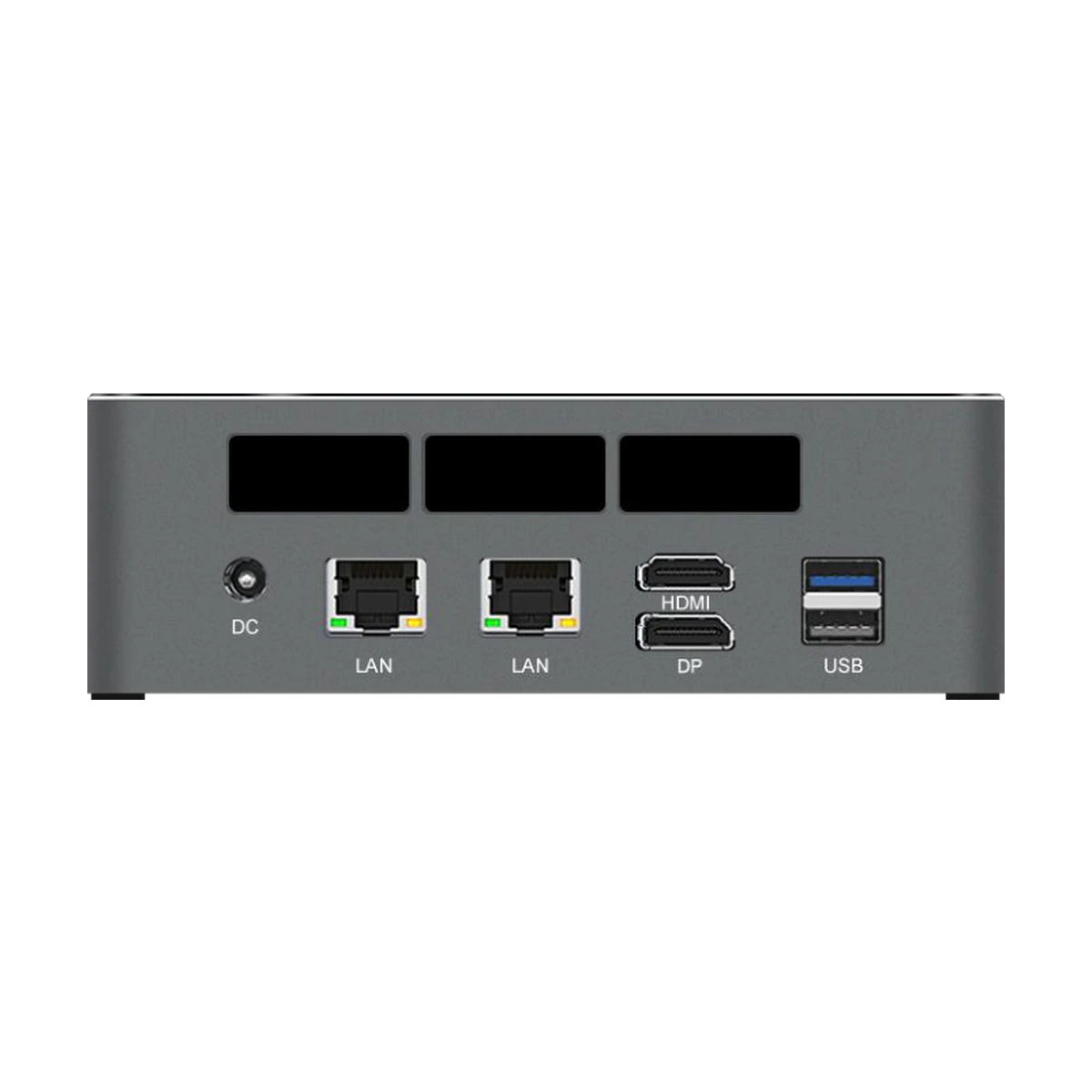

MCAIPC3C rear panel

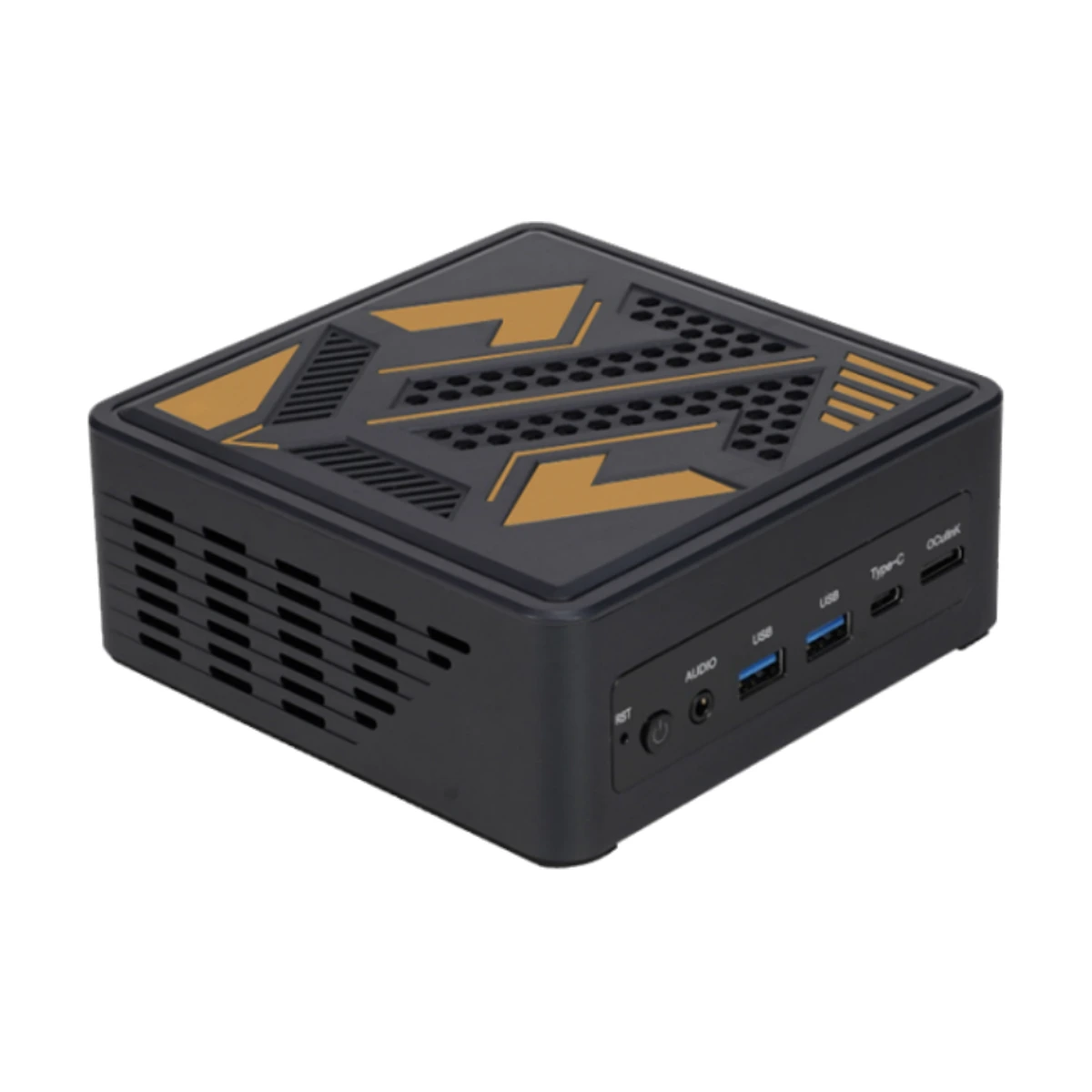

MCAIPC3C enclosure view
Technical Specifications
Industrial-grade configuration details
MCAIPC3C Specification Matrix
Available hardware configurations
Model
MCAIPC3C
CPU
Intel Core Ultra 5 125H; Ultra 7 165H; Ultra 9 185H; Ultra 7 255H; Ultra 9 285H
Graphics
Intel Arc Graphics (125H / 165H / 185H); Intel Arc 140T GPU (255H / 285H)
Memory
2 x DDR5 SO-DIMM slots, up to 5600 MT/s, max 64 GB
Storage - M.2 SSD
2 x M.2 2280 PCIe4.0 SSD
Network
2 x RJ45 2.5 GbE ports
USB
3 x USB3.0; 1 x USB2.0; 1 x USB4 Type-C
Audio
1 x audio combo jack, Realtek ALC869
Display
1 x HDMI2.1; 1 x DP2.1; 1 x USB4 Type-C display output
Front I/O - Ports & buttons
1 x power button; 1 x reset pinhole; 1 x audio jack; 2 x USB3.0; 1 x USB4 Type-C; 1 x OCuLink
Rear I/O - Ports
1 x DC input; 2 x RJ45 2.5 GbE; 1 x HDMI2.1; 1 x DP2.1; 1 x USB3.0; 1 x USB2.0
High-speed interface
1 x OCuLink
Wireless
Wi-Fi 6E; Bluetooth 5.2
Adapter
AC 100-240 V input; DC 19 V output (5.5 x 2.5 mm)
OS
Windows 10 / Windows 11 Pro
Dimensions
132 x 132 x 50.5 mm
Weight
Approx. 605 g
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCAIPC3C combines Intel Core Ultra options, up to 64GB DDR5 SO-DIMM, dual 2.5GbE networking, and OCuLink expansion in a 132 x 132 x 50.5 mm enclosure. Dual PCIe 4.0 M.2 storage, HDMI, DisplayPort, and USB4 support local computing and professional desktop workloads.
Configurable Computing Platform
Intel Core Ultra options. Processor and graphics configuration follows the selected model and order specification.
Dual 2.5GbE and Display I/O
Two 2.5GbE RJ45 ports, HDMI 2.1, DisplayPort 2.1, and USB4 display output connect network, desktop, and display workloads.
Storage and Expansion
Two M.2 2280 PCIe 4.0 SSD slots and OCuLink expansion support compatible storage and external devices.
Interested in MCAIPC3C?
Contact our team for pricing, lifecycle planning, customization, and bulk order support.
