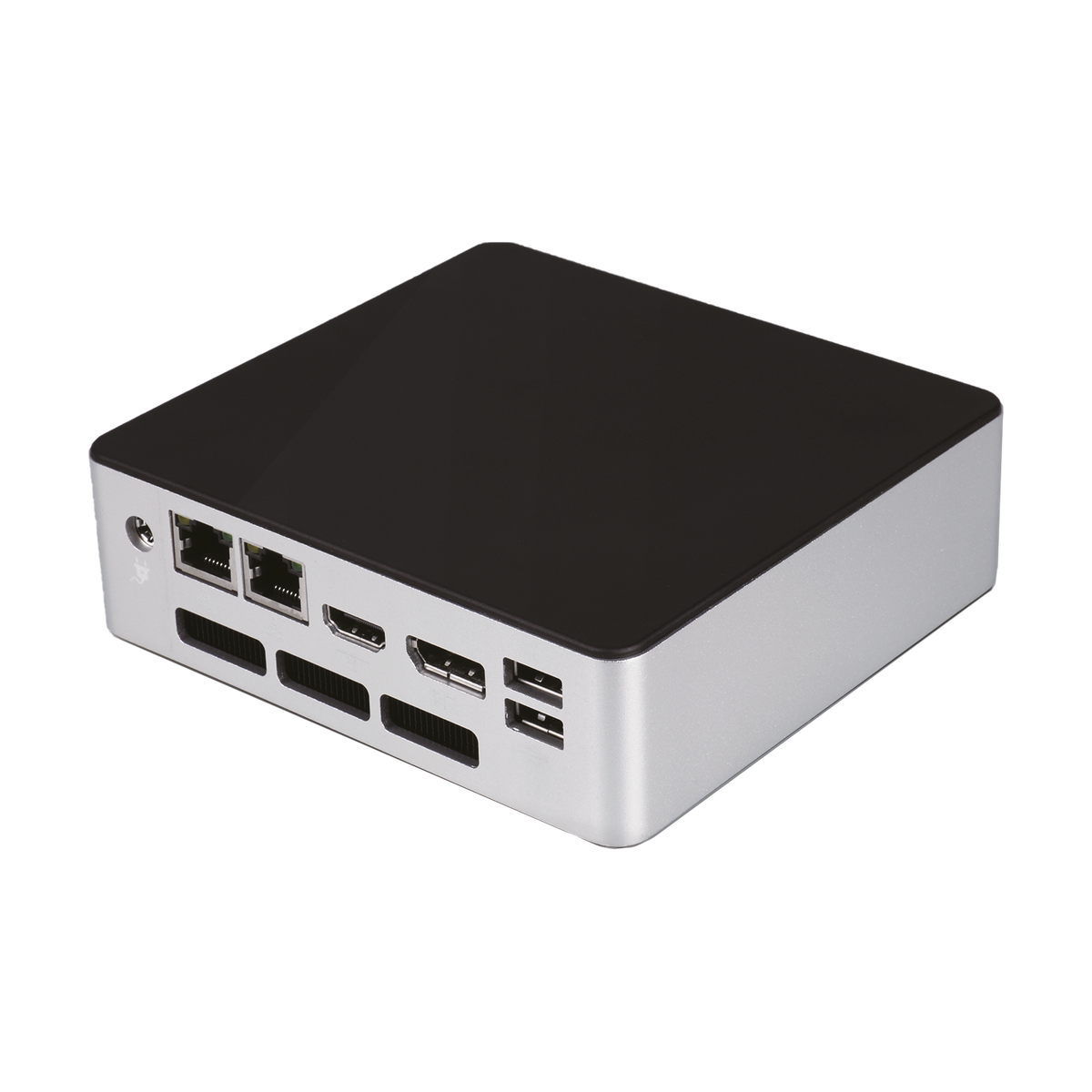

MC12
12th and 13th Gen Intel Core compact desktop PC
MC12 combines 12th and 13th Gen Intel Core U/P-series processor options, dual Gigabit LAN, triple-display connectivity, DDR5 memory, and dual M.2 storage in a compact aluminum enclosure.
Product Gallery
A closer look at MC12
Different product views highlight the enclosure design, interface layout, and installation details.

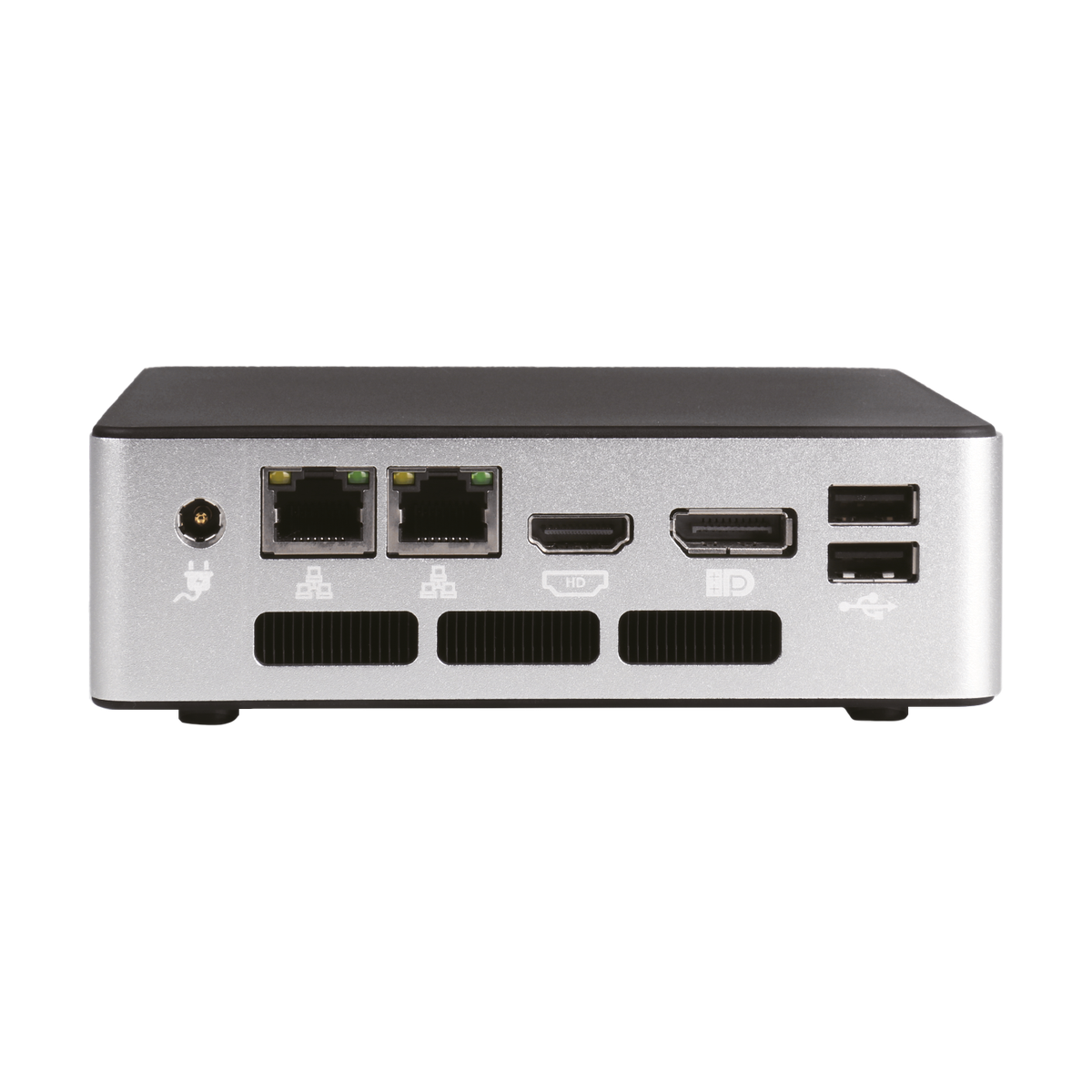

MC12 enclosure and interface view

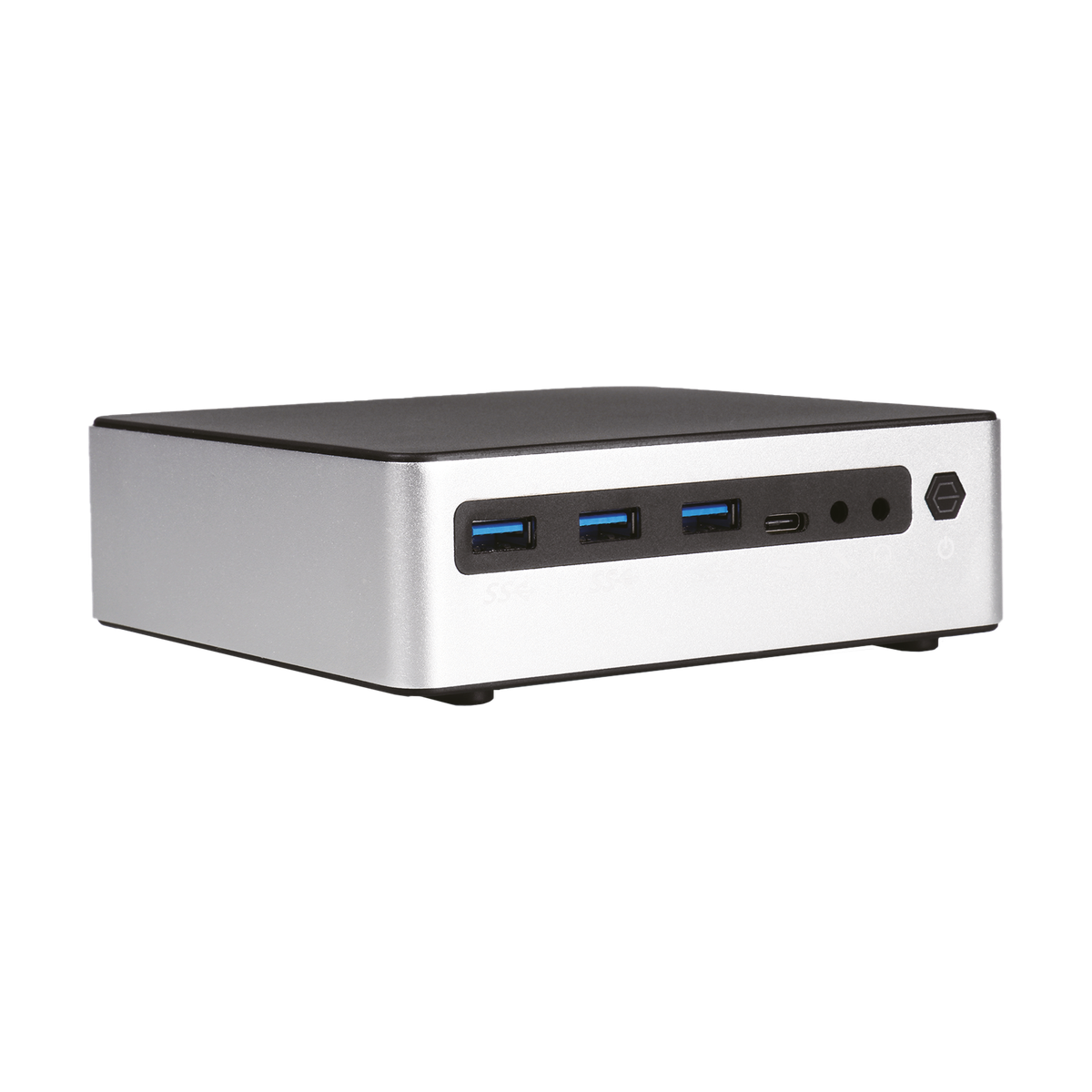

MC12 product view 2
Technical Specifications
Industrial-grade configuration details
MC12 Specification Matrix
Available hardware configurations
Operating Range
0°C to 60°C; 0% to 95% relative humidity, non-condensing
Model
MC12
CPU
Intel Core i3-1215U / i5-1245U / i7-1255U / i5-1340P / i7-1360P
Chipset
Intel 12th / 13th Gen Alder Lake U/P
Graphics
Intel UHD Graphics or Iris Xe Graphics
Video
DisplayPort 1.4a, HDMI 2.1, and USB Type-C
Memory
2 x DDR5 SO-DIMM, up to 64GB at 4800MHz
USB
3 x USB 3.2, 2 x USB 2.0, and 1 x USB Type-C
Material
Aluminum alloy
Power
DC 12V
Network
2 x Realtek RTL8111H Gigabit Ethernet
Storage
2 x M.2 NVMe 2280; one slot also supports SATA
Expansion
M.2 E-Key 2230 for Wi-Fi / CNVi
Front I/O
3 x USB 3.0; 1 x USB Type-C; 1 x audio output; 1 x microphone input; 1 x power button
Rear I/O
1 x 12V DC input; 2 x Realtek RTL8111H Gigabit Ethernet; 1 x DisplayPort 1.4a; 1 x HDMI 2.1; 1 x power button
Internal I/O
1 x M.2 E-Key 2230 for Wi-Fi 6; 1 x M.2 storage slot with SATA support; 2 x DDR5 SO-DIMM slots
Dimensions
135 x 125 x 49 mm
BIOS
AMI EFI BIOS
TDP
13W base, up to 35W turbo
System
Windows 10 / Windows 11 / Linux
Working Environment
0°C to 60°C; 0% to 95% relative humidity, non-condensing
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MC12 combines 12th and 13th Gen Intel Core U/P-series processor options, dual Gigabit LAN, triple-display connectivity, DDR5 memory, and dual M.2 storage in a compact aluminum enclosure.
Flexible Compute Platforms
The desktop range spans efficient Intel N-series systems, Intel Core platforms, and AMD Ryzen performance configurations.
Display & Peripheral Connectivity
Model-specific HDMI, DisplayPort, Type-C, USB4, Thunderbolt, and OCuLink options support varied commercial workspaces.
Configurable Memory & Storage
Choose memory capacity, NVMe, SATA, wireless, and network options according to the target workload and deployment.
Interested in MC12?
Contact our team for pricing, lifecycle planning, customization, and bulk order support.
