MCAR9
AMD Ryzen AI 300 desktop PC with USB4 and OCuLink
MCAR9 provides AMD Ryzen AI 7 PRO 360, Ryzen AI 9 365 or Ryzen AI 9 HX 370 processor options, Radeon 880M/890M graphics, up to 128GB DDR5, dual 2.5GbE and dual NVMe storage. USB4 and OCuLink support high-speed peripherals and compatible external graphics docks.
Product Gallery
A closer look at MCAR9
Different product views highlight the enclosure design, interface layout, and installation details.

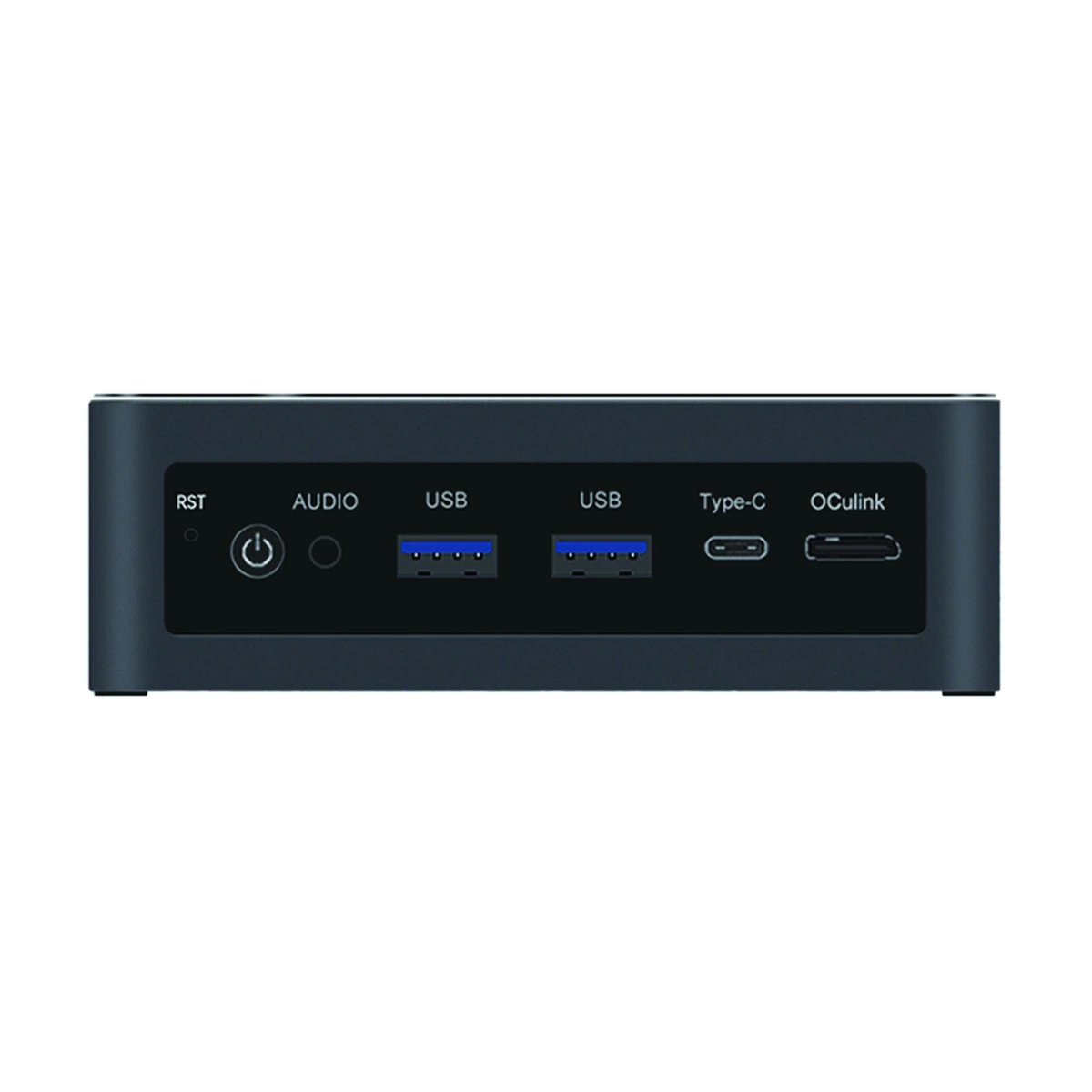

MCAR9 front panel

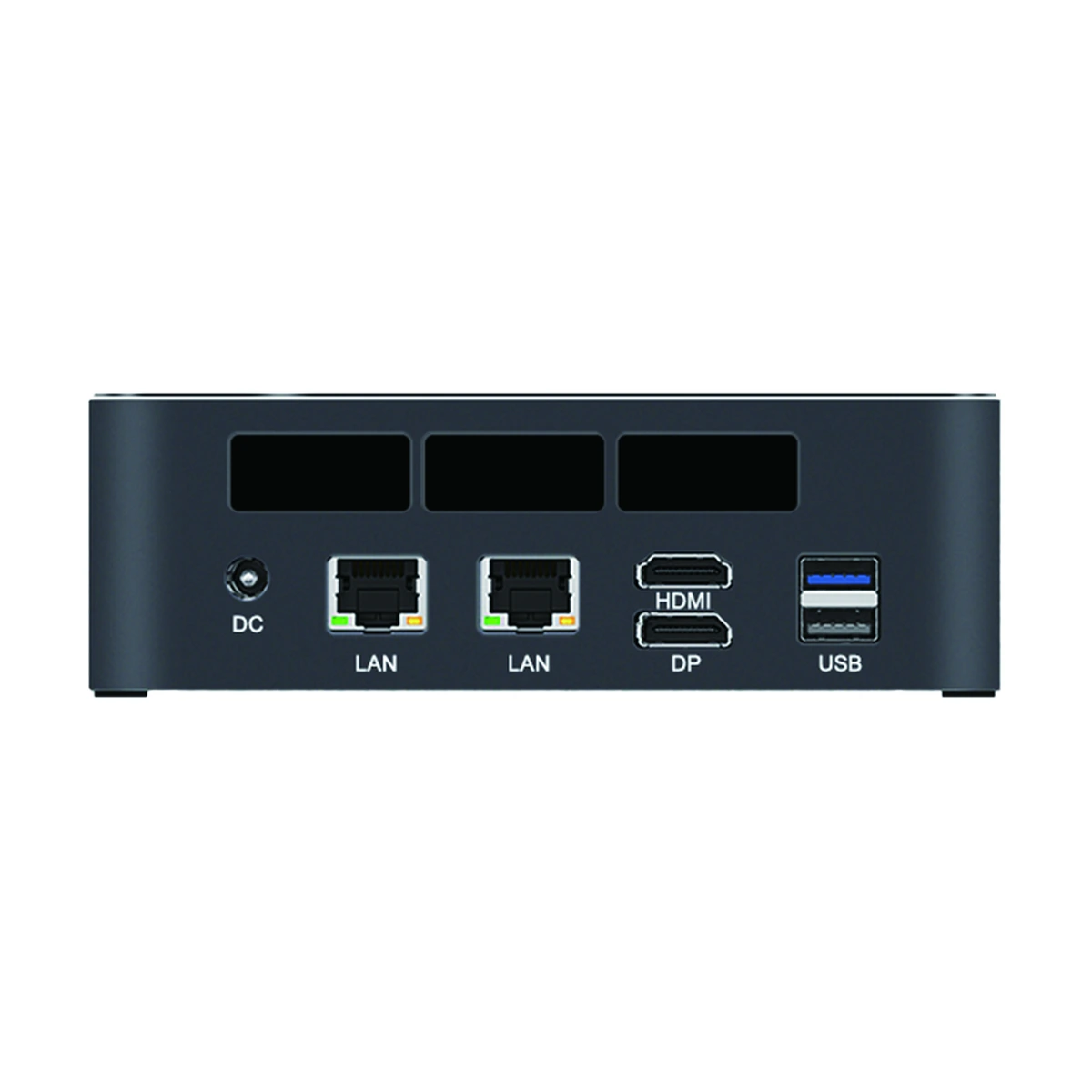

MCAR9 rear panel

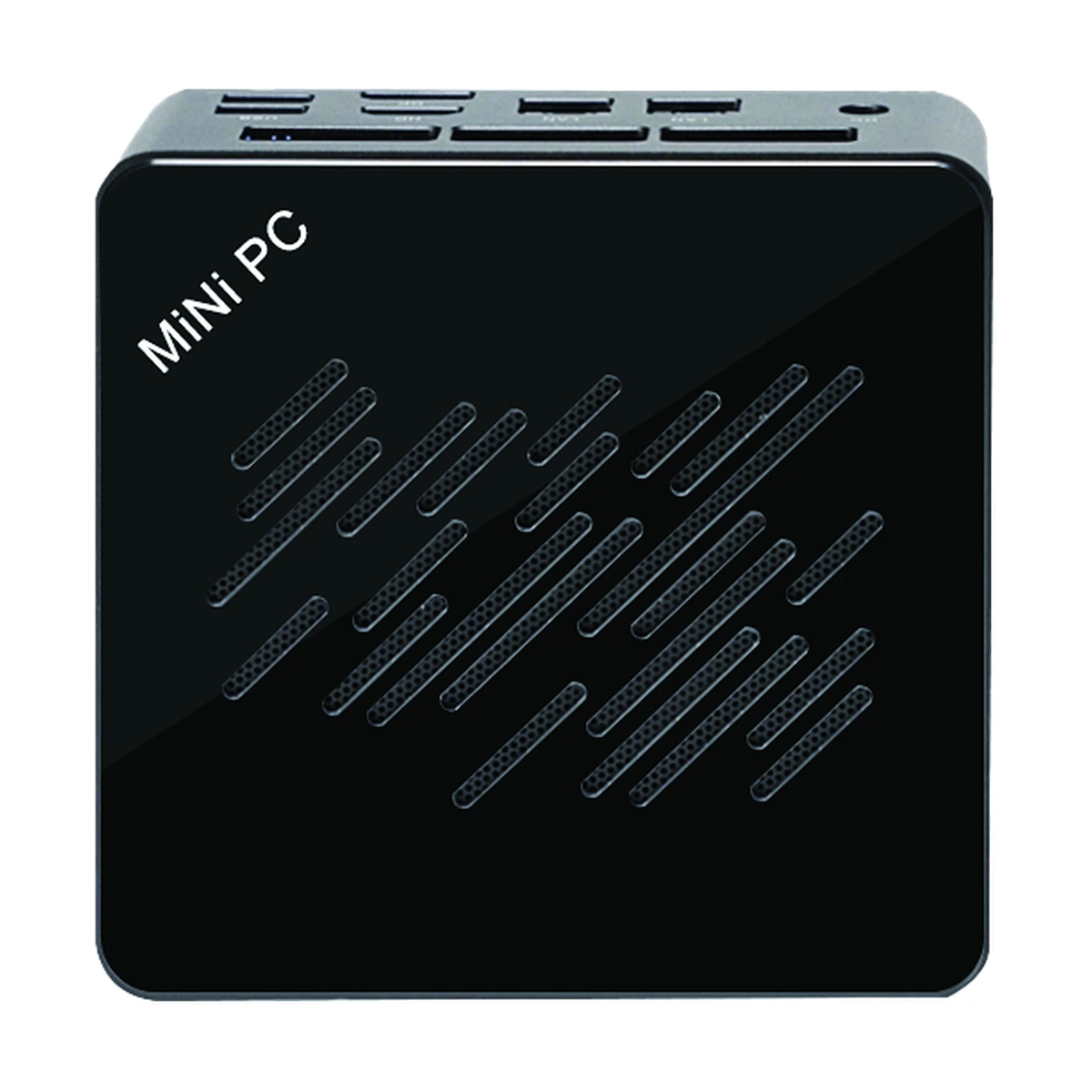

MCAR9 enclosure view
Technical Specifications
Industrial-grade configuration details
MCAR9 Specification Matrix
Available hardware configurations
Operating Range
0°C to 50°C
Model
MCAR9
CPU
AMD Ryzen AI 7 PRO 360 / Ryzen AI 9 365 / Ryzen AI 9 HX 370
Chipset
Ryzen AI 300
Graphics
AMD Radeon 880M/AMD Radeon 890M
Display
1 x HDMI (8k@60Hz/4K@120Hz); 1 x DP (8k@60Hz/4K@160Hz); 1 x USB4 (4K@120Hz)
Memory
2 x DDR5 SO-DIMM Memory slot, Up to 128GB 5600MHz
USB
3 x USB3.0; 1 x USB2.0
Power
19V/6.32A 120W
Network
2 x Intel i226V 2.5G Ethernet LAN
Storage
2 x M.2 2280 NVME SSD hard drive slot
Wireless
WiFi-6E, Bluetooth 5.3
Dimensions
132 x 132 x 50.5 mm
BIOS
AMI BIOS (Legacy or UEFI)
TDP
Depends on CPU
OS
Windows10/Windows11
Environment - Operating
0~50 C; 5%~90% Relative humidity; (no condensation)
Front I/O - Ports
1 x power button; 1 x RST reset hole; 2 x USB 3.0; 1 x 3.5mm Combined audio interface; 1 x USB4 40Gbps; 1 x OCulink Connect to graphics card expansion dock
Rear I/O - Ports
1 x DC IN 19V/6.32A; 2 x Intel i226V 2.5G Ethernet LAN; 1 x HDMI 2.1; 1 x DP 2.1; 1 x USB3.0; 1 x USB2.0
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCAR9 provides AMD Ryzen AI 7 PRO 360, Ryzen AI 9 365 or Ryzen AI 9 HX 370 processor options, Radeon 880M/890M graphics, up to 128GB DDR5, dual 2.5GbE and dual NVMe storage. USB4 and OCuLink support high-speed peripherals and compatible external graphics docks.
Flexible Compute Platforms
The desktop range spans efficient Intel N-series systems, Intel Core platforms, and AMD Ryzen performance configurations.
Display & Peripheral Connectivity
Model-specific HDMI, DisplayPort, Type-C, USB4, Thunderbolt, and OCuLink options support varied commercial workspaces.
Configurable Memory & Storage
Choose memory capacity, NVMe, SATA, wireless, and network options according to the target workload and deployment.
Interested in MCAR9?
Contact our team for pricing, lifecycle planning, customization, and bulk order support.
