MCCN51
Compact Intel N5100 mini PC with dual 4K display
MCCN51 is a practical commercial mini PC with Intel Celeron N5100, dual 4K HDMI output, up to 32GB DDR4, Wi-Fi 6, and NVMe storage for everyday office and display deployments.
Product Gallery
A closer look at MCCN51
Different product views highlight the enclosure design, interface layout, and installation details.

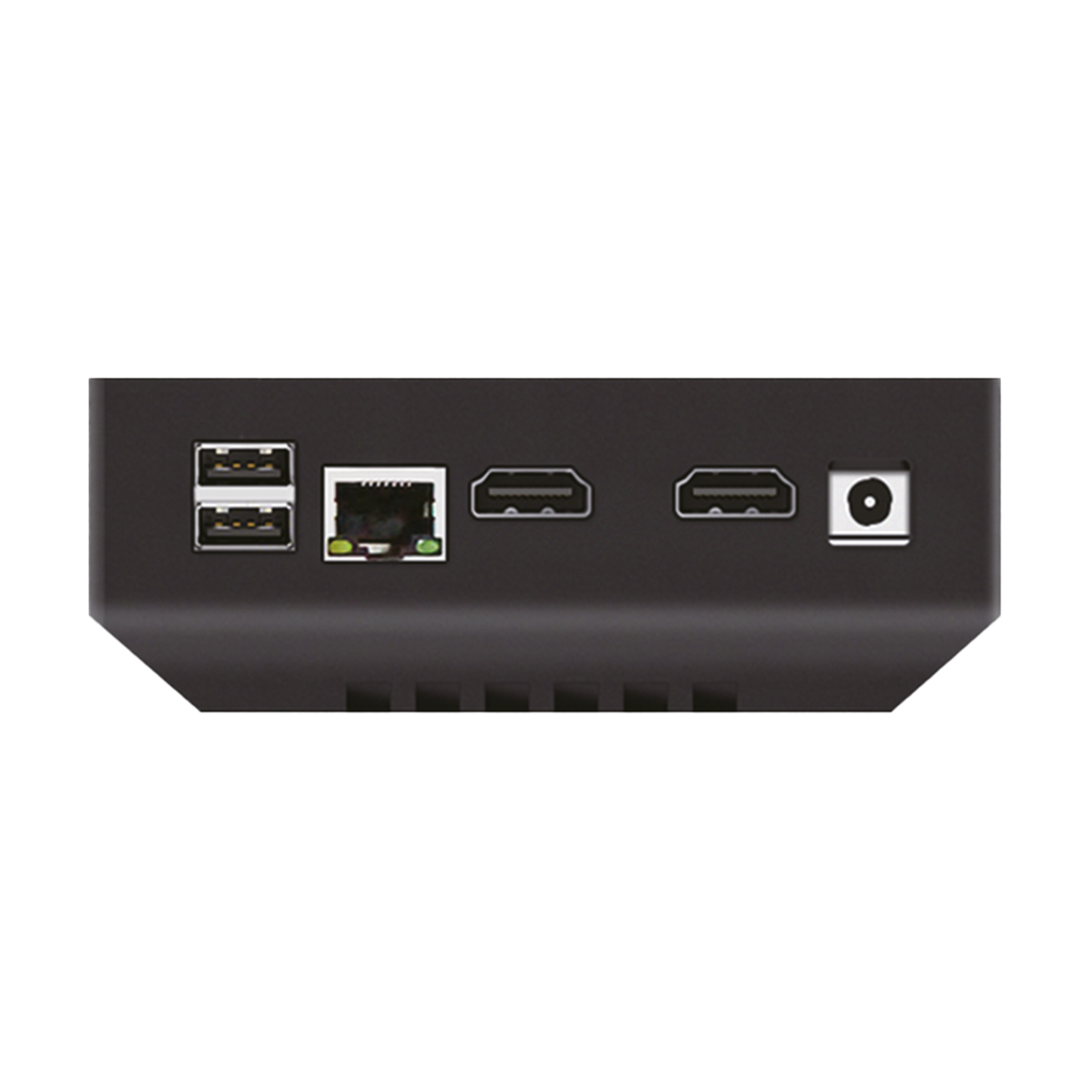

MCCN51 enclosure and interface view

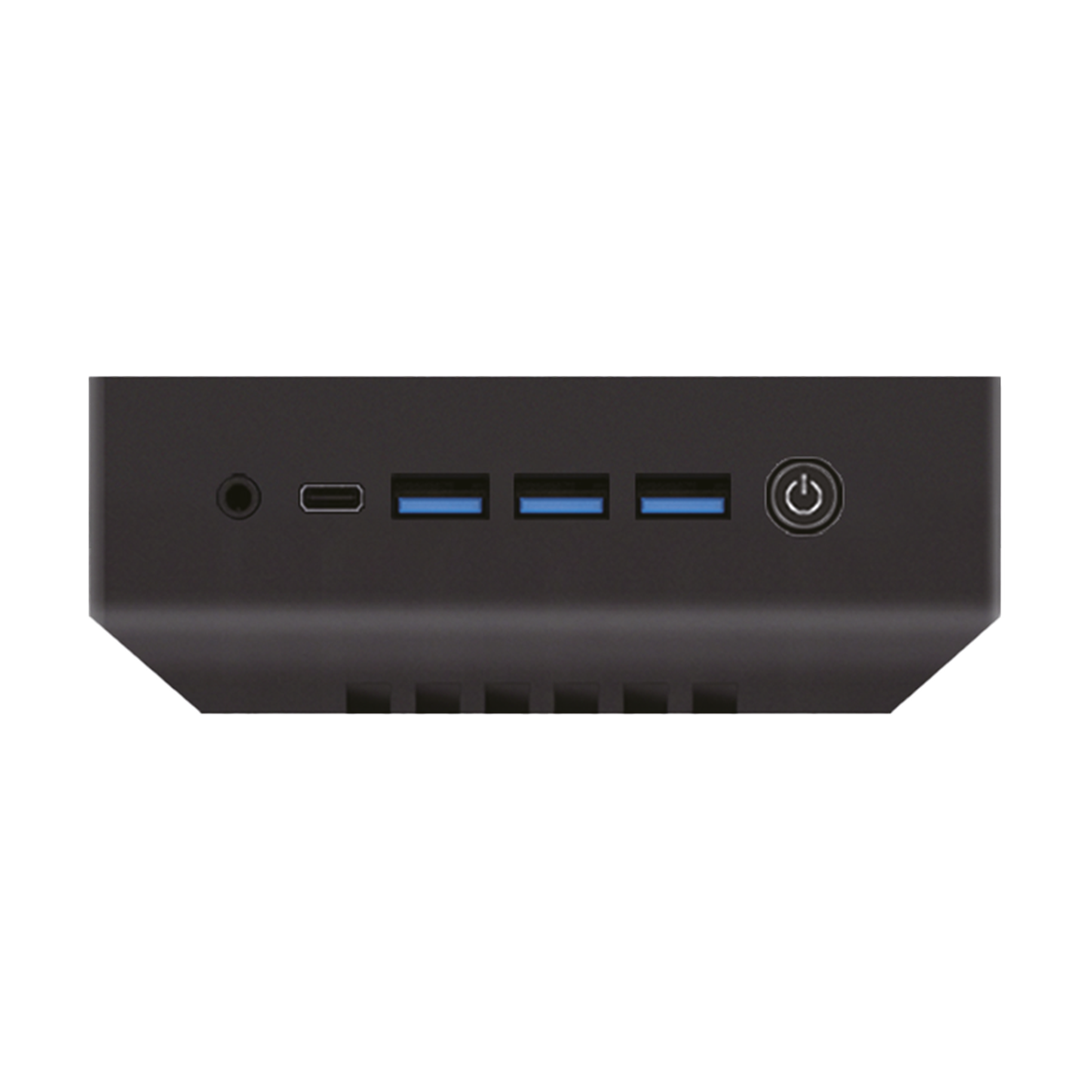

MCCN51 product view 2
Technical Specifications
Industrial-grade configuration details
MCCN51 Specification Matrix
Available hardware configurations
Operating Range
0°C to 50°C; 5% to 90% relative humidity, non-condensing
Model
MCCN51
CPU
Intel Celeron N5100
Chipset
Intel Celeron N-series
Graphics
Intel UHD Graphics
Video
2 x HDMI 2.0, supporting dual 4K at 60Hz
Memory
2 x DDR4 SO-DIMM, up to 32GB
USB
3 x USB 3.0, 2 x USB 2.0, and 1 x Type-C
Power
12V / 3A, 36W adapter
Network
1 x Gigabit Ethernet
Storage
1 x M.2 NVMe 2280 PCIe 3.0 x4, up to 2TB
Wireless
Wi-Fi 6 and Bluetooth 5.2
Front I/O
3 x USB 3.0; 1 x Type-C; 1 x 3.5 mm audio jack; 1 x power button
Rear I/O
2 x HDMI 2.0; 2 x USB 2.0; 1 x Gigabit Ethernet; 1 x DC input
Dimensions
123 x 115 x 47 mm
Weight
Approx. 410 g
TDP
6W
System
Windows 7 / 10 / 11 64-bit; Linux 64-bit
Working Environment
0°C to 50°C; 5% to 90% relative humidity, non-condensing
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCCN51 is a practical commercial mini PC with Intel Celeron N5100, dual 4K HDMI output, up to 32GB DDR4, Wi-Fi 6, and NVMe storage for everyday office and display deployments.
Flexible Compute Platforms
The desktop range spans efficient Intel N-series systems, Intel Core platforms, and AMD Ryzen performance configurations.
Display & Peripheral Connectivity
Model-specific HDMI, DisplayPort, Type-C, USB4, Thunderbolt, and OCuLink options support varied commercial workspaces.
Configurable Memory & Storage
Choose memory capacity, NVMe, SATA, wireless, and network options according to the target workload and deployment.
