MCDPC1
Intel N100 / N150 compact desktop PC
MCDPC1 is an Intel N100 / N150 desktop mini PC with replaceable DDR4 memory, dual Gigabit LAN, two M.2 2280 storage slots, and DisplayPort, HDMI, and USB-C display connections. A built-in 36 W power supply simplifies desk installation.
Product Gallery
A closer look at MCDPC1
Different product views highlight the enclosure design, interface layout, and installation details.

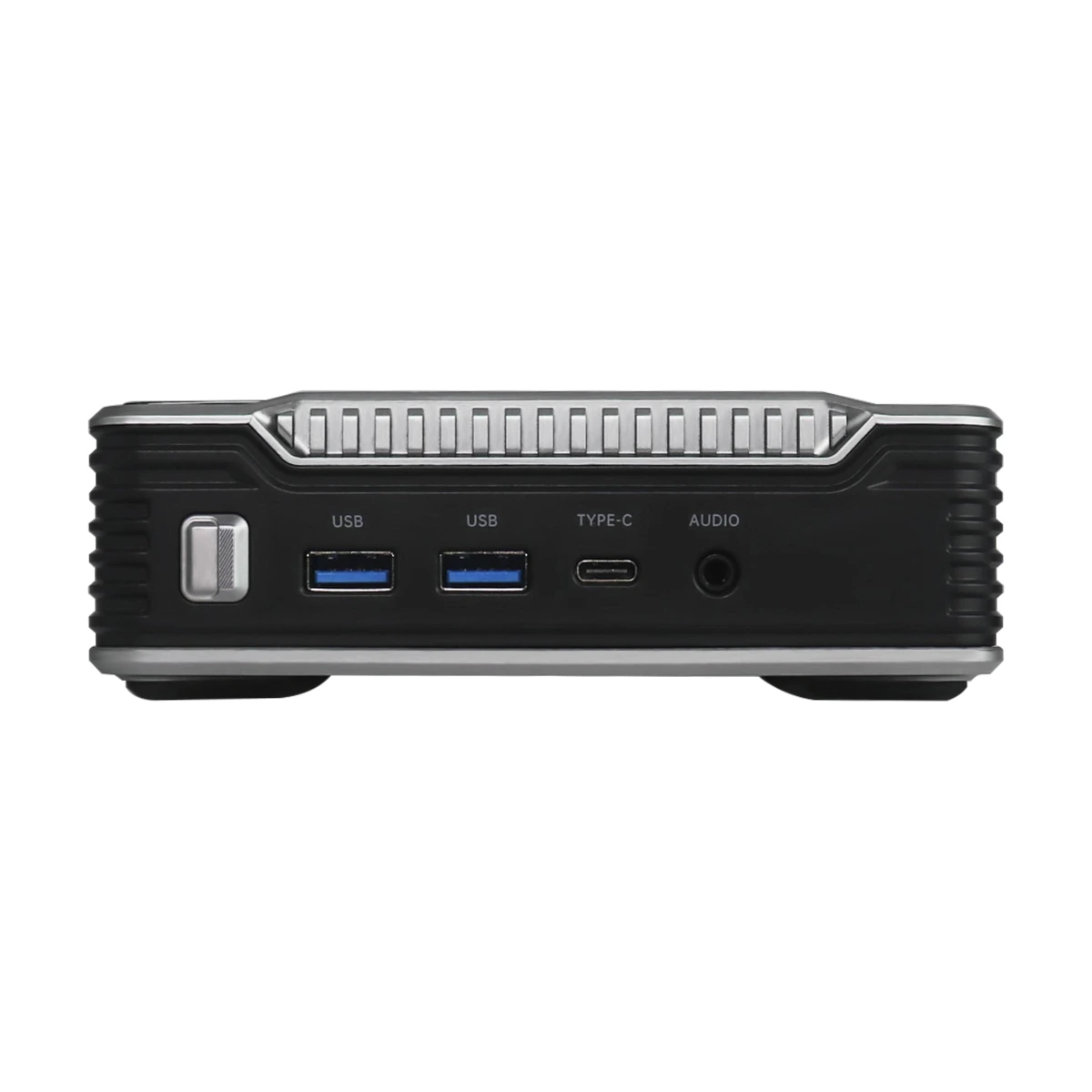

MCDPC1 front panel

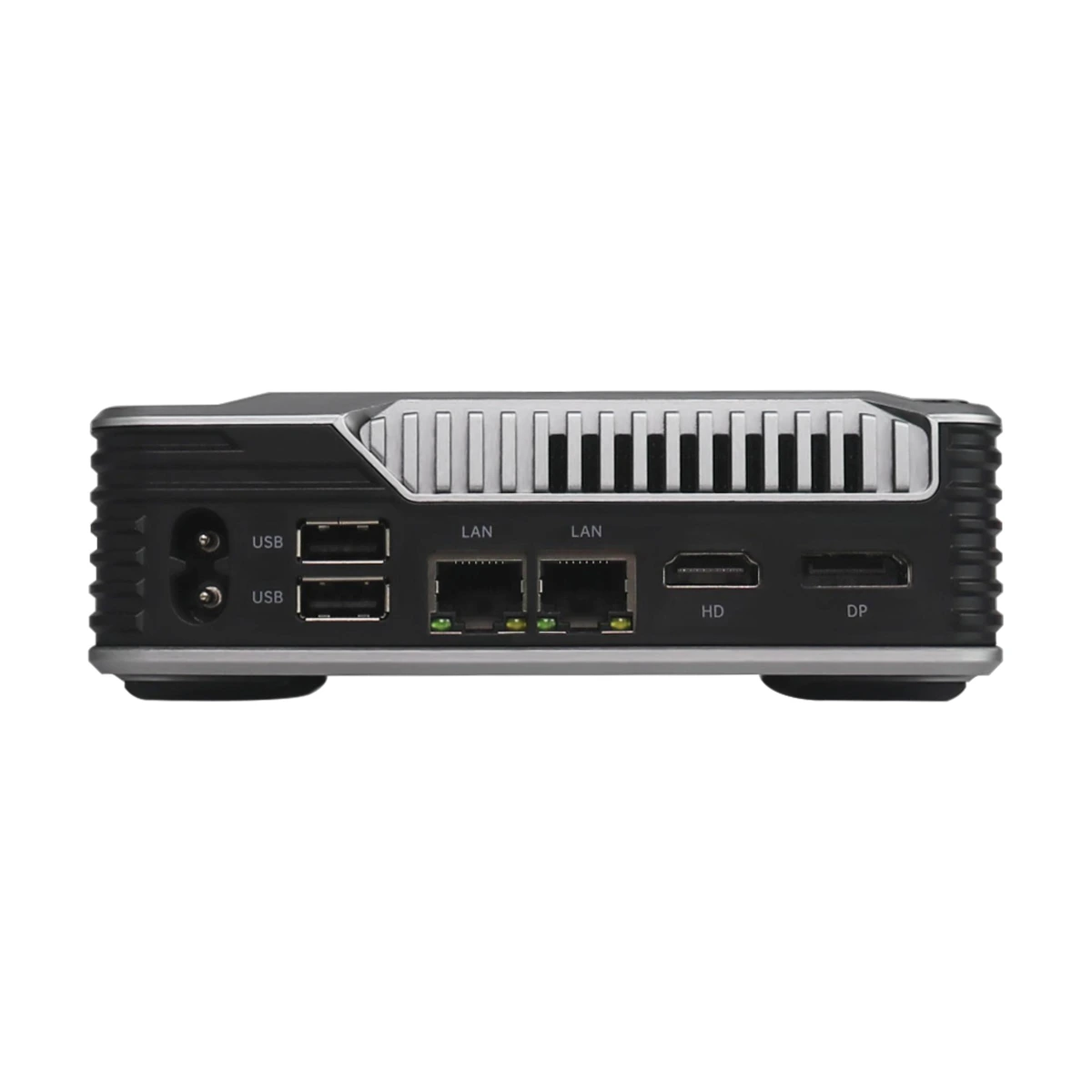

MCDPC1 rear panel

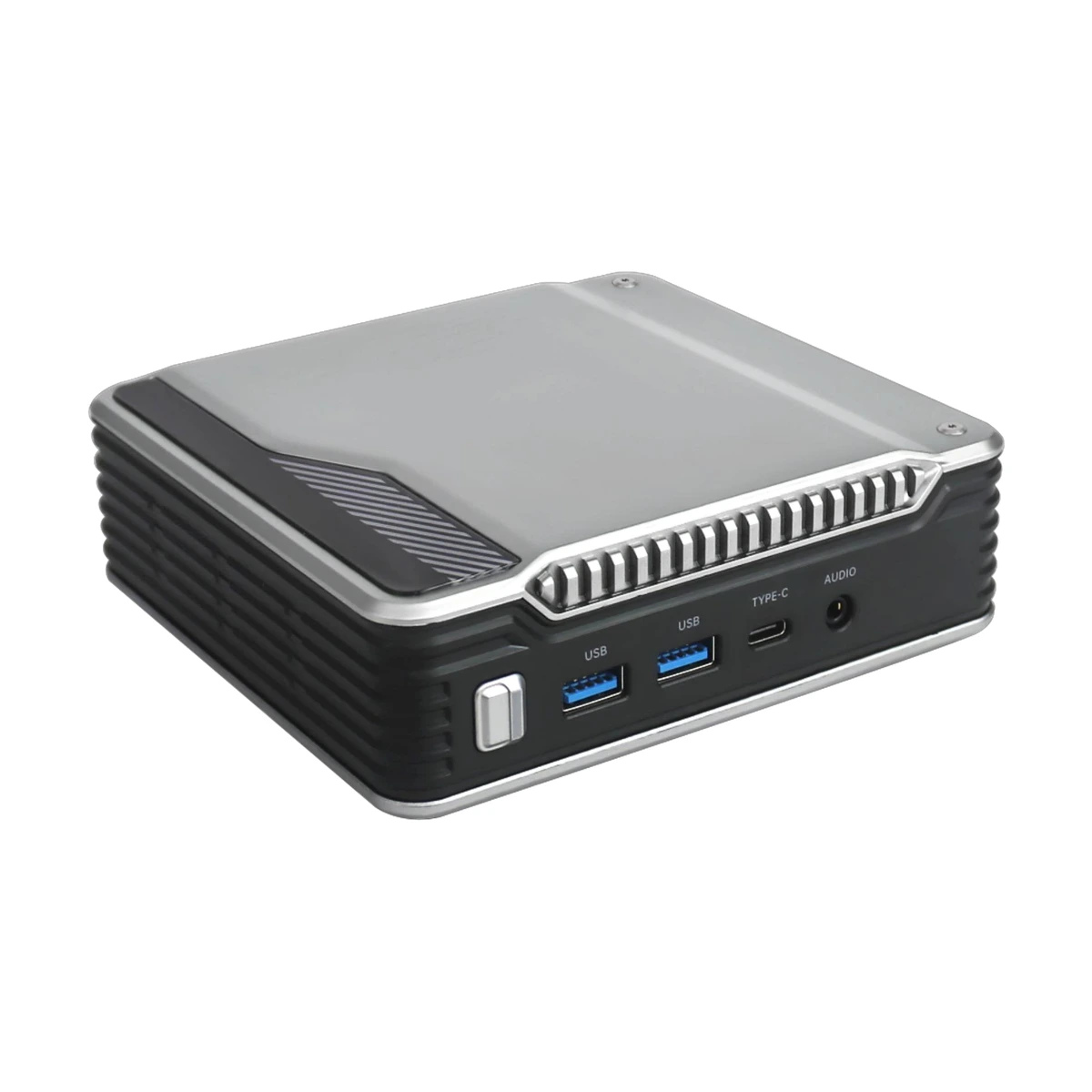

MCDPC1 enclosure view
Technical Specifications
Industrial-grade configuration details
MCDPC1 Specification Matrix
Available hardware configurations
Operating Range
-20°C to 60°C
Model
MCDPC1
CPU
Intel Alder Lake-N N100 / N150
Memory
1 x DDR4 SODIMM, max 16 GB
Network
2 x Realtek RTL8111H Gigabit Ethernet ports
USB
2 x USB3.2 Gen2 Type-A (10 Gb/s); 2 x USB2.0; 1 x USB3.2 Gen2 Type-C (10 Gb/s)
DP
1 x DP1.4
HDMI
1 x HDMI2.1
USB Type-C
1 x USB Type-C display output
Power button
1 x Power button
Audio
1 x headphone/microphone combo jack
Storage - M.2 SSD
2 x M.2 2280 NVMe (1 slot also supports M.2 SATA)
Wi-Fi
1 x M.2 2232 for Wi-Fi
OS
Windows 10, Windows 11, Linux
Features
Wake-on-LAN, Auto Power On, scheduled power-on, PXE boot
AC input
AC 100-240 V, 50/60 Hz; built-in 36 W power supply
Material
Fire-retardant ABS
Installation
Desktop
Dimensions
140 x 133 x 46 mm, including silicone feet
Weight
2 kg
Environment - Storage temperature
-30~70 C
Environment - Operating temperature
-20~60 C
Environment - Storage humidity
10%~90% RH at 30 C, non-condensing
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCDPC1 is an Intel N100 / N150 desktop mini PC with replaceable DDR4 memory, dual Gigabit LAN, two M.2 2280 storage slots, and DisplayPort, HDMI, and USB-C display connections. A built-in 36 W power supply simplifies desk installation.
Flexible Compute Platforms
The desktop range spans efficient Intel N-series systems, Intel Core platforms, and AMD Ryzen performance configurations.
Display & Peripheral Connectivity
Model-specific HDMI, DisplayPort, Type-C, USB4, Thunderbolt, and OCuLink options support varied commercial workspaces.
Configurable Memory & Storage
Choose memory capacity, NVMe, SATA, wireless, and network options according to the target workload and deployment.
