MCGM13
13th Gen Intel Core mini PC with quad-display support
MCGM13 combines 13th Gen Intel Core U-series performance, dual 2.5GbE, Thunderbolt 4, four-display connectivity, dual NVMe storage, and optional 2.5-inch storage for professional desktop workloads.
Product Gallery
A closer look at MCGM13
Different product views highlight the enclosure design, interface layout, and installation details.

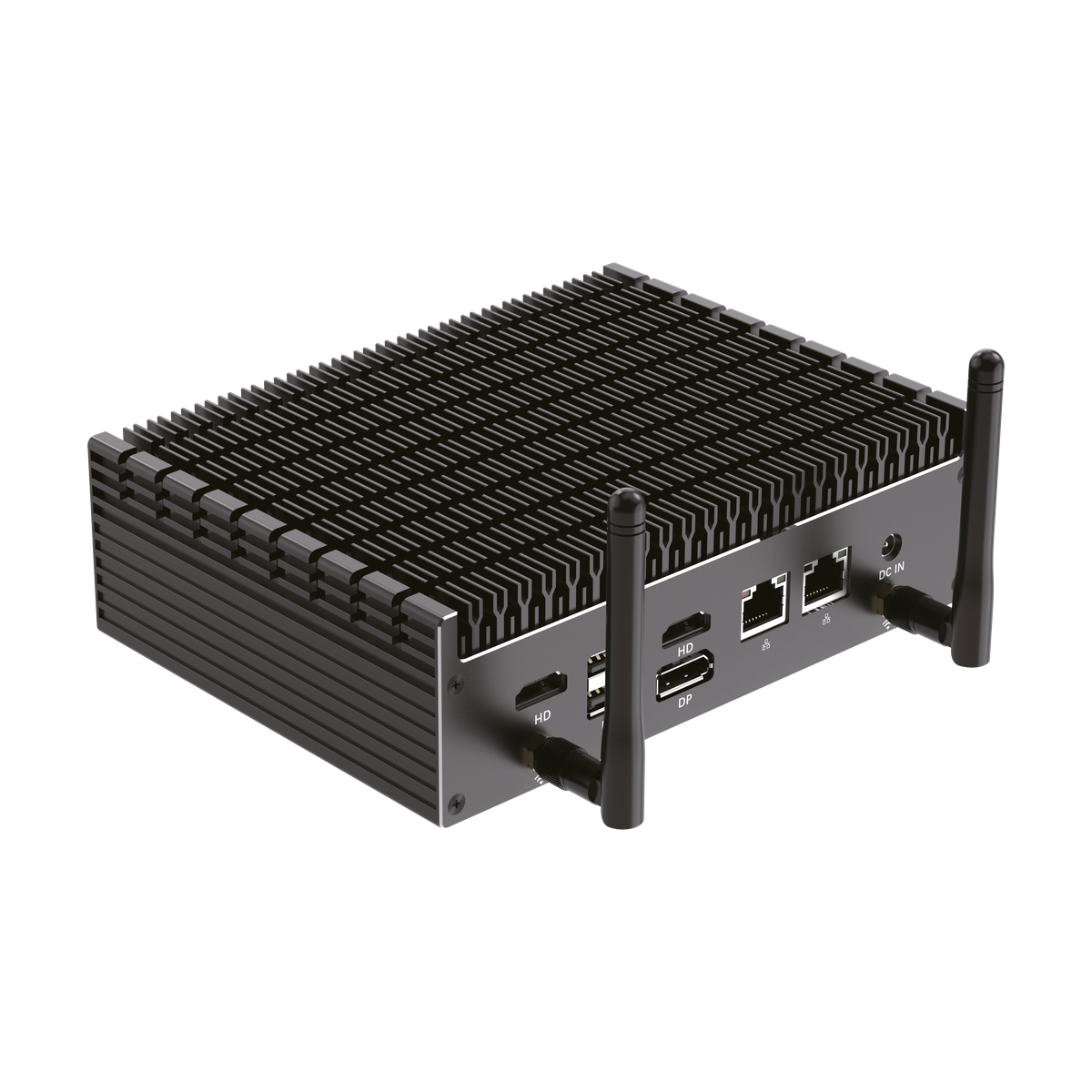

MCGM13 enclosure and interface view
Technical Specifications
Industrial-grade configuration details
MCGM13 Specification Matrix
Available hardware configurations
Operating Range
0°C to 70°C; 5% to 90% relative humidity
Model
MCGM13
CPU
13th Gen Intel Core U-series, including Core i7-13350 / i7-1355U
Chipset
Intel 13th Gen Raptor Lake
Graphics
Intel Iris Xe Graphics, supporting up to four displays
Video
2 x HDMI 2.0, DisplayPort 1.4, and Thunderbolt 4 Type-C
Memory
2 x DDR5 SO-DIMM, up to 64GB at 4800 / 5200MHz
USB
4 x USB 3.2 Gen 1, 2 x USB 2.0, and Thunderbolt 4 Type-C
Power
12V to 19V, 90W; Type-C PD supported with a compatible 96W+ supply
Network
2 x 2.5GbE RJ45
Storage
M.2 2280 SATA / NVMe Gen3 x4; M.2 2280 NVMe PCIe Gen4 x4; optional 2.5-inch SATA drive
Wireless
1 x M.2 2230 slot for Wi-Fi / Bluetooth

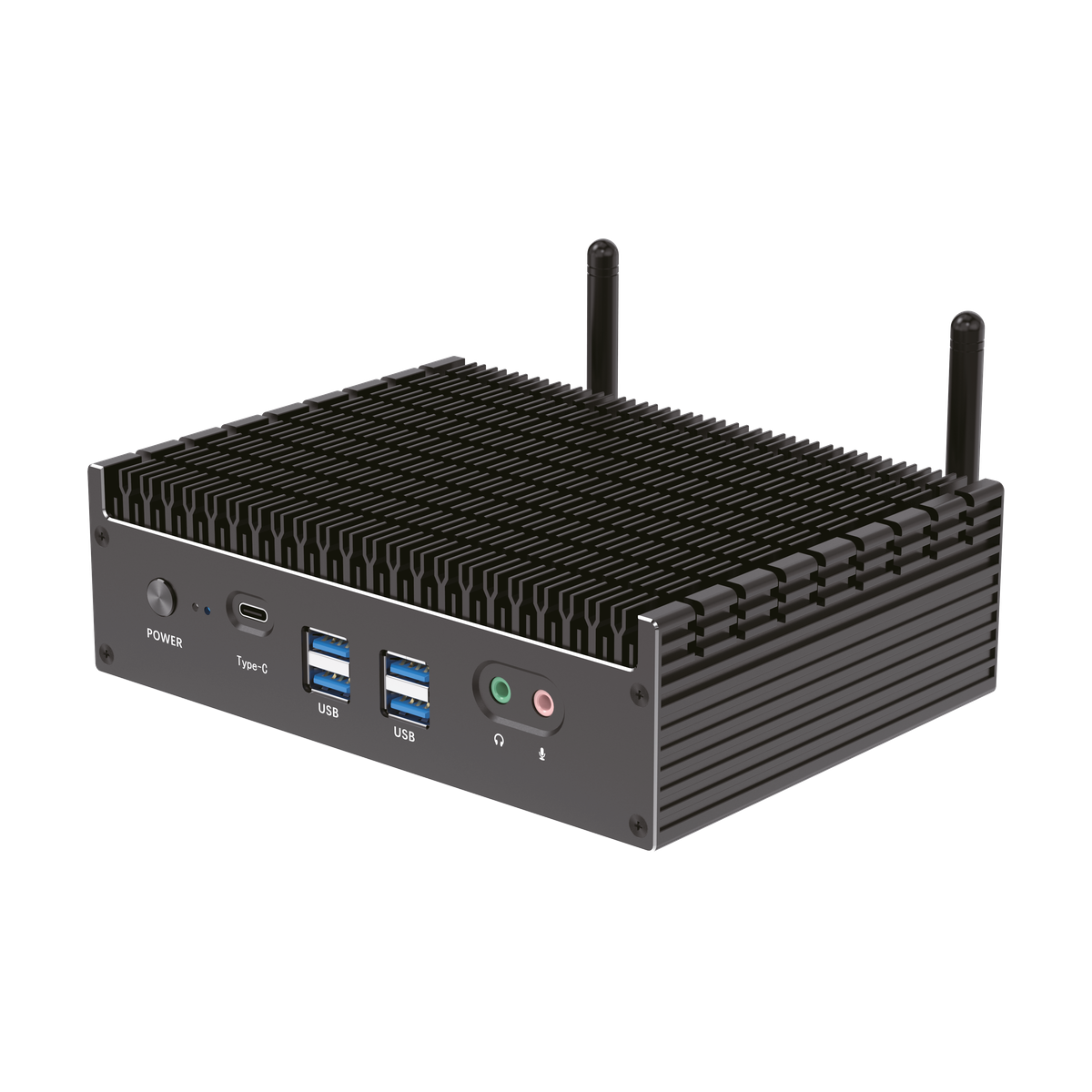

Front I/O
1 x power button; 1 x Thunderbolt 4 Type-C with compatible PD input; 4 x USB 3.2 Gen 1; 1 x 3.5 mm headphone jack; 1 x 3.5 mm microphone input
Rear I/O
1 x 12V-19V DC input; 2 x 2.5GbE RJ45; 2 x HDMI 2.0; 1 x DisplayPort 1.4; 2 x USB 2.0; 2 x Wi-Fi antenna connectors
Dimensions
175 x 128 x 46 mm
BIOS
AMI UEFI BIOS with PXE and Wake-on-LAN
TDP
15W
Working Environment
0°C to 70°C; 5% to 90% relative humidity
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCGM13 combines 13th Gen Intel Core U-series performance, dual 2.5GbE, Thunderbolt 4, four-display connectivity, dual NVMe storage, and optional 2.5-inch storage for professional desktop workloads.
Flexible Compute Platforms
The desktop range spans efficient Intel N-series systems, Intel Core platforms, and AMD Ryzen performance configurations.
Display & Peripheral Connectivity
Model-specific HDMI, DisplayPort, Type-C, USB4, Thunderbolt, and OCuLink options support varied commercial workspaces.
Configurable Memory & Storage
Choose memory capacity, NVMe, SATA, wireless, and network options according to the target workload and deployment.
