MCMQ12/13
12th and 13th Gen Intel Core compact desktop series
MCMQ12/13 is a compact Intel Core platform covering 12th and 13th Gen U, P, H, and HK processor options with USB4, dual HDMI, DDR4 memory, and dual M.2 storage.
Product Gallery
A closer look at MCMQ12/13
Different product views highlight the enclosure design, interface layout, and installation details.

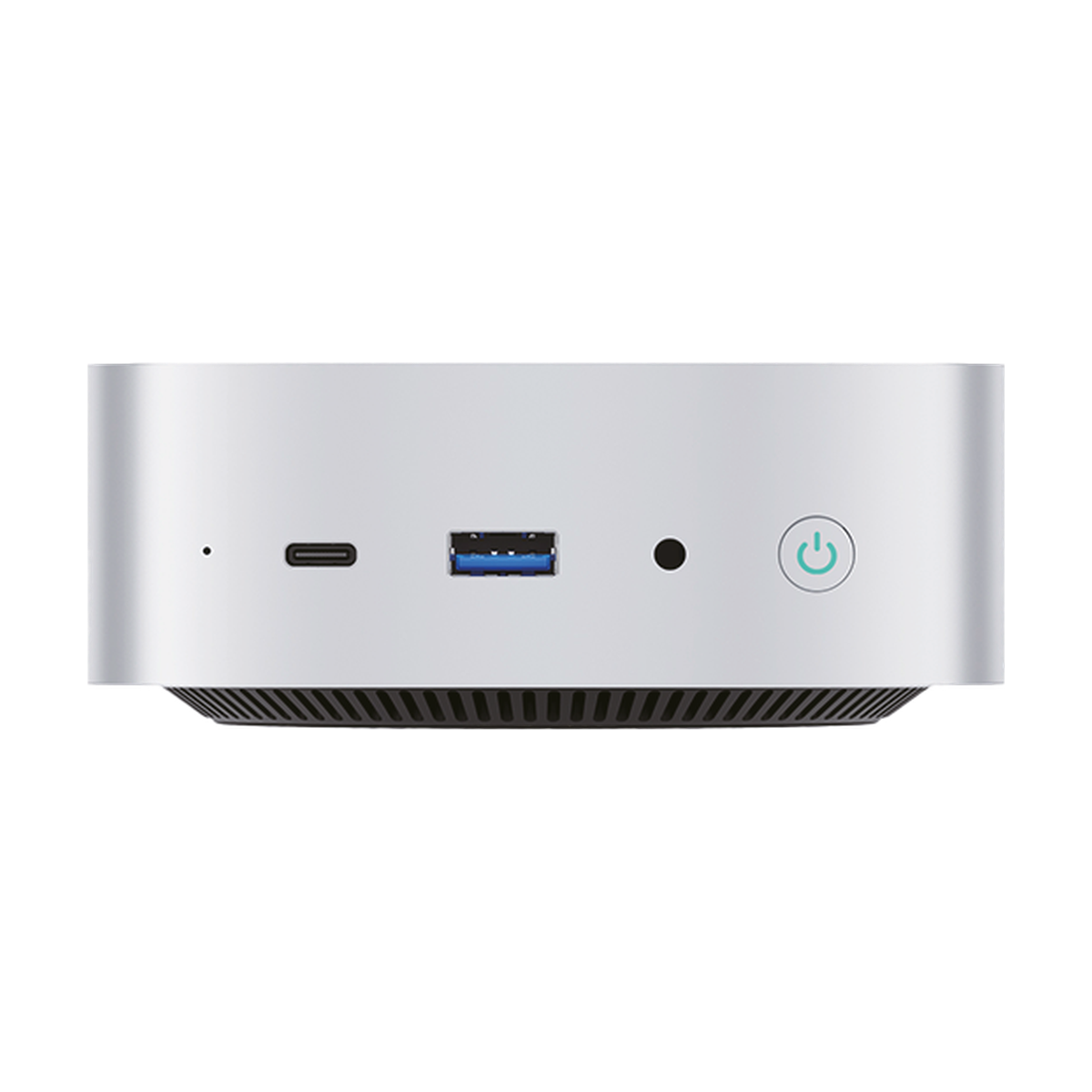

MCMQ12/13 enclosure and interface view

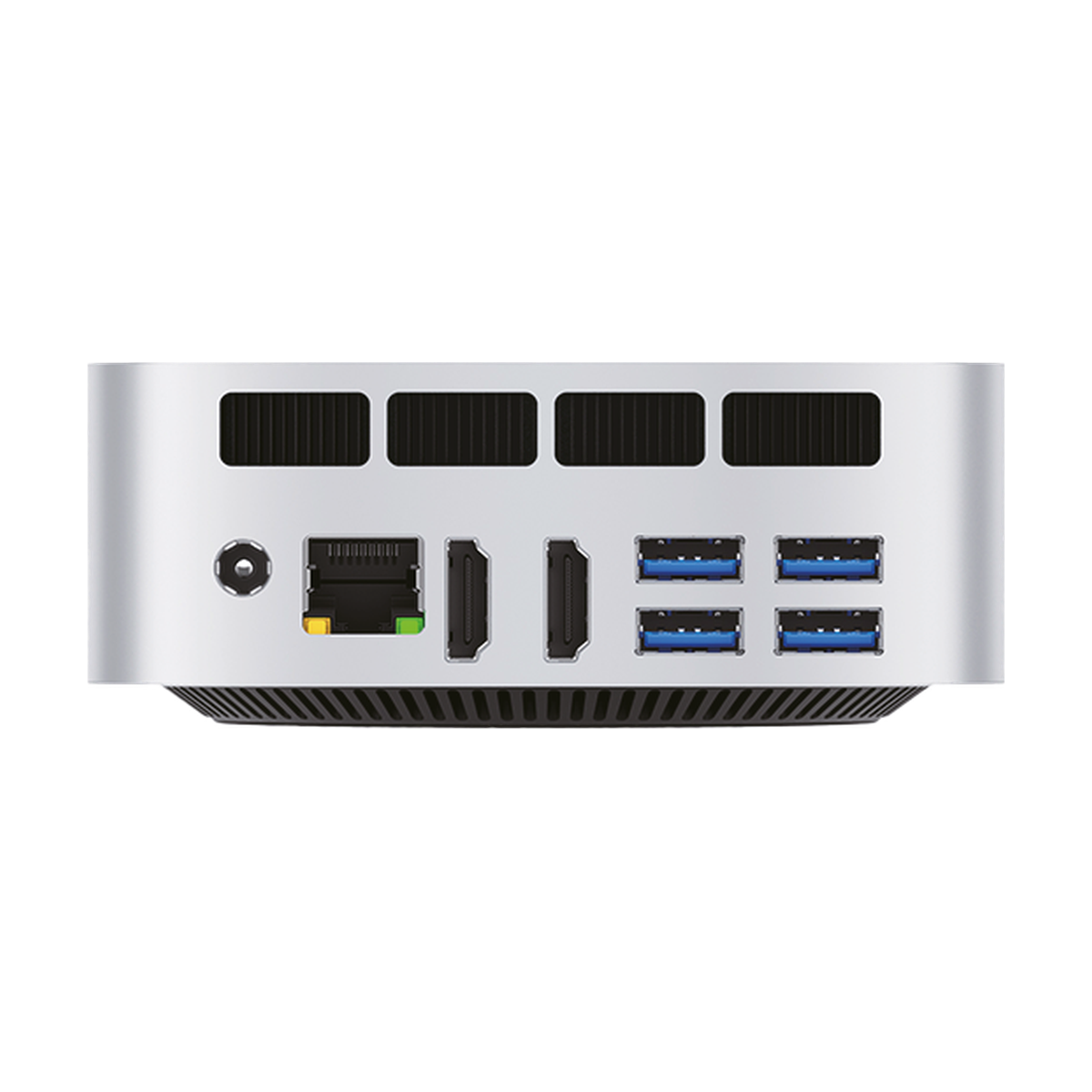

MCMQ12/13 product view 2
Technical Specifications
Industrial-grade configuration details
MCMQ12/13 Specification Matrix
Available hardware configurations
Operating Range
0°C to 45°C operating; -20°C to 70°C storage; 5% to 95% RH
Model
MCMQ12/13
CPU
12th / 13th Gen Intel Core U, P, H, and HK options
Chipset
Intel Alder Lake platform
Graphics
Intel Iris Xe Graphics eligible
Video
2 x HDMI 2.1 and USB4 Type-C, supporting 4K at 60Hz
Memory
2 x DDR4 SO-DIMM at 3200MHz, up to 64GB or 96GB by configuration
USB
5 x USB 3.2 and 1 x USB4 Type-C
Power
19V / 3.78A adapter, 100-240V AC input
Network
1 x 2.5GbE RJ45
Storage
M.2 NVMe 2280 and M.2 NVMe 2242, up to 2TB
Expansion
M.2 E-Key Wi-Fi and Bluetooth 5.2; TPM 2.0 integrated in CPU
Front I/O
1 x power button; 1 x 3.5 mm audio jack; 1 x USB4 Type-C; 1 x USB 3.2
Rear I/O
1 x DC input; 2 x HDMI 2.1; 4 x USB 3.2; 1 x 2.5GbE RJ45
Dimensions
113 x 113 mm
BIOS
Resume by alarm, UEFI diskless boot, automatic power-on
System
Windows 11 / Linux
Working Environment
0°C to 45°C operating; -20°C to 70°C storage; 5% to 95% RH
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCMQ12/13 is a compact Intel Core platform covering 12th and 13th Gen U, P, H, and HK processor options with USB4, dual HDMI, DDR4 memory, and dual M.2 storage.
Flexible Compute Platforms
The desktop range spans efficient Intel N-series systems, Intel Core platforms, and AMD Ryzen performance configurations.
Display & Peripheral Connectivity
Model-specific HDMI, DisplayPort, Type-C, USB4, Thunderbolt, and OCuLink options support varied commercial workspaces.
Configurable Memory & Storage
Choose memory capacity, NVMe, SATA, wireless, and network options according to the target workload and deployment.
Interested in MCMQ12/13?
Contact our team for pricing, lifecycle planning, customization, and bulk order support.
