MCMQR5/R6/R7/R8
AMD Ryzen 5000 to 8000 compact desktop series
MCMQR Series covers AMD Ryzen 5000, 6000, 7000, and 8000 processor families with model-specific DDR4 or DDR5 memory, USB4, dual HDMI, 2.5GbE, and dual M.2 storage.
Product Gallery
A closer look at MCMQR5/R6/R7/R8
Different product views highlight the enclosure design, interface layout, and installation details.
MCMQR5/R6/R7/R8 enclosure and interface view
MCMQR5/R6/R7/R8 product view 2
Technical Specifications
Industrial-grade configuration details
MCMQR5/R6/R7/R8 Specification Matrix
Available hardware configurations
Operating Range
0°C to 45°C operating; -20°C to 70°C storage; 5% to 95% RH
Model
MCMQR5/R6/R7/R8
CPU
AMD Ryzen 5000 / 6000 / 7000 / 8000 series options
Graphics
AMD Radeon Graphics
Video
2 x HDMI 2.1 and USB4 Type-C, supporting 4K at 60Hz
Memory
2 x DDR4 or DDR5 SO-DIMM, up to 64GB or 96GB by model
USB
5 x USB 3.2 and 1 x USB4 Type-C
Power
19V / 3.78A adapter, 100-240V AC input
Network
1 x 2.5GbE RJ45
Storage
M.2 NVMe 2280 and M.2 NVMe 2242, up to 2TB
Expansion
M.2 E-Key Wi-Fi and Bluetooth 5.2; TPM 2.0 integrated in CPU

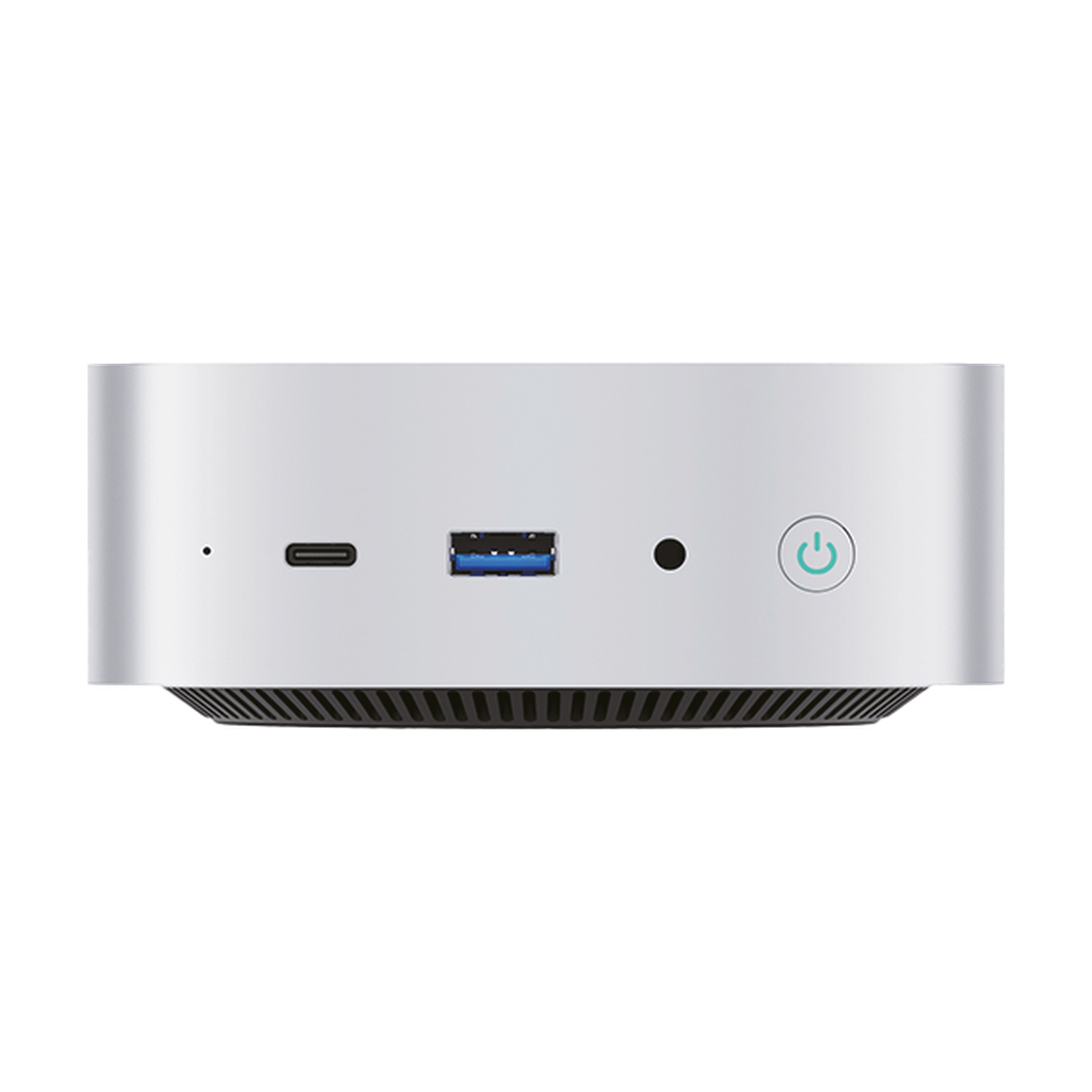

Front I/O
1 x power button; 1 x 3.5 mm audio jack; 1 x USB4 Type-C; 1 x USB 3.2

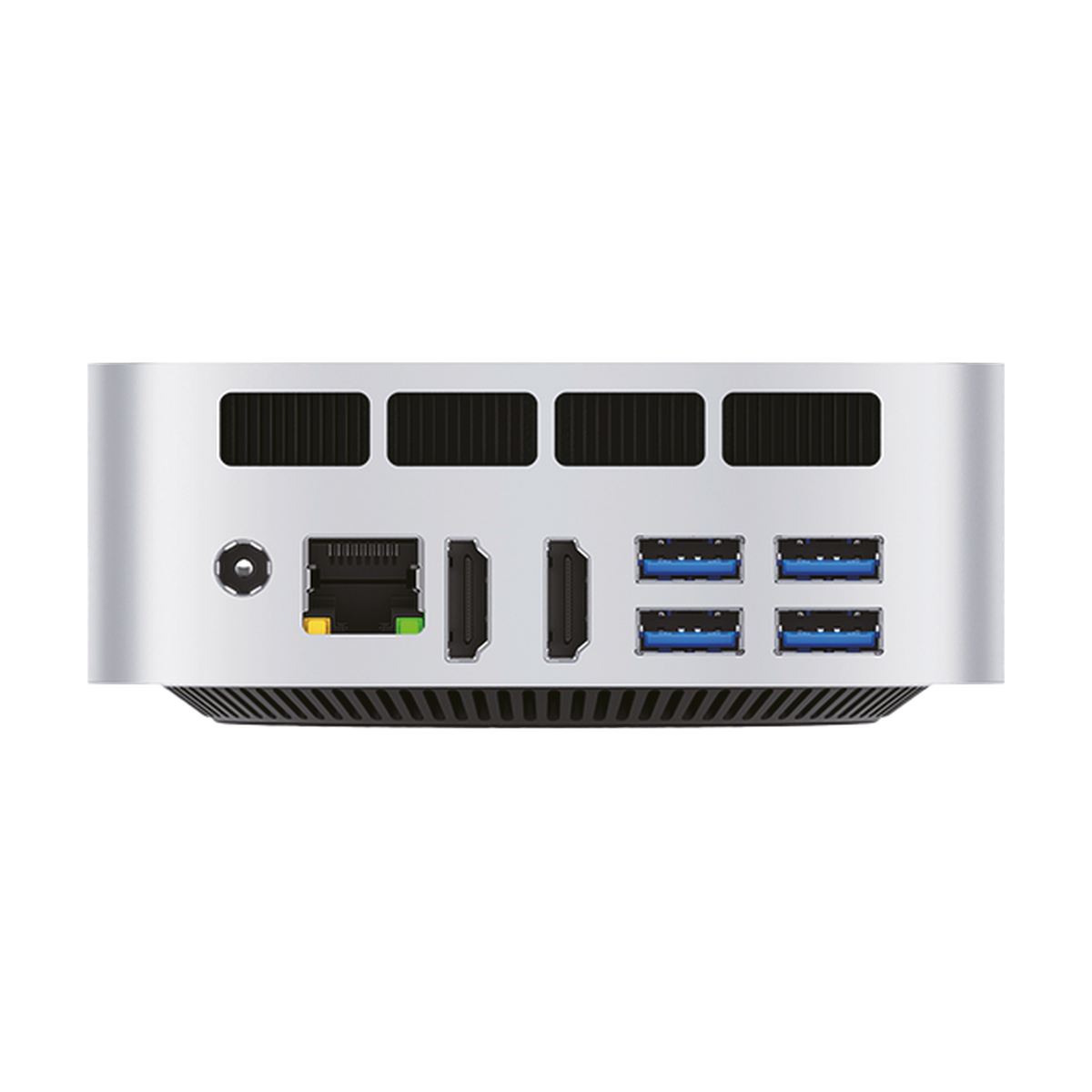

Rear I/O
1 x DC input; 2 x HDMI 2.1; 4 x USB 3.2; 1 x 2.5GbE RJ45
Dimensions
113 x 113 mm
BIOS
Resume by alarm, UEFI diskless boot, automatic power-on
System
Windows 11 / Linux
Working Environment
0°C to 45°C operating; -20°C to 70°C storage; 5% to 95% RH
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCMQR Series covers AMD Ryzen 5000, 6000, 7000, and 8000 processor families with model-specific DDR4 or DDR5 memory, USB4, dual HDMI, 2.5GbE, and dual M.2 storage.
Flexible Compute Platforms
The desktop range spans efficient Intel N-series systems, Intel Core platforms, and AMD Ryzen performance configurations.
Display & Peripheral Connectivity
Model-specific HDMI, DisplayPort, Type-C, USB4, Thunderbolt, and OCuLink options support varied commercial workspaces.
Configurable Memory & Storage
Choose memory capacity, NVMe, SATA, wireless, and network options according to the target workload and deployment.
