MCN1
Alder Lake-N compact mini PC with expandable storage

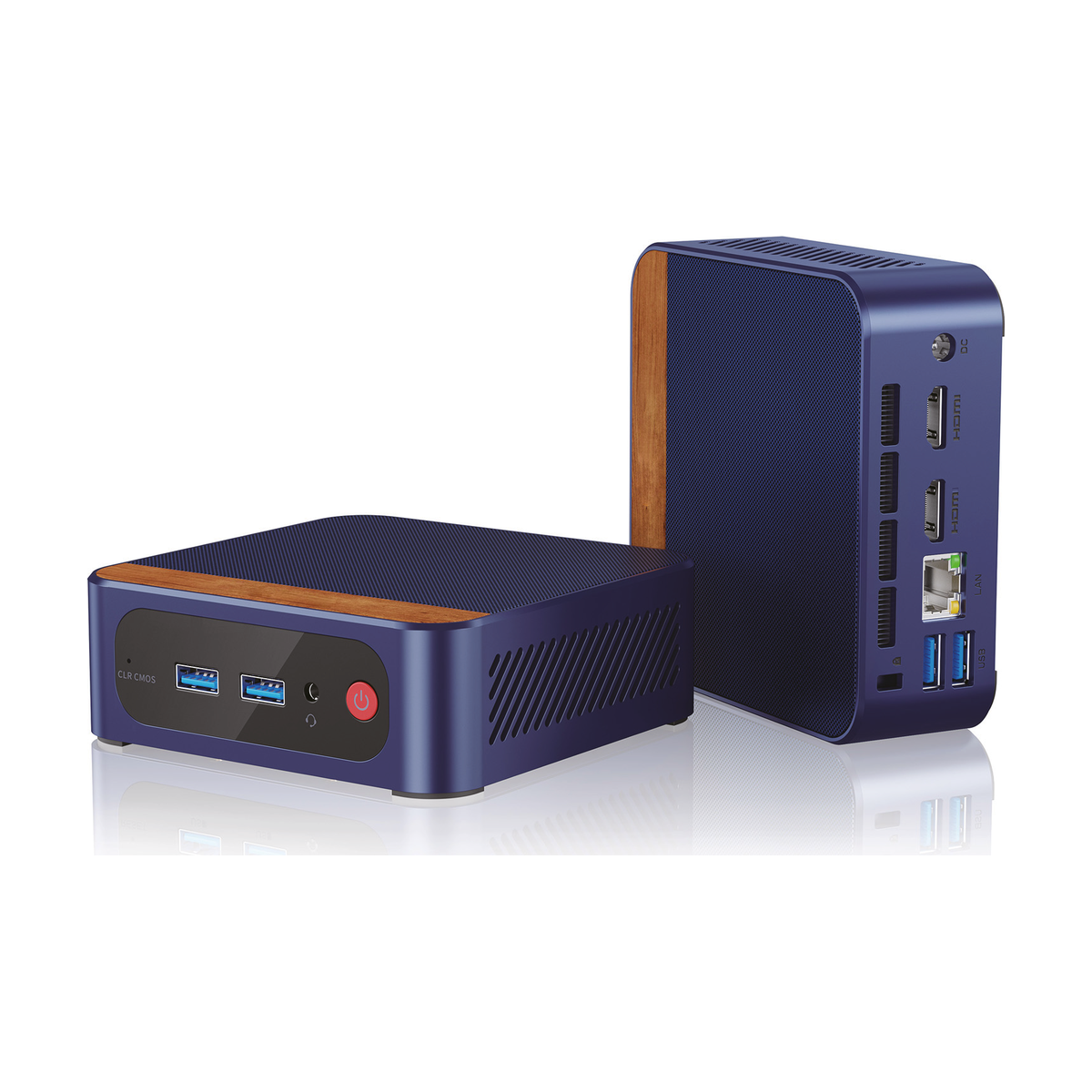

MCN1 is a compact Alder Lake-N commercial mini PC with dual 4K HDMI, replaceable DDR4 memory, four USB 3.2 ports, and both M.2 and 2.5-inch storage support.
Product Gallery
A closer look at MCN1
Different product views highlight the enclosure design, interface layout, and installation details.

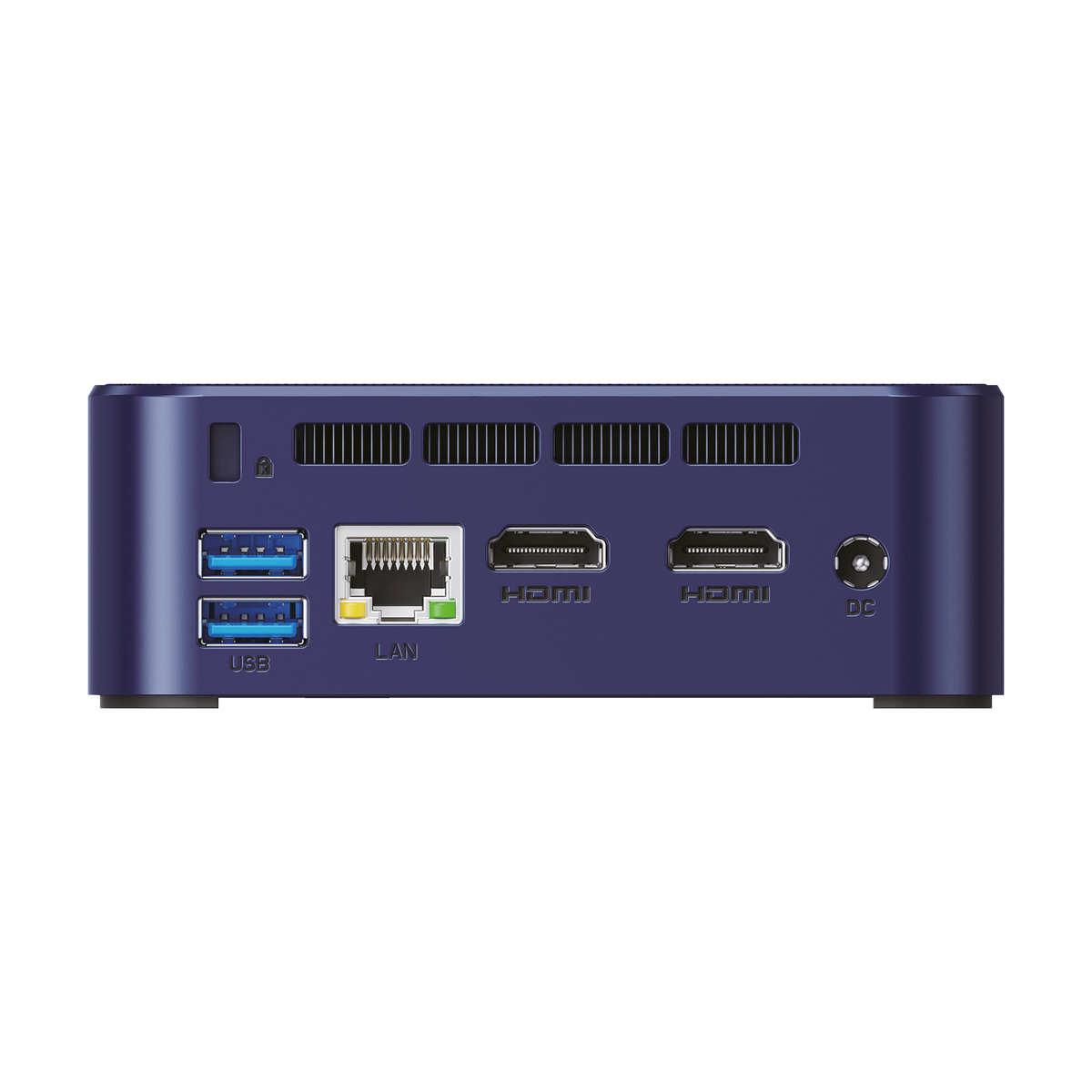

MCN1 enclosure and interface view
MCN1 product view 2
Technical Specifications
Industrial-grade configuration details
MCN1 Specification Matrix
Available hardware configurations
Operating Range
0°C to 40°C operating; -20°C to 60°C storage; up to 90% RH at 40°C, non-condensing
Model
MCN1
CPU
Intel N95 / N100 / N150
Graphics
Intel UHD Graphics
Video
2 x HDMI, up to 4K at 60Hz
Memory
DDR4 SO-DIMM at 3200MHz, 8GB to 16GB
USB
4 x USB 3.2 at 10Gb/s
Material
Plastic
Power
DC 12V
Network
1 x Realtek RTL8111 Gigabit Ethernet
Storage
M.2 SATA 2280 and 2.5-inch HDD / SSD, 7 mm height
Expansion
Wi-Fi 5 / Wi-Fi 6 and Bluetooth 4.2 / 5.2

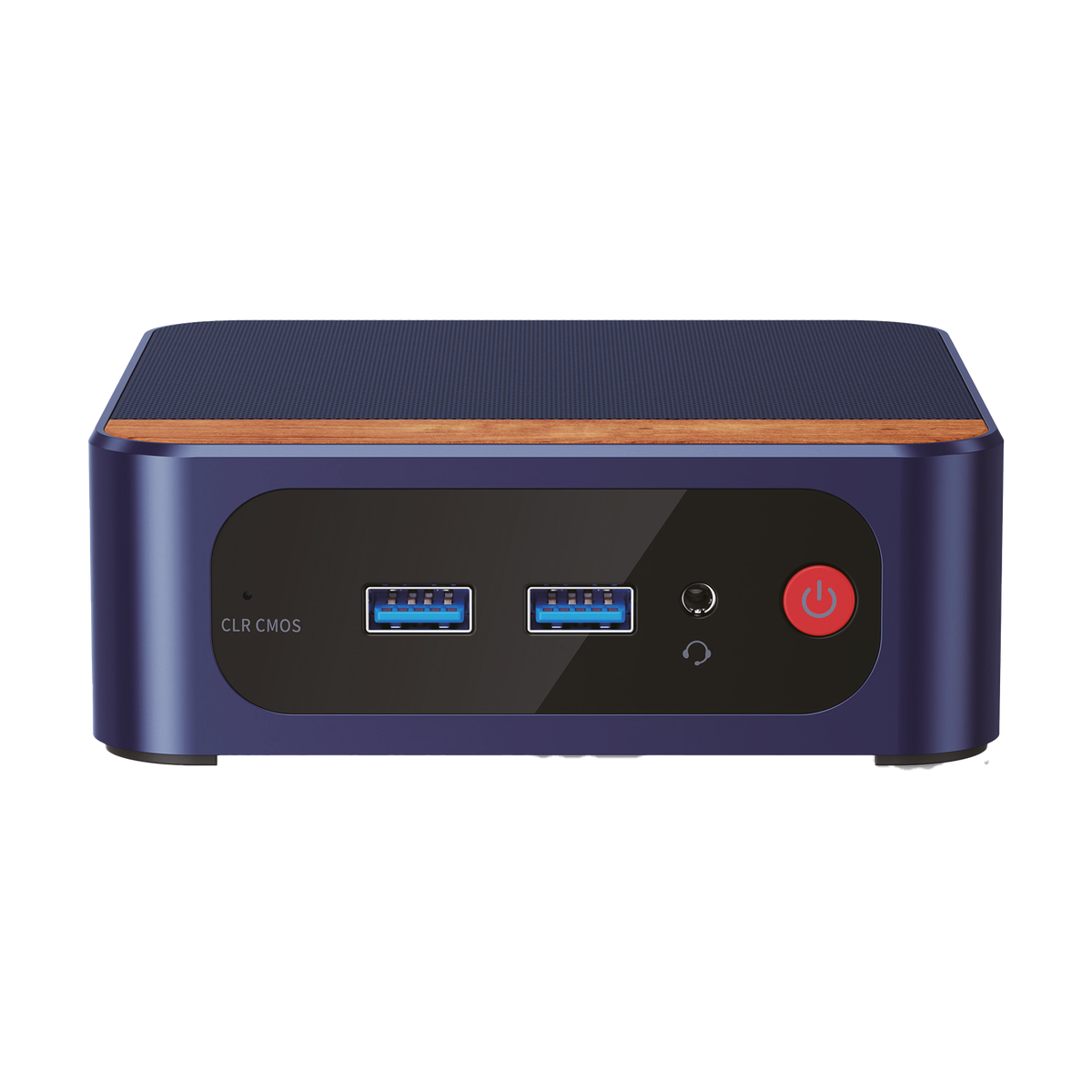

Front I/O
1 x power button; 1 x 3.5 mm combo audio jack with Realtek ALC897; 2 x USB 3.2; 1 x Clear CMOS button
Rear I/O
1 x 12V DC input; 1 x Realtek RTL8111 Gigabit Ethernet; 2 x HDMI; 2 x USB 3.2
Dimensions
127 x 145 x 38 mm
Weight
315 g
BIOS
RTC scheduled boot, automatic power-on, Wake-on-LAN
TDP
Depends on selected processor
System
Windows 7 / 8 / 10; Linux
Working Environment
0°C to 40°C operating; -20°C to 60°C storage; up to 90% RH at 40°C, non-condensing
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCN1 is a compact Alder Lake-N commercial mini PC with dual 4K HDMI, replaceable DDR4 memory, four USB 3.2 ports, and both M.2 and 2.5-inch storage support.
Flexible Compute Platforms
The desktop range spans efficient Intel N-series systems, Intel Core platforms, and AMD Ryzen performance configurations.
Display & Peripheral Connectivity
Model-specific HDMI, DisplayPort, Type-C, USB4, Thunderbolt, and OCuLink options support varied commercial workspaces.
Configurable Memory & Storage
Choose memory capacity, NVMe, SATA, wireless, and network options according to the target workload and deployment.
Interested in MCN1?
Contact our team for pricing, lifecycle planning, customization, and bulk order support.
