MCN5
90 mm Alder Lake-N mini PC with LPDDR5
MCN5 condenses Alder Lake-N processor options, LPDDR5 memory, three display outputs, dual Gigabit LAN, and M.2 storage into a 90 mm square commercial mini PC.
Product Gallery
A closer look at MCN5
Different product views highlight the enclosure design, interface layout, and installation details.

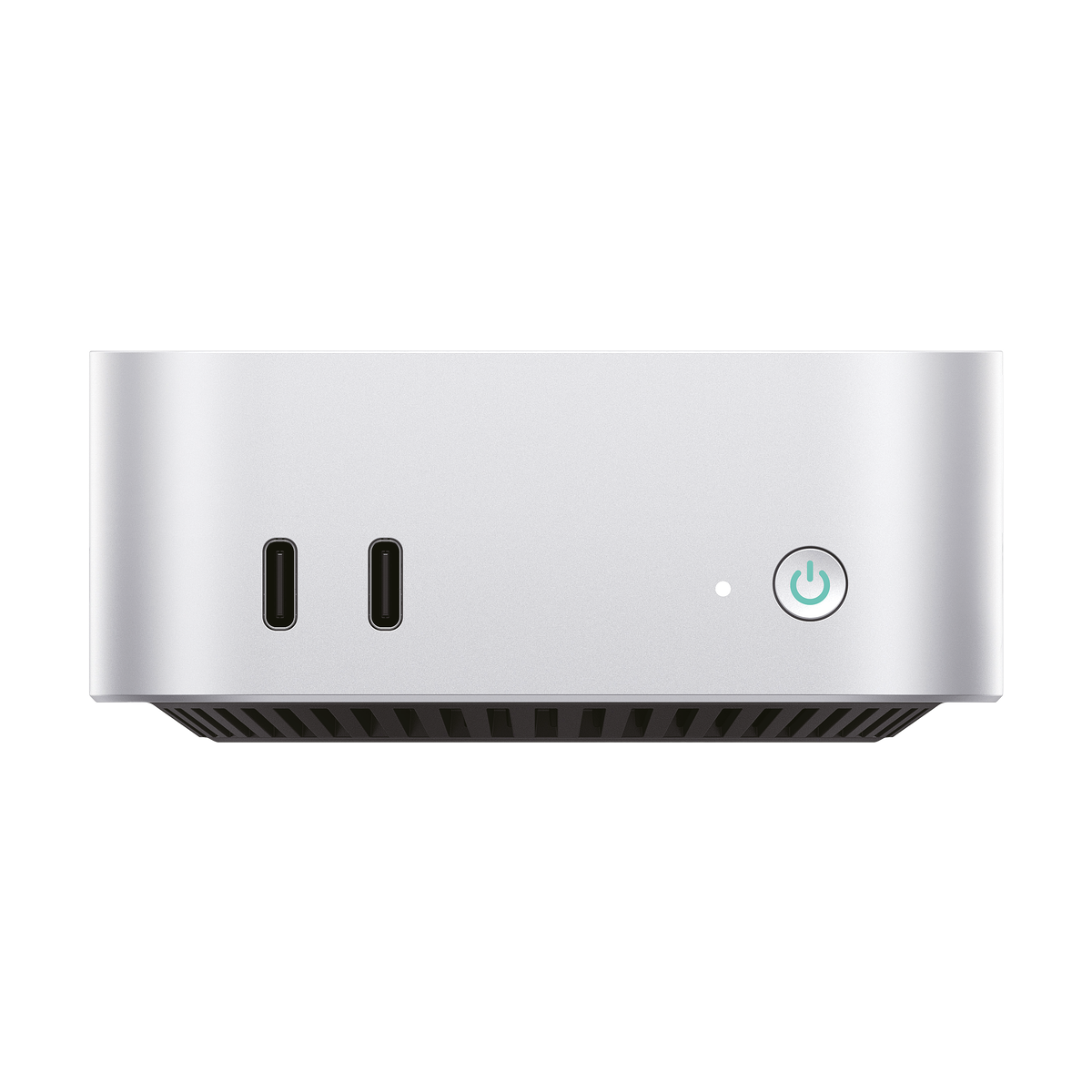

MCN5 enclosure and interface view

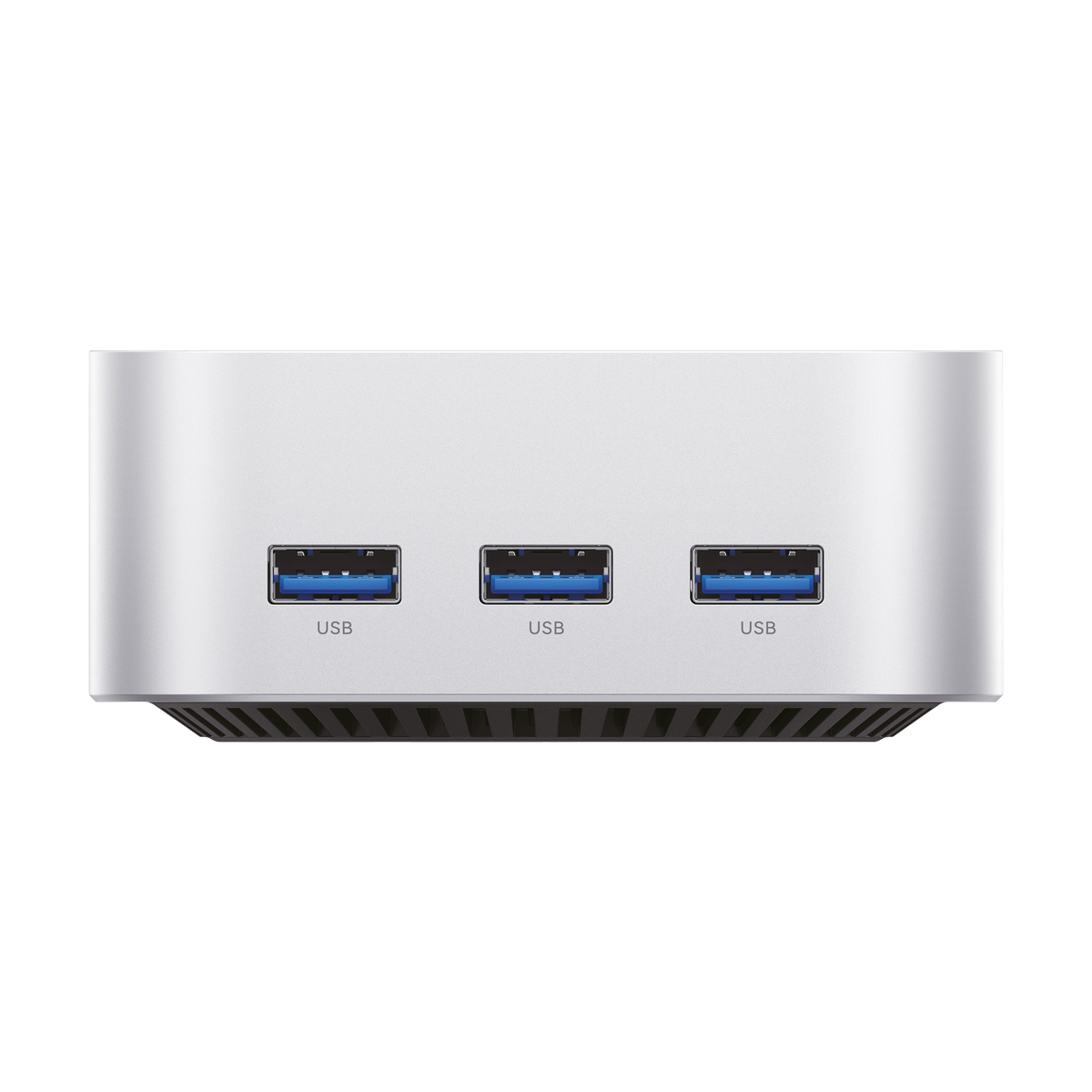

MCN5 product view 2
Technical Specifications
Industrial-grade configuration details
MCN5 Specification Matrix
Available hardware configurations
Operating Range
0°C to 40°C operating; -20°C to 60°C storage; up to 90% RH at 40°C, non-condensing
Model
MCN5
CPU
Intel N95 / N100 / N97 / N150 / N200 / N305
Graphics
Intel UHD Graphics
Video
2 x HDMI 2.0 and DisplayPort 1.4
Memory
LPDDR5 4800MHz, 8GB / 12GB / 16GB
USB
3 x USB 3.2 at 10Gb/s and 2 x Type-C
Material
Plastic
Power
DC 12V
Network
2 x Realtek RTL8111 Gigabit Ethernet
Storage
M.2 2242 SATA / NVMe PCIe 3.0, up to 2TB
Expansion
Wi-Fi 5 / Wi-Fi 6 and Bluetooth 4.2 / 5.2
Dimensions
90 x 90 x 38.5 mm
Weight
190 g
BIOS
RTC scheduled boot, automatic power-on, Wake-on-LAN
TDP
Depends on selected processor
System
Windows 7 / 8 / 10; Linux
Working Environment
0°C to 40°C operating; -20°C to 60°C storage; up to 90% RH at 40°C, non-condensing
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCN5 condenses Alder Lake-N processor options, LPDDR5 memory, three display outputs, dual Gigabit LAN, and M.2 storage into a 90 mm square commercial mini PC.
Flexible Compute Platforms
The desktop range spans efficient Intel N-series systems, Intel Core platforms, and AMD Ryzen performance configurations.
Display & Peripheral Connectivity
Model-specific HDMI, DisplayPort, Type-C, USB4, Thunderbolt, and OCuLink options support varied commercial workspaces.
Configurable Memory & Storage
Choose memory capacity, NVMe, SATA, wireless, and network options according to the target workload and deployment.
Interested in MCN5?
Contact our team for pricing, lifecycle planning, customization, and bulk order support.
