MCN6
Slim Alder Lake-N mini PC with dual 4K HDMI
MCN6 is a slim commercial mini PC with a broad Alder Lake-N processor range, replaceable DDR4 memory, dual 4K HDMI, four USB 3.2 ports, and M.2 storage.
Product Gallery
A closer look at MCN6
Different product views highlight the enclosure design, interface layout, and installation details.

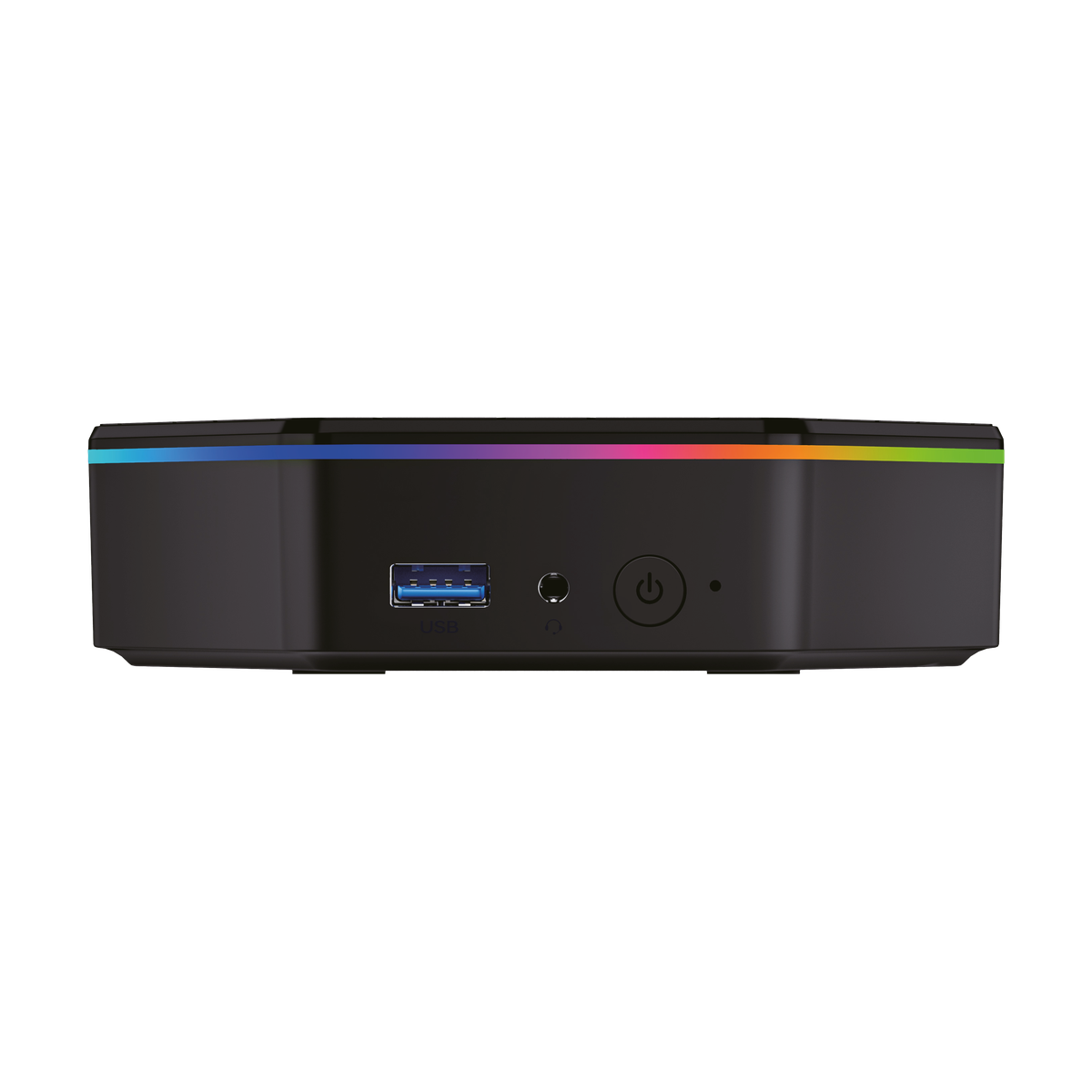

MCN6 enclosure and interface view

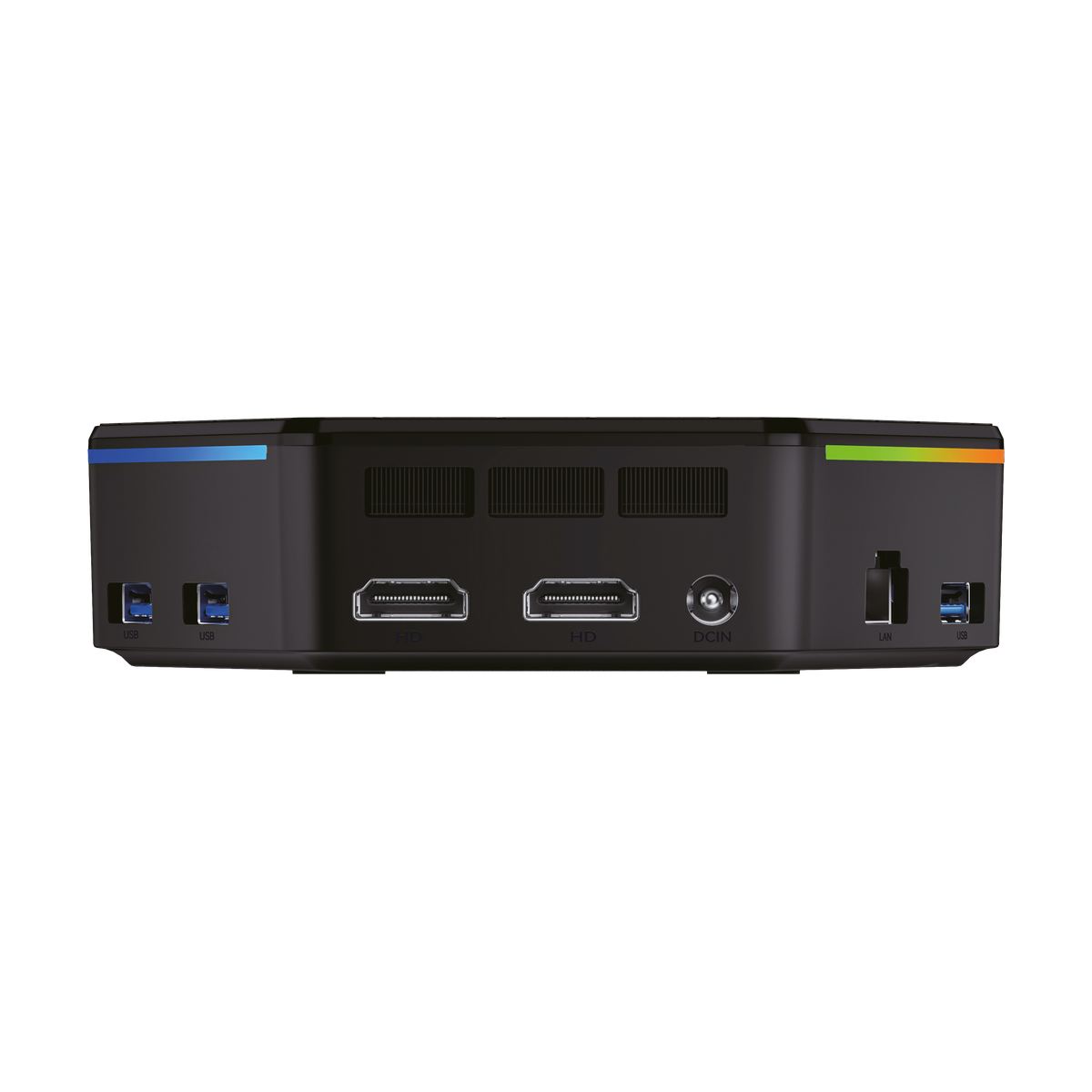

MCN6 product view 2
Technical Specifications
Industrial-grade configuration details
MCN6 Specification Matrix
Available hardware configurations
Operating Range
0°C to 40°C operating; -20°C to 60°C storage; up to 90% RH at 40°C, non-condensing
Model
MCN6
CPU
Intel N95 / N100 / N97 / N150 / N200 / N300
Graphics
Intel UHD Graphics
Video
2 x HDMI 2.0, up to 4K at 60Hz
Memory
DDR4 SO-DIMM at 3200MHz, 8GB to 16GB
USB
4 x USB 3.2 at 10Gb/s
Material
Plastic
Power
DC 12V
Network
1 x Realtek RTL8111 Gigabit Ethernet
Storage
M.2 2242 SATA / NVMe PCIe 3.0, up to 2TB
Expansion
Wi-Fi 5 / Wi-Fi 6 and Bluetooth 4.2 / 5.2
Dimensions
124.5 x 111 x 33 mm
Weight
215 g
BIOS
RTC scheduled boot, automatic power-on, Wake-on-LAN
TDP
Depends on selected processor
System
Windows 7 / 8 / 10; Linux
Working Environment
0°C to 40°C operating; -20°C to 60°C storage; up to 90% RH at 40°C, non-condensing
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCN6 is a slim commercial mini PC with a broad Alder Lake-N processor range, replaceable DDR4 memory, dual 4K HDMI, four USB 3.2 ports, and M.2 storage.
Flexible Compute Platforms
The desktop range spans efficient Intel N-series systems, Intel Core platforms, and AMD Ryzen performance configurations.
Display & Peripheral Connectivity
Model-specific HDMI, DisplayPort, Type-C, USB4, Thunderbolt, and OCuLink options support varied commercial workspaces.
Configurable Memory & Storage
Choose memory capacity, NVMe, SATA, wireless, and network options according to the target workload and deployment.
Interested in MCN6?
Contact our team for pricing, lifecycle planning, customization, and bulk order support.
