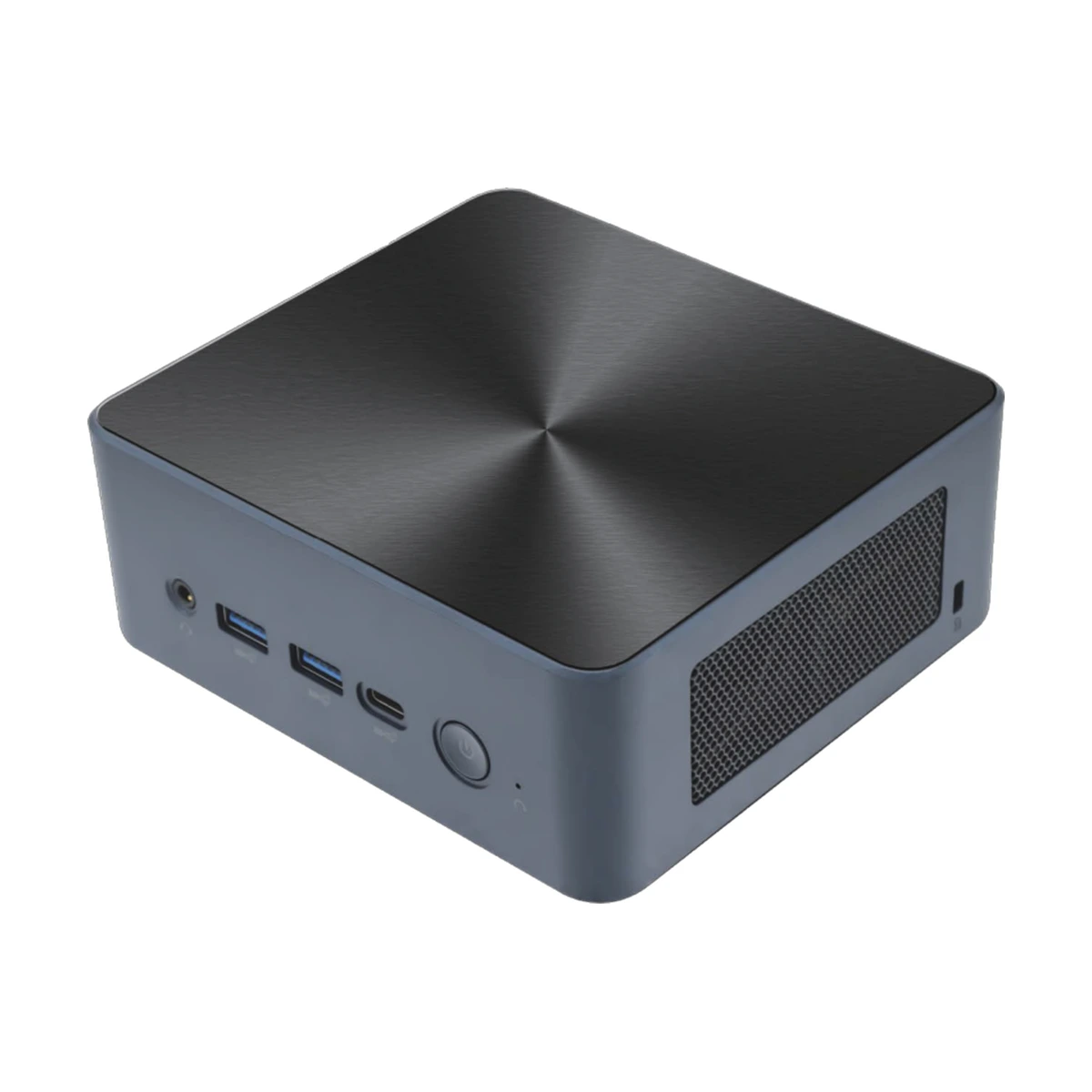

MCN7A
Intel Core desktop PC with USB4 and triple-display connectivity
MCN7A offers Intel Core i3-1215U, i5-1235U or i7-12650H processor options, HDMI, DisplayPort and USB4, one 2.5GbE network port, dual NVMe slots and SATA storage. The compact enclosure measures 136 x 123 x 51 mm.
Product Gallery
A closer look at MCN7A
Different product views highlight the enclosure design, interface layout, and installation details.
MCN7A front panel

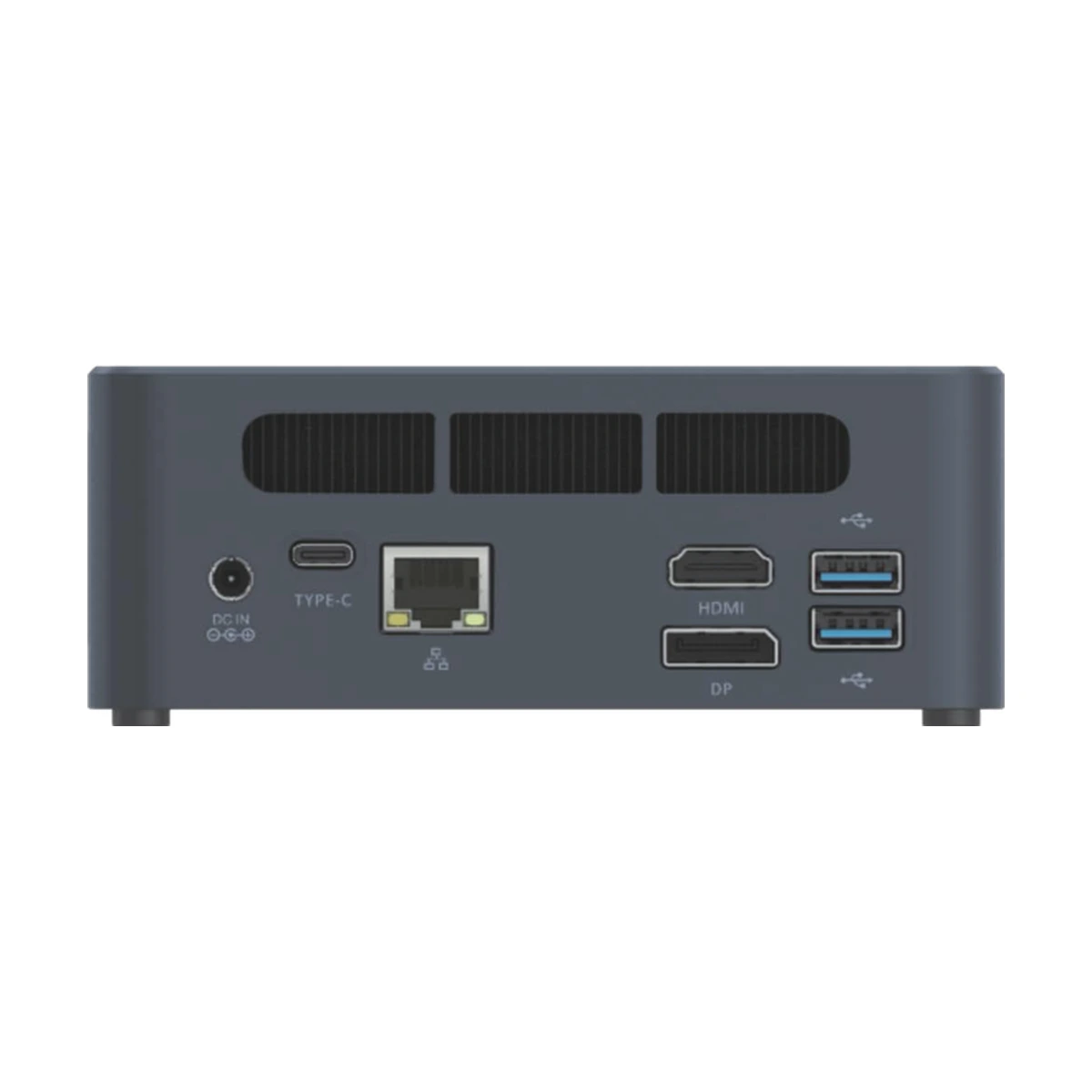

MCN7A rear panel
MCN7A enclosure view
Technical Specifications
Industrial-grade configuration details
MCN7A Specification Matrix
Available hardware configurations
Operating Range
0°C to 60°C
Model
MCN7A
CPU
Intel Core i3-1215U / i5-1235U / i7-12650H
Chipset
Intel Alder Lake/ Raptor Lake_U/P/H
Graphics
Intel Iris Xe Graphics
Display
HDMI+DP+Type-C (USB4) 4K@60Hz
Memory
2 x SO-DIMM DDR5 4800MHz Max 64G
Material
plastic plus metal
USB
2 x USB 2.0; 2 x USB 3.0; 1 x USB4
Power
DC19V 5.26~6.32A
Network
1 x RJ45 Intel 2.5G LAN
Storage
2 x M.2 (1 x PCIE4.0 x 4; 1 x PCIE3.0 x 4) NVME 2280 SSD; 1 x SATA3.0 slot for SATA HDD or SSD
Expansion
1 x SATA3.0 slot for SATA HDD or SSD; Wi-Fi5+BT4.2/Wi-Fi6+BT5.2
Dimensions
136mm x 123mm x 51mm
BIOS
AMI EFI BIOS
TDP
Depends on CPU
OS
Win11 64 Bit Ubuntu CentOS
Environment - Operating
0~60 C; 10%~90% Relative humidity; (no condensation)
Front I/O - Ports
1 x 3.5 mm audio jack; 2 x USB 3.2; 1 x Type-C (data)
Rear I/O - Ports
2 x USB 2.0; 1 x HDMI; 1 x DP; 1 x USB4; 1 x RJ45; 1 x DC IN
Internal I/O - Headers
1 x system cooling fan; 1 x half-size Mini PCIe slot for Wi-Fi/Bluetooth; 2 x M.2 slots for NVMe 2280 SSD; 1 x SATA 3.0 slot for HDD/SSD
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCN7A offers Intel Core i3-1215U, i5-1235U or i7-12650H processor options, HDMI, DisplayPort and USB4, one 2.5GbE network port, dual NVMe slots and SATA storage. The compact enclosure measures 136 x 123 x 51 mm.
Flexible Compute Platforms
The desktop range spans efficient Intel N-series systems, Intel Core platforms, and AMD Ryzen performance configurations.
Display & Peripheral Connectivity
Model-specific HDMI, DisplayPort, Type-C, USB4, Thunderbolt, and OCuLink options support varied commercial workspaces.
Configurable Memory & Storage
Choose memory capacity, NVMe, SATA, wireless, and network options according to the target workload and deployment.
