MCNAS100
Compact NAS platform with dual 10GbE SFP+ and four 2.5GbE ports
MCNAS100 combines Alder Lake-N processing, DDR5 memory, dual 10GbE SFP+, four 2.5GbE ports, NVMe and SATA storage, and PCIe expansion for compact storage and high-speed network deployments.
Product Gallery
A closer look at MCNAS100
Different product views highlight the enclosure design, interface layout, and installation details.

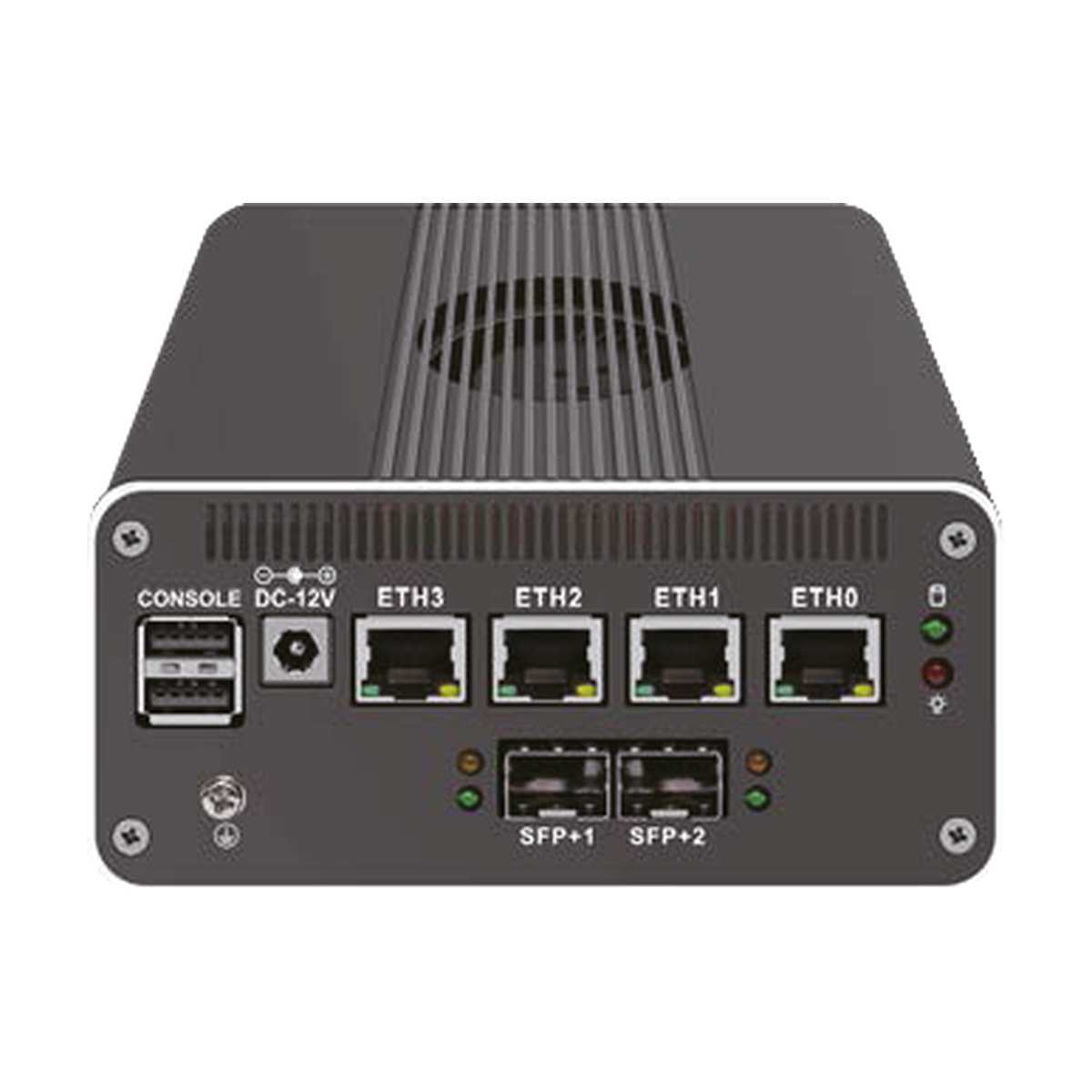

MCNAS100 enclosure and interface view
MCNAS100 product view 2
Technical Specifications
Industrial-grade configuration details
MCNAS100 Specification Matrix
Available hardware configurations
Operating Range
0°C to 70°C; 5% to 85% relative humidity, non-condensing
Model
MCNAS100
CPU
Intel N100 / N200 / Core i3-N305
Chipset
Intel Alder Lake-N
Graphics
Intel UHD Graphics
Video
HDMI 2.0, DisplayPort 1.2, and USB Type-C
Memory
DDR5 SO-DIMM, up to 32GB at 4800 / 5200 / 5600MHz
USB
1 x USB 3.0 and 5 x USB 2.0
Material
Aluminum alloy
Power
DC 12V
Network
2 x Intel 82599ES 10GbE SFP+ and 4 x Intel i226-V 2.5GbE
Storage
M.2 NVMe PCIe 3.0 x1, SATA 3.0, and TF card
Expansion
PCIe x8 slot with PCIe 3.0 x4 signal; Mini PCIe; GPIO; COM; TPM; SIM

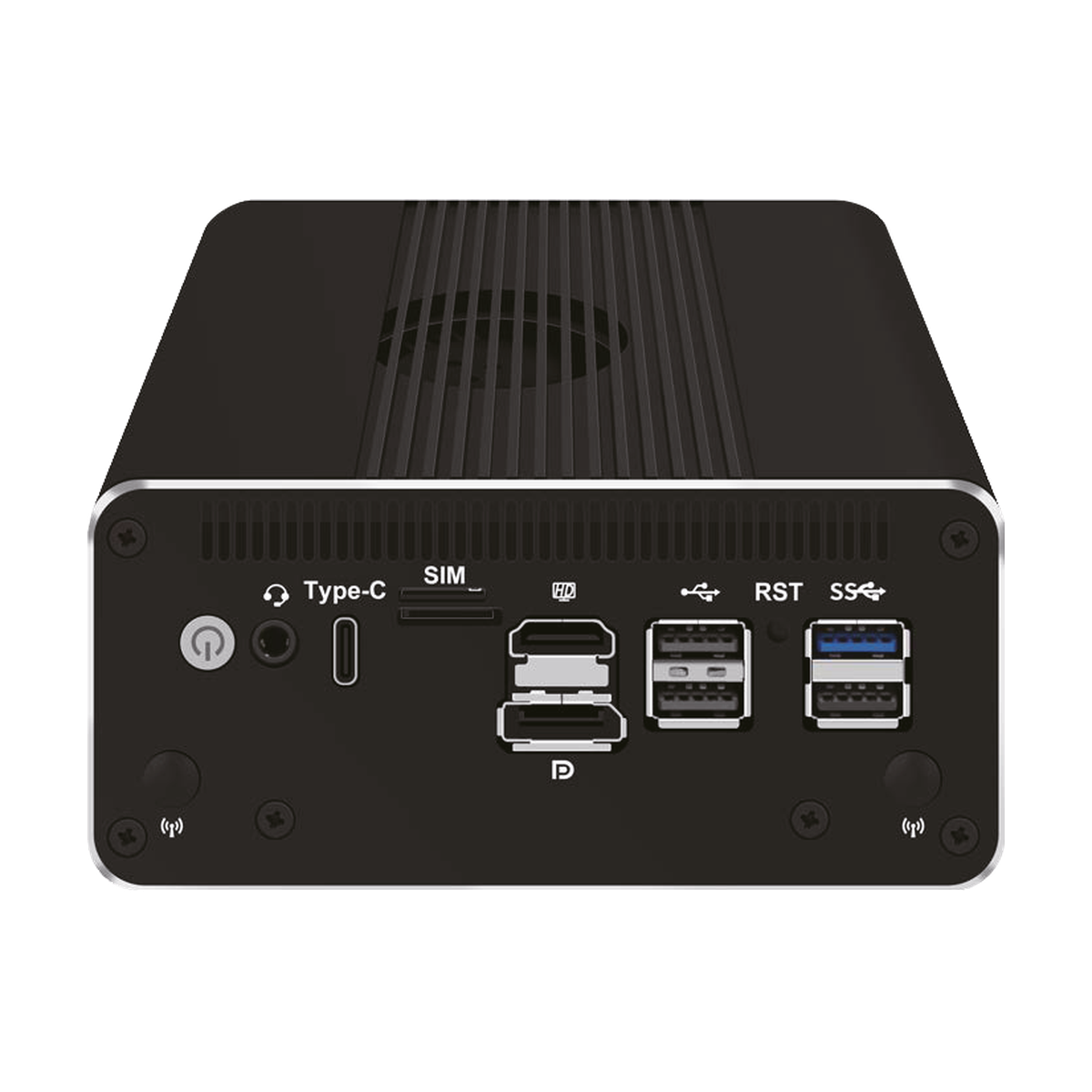

Front I/O
1 x power button; 1 x Type-C; 1 x audio port; 1 x HDMI 2.0; 1 x USB 3.0; 1 x DisplayPort 1.2; 3 x USB 2.0; 1 x restart button; 1 x SIM slot; 1 x TF card slot
Rear I/O
2 x USB 2.0; 1 x 12V DC input; 4 x 2.5GbE RJ45; 2 x 10GbE SFP+

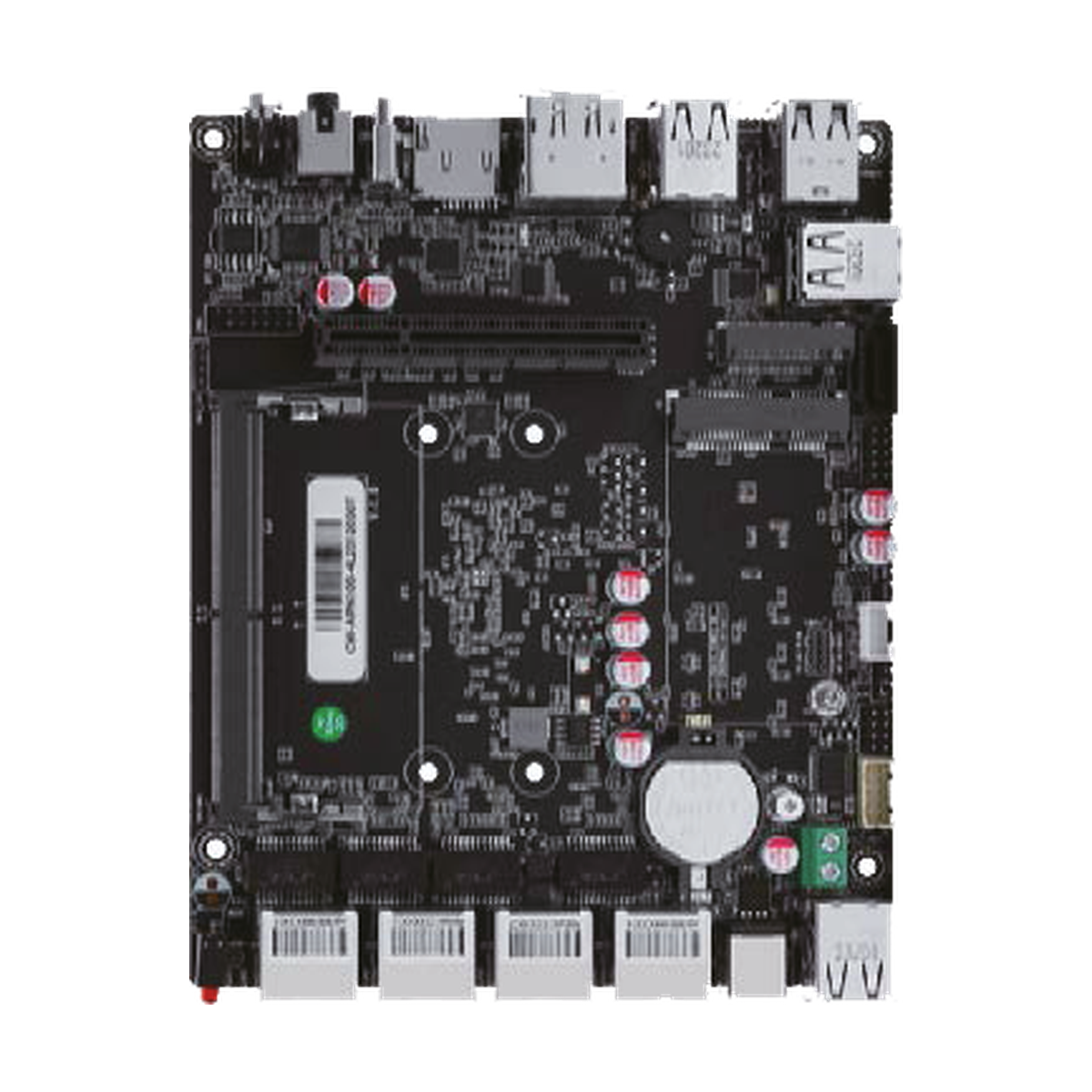

Internal I/O
1 x buzzer; 1 x TPM header; 1 x debug header; 2 x DDR5 memory slots; 1 x Mini PCIe slot with USB 2.0 signal; 1 x Phoenix terminal power connector; 1 x front-panel header; 1 x motherboard battery connector; 1 x jumper header; 1 x PCIe x8 slot with PCIe 3.0 x4 signal; 2 x USB 2.0 headers; 1 x M.2 NVMe slot with PCIe 3.0 x1 signal; 1 x SATA 3.0 connector; 1 x GPIO header; 1 x SATA power connector; 1 x COM header
Dimensions
131.7 x 155 x 60 mm
BIOS
AMI EFI BIOS with automatic power-on, Wake-on-LAN, GPIO, and PXE
TDP
6W base, up to 15W turbo
System
Windows 10 / Windows 11 / Linux
Working Environment
0°C to 70°C; 5% to 85% relative humidity, non-condensing
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCNAS100 combines Alder Lake-N processing, DDR5 memory, dual 10GbE SFP+, four 2.5GbE ports, NVMe and SATA storage, and PCIe expansion for compact storage and high-speed network deployments.
Storage-Oriented Architecture
NAS-focused systems provide model-specific NVMe, SATA, TF, and expansion options for local storage and service workloads.
Multi-Gigabit Networking
Selected models combine 2.5GbE interfaces with 10GbE SFP+ or expandable high-speed network options.
Compact Local Services
The platforms suit compatible NAS, backup, media, private-cloud, and other local network-service software.
