MCNAS11
Intel Core i3-1115G4 compact NAS PC
MCNAS11 combines Intel Core i3-1115G4 processor options, up to 64GB DDR4, and 4 x RJ45 + 2 x SFP+ for compact storage and network-service deployments. NVMe, SATA, and PCIe expansion support project-specific storage and connectivity requirements.
Product Gallery
A closer look at MCNAS11
Different product views highlight the enclosure design, interface layout, and installation details.

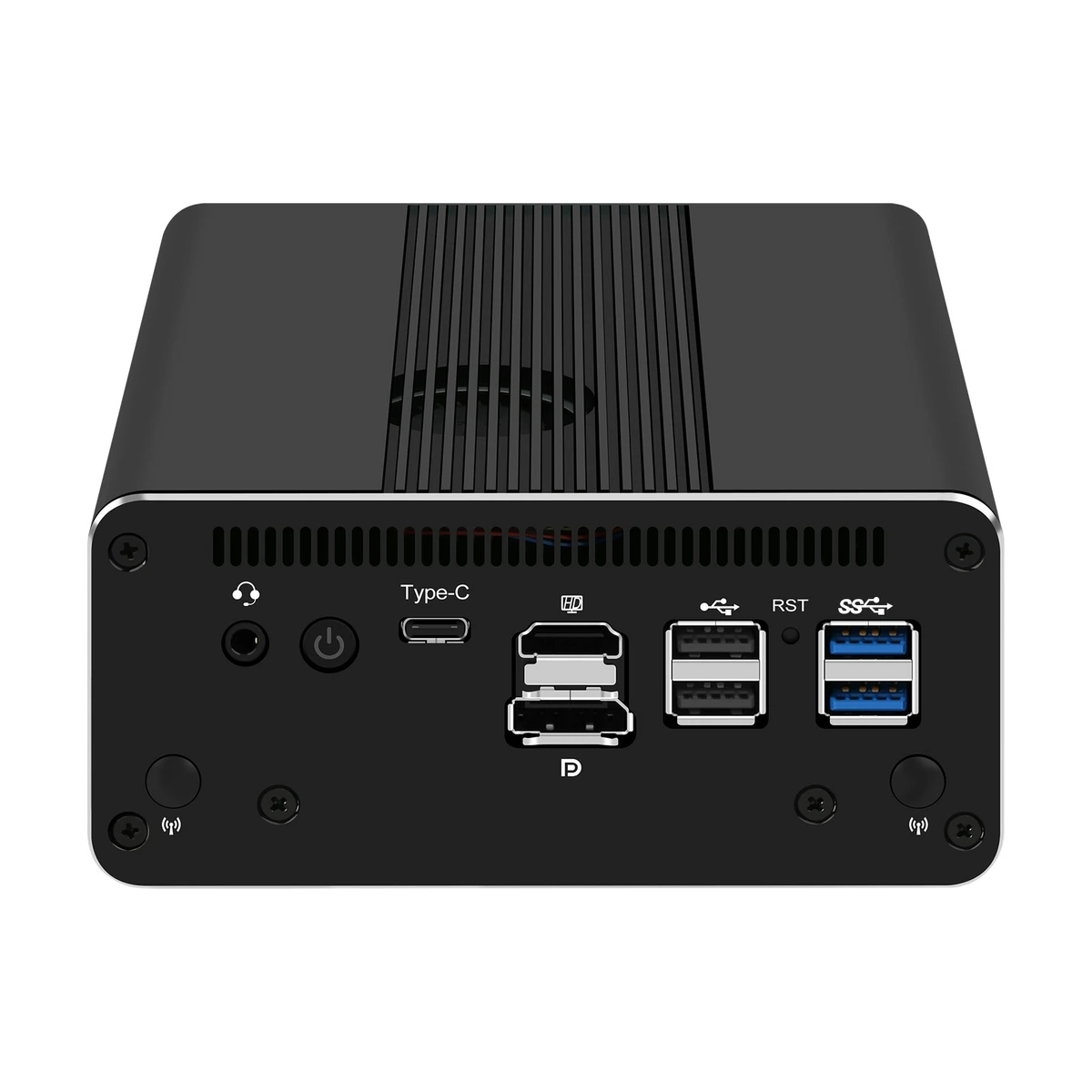

MCNAS11 front panel

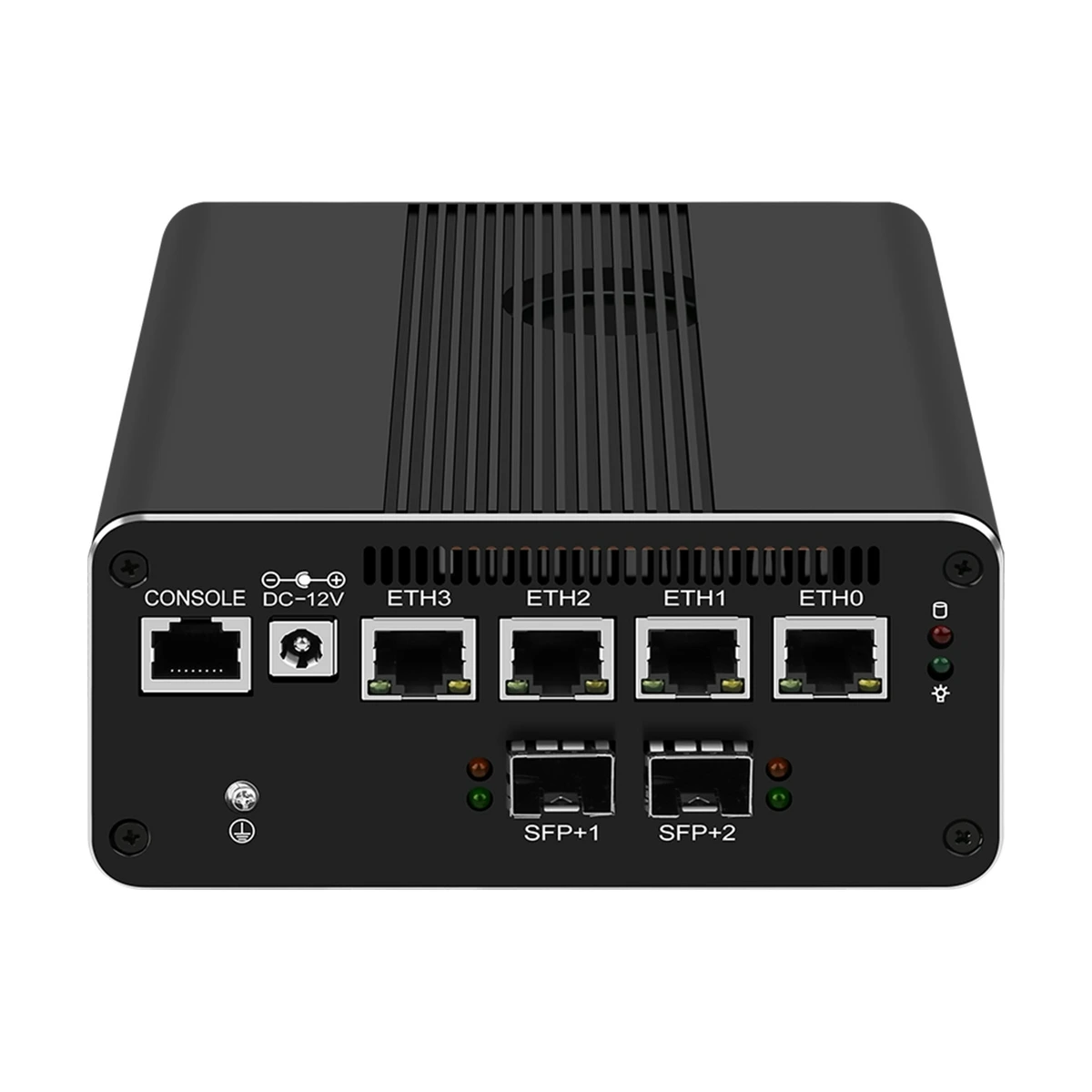

MCNAS11 rear panel
Technical Specifications
Industrial-grade configuration details
MCNAS11 Specification Matrix
Available hardware configurations
Operating Range
-20°C to 55°C
Model
MCNAS11
CPU
Onboard Intel Core i3-1115G4, FC-BGA1449; 2 cores / 4 threads; up to 4.10 GHz; 6 MB Smart Cache; TDP 28 W
Processor
Optional Intel 11th Gen Pentium / Celeron / Core i3 / i5 / i7 processors (FC-BGA1449)
Memory
2 x 260-pin DDR4-3200 SO-DIMM slots, 1.2 V; max 64 GB
SATA
2 x 7-pin SATA connectors
Storage - M.2 SSD
1 x M.2 2280 SSD slot, NVMe only
Network
4 x RJ45 LAN ports; onboard Intel I226 controllers; 2 x SFP+ ports
Display
1 x HDMI; 1 x DP
USB
2 x USB3.0; 2 x USB2.0; 1 x USB Type-C
Serial
1 x external RJ45 COM port; 1 x onboard COM header (RS232)
Audio
1 x microphone / headphone audio port
Controls / LED
1 x power button; 1 x reset button; 1 x LED indicator
PCIe
1 x PCIe 3.0 slot (x8 physical, x2 electrical)
Internal I/O - SATA power
2 x SATA power connectors
Internal I/O - Front panel
1 x front-panel header
Internal I/O - TPM
1 x TPM header
Internal I/O - CPU fan
1 x CPU fan power header
DC input
1 x DC_IN connector, 12 V DC
PCB Size
120 x 150 mm
Environment - Operating
-20 to 55 °C
Environment - Humidity
5-90% RH, non-condensing
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCNAS11 combines Intel Core i3-1115G4 processor options, up to 64GB DDR4, and 4 x RJ45 + 2 x SFP+ for compact storage and network-service deployments. NVMe, SATA, and PCIe expansion support project-specific storage and connectivity requirements.
Storage-Oriented Architecture
NAS-focused systems provide model-specific NVMe, SATA, TF, and expansion options for local storage and service workloads.
Multi-Gigabit Networking
Selected models combine 2.5GbE interfaces with 10GbE SFP+ or expandable high-speed network options.
Compact Local Services
The platforms suit compatible NAS, backup, media, private-cloud, and other local network-service software.
