MCNAS12
Intel Core NAS platform with four 2.5GbE and dual 10GbE SFP+
MCNAS12 combines 12th and 13th Gen Intel processor options, DDR5 memory, four 2.5GbE ports, dual 10GbE SFP+, NVMe, dual SATA, and triple-display output for compact storage and network services.
Product Gallery
A closer look at MCNAS12
Different product views highlight the enclosure design, interface layout, and installation details.

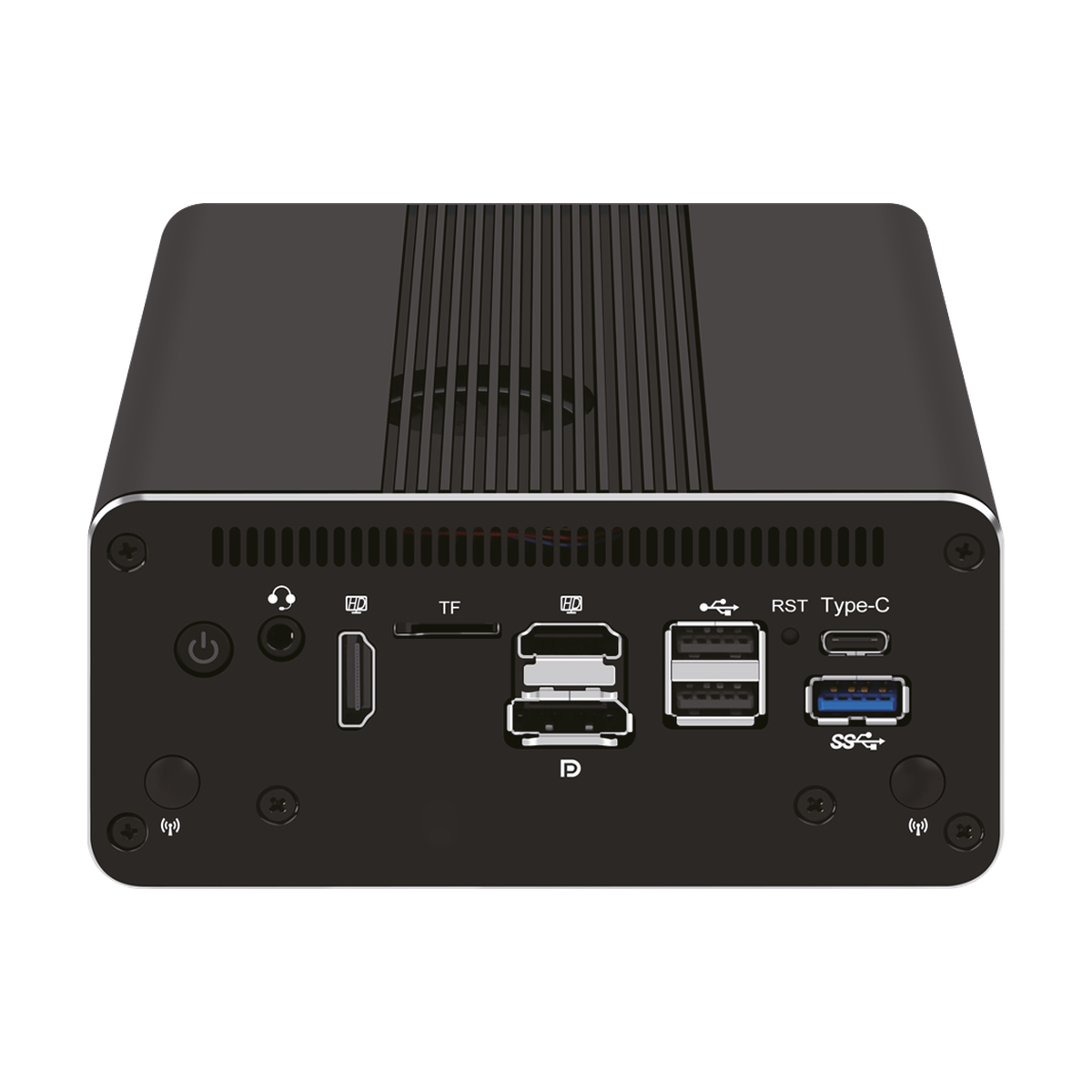

MCNAS12 enclosure and interface view
Technical Specifications
Industrial-grade configuration details
MCNAS12 Specification Matrix
Available hardware configurations
Operating Range
0°C to 60°C; 0% to 95% relative humidity, non-condensing
Model
MCNAS12
CPU
Intel Core i5-1240P / Pentium Gold 8505 / Intel U300E
Chipset
Intel Alder Lake platform
Graphics
Intel Iris Xe Graphics
Video
DisplayPort, 2 x HDMI, and Type-C 3.1
Memory
2 x DDR5 SO-DIMM, up to 64GB at 5600MHz
USB
USB 3.2 Gen 1, Type-C 3.1, and 2 x USB 2.0
Material
Aluminum alloy
Power
DC 12V to 19V
Network
4 x Intel i226 2.5GbE and 2 x Intel 82599ES 10GbE SFP+
Storage
M.2 NVMe PCIe 3.0 x4 and 2 x external SATA 3.0
Expansion
TF card and F_PANEL header
Front I/O

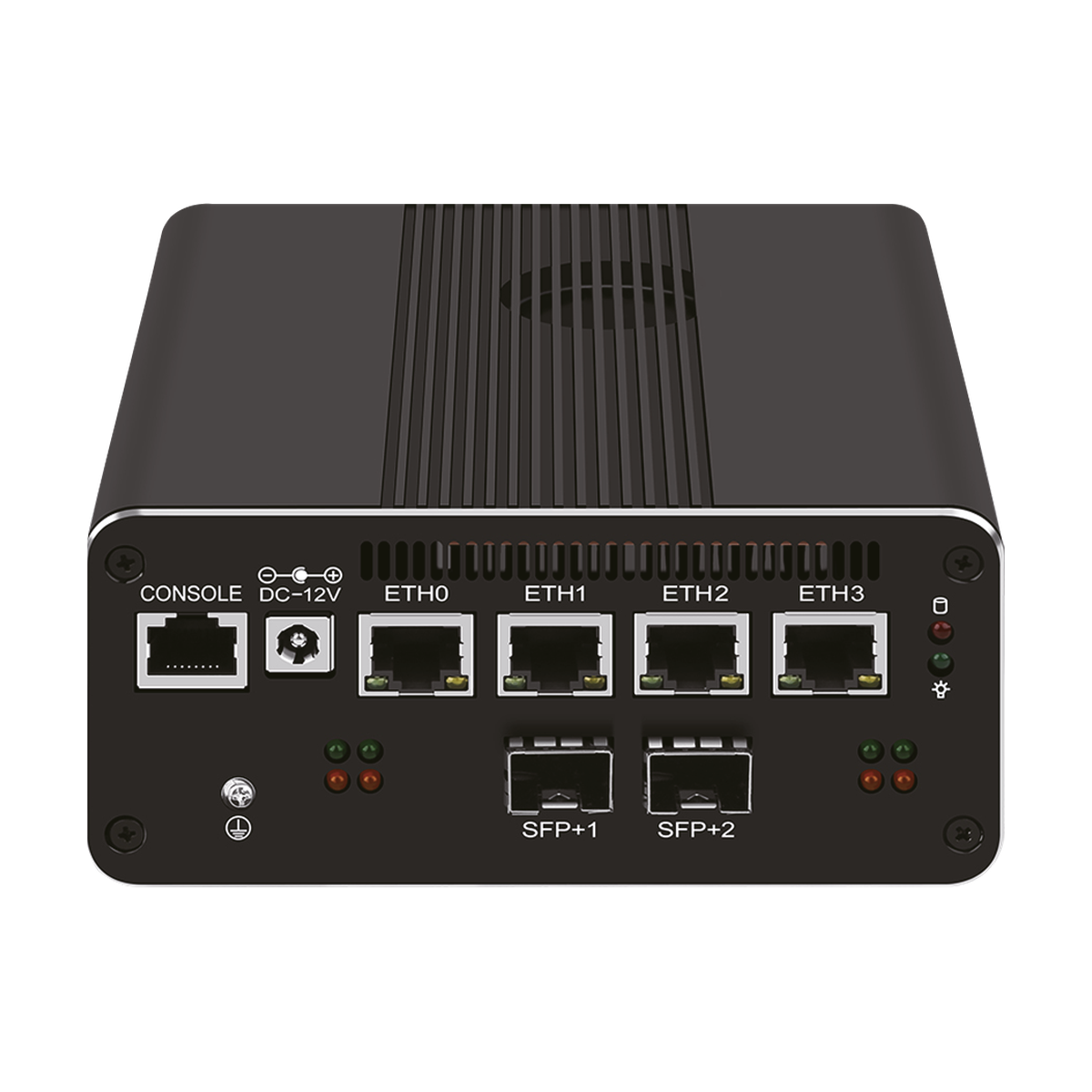

1 x power input; 4 x 2.5GbE RJ45; 2 x 10GbE SFP+; 1 x RJ45 COM
Rear I/O
1 x Type-C 3.1; 2 x USB 2.0; 1 x USB 3.2; 2 x HDMI with audio; 1 x DisplayPort; 1 x power button; 1 x TF card slot; 1 x antenna connector; 1 x audio jack
Internal I/O
2 x SATA 3.0 connectors; 1 x M.2 connector; 1 x front-panel header
Dimensions
145.4 x 131.7 x 60 mm
BIOS
AMI EFI BIOS
TDP
15W to 28W
System
Windows 10 / Windows 11 / Linux
Working Environment
0°C to 60°C; 0% to 95% relative humidity, non-condensing
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCNAS12 combines 12th and 13th Gen Intel processor options, DDR5 memory, four 2.5GbE ports, dual 10GbE SFP+, NVMe, dual SATA, and triple-display output for compact storage and network services.
Storage-Oriented Architecture
NAS-focused systems provide model-specific NVMe, SATA, TF, and expansion options for local storage and service workloads.
Multi-Gigabit Networking
Selected models combine 2.5GbE interfaces with 10GbE SFP+ or expandable high-speed network options.
Compact Local Services
The platforms suit compatible NAS, backup, media, private-cloud, and other local network-service software.
