MCNAS14B
Intel Core Ultra 125H / 155H / 185H compact NAS PC
MCNAS14B combines Intel Core Ultra 125H / 155H / 185H processor options, up to 96GB DDR5, and 4 x 2.5GbE + 4 x 10GbE SFP+ for compact storage and network-service deployments. NVMe, SATA, and PCIe expansion support project-specific storage and connectivity requirements.
Product Gallery
A closer look at MCNAS14B
Different product views highlight the enclosure design, interface layout, and installation details.

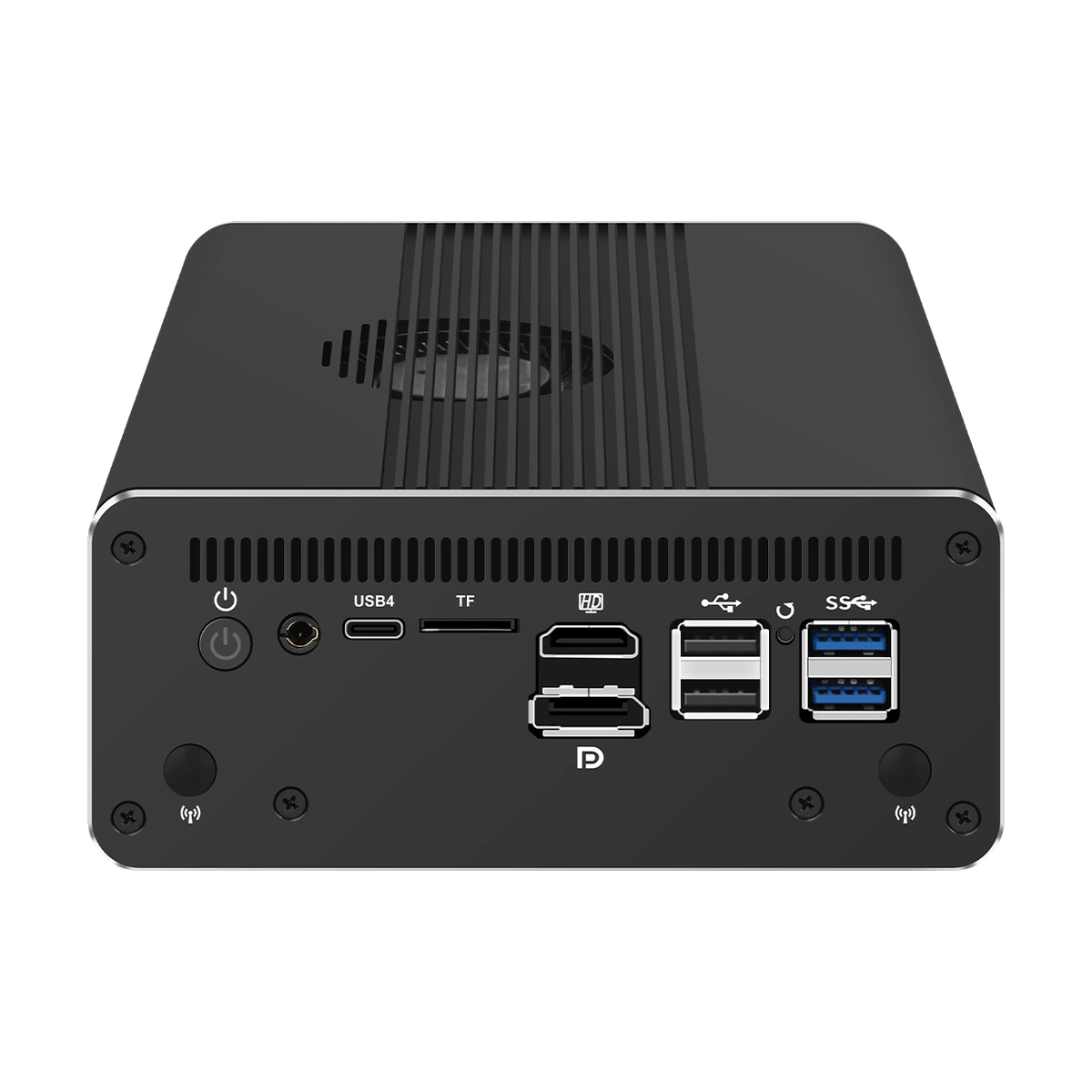

MCNAS14B front panel

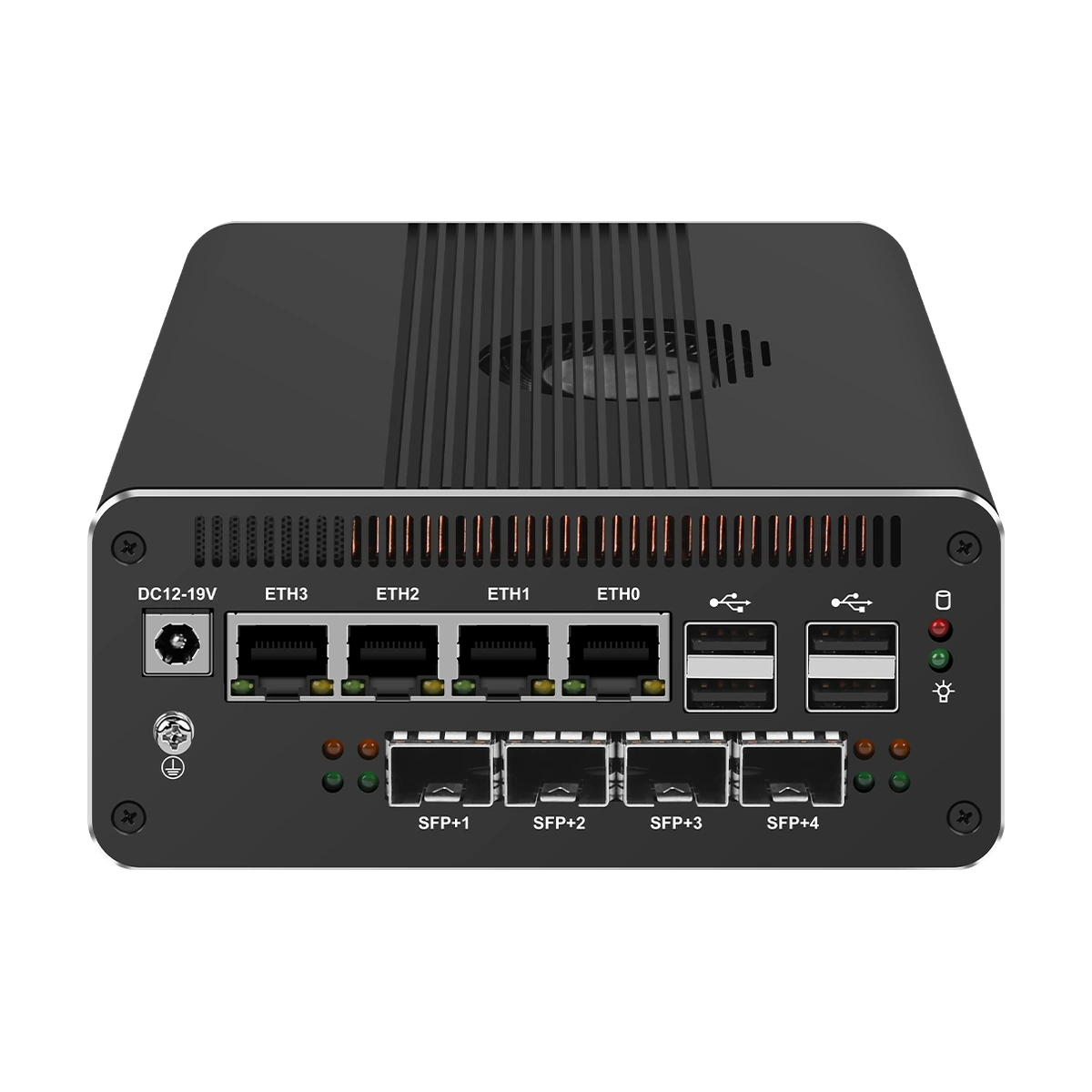

MCNAS14B rear panel
Technical Specifications
Industrial-grade configuration details
MCNAS14B Specification Matrix
Available hardware configurations
Model
MCNAS14B
CPU
Intel Core Ultra 5 125H / Ultra 7 155H / Ultra 9 185H (Meteor Lake)
Graphics
Intel Arc graphics
Memory
2 x SO-DIMM DDR5-5600; supports 4800 / 5200 MHz; up to 96 GB
Display
1 x HDMI 2.0 + 1 x DP 1.4a + 1 x USB4 Type-C; up to 8K at 60 Hz
Storage - M.2 / SATA
1 x M.2 NVMe PCIe 4.0 x4 + 1 x SATA 3.0
Network
4 x Intel I226-V 2.5GbE + 4 x Intel X710 10GbE SFP+
Wireless
1 x M.2 E-Key; supports a CNVi Wi-Fi 6E module
PCIe
1 x PCIe x8 slot
Front I/O - Controls
Power button + BIOS recovery button
Front I/O - Audio / TF
1 x 2-in-1 audio interface + 1 x TF card slot
Front I/O - USB
1 x USB4 Type-C + 2 x USB 3.2 + 2 x USB 2.0
Rear I/O - Network
4 x RJ45 2.5GbE + 4 x SFP+ 10GbE
Rear I/O - USB
4 x USB 2.0
Rear I/O - Power
1 x DC 12-19 V input (5.5 x 2.5 mm)
BIOS
AMI UEFI BIOS; auto power-on, GPIO, PXE and Wake-on-LAN
Internal I/O - Headers
3 x 4-pin fan; GPIO; COM; F_PANEL; TPM; SATA power; control jumpers
DC IN
12-19 V DC, 5.5 x 2.5 mm
Dimensions
6.1 x 5.24 x 2.4 in
Indicators - Hard disk
Hard disk status LED
Indicators - Power
Power status LED
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCNAS14B combines Intel Core Ultra 125H / 155H / 185H processor options, up to 96GB DDR5, and 4 x 2.5GbE + 4 x 10GbE SFP+ for compact storage and network-service deployments. NVMe, SATA, and PCIe expansion support project-specific storage and connectivity requirements.
Storage-Oriented Architecture
NAS-focused systems provide model-specific NVMe, SATA, TF, and expansion options for local storage and service workloads.
Multi-Gigabit Networking
Selected models combine 2.5GbE interfaces with 10GbE SFP+ or expandable high-speed network options.
Compact Local Services
The platforms suit compatible NAS, backup, media, private-cloud, and other local network-service software.
