MCNASH10
Expandable Intel N100 NAS platform with optional high-speed SFP+
MCNASH10 combines Intel N100, DDR5, dual 2.5GbE, NVMe storage, and a PCIe-based expansion interface supporting compatible 20Gb or 40Gb SFP+ configurations.
Product Gallery
A closer look at MCNASH10
Different product views highlight the enclosure design, interface layout, and installation details.

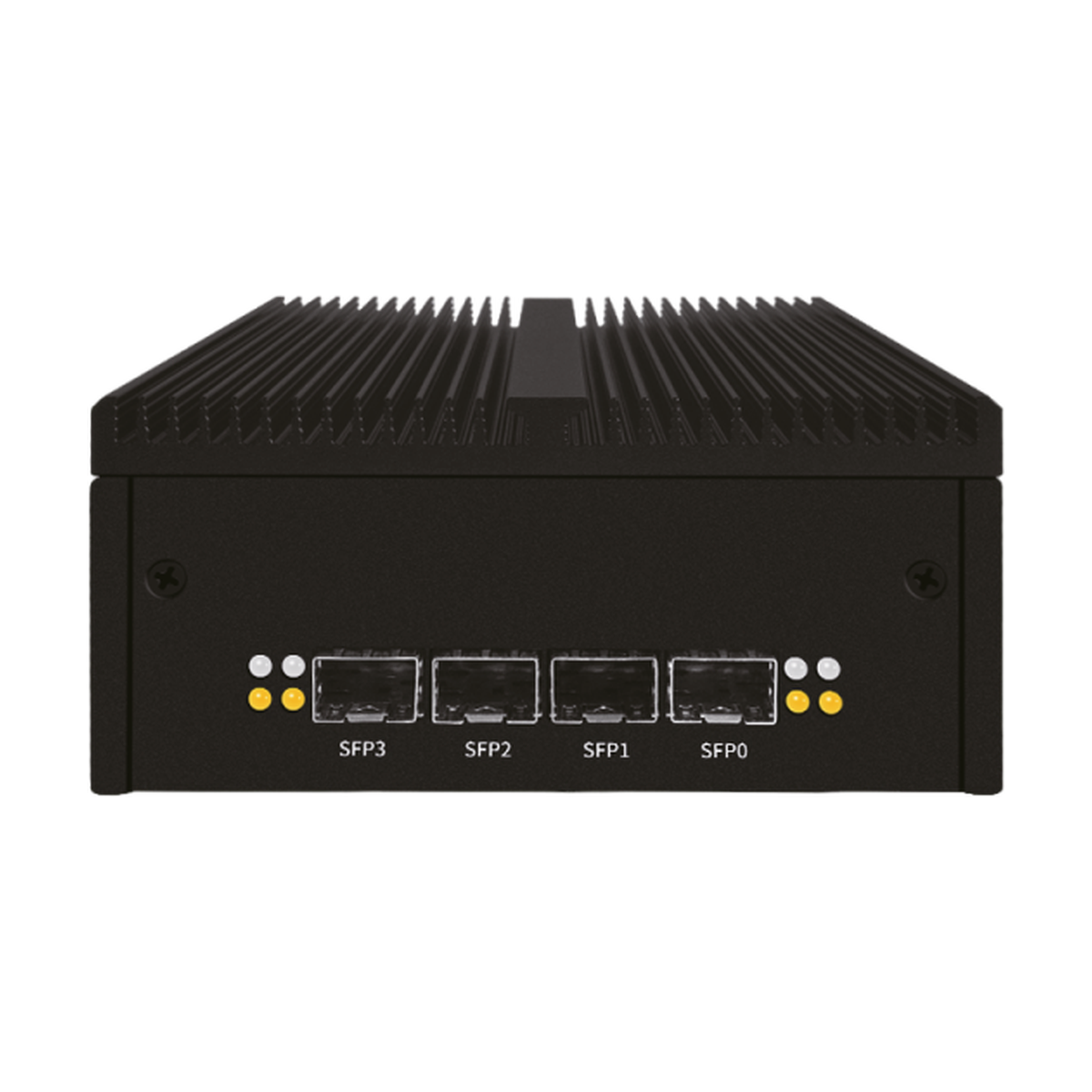

MCNASH10 enclosure and interface view

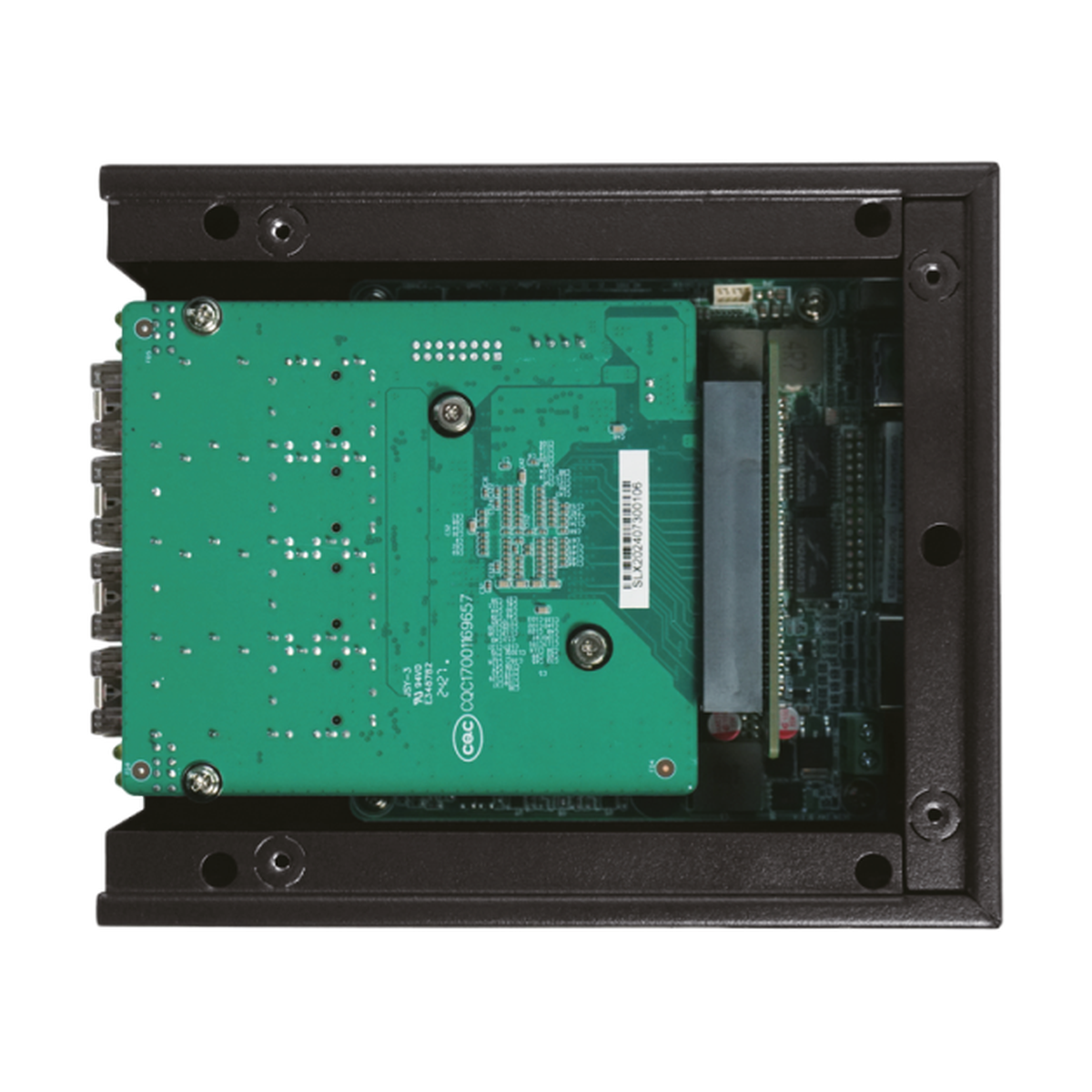

MCNASH10 product view 2
Technical Specifications
Industrial-grade configuration details
MCNASH10 Specification Matrix
Available hardware configurations
Operating Range
0°C to 50°C; 5% to 90% relative humidity, non-condensing
Model
MCNASH10
CPU
Intel N100 quad-core processor
Chipset
Intel N100 platform
Graphics
Intel UHD Graphics
Video
HDMI 2.0, DisplayPort 1.2, and expandable Type-C display
Memory
DDR5 SO-DIMM, up to 16GB
USB
2 x USB 3.2 and 1 x USB 2.0
Power
DC 12V / 7A
Network
2 x Intel i226 2.5GbE; optional 2 or 4 SFP+ 10GbE ports
Storage
M.2 NVMe / NGFF
Expansion
PCIe x6 I/O interface for compatible 20Gb / 40Gb SFP+ expansion; M.2 CNVi; GPIO; COM

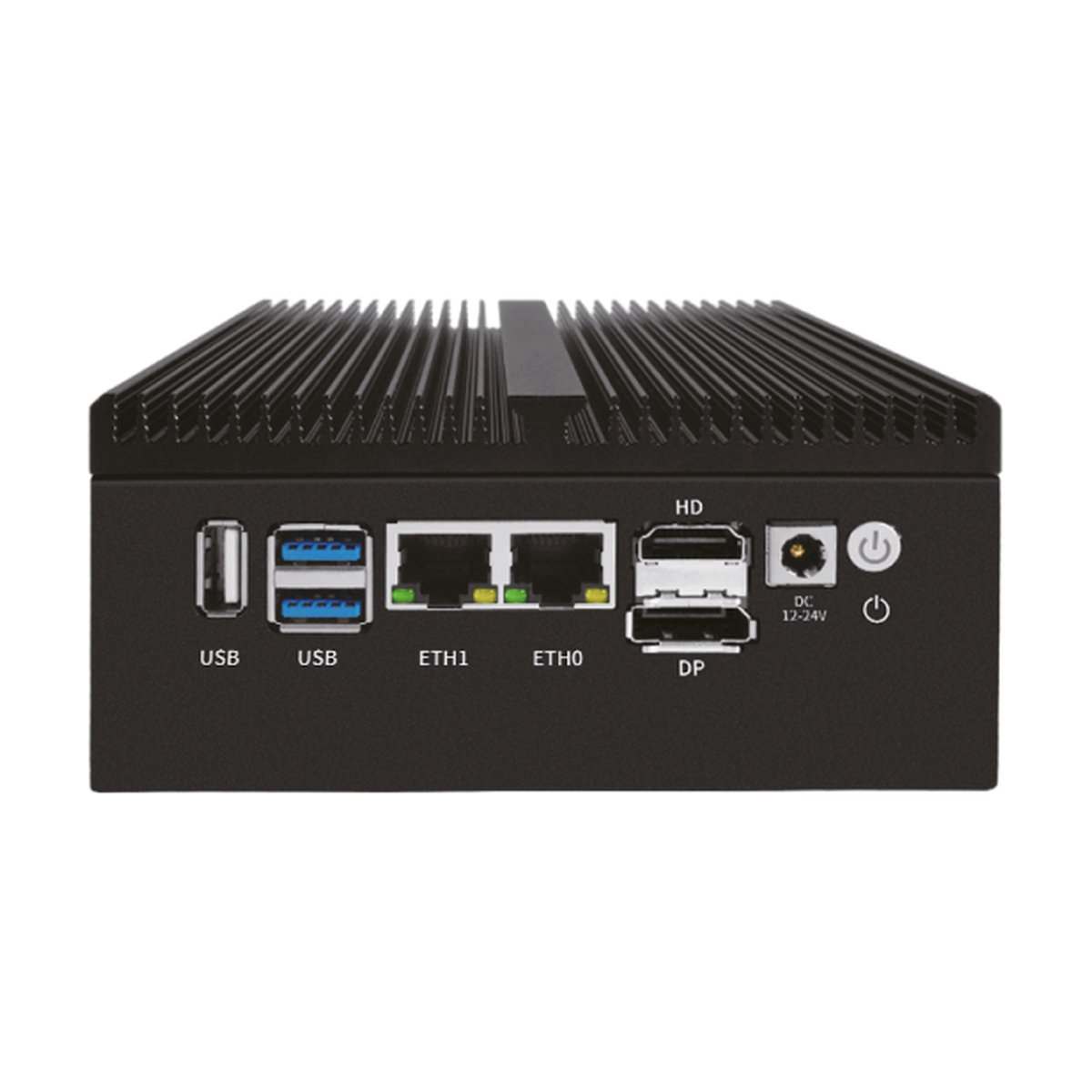

Front I/O
2 x USB 3.2; 2 x 2.5GbE RJ45; 1 x HDMI 2.0; 1 x DisplayPort 1.2; 1 x DC input; 1 x USB 2.0; 1 x power button
Rear I/O
2 or 4 x expandable 10GbE SFP+
Internal I/O
2 x front USB headers; 1 x COM header; 1 x front-panel header; 2 x CPU / system fan connectors; 1 x GPIO header
Dimensions
128 x 156 x 59 mm
Weight
1.1 kg
BIOS
AMI UEFI BIOS with watchdog, Wake-on-LAN, and PXE
TDP
6W
System
Windows 10 / Windows 11 / Linux
Working Environment
0°C to 50°C; 5% to 90% relative humidity, non-condensing
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCNASH10 combines Intel N100, DDR5, dual 2.5GbE, NVMe storage, and a PCIe-based expansion interface supporting compatible 20Gb or 40Gb SFP+ configurations.
Storage-Oriented Architecture
NAS-focused systems provide model-specific NVMe, SATA, TF, and expansion options for local storage and service workloads.
Multi-Gigabit Networking
Selected models combine 2.5GbE interfaces with 10GbE SFP+ or expandable high-speed network options.
Compact Local Services
The platforms suit compatible NAS, backup, media, private-cloud, and other local network-service software.
