MCNASH14
Intel Core i5-12500H / i7-13620H NAS PC with four 2.5GbE ports
MCNASH14 combines Intel Core i5-12500H or i7-13620H processors, up to 64GB DDR5, four Intel i226 2.5GbE ports, M.2 NVMe and SATA storage, and PCIe expansion in a 150 x 143 x 84 mm enclosure. It uses 12V DC input and supports optional network expansion.
Product Gallery
A closer look at MCNASH14
Different product views highlight the enclosure design, interface layout, and installation details.

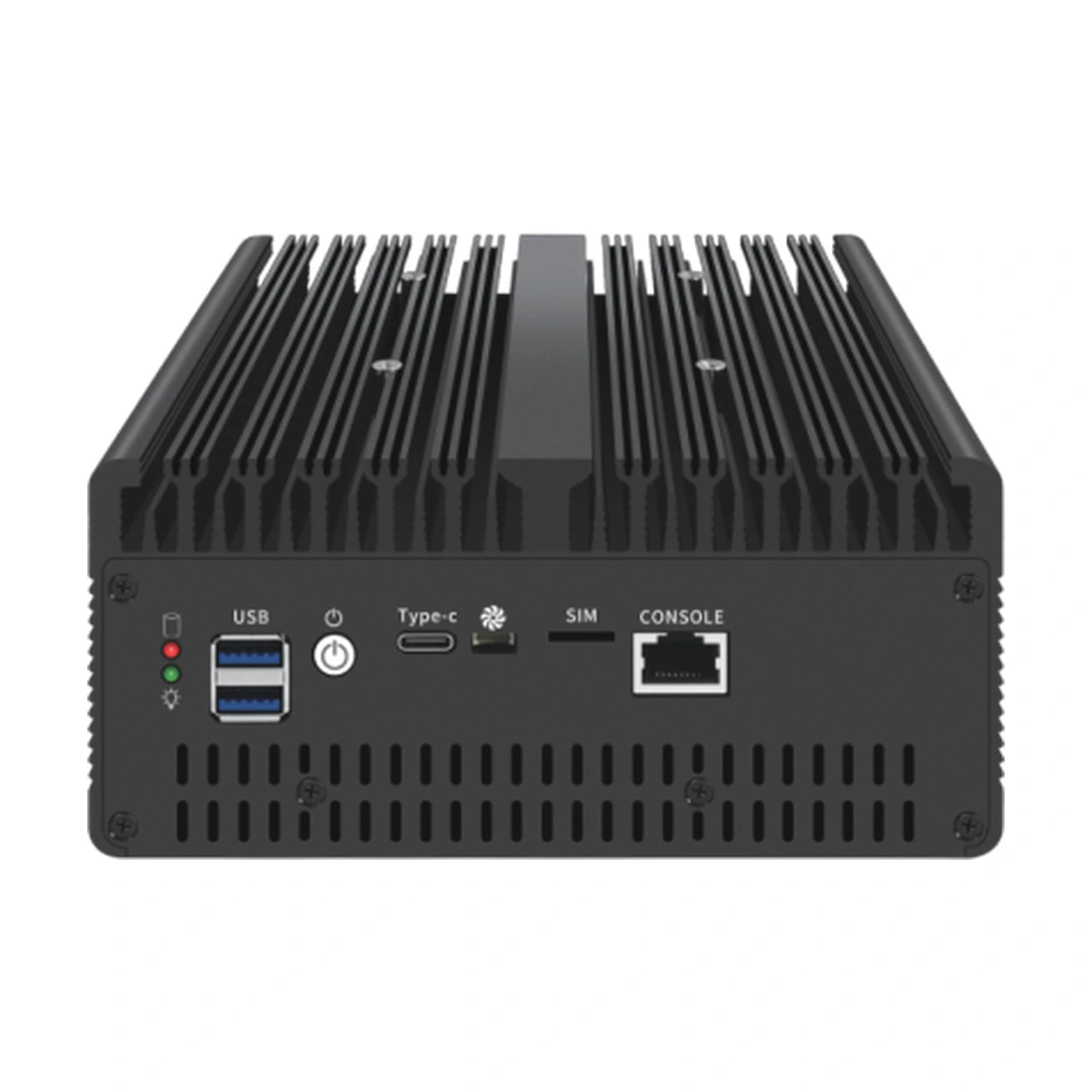

MCNASH14 USB and control panel

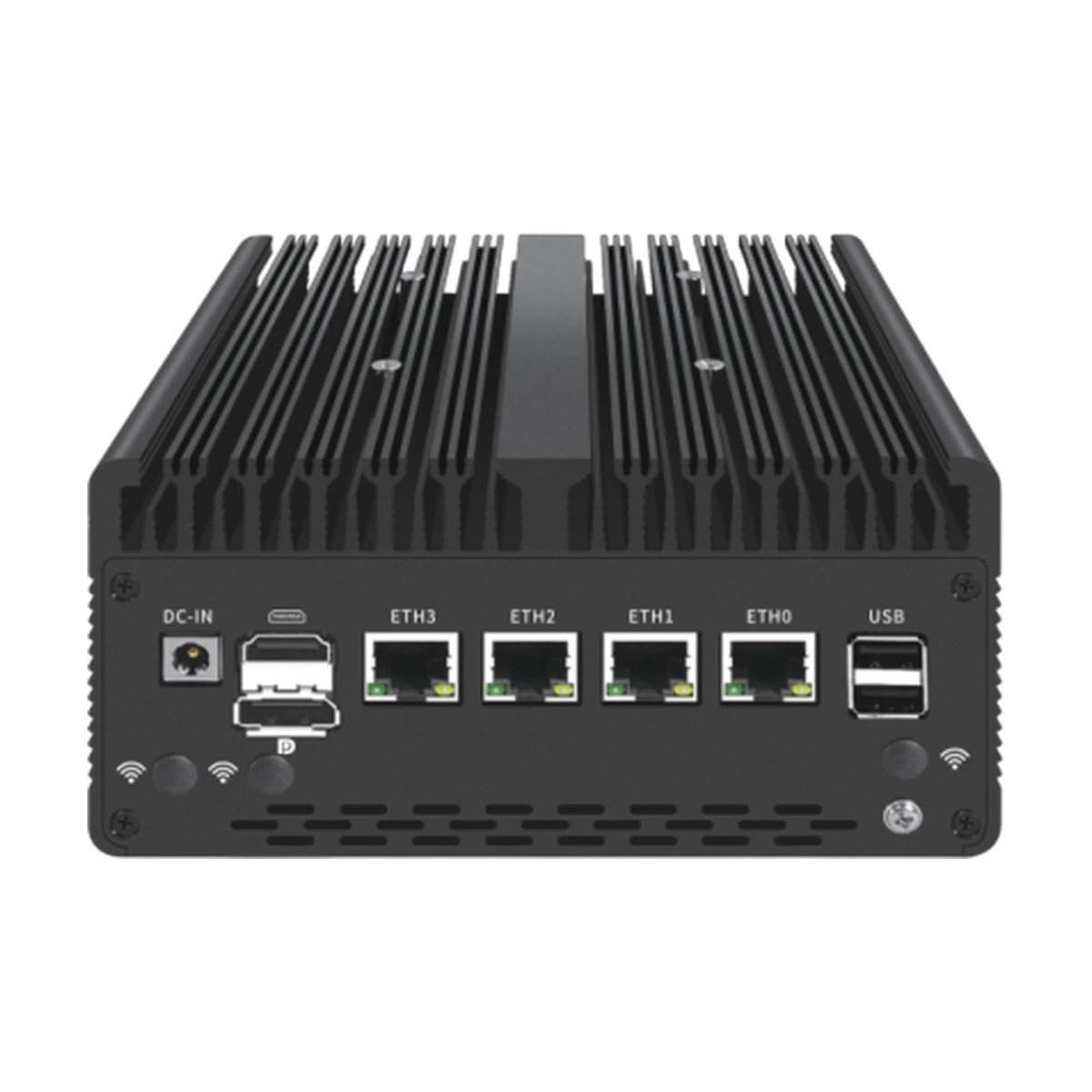

MCNASH14 network panel
Technical Specifications
Industrial-grade configuration details
MCNASH14 Specification Matrix
Available hardware configurations
Operating Range
0°C to 50°C
Model
MCNASH14
CPU
Intel® Core™ i5-12500H / Intel® Core™ i7-13620H
Chipset
Integrated Intel chipset / SoC
Graphics
Intel UHD Graphics for 12th Gen Intel Processors
Display
1 x DP port; 1 x HDMI port
Memory
2 x 262-pin DDR5 SO-DIMM, max 64 GB
Weight
Gross Weight 2.5KG; Net Weight 1.5KG
USB
2 x USB3.0; 2 x USB2.0
Power
DC 12V
Network
4 x Intel i226 RJ45 2.5 GbE; expandable to 20G/40G SFP+ or 4 additional LAN ports
Storage
1 x M.2 NVMe 2280 (PCIE4.0 x 4)/1 x SATA3.0
Expansion
1 x PCIe x8 slot (PCIe 3.0 x4); 1 x M.2 3052 (PCIe 3.0/USB); 1 x M.2 2230 (PCIe 3.0/USB/CNVi); Wake-on-LAN; PXE
Dimensions
150 x 143 x 84 mm
BIOS
AMI UEFI BIOS
TDP
Depends on CPU
OS
Windows10/Windows11/Linux
Environment - Operating
0~50 C; 5%~90% Relative humidity; (no condensation)
Network panel I/O
2 x USB2.0; 4 x 2.5G Ethernet port; 1 x DC_IN; 1 x DP+HDMI
USB and control panel I/O
2 x USB3.0; 1 x Power Button; 1 x Type-C; 1 x SIM Card Slot; 1 x CONSOLE
Internal I/O - Headers
1 x SATA; 1 x SATA_PWR; 2 x SO-DIMM DDR5 Slot; 1 x PCIE X8; 1 x M.2 Wi-Fi/1 x M.2(3052)/1 x M.2(2280); 1 x CLR_CMOS; 1 x JGPIO; 1 x F_USB; 1 x JTPM; 1 x CPU_FAN
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCNASH14 combines Intel Core i5-12500H or i7-13620H processors, up to 64GB DDR5, four Intel i226 2.5GbE ports, M.2 NVMe and SATA storage, and PCIe expansion in a 150 x 143 x 84 mm enclosure. It uses 12V DC input and supports optional network expansion.
Storage-Oriented Architecture
NAS-focused systems provide model-specific NVMe, SATA, TF, and expansion options for local storage and service workloads.
Multi-Gigabit Networking
Selected models combine 2.5GbE interfaces with 10GbE SFP+ or expandable high-speed network options.
Compact Local Services
The platforms suit compatible NAS, backup, media, private-cloud, and other local network-service software.
