MCNASH15
Intel Core Ultra NAS PC with six 2.5GbE ports and optional 10G SFP+
MCNASH15 offers Intel Core Ultra 155H / 165H / 185H processor options, up to 96GB DDR5, six Intel i226 2.5GbE ports, dual M.2 PCIe storage and SATA. The standard H15-155H-6L configuration can be ordered with two or four additional 10G SFP+ ports. The 165 x 154 x 78 mm enclosure uses 19V DC input.
Product Gallery
A closer look at MCNASH15
Different product views highlight the enclosure design, interface layout, and installation details.

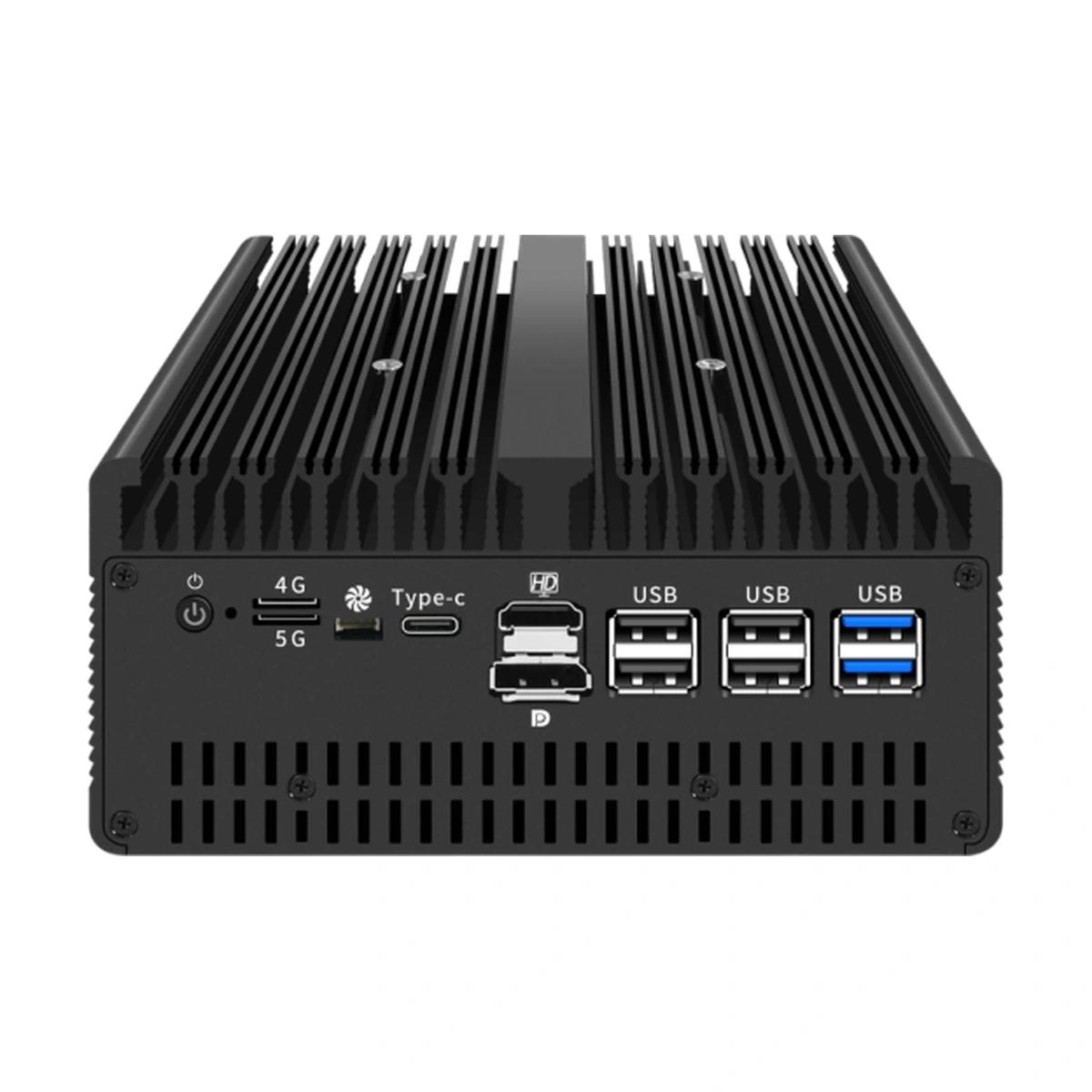

MCNASH15 USB and control panel
Standard H15-155H-6L shown; optional configurations add SFP+ ports.

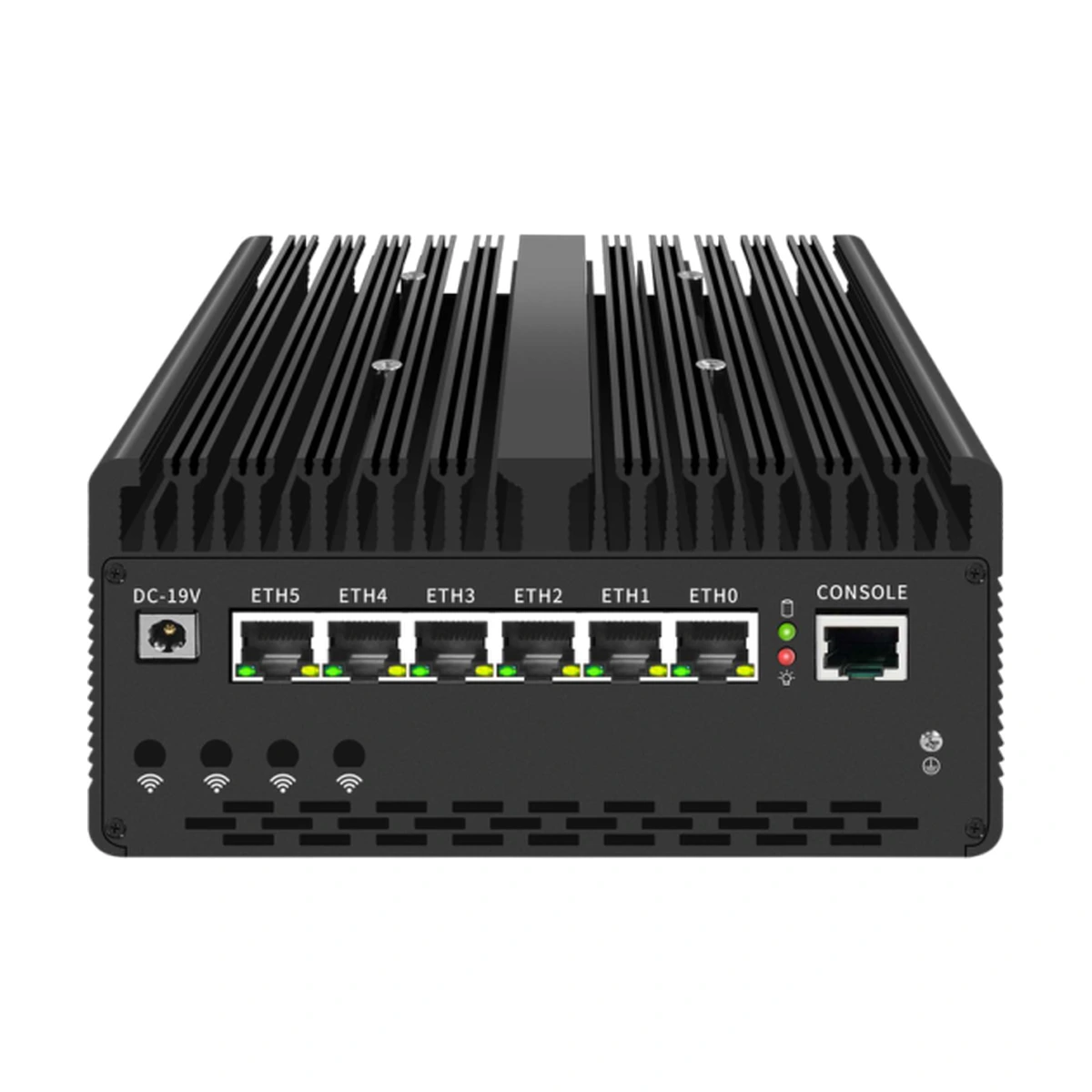

MCNASH15 network panel
Standard H15-155H-6L shown; optional configurations add SFP+ ports.
Technical Specifications
Industrial-grade configuration details
MCNASH15 Specification Matrix
Available hardware configurations
Operating Range
0°C to 50°C with commercial HDD; -20°C to 50°C with industrial SSD
Model
MCNASH15
CPU
Intel Core Ultra 155H / 165H / 185H (Meteor Lake)
Chipset
BKHD-2049-6L-15
Graphics
Integrated Intel graphics
Display
1 x HDMI; 1 x DP; 1 x USB Type-C
Memory
2 x DDR5 SO-DIMM, up to 96 GB, 5600 MHz
Weight
Net 1.55 kg; gross 2.5 kg; package 295 x 230 x 135 mm
USB
2 x USB 3.0; 4 x USB 2.0; 1 x USB Type-C
Power
DC 19 V
Network
6 x Intel i226 RJ45 2.5 GbE
Storage
2 x M.2 Key-M PCIe x4; 1 x SATA 3.0
Expansion
1 x M.2 Key-E; 1 x M.2 Key-B; 1 x Mini PCIe; 1 x PCIe x8
Dimensions
165 x 154 x 78 mm
BIOS
AMI BIOS
Certificates
CE; CCC; FCC Class B; RoHS
Environment - Operating
0~50 C (commercial HDD); -20~50 C (industrial SSD); 5%~90% RH, non-condensing
Functions
Auto power-on; Wake-on-LAN; PXE; watchdog
Network panel I/O
6 x RJ45 2.5 GbE; optional 2 / 4 x 10G SFP+; 1 x COM; 1 x DC input
USB and control panel I/O
2 x USB 3.0; 4 x USB 2.0; USB Type-C; fan power; 4G SIM; 5G SIM; power button
Configurations
Standard: H15-155H-6L (6 x 2.5 GbE) Optional: H15-155H-6L-2S (+2 x 10G SFP+) / H15-155H-6L-4S (+4 x 10G SFP+)
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCNASH15 offers Intel Core Ultra 155H / 165H / 185H processor options, up to 96GB DDR5, six Intel i226 2.5GbE ports, dual M.2 PCIe storage and SATA. The standard H15-155H-6L configuration can be ordered with two or four additional 10G SFP+ ports. The 165 x 154 x 78 mm enclosure uses 19V DC input.
Storage-Oriented Architecture
NAS-focused systems provide model-specific NVMe, SATA, TF, and expansion options for local storage and service workloads.
Multi-Gigabit Networking
Selected models combine 2.5GbE interfaces with 10GbE SFP+ or expandable high-speed network options.
Compact Local Services
The platforms suit compatible NAS, backup, media, private-cloud, and other local network-service software.
