MCNASH9
Compact Intel N100 NAS and edge storage platform
MCNASH9 is a compact Intel N100 platform with DDR5, dual 2.5GbE, HDMI and DisplayPort, NVMe plus SATA storage, and Wi-Fi expansion for small storage and edge-service projects.
Product Gallery
A closer look at MCNASH9
Different product views highlight the enclosure design, interface layout, and installation details.

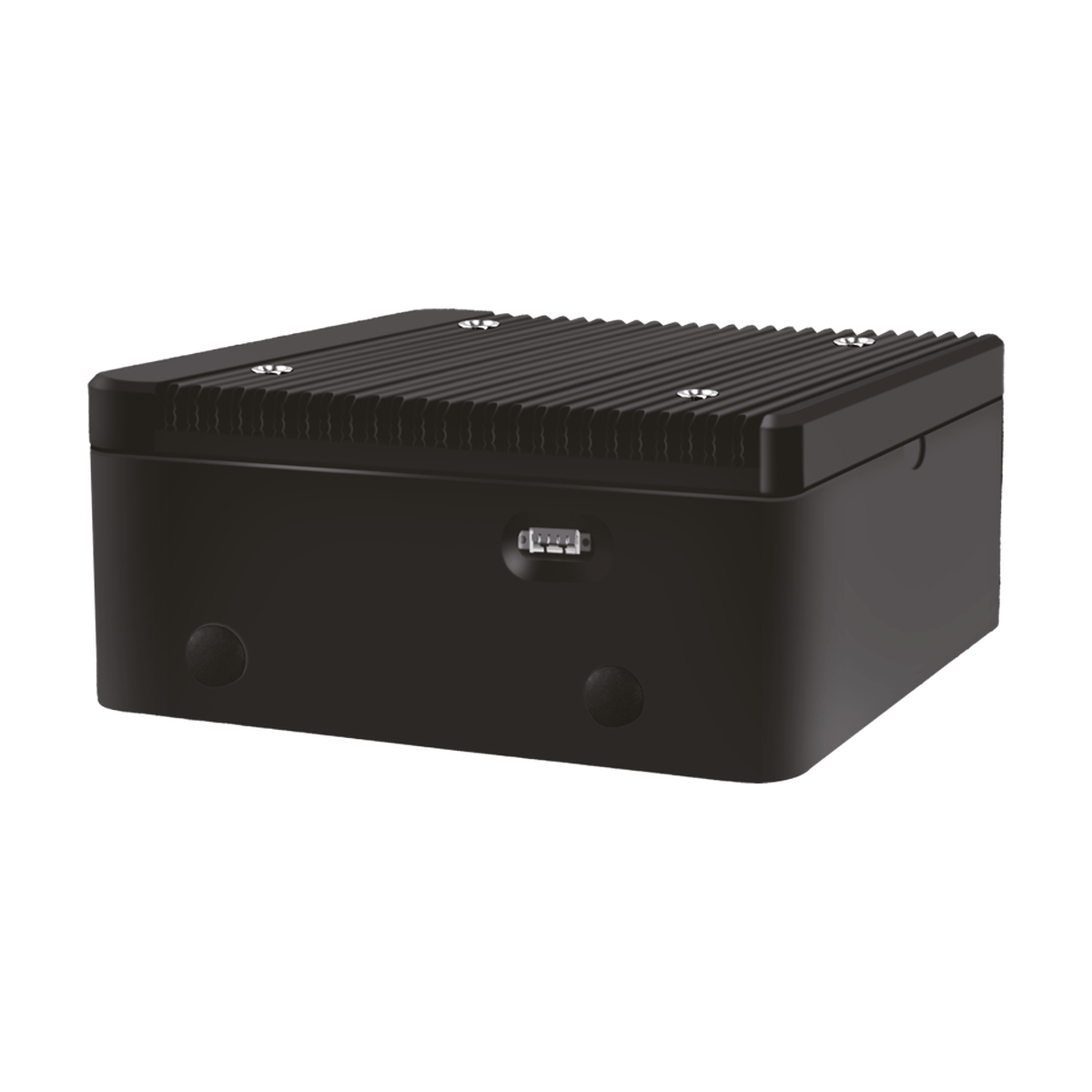

MCNASH9 enclosure and interface view

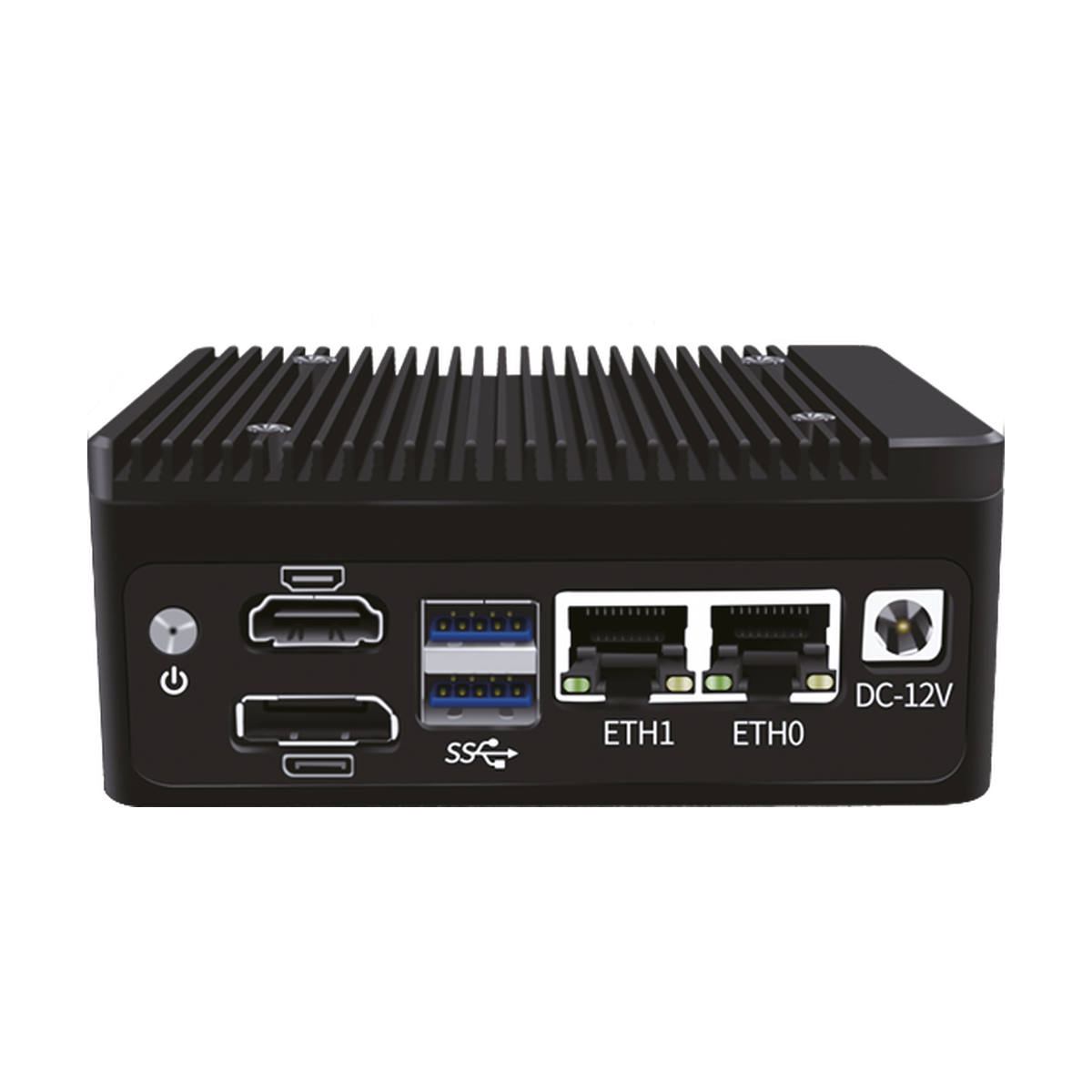

MCNASH9 product view 2
Technical Specifications
Industrial-grade configuration details
MCNASH9 Specification Matrix
Available hardware configurations
Operating Range
0°C to 50°C; 5% to 90% relative humidity, non-condensing
Model
MCNASH9
CPU
Intel N100 quad-core processor
Chipset
Intel N100 platform
Graphics
Intel UHD Graphics
Video
HDMI up to 4K at 60Hz and DisplayPort; expandable Type-C display
Memory
DDR5 SO-DIMM at 4800MHz, up to 16GB
USB
1 x USB 2.0 and 1 x USB 3.2 Gen 2
Network
2 x Intel i226 2.5GbE; expandable to four LAN ports
Storage
M.2 Key-M 2280 PCIe / SATA and SATA 3.0
Expansion
M.2 E-Key 2230 for Wi-Fi / Bluetooth; GPIO; COM; fan headers
Front I/O
2 x Intel i226 2.5GbE RJ45; 1 x USB 2.0; 1 x USB 3.2 Gen 2; 1 x HDMI supporting 4K at 60Hz; 1 x DisplayPort; 1 x power button; 1 x 12V DC input
Rear I/O
1 x 4-pin CPU fan connector
Internal I/O
2 x front USB headers; 1 x COM header; 1 x front-panel header; 2 x CPU / system fan connectors; 1 x GPIO header
Dimensions
100 x 100 x 45 mm
Weight
1 kg
BIOS
AMI UEFI BIOS with watchdog, Wake-on-LAN, and PXE
TDP
6W
System
Windows 10 / Windows 11 / Linux
Working Environment
0°C to 50°C; 5% to 90% relative humidity, non-condensing
Power
DC 12 V / 4 A input, 5.5 x 2.5 mm
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCNASH9 is a compact Intel N100 platform with DDR5, dual 2.5GbE, HDMI and DisplayPort, NVMe plus SATA storage, and Wi-Fi expansion for small storage and edge-service projects.
Storage-Oriented Architecture
NAS-focused systems provide model-specific NVMe, SATA, TF, and expansion options for local storage and service workloads.
Multi-Gigabit Networking
Selected models combine 2.5GbE interfaces with 10GbE SFP+ or expandable high-speed network options.
Compact Local Services
The platforms suit compatible NAS, backup, media, private-cloud, and other local network-service software.
