MCNUC-1
Legacy Intel Core compact desktop PC
MCNUC-1 provides Intel Haswell and Broadwell Core options, VGA and HDMI output, eight USB ports, Gigabit LAN, and mSATA plus 2.5-inch storage in an aluminum enclosure.
Product Gallery
A closer look at MCNUC-1
Different product views highlight the enclosure design, interface layout, and installation details.

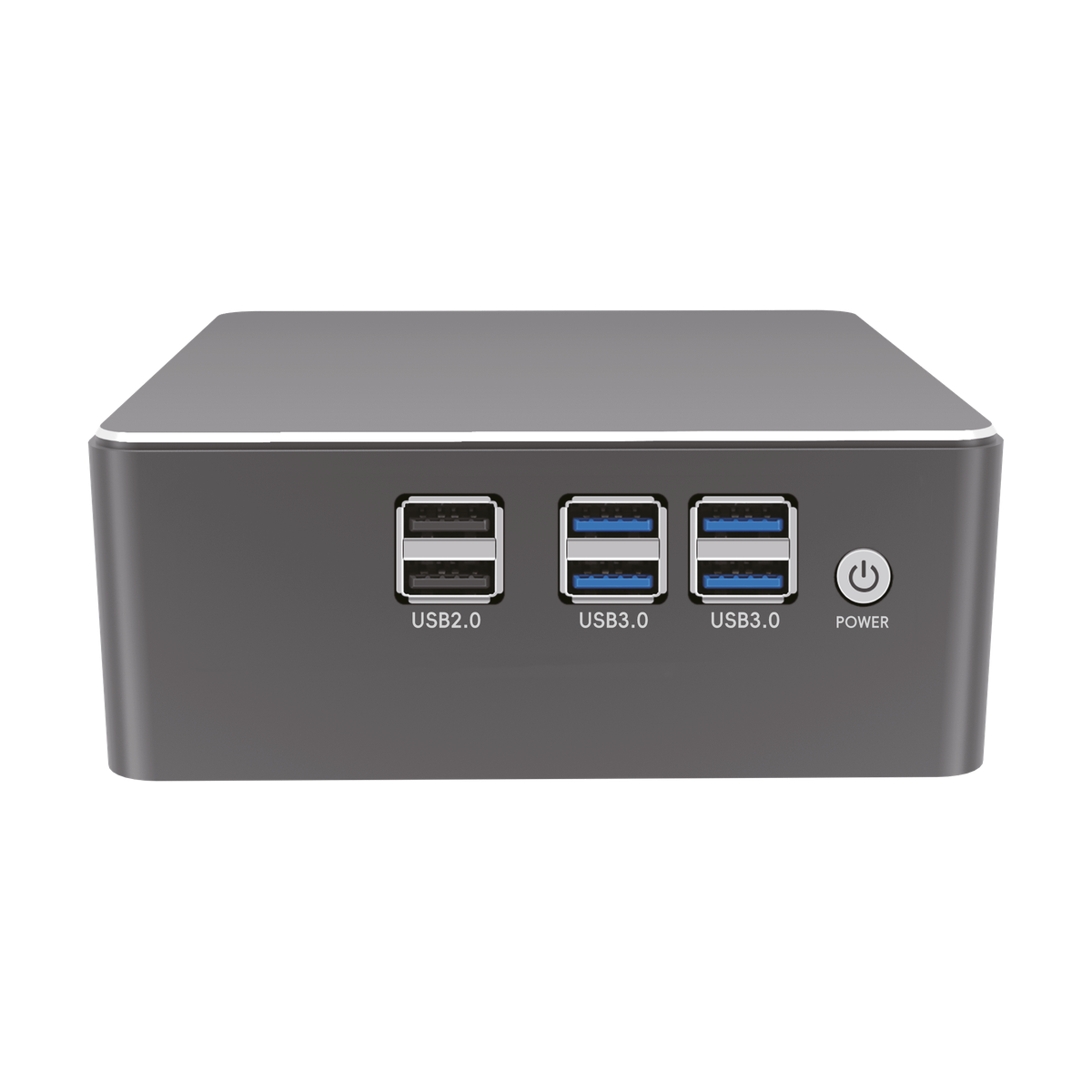

MCNUC-1 enclosure and interface view

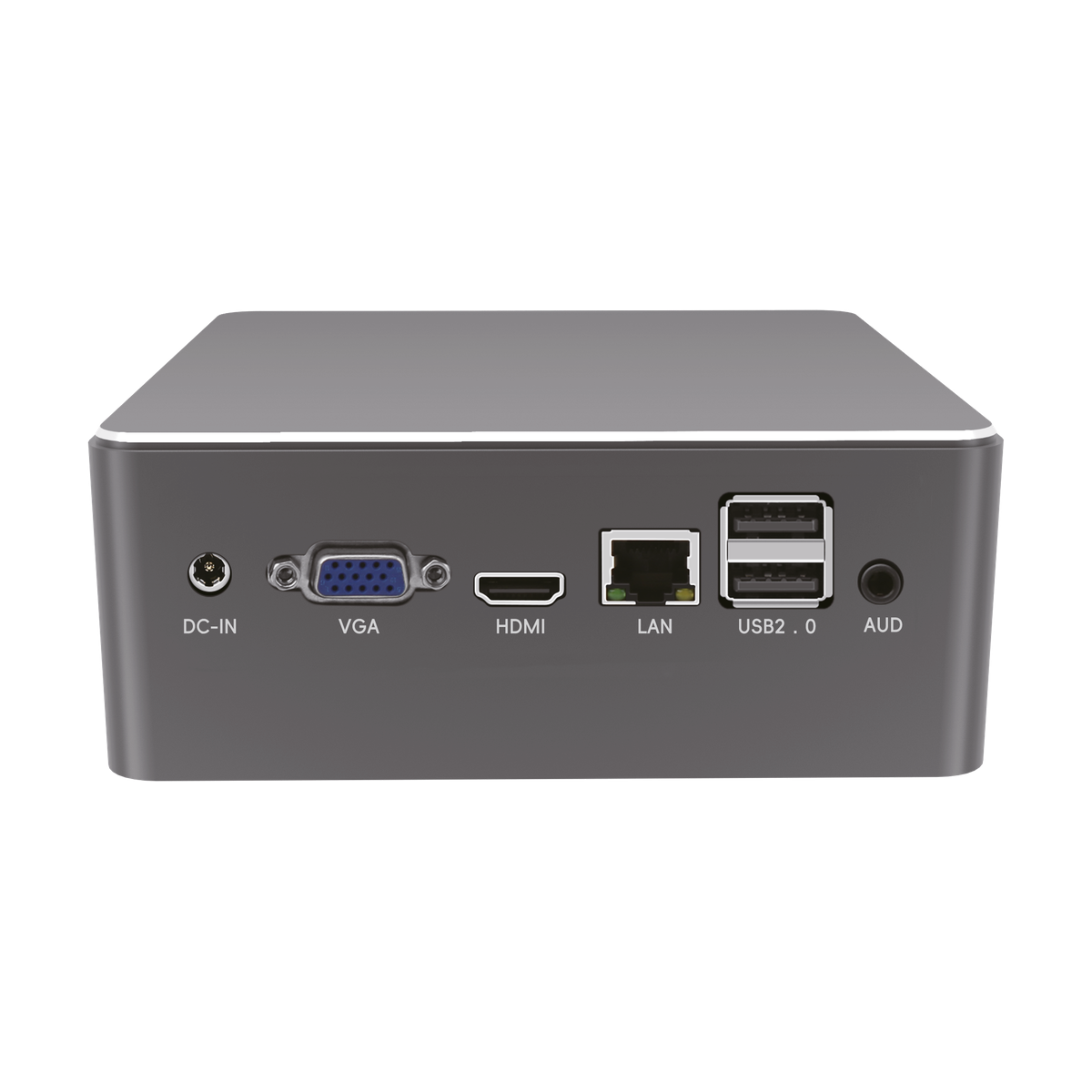

MCNUC-1 product view 2

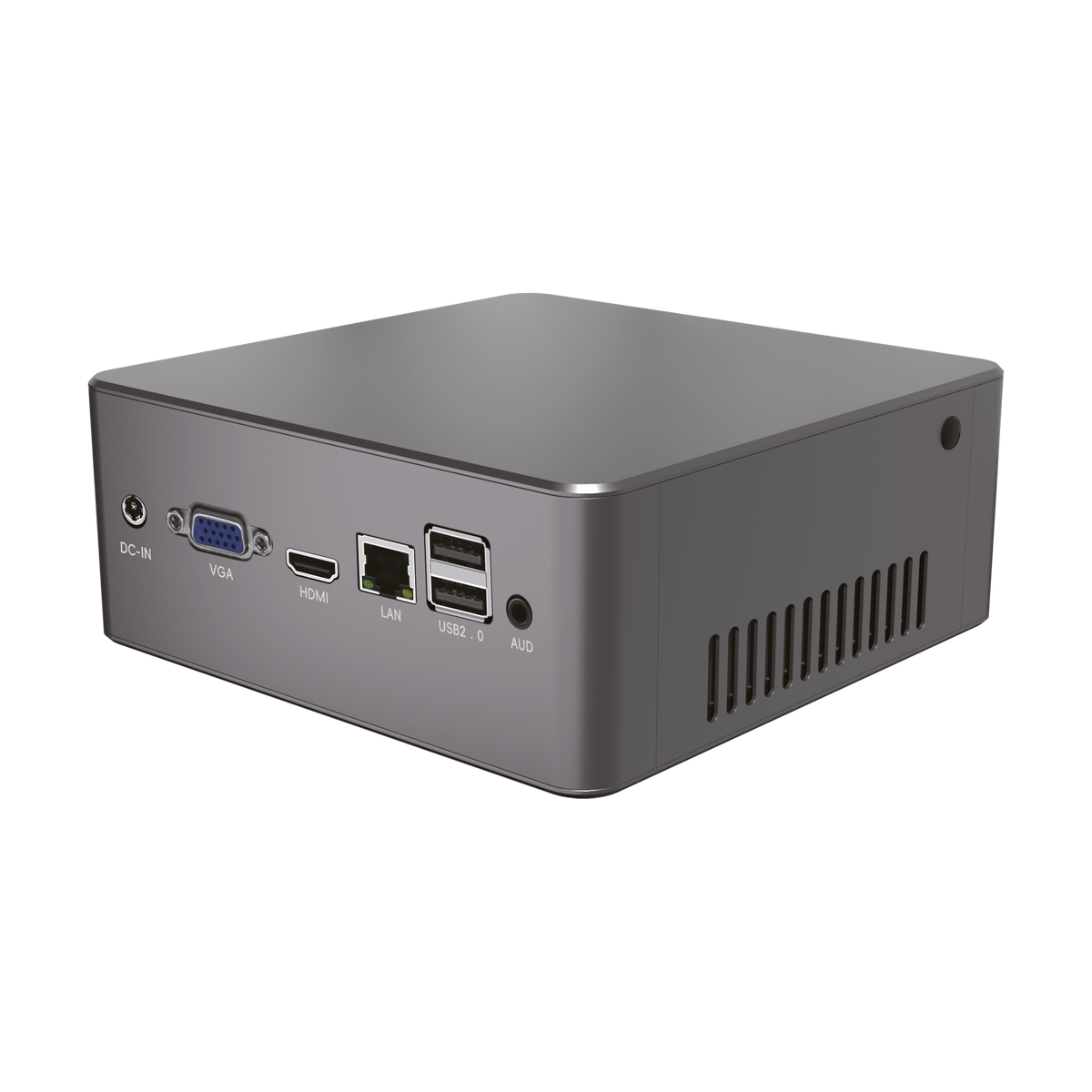

MCNUC-1 product view 3
Technical Specifications
Industrial-grade configuration details
MCNUC-1 Specification Matrix
Available hardware configurations
Operating Range
-20°C to 55°C; 5% to 95% relative humidity, non-condensing
Model
MCNUC-1
CPU
Intel Core i5-4005U / 4200U / 5005U / 5200U
Chipset
Intel Haswell / Broadwell
Graphics
Intel HD 4400 / 5500 Graphics
Video
VGA and HDMI
Memory
DDR3L SO-DIMM at 1333 / 1600MHz
USB
4 x USB 2.0 and 4 x USB 3.0
Material
Aluminum alloy
Power
DC 12V
Network
1 x Realtek RTL8111G/H Gigabit Ethernet
Storage
1 x mSATA and 1 x 2.5-inch SATA 3.0
Front I/O
2 x USB 2.0; 4 x USB 3.0; 1 x power button
Rear I/O
1 x 12V DC input; 2 x USB 2.0; 1 x Realtek RTL8111G/H Gigabit Ethernet; 1 x HDMI; 1 x VGA; 1 x audio port
Internal I/O
1 x DDR3 SO-DIMM slot; 1 x mSATA slot; 1 x 2.5-inch SATA 3.0 connector
Dimensions
126 x 126 x 52 mm
BIOS
Diskless boot, Wake-on-LAN, automatic and scheduled power-on
TDP
Depends on selected processor
System
Windows 7 / Windows 10 / Linux
Working Environment
-20°C to 55°C; 5% to 95% relative humidity, non-condensing
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCNUC-1 provides Intel Haswell and Broadwell Core options, VGA and HDMI output, eight USB ports, Gigabit LAN, and mSATA plus 2.5-inch storage in an aluminum enclosure.
Flexible Compute Platforms
The desktop range spans efficient Intel N-series systems, Intel Core platforms, and AMD Ryzen performance configurations.
Display & Peripheral Connectivity
Model-specific HDMI, DisplayPort, Type-C, USB4, Thunderbolt, and OCuLink options support varied commercial workspaces.
Configurable Memory & Storage
Choose memory capacity, NVMe, SATA, wireless, and network options according to the target workload and deployment.
