MCNUC-2
Dual-2.5GbE Intel Core compact desktop PC
MCNUC-2 combines Intel Whiskey Lake-U or Comet Lake-U processing, triple-display output, dual 2.5GbE, DDR4 memory, and M.2 plus 2.5-inch storage.
Product Gallery

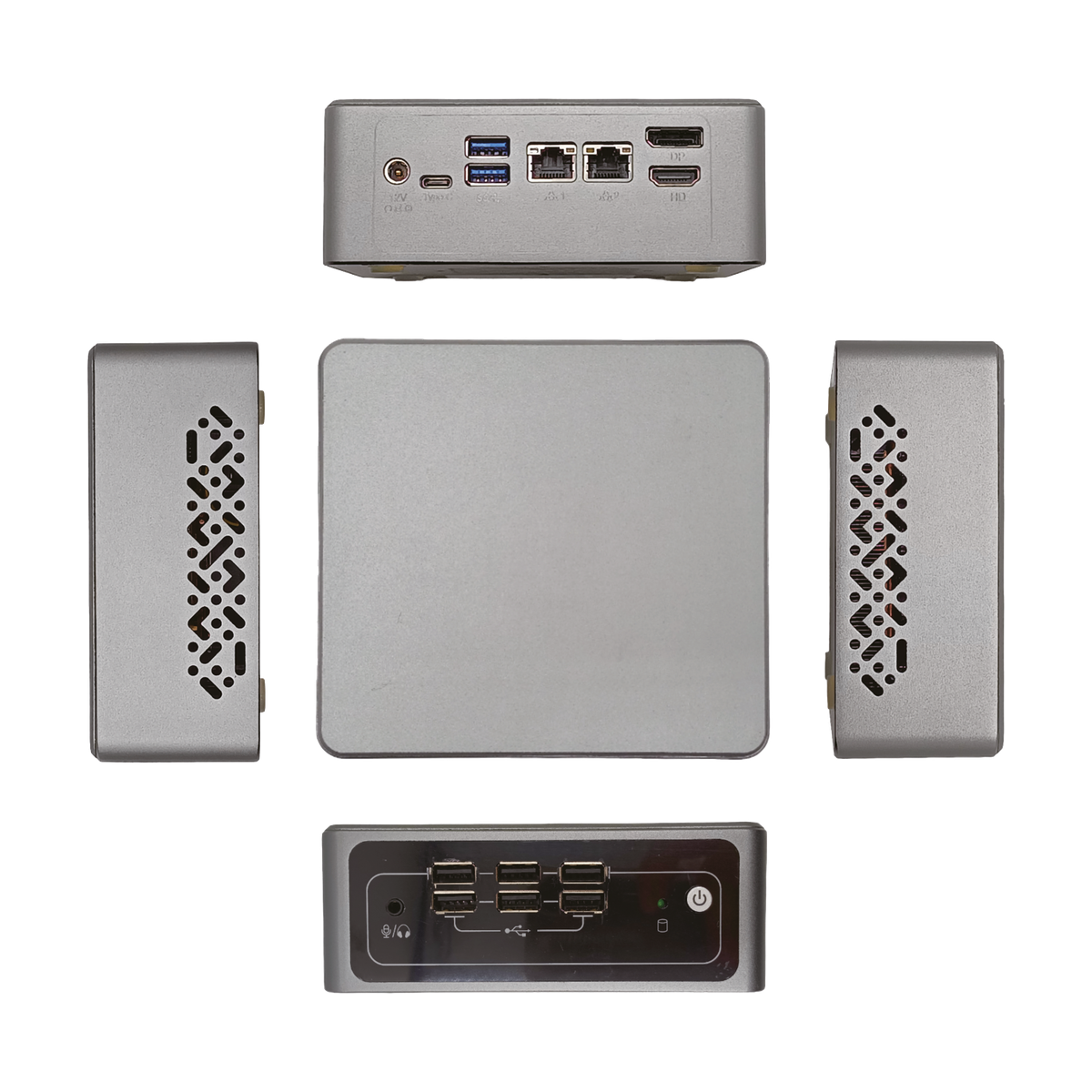

A closer look at MCNUC-2
Different product views highlight the enclosure design, interface layout, and installation details.

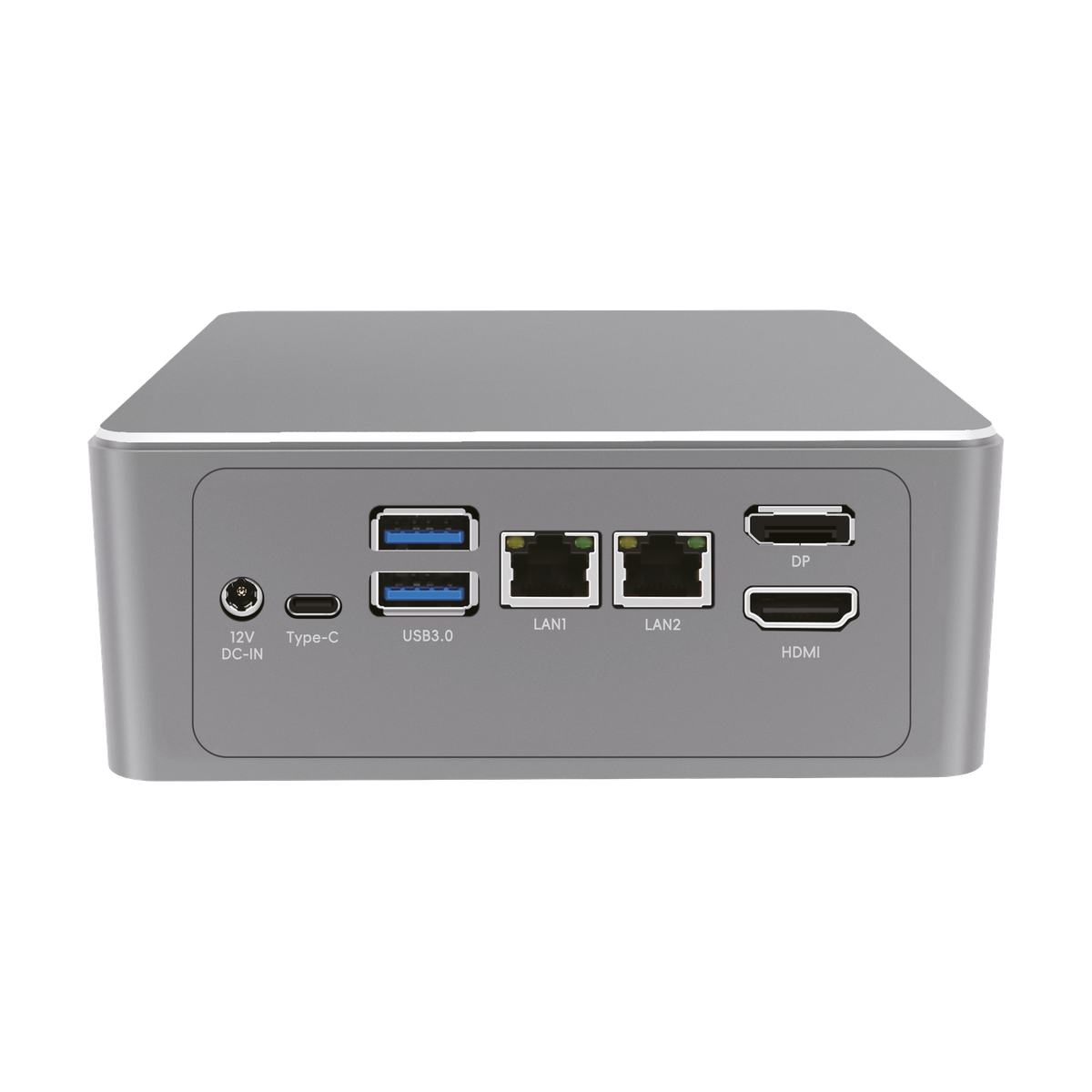

MCNUC-2 enclosure and interface view

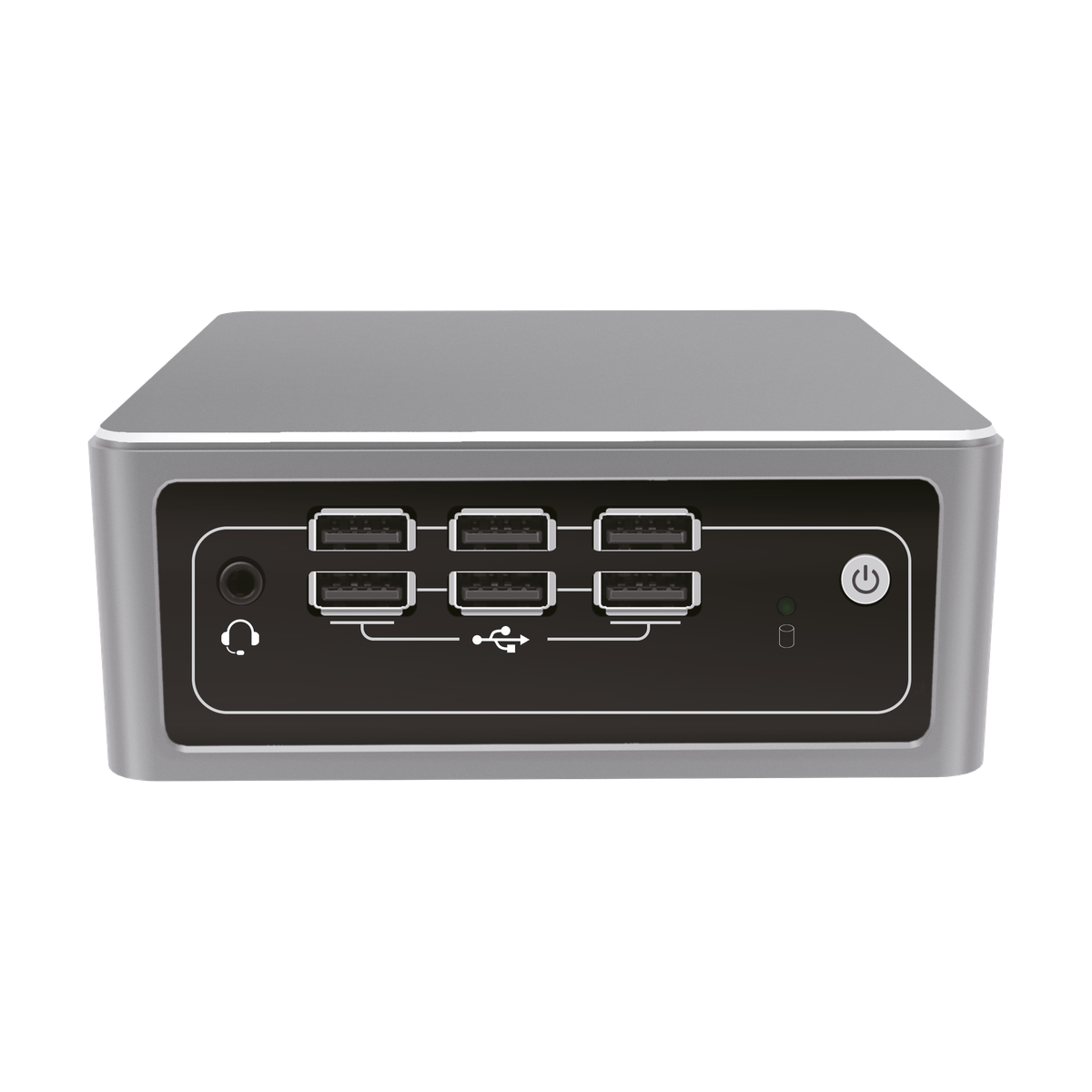

MCNUC-2 product view 2
Technical Specifications
Industrial-grade configuration details
MCNUC-2 Specification Matrix
Available hardware configurations
Operating Range
-20°C to 55°C; 5% to 95% relative humidity, non-condensing
Model
MCNUC-2
CPU
Intel Core i5-8265U / i5-10210U
Chipset
Intel Whiskey Lake-U / Comet Lake-U
Graphics
Intel UHD Graphics 620
Video
USB Type-C, HDMI, and DisplayPort
Memory
DDR4 SO-DIMM, up to 32GB
USB
6 x USB 2.0 and 2 x USB 3.0
Material
Aluminum alloy
Power
DC 12V
Network
2 x Intel i226-V 2.5GbE
Storage
M.2 2280 NVMe / NGFF and 2.5-inch SATA 3.0
Front I/O
1 x dual-function audio jack; 6 x USB 2.0; 1 x power button
Rear I/O
1 x 12V DC input; 2 x USB 2.0; 2 x Intel i226-V 2.5GbE; 1 x Type-C; 1 x HDMI; 1 x DisplayPort
Internal I/O
1 x DDR4 SO-DIMM slot; 1 x M.2 2280 M-Key slot; 1 x 2.5-inch SATA 3.0 connector
Dimensions
138 x 138 x 51.6 mm
BIOS
Diskless boot, Wake-on-LAN, automatic and scheduled power-on
TDP
Depends on selected processor
System
Windows 7 / Windows 10 / Linux
Working Environment
-20°C to 55°C; 5% to 95% relative humidity, non-condensing
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCNUC-2 combines Intel Whiskey Lake-U or Comet Lake-U processing, triple-display output, dual 2.5GbE, DDR4 memory, and M.2 plus 2.5-inch storage.
Flexible Compute Platforms
The desktop range spans efficient Intel N-series systems, Intel Core platforms, and AMD Ryzen performance configurations.
Display & Peripheral Connectivity
Model-specific HDMI, DisplayPort, Type-C, USB4, Thunderbolt, and OCuLink options support varied commercial workspaces.
Configurable Memory & Storage
Choose memory capacity, NVMe, SATA, wireless, and network options according to the target workload and deployment.
