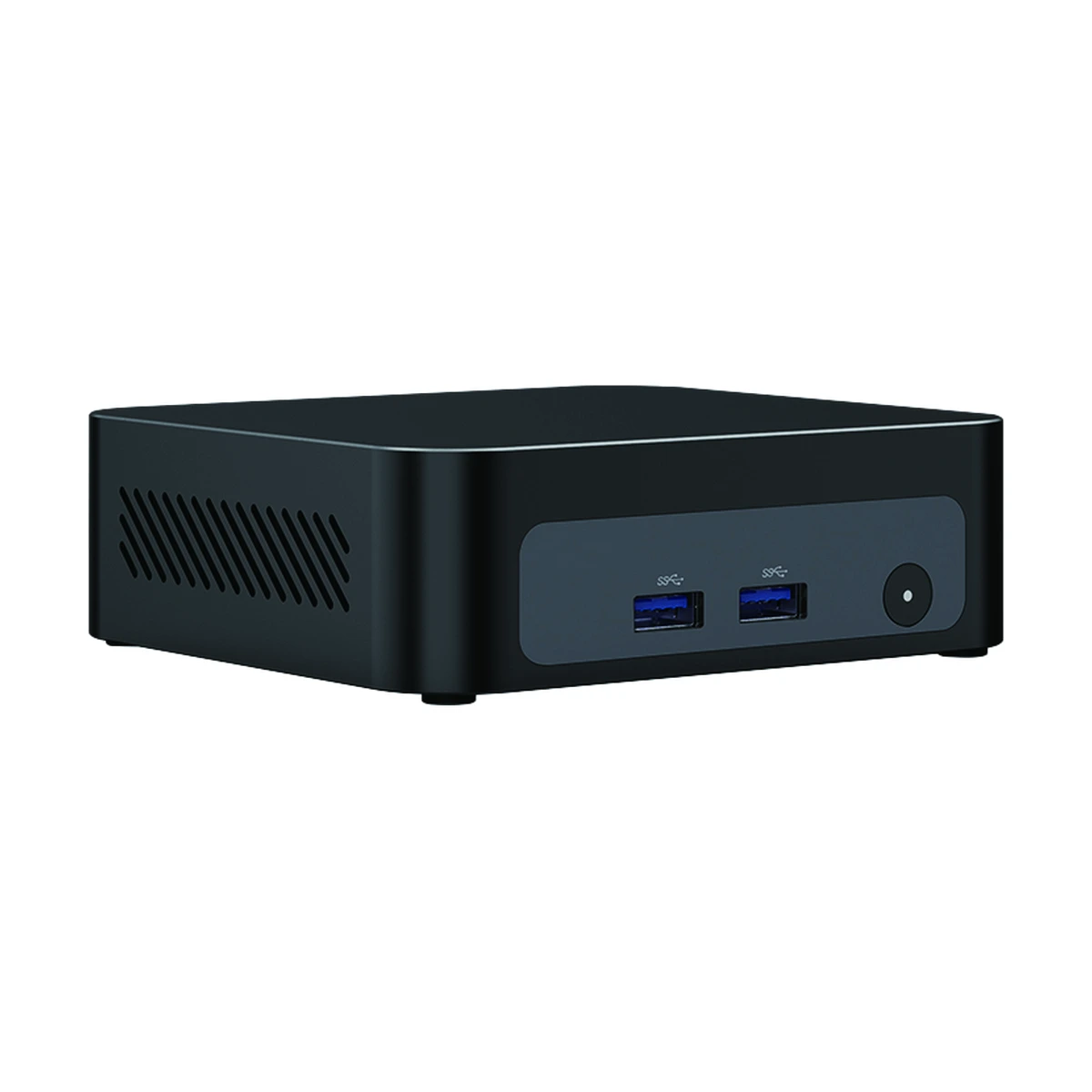

MCTAR7
Compact AMD Ryzen performance with dual HDMI, full-featured Type-C, and dual storage
MCTAR7 is a compact commercial mini PC with AMD Ryzen 5 and Ryzen 7 processor options. It combines AMD Radeon graphics with dual DDR4 memory slots, two M.2 storage formats, dual HDMI, full-featured Type-C, Gigabit Ethernet, Wi-Fi 6, and Bluetooth 5.2 in a 105 x 115 x 35 mm chassis.
Product Gallery
A closer look at MCTAR7
Different product views highlight the enclosure design, interface layout, and installation details.

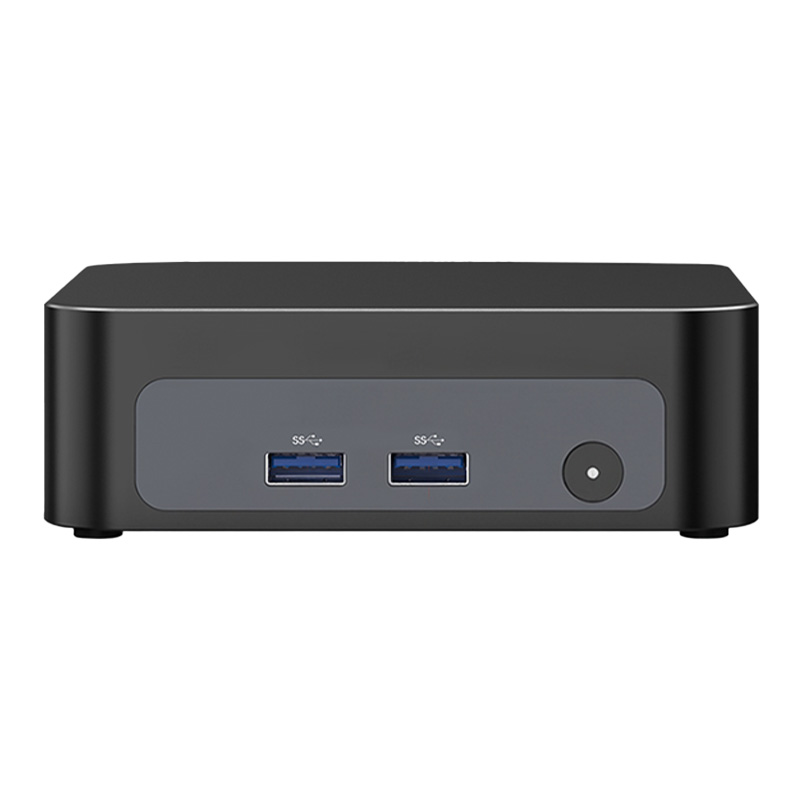

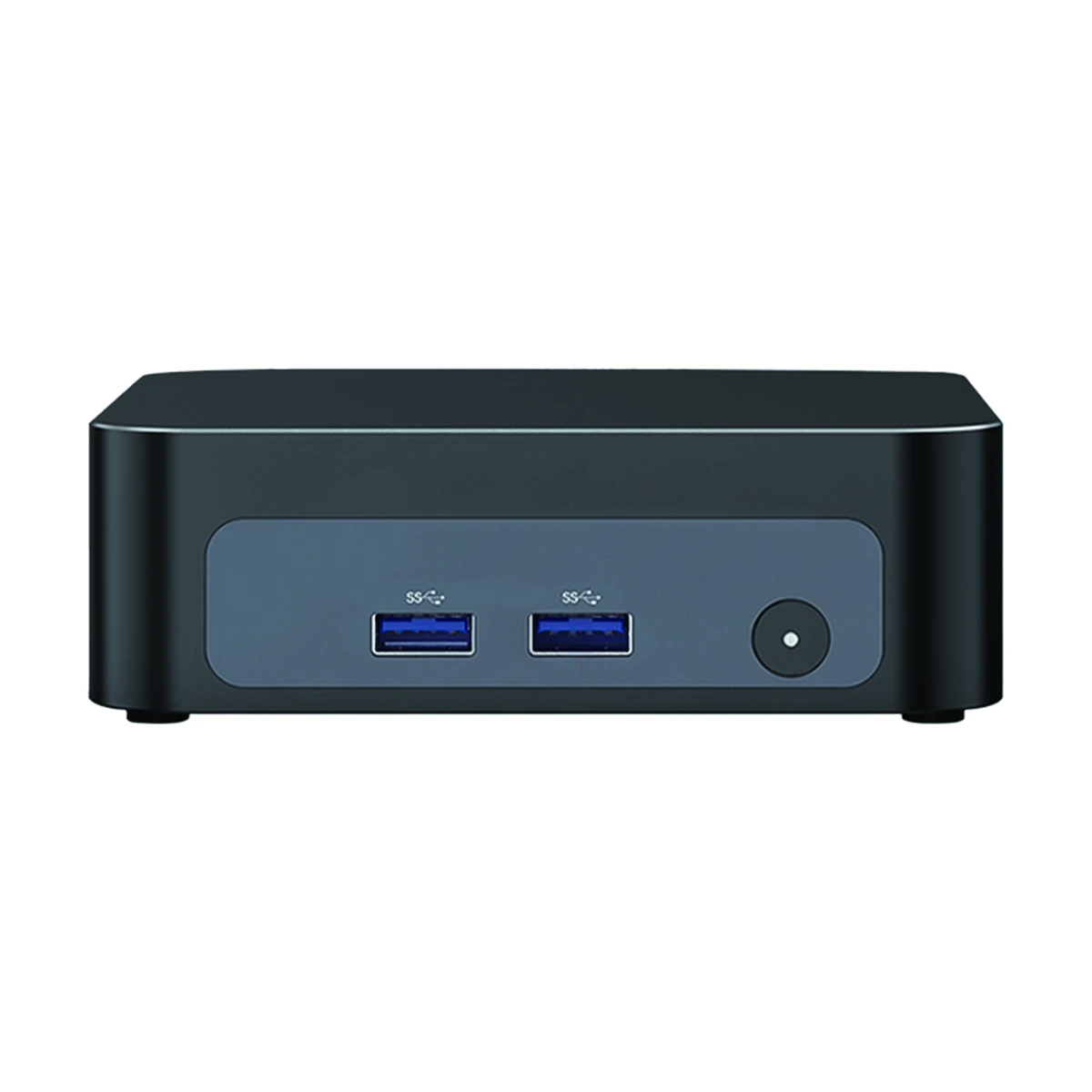

Compact front-panel design
The front panel provides two USB 3.1 ports, a power button, and a clean compact enclosure for desk or display-side deployment.

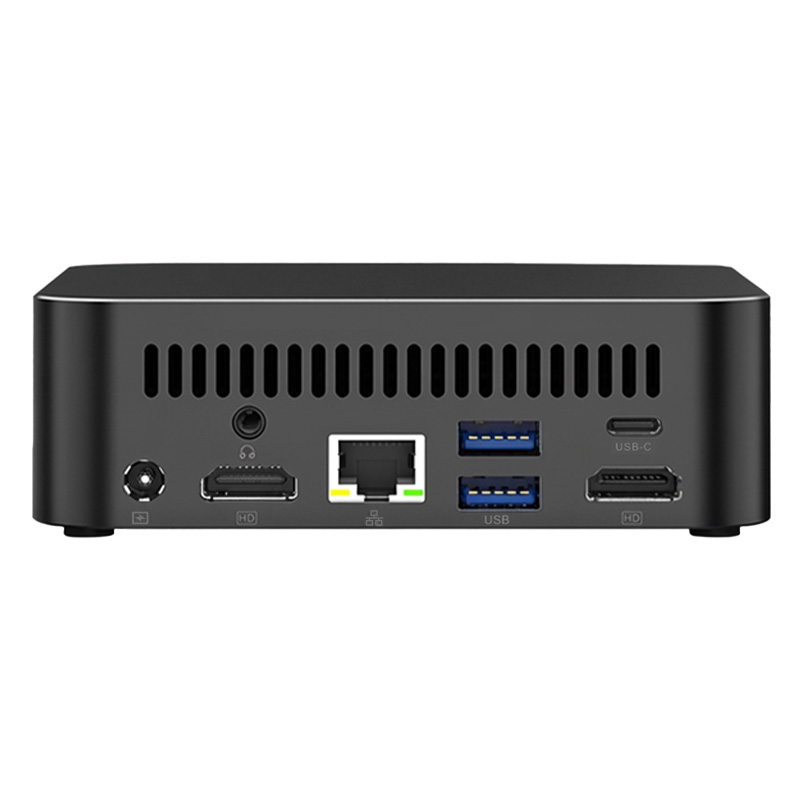

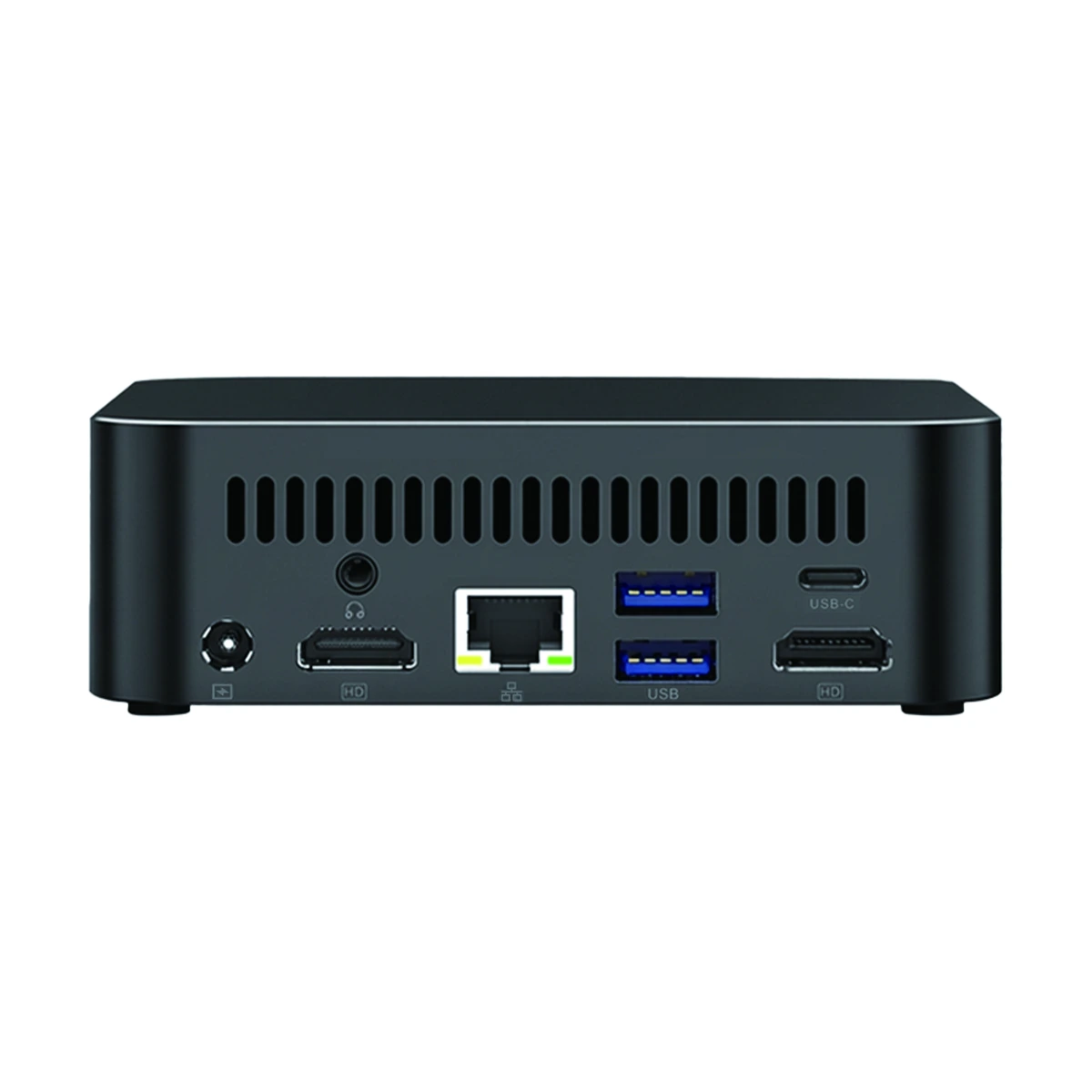

Rear connectivity
The rear panel brings together Gigabit Ethernet, dual HDMI, full-featured Type-C, audio, USB, and DC power connections.
AMD Ryzen processor platform
The available AMD Ryzen processor range includes configurations for responsive multitasking and everyday commercial workloads.
Technical Specifications
Industrial-grade configuration details
MCTAR7 Specification Matrix
Brochure-based hardware parameters
Operating Range
0°C to 50°C
Model
MCTAR7
CPU
AMD Ryzen 7 4700U, Ryzen 5 5600U, Ryzen 7 5800U, Ryzen 7 5825U, Ryzen 5 7535U, or Ryzen 7 7730U processor
Graphics
AMD Radeon Graphics
Memory
2 x SO-DIMM DDR4-3200 slots, supporting up to 32GB
Storage
1 x M.2 2280 PCIe 3.0 x4 SSD slot and 1 x M.2 2242 NGFF SATA SSD slot, supporting up to 2TB
Display
2 x HDMI 1.4 and 1 x full-featured Type-C
USB
2 x USB 3.1 and 2 x USB 3.0
Network
1 x RJ45 Gigabit Ethernet
Wireless
Wi-Fi 6 and Bluetooth 5.2
Front I/O
1 x power button and 2 x USB 3.1
Rear I/O
1 x RJ45 Gigabit Ethernet, 1 x full-featured Type-C, 2 x HDMI 1.4, 1 x DC 19V input, 1 x audio jack, and 2 x USB 3.0
Power
DC 19V / 3.42A adapter
System
Windows 10 Home or Windows 11 Home
TDP
Depends on processor
Working Environment
0°C to 50°C; 5%-90% relative humidity, non-condensing
Dimensions
105 x 115 x 35 mm
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCTAR7 combines a broad AMD Ryzen processor range, dual DDR4 memory, two SSD formats, multiple display outputs, Wi-Fi 6, and practical commercial connectivity in a compact 105 x 115 x 35 mm enclosure.
Flexible AMD Ryzen Options
Ryzen 5 and Ryzen 7 processor choices support a range of commercial performance requirements.
Flexible Display Connectivity
Dual HDMI 1.4 and a full-featured Type-C port provide multiple display connection options.
Dual Storage Formats
M.2 2280 PCIe and M.2 2242 SATA slots support flexible SSD configurations in the compact chassis.

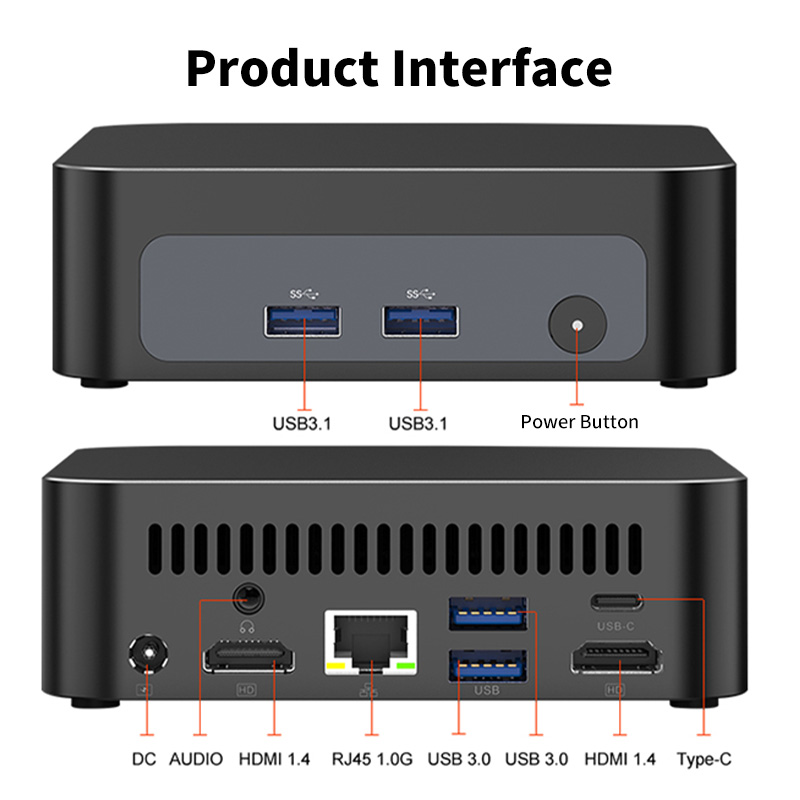

Clearly labeled front and rear interfaces
The interface map identifies USB 3.1, power, DC input, audio, HDMI, Gigabit Ethernet, USB 3.0, and full-featured Type-C connections.
Designed for everyday commercial scenarios
The provided application examples cover audio-visual entertainment, meetings, remote conferencing, and comfortable office work.
