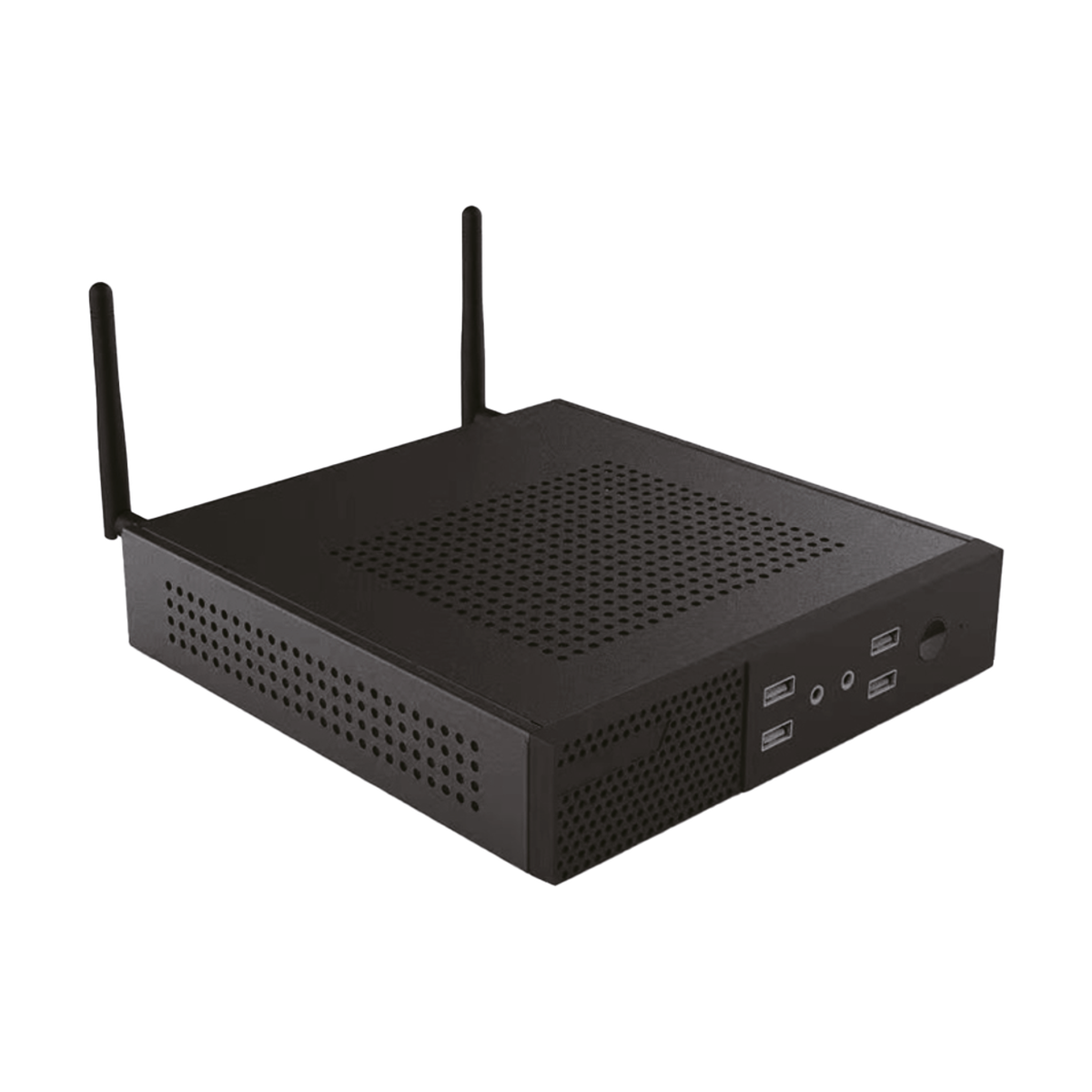

MCVX4
Desktop-class Intel Pentium compact PC
MCVX4 uses an Intel H610 platform with a desktop-class Pentium Gold processor, dual-display output, up to 64GB DDR4, NVMe, dual SATA, and Wi-Fi expansion.
Product Gallery
A closer look at MCVX4
Different product views highlight the enclosure design, interface layout, and installation details.

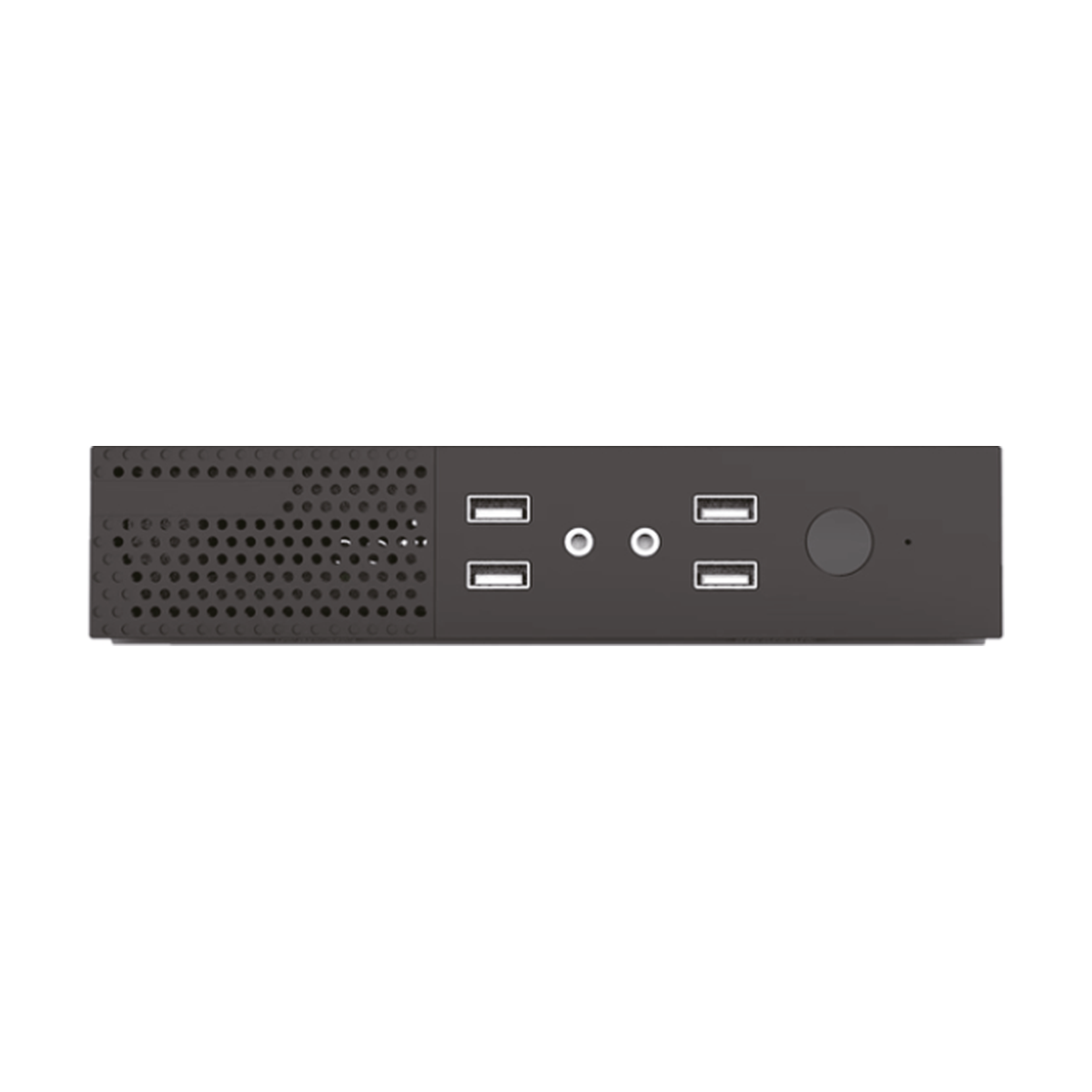

MCVX4 enclosure and interface view

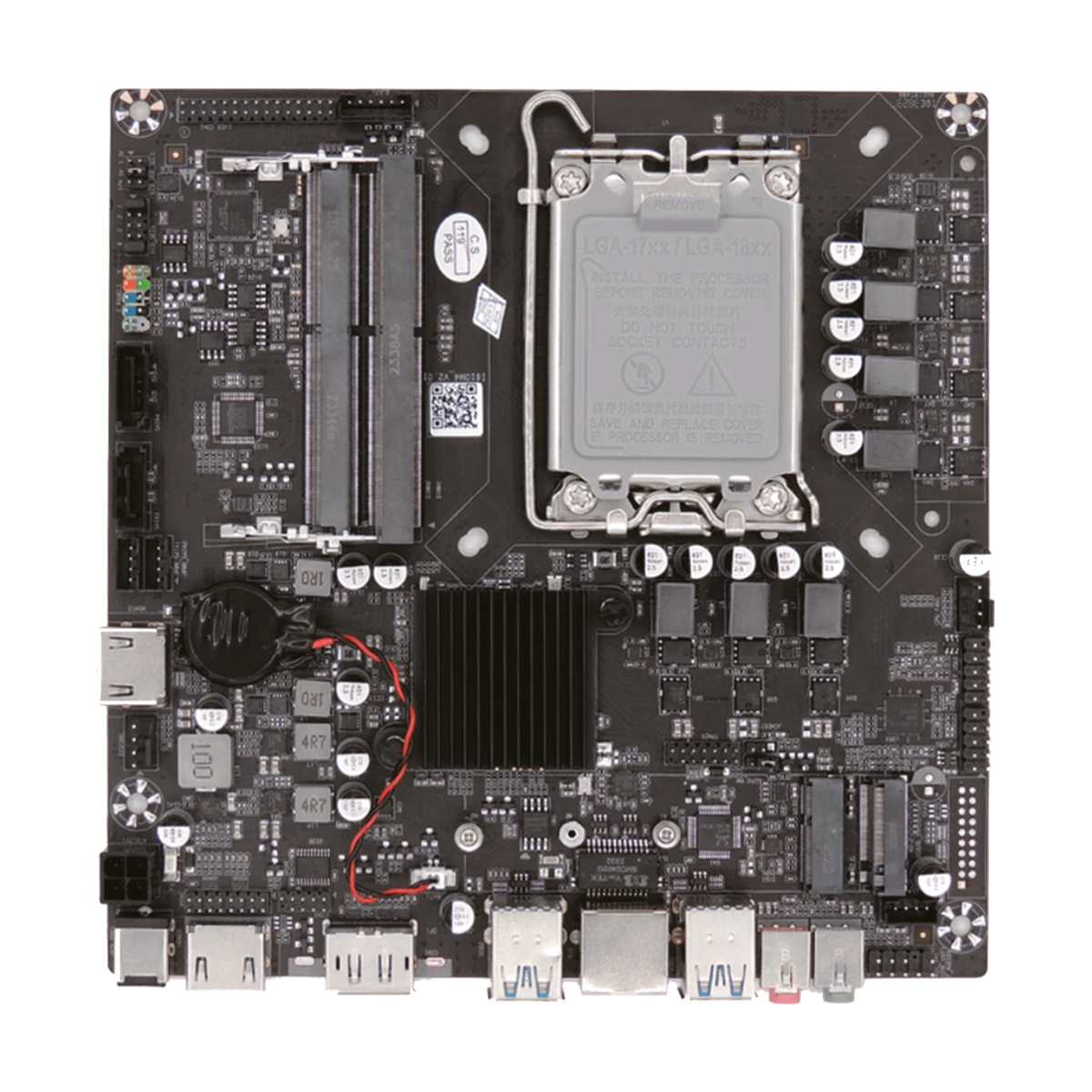

MCVX4 product view 2
Technical Specifications
Industrial-grade configuration details
MCVX4 Specification Matrix
Available hardware configurations
Operating Range
-20°C to 55°C; 5% to 95% relative humidity, non-condensing
Model
MCVX4
CPU
Intel Pentium Gold G7400, 2 cores / 4 threads, up to 3.7GHz
Chipset
Intel H610
Graphics
Intel UHD Graphics 710
Video
HDMI and DisplayPort
Memory
2 x DDR4 SO-DIMM at 2666 / 3200MHz, up to 64GB
USB
4 x USB 2.0 and 4 x USB 3.0
Material
Aluminum alloy
Power
DC 12V / 19V
Network
1 x Gigabit Ethernet
Storage
M.2 2280 NVMe / NGFF and 2 x SATA 3.0
Expansion
M.2 E-Key 2230 for Wi-Fi
Front I/O
1 x audio / microphone combo jack; 4 x USB 2.0; 1 x power button
Rear I/O
1 x 12V / 19V DC input; 1 x HDMI; 1 x DisplayPort; 4 x USB 3.0; 1 x Gigabit Ethernet
Internal I/O
2 x DDR4 SO-DIMM slots; 1 x M.2 2280 M-Key slot; 2 x SATA 3.0 connectors; 1 x M.2 E-Key 2230 slot for Wi-Fi
Dimensions
200 x 190 x 40 mm
BIOS
UEFI, Wake-on-LAN, automatic and scheduled power-on
TDP
46W CPU; approximately 40W to 60W system
System
Windows 10 / Windows 11 / Ubuntu
Working Environment
-20°C to 55°C; 5% to 95% relative humidity, non-condensing
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCVX4 uses an Intel H610 platform with a desktop-class Pentium Gold processor, dual-display output, up to 64GB DDR4, NVMe, dual SATA, and Wi-Fi expansion.
Flexible Compute Platforms
The desktop range spans efficient Intel N-series systems, Intel Core platforms, and AMD Ryzen performance configurations.
Display & Peripheral Connectivity
Model-specific HDMI, DisplayPort, Type-C, USB4, Thunderbolt, and OCuLink options support varied commercial workspaces.
Configurable Memory & Storage
Choose memory capacity, NVMe, SATA, wireless, and network options according to the target workload and deployment.
