MC12N-1U4L
Alder Lake-N 1U four-port network server
MC12N-1U4L is a 1U rackmount network platform with four Intel 2.5GbE interfaces, DDR5 memory, multiple storage formats, and an integrated AC power supply.
Product Gallery
A closer look at MC12N-1U4L
Different product views highlight the enclosure design, interface layout, and installation details.

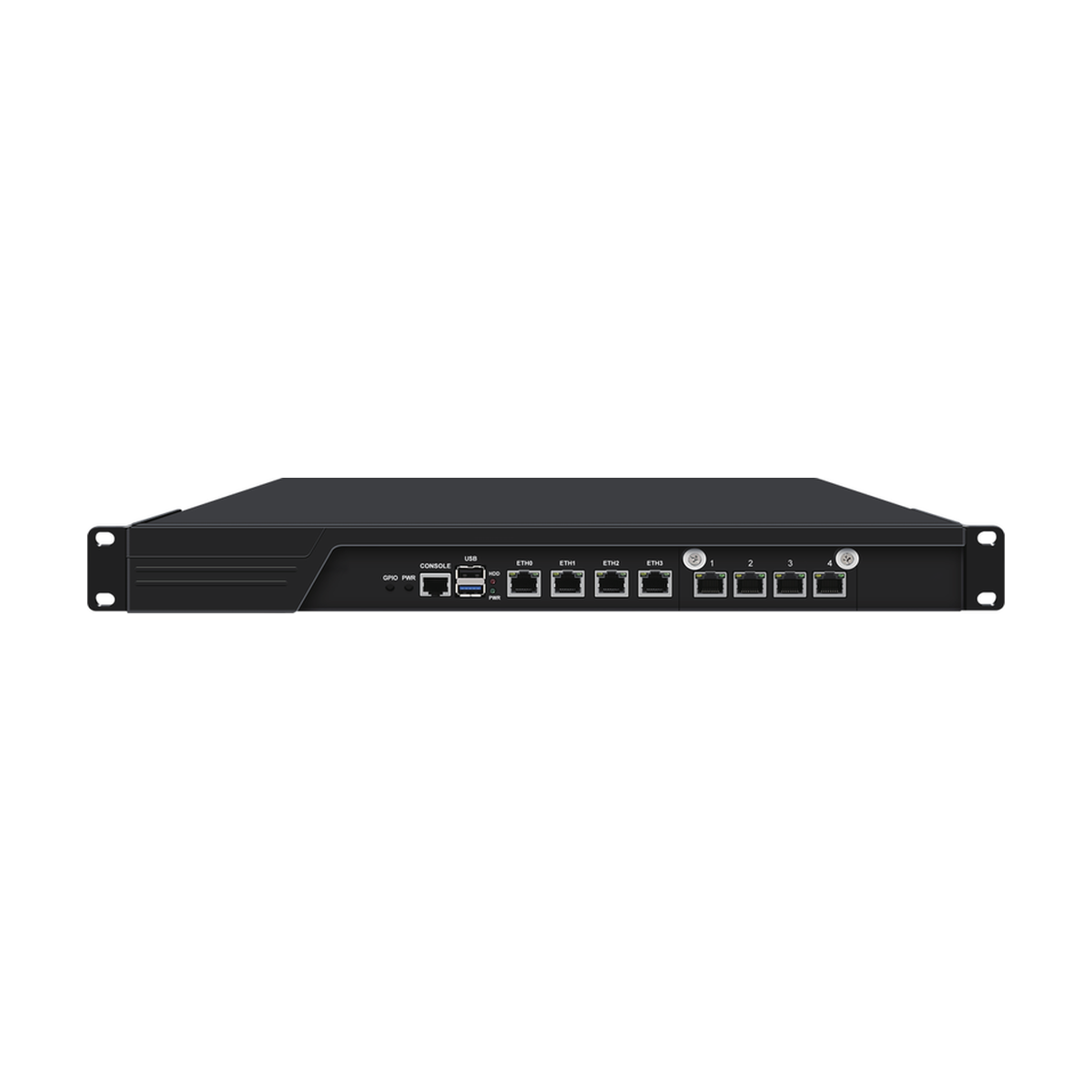

MC12N-1U4L enclosure and interface view

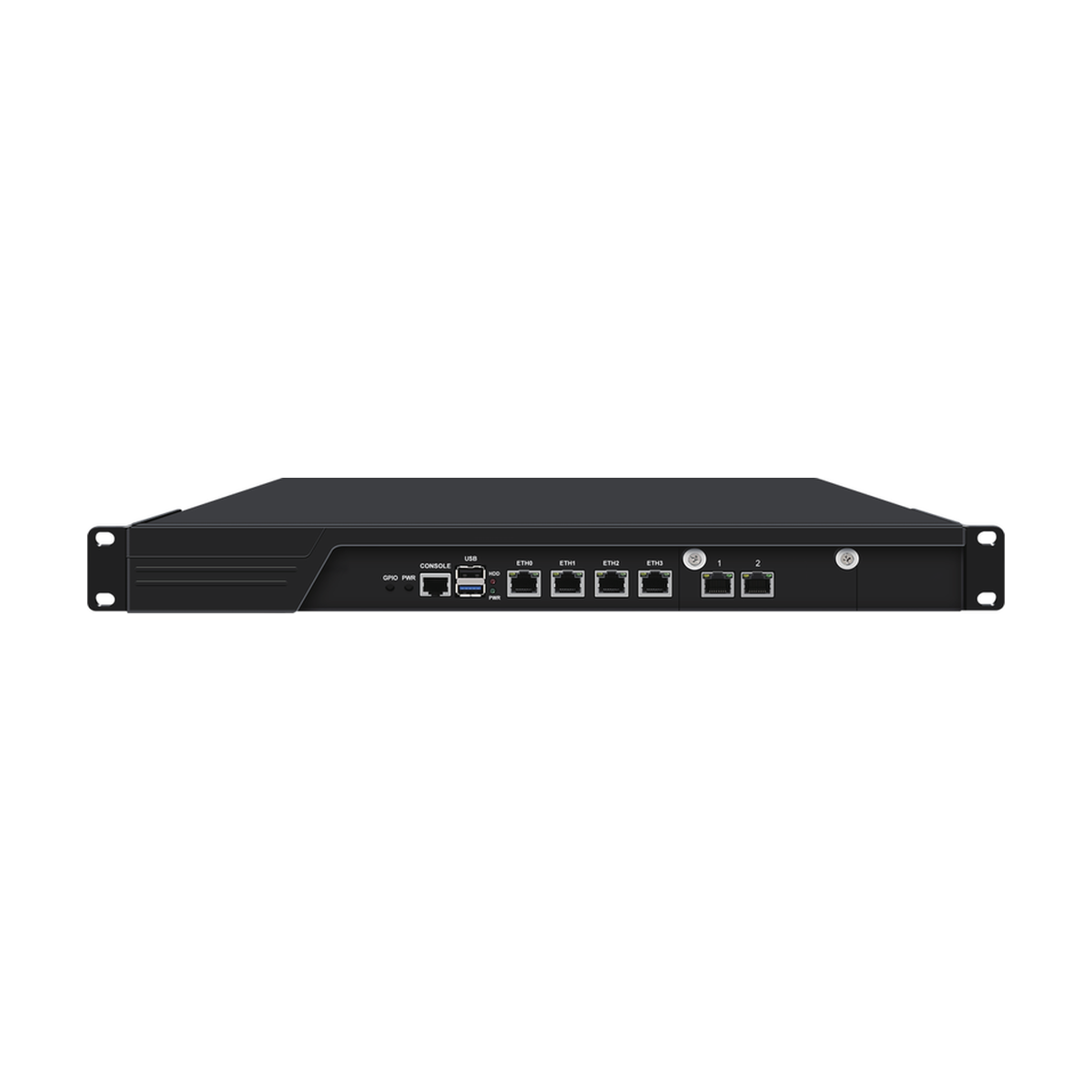

MC12N-1U4L product view 2

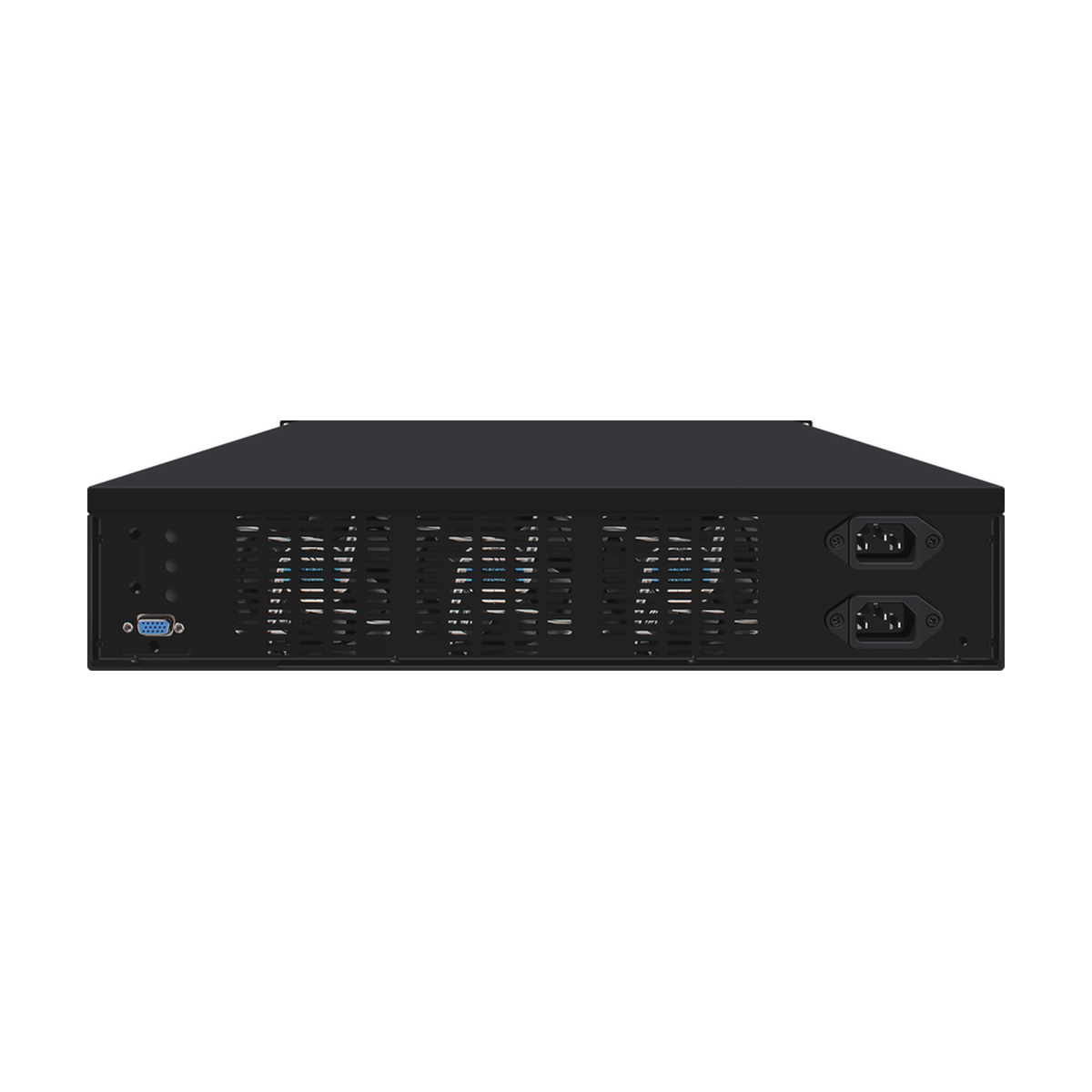

MC12N-1U4L product view 3
Technical Specifications
Industrial-grade configuration details
MC12N-1U4L Specification Matrix
Available hardware configurations
Operating Range
0°C to 60°C
Model
MC12N-1U4L
CPU
Intel N100/N95/N305
Chipset
Intel® Alder Lake-N
Graphics
Intel UHD Graphics
Video
1 x J_HDMI; 1 x VGA
Memory
SO-DIMM DDR5 4800MHz maximum 48GB
Material
Made of aluminum alloy
USB
1 x USB 2.0 and 1 x USB 3.0 external port; 2 x vertical USB 2.0 ports; 6 x USB 2.0 array-pin headers
Network
4 x Intel i226-V 2.5Gb Ethernet port
Storage
1 * SATA 3.0 6Gbps / 1 * mSATA / 1 * CF (One out of three)
Expansion
1 x PCIe x8 slot (PCIe Gen3 x4 signal); 4 x GPIO; 1 x RJ45 console; 2 x COM array-pin headers; 1 x Mini PCIe; Wake-on-LAN; PXE
Front I/O
1 x Power Button; 1 x GPIO/1 x RJ45 Console; 4 x Intel i226V 2.5Gb Ethernet port; 1 x USB 2.0/1 x USB 3.0; 1 x Hard disk indicator; 1 x Power indicator
Rear I/O
1 x VGA Port; 3 x Ball bearing fans; 1 x Grounding screw; 2 x AC Outlets
Internal I/O
1 x DDR5 SO-DIMM slot; 1 x mSATA / SATA 3.0 / CF storage option; 1 x PCIe x8 slot (PCIe Gen3 x4 signal); 4 x GPIO pins; 1 x COM header; JHDMI, VGA and eDP headers; 6 x USB 2.0 array-pin headers; 2 x vertical USB 2.0 ports; SATA power; F_PANEL; TPM; SIM and Mini PCIe
Dimensions
1U: 440 x 320 x 45 mm; 2U: 435 x 439 x 90 mm
BIOS
AMI UEFI BIOS, PEX, WOL, GPIO
TDP
Depends on CPU
System
Windows 10 / 11, Windows Server, Linux
Working Environment
0°C to 60°C; 10%-90% relative humidity, non-condensing
Power
100-240V~50/60Hz(Mainboard:ATX 4 PIN 12V 5.5 x 2.5 mm)
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MC12N-1U4L is a 1U rackmount network platform with four Intel 2.5GbE interfaces, DDR5 memory, multiple storage formats, and an integrated AC power supply.
1U Rackmount Format
Rackmount chassis and integrated AC power suit equipment rooms, network cabinets, and centralized deployments.
Storage and Expansion
Model-specific SATA, NVMe, PCIe, and wireless or cellular options support varied server and network roles.
Broad Compute Range
The series spans low-power Intel platforms, desktop-class processors, and dual Xeon server configurations.
