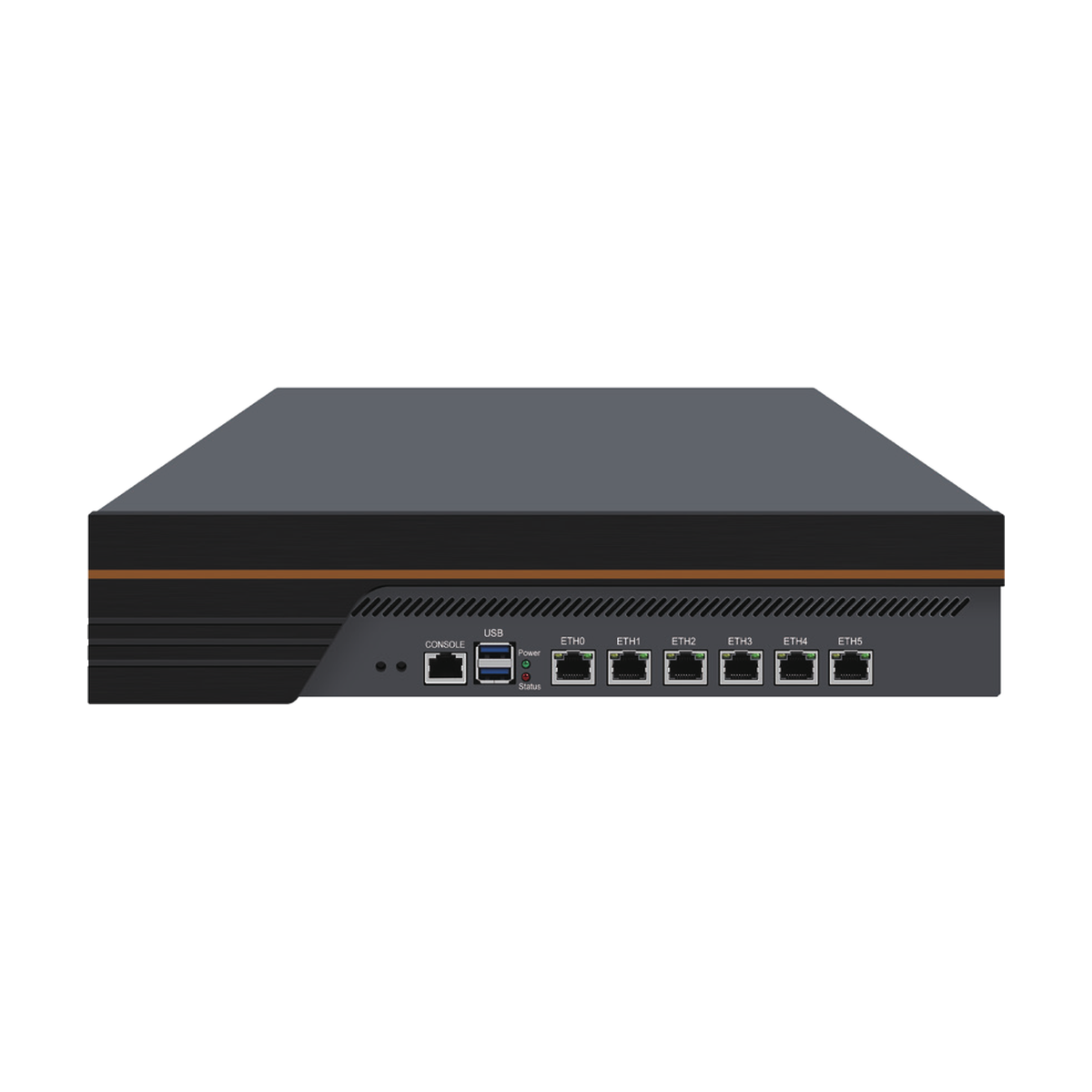

MC12N-1U6L
Alder Lake-N 1U six-port network server
MC12N-1U6L expands the Alder Lake-N rackmount platform to six Intel 2.5GbE ports, with PCIe and wireless or cellular expansion for branch network deployments.
Product Gallery
A closer look at MC12N-1U6L
Different product views highlight the enclosure design, interface layout, and installation details.

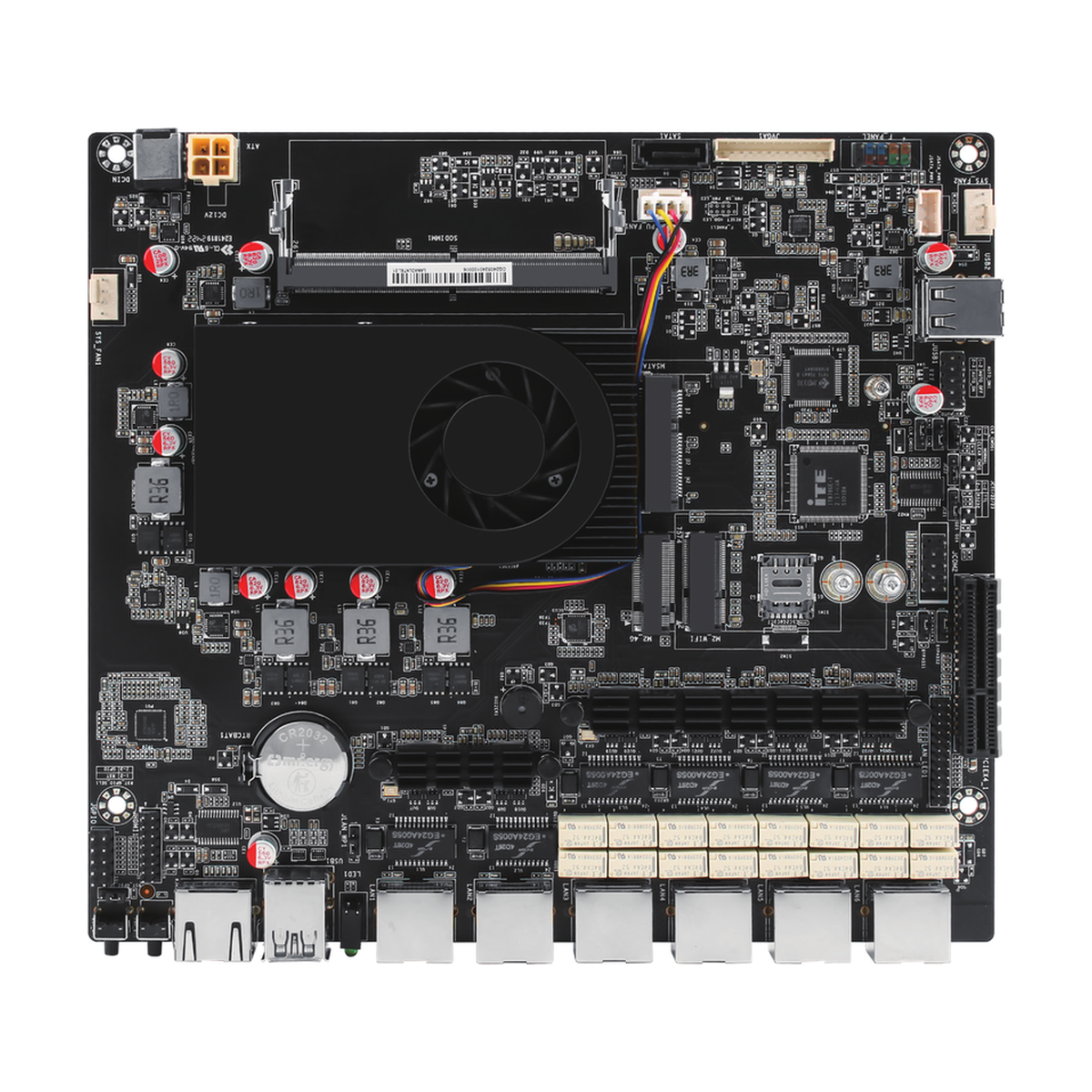

MC12N-1U6L enclosure and interface view

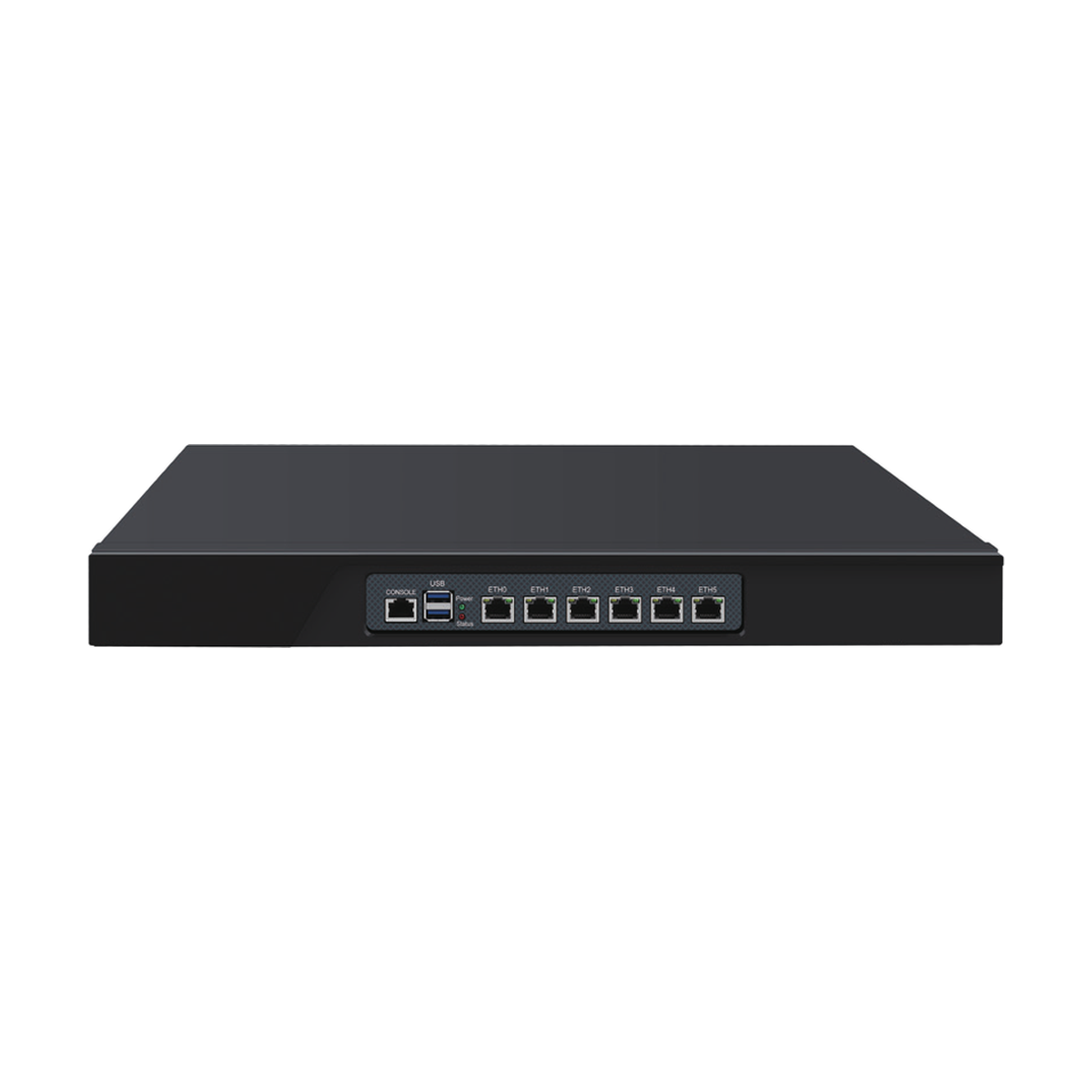

MC12N-1U6L product view 2

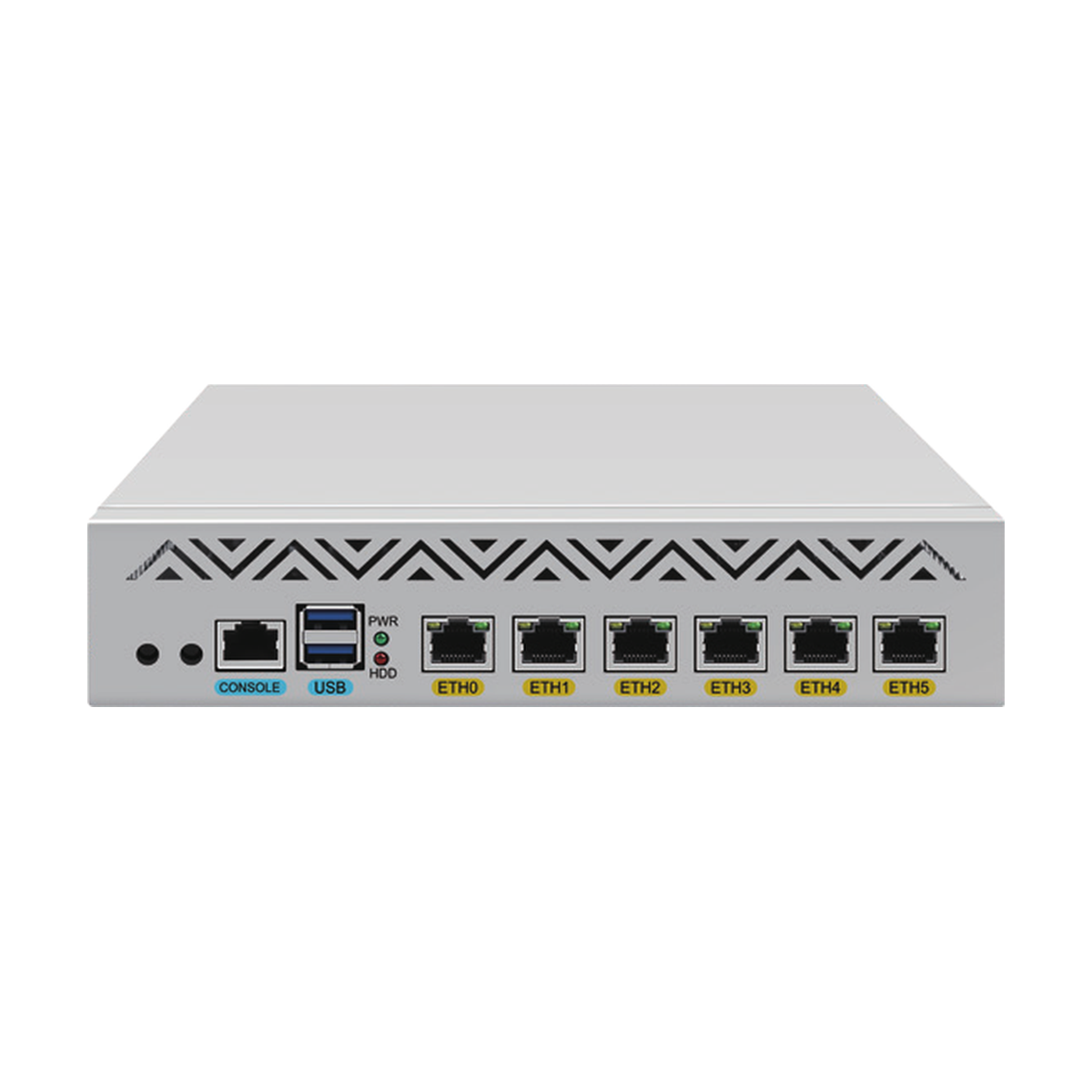

MC12N-1U6L product view 3
Technical Specifications
Industrial-grade configuration details
MC12N-1U6L Specification Matrix
Available hardware configurations
Operating Range
0°C to 60°C
Model
MC12N-1U6L
CPU
Intel N100/N95/N305
Graphics
Intel UHD Graphics
Video
1 x J_HDMI; 1 x VGA
Memory
SO-DIMM DDR5 4800MHz maximum 48 GB
Material
Made of aluminum alloy
USB
2 x USB 3.0 (5 Gb/s); 4 x USB 2.0
Network
6 x Intel i226-V 2.5Gb Ethernet port
Storage
1 x mSATA/1 x SATA 3.0
Expansion
1 x PCIe slot (PCIe Gen3 x1 signal, shared with M.2 E-Key); 8 x programmable GPIO; RJ45 console / JCOM; M.2 E-Key Wi-Fi; M.2 B-Key 4G/5G; Wake-on-LAN; PXE
Front I/O
1 x RJ45 Console/1 x JCOM; 6 x Intel i226V 2.5Gb Ethernet port; 2 x USB 3.0
Rear I/O
1 x Switch; 1 x DC_IN 100~240V; 1 x VGA/1 x J_HDMI
Internal I/O
1 x DDR5 SO-DIMM slot; mSATA and SATA 3.0; 1 x PCIe slot; 8 x GPIO; RJ45 console / JCOM; M.2 E-Key Wi-Fi; M.2 B-Key 4G/5G; Wake-on-LAN; PXE
Dimensions
Desktop: 210 x 201 x 45 mm; 1U: 440 x 225 x 45 mm; 2U: 435 x 405 x 90 mm
PCB Dimensions
200 x 180 mm (W x L)
BIOS
AMI UEFI BIOS, PEX, WOL, GPIO
TDP
Depends on CPU
System
Windows 10 / Windows 11 / Linux
Working Environment
0°C to 60°C; 10%-90% relative humidity, non-condensing
Power
100-240V~50/60Hz(Mainboard:ATX 4 PIN 12V 5.5 x 2.5 mm)
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MC12N-1U6L expands the Alder Lake-N rackmount platform to six Intel 2.5GbE ports, with PCIe and wireless or cellular expansion for branch network deployments.
1U Rackmount Format
Rackmount chassis and integrated AC power suit equipment rooms, network cabinets, and centralized deployments.
Storage and Expansion
Model-specific SATA, NVMe, PCIe, and wireless or cellular options support varied server and network roles.
Broad Compute Range
The series spans low-power Intel platforms, desktop-class processors, and dual Xeon server configurations.
