MC14N-1U6L
Desktop-class Intel 1U six-port network server
MC14N-1U6L uses a B660 platform with 12th through 14th Gen Intel processors, six 2.5GbE ports, dual NVMe, four SATA ports, and rackmount expansion.
Product Gallery
A closer look at MC14N-1U6L
Different product views highlight the enclosure design, interface layout, and installation details.

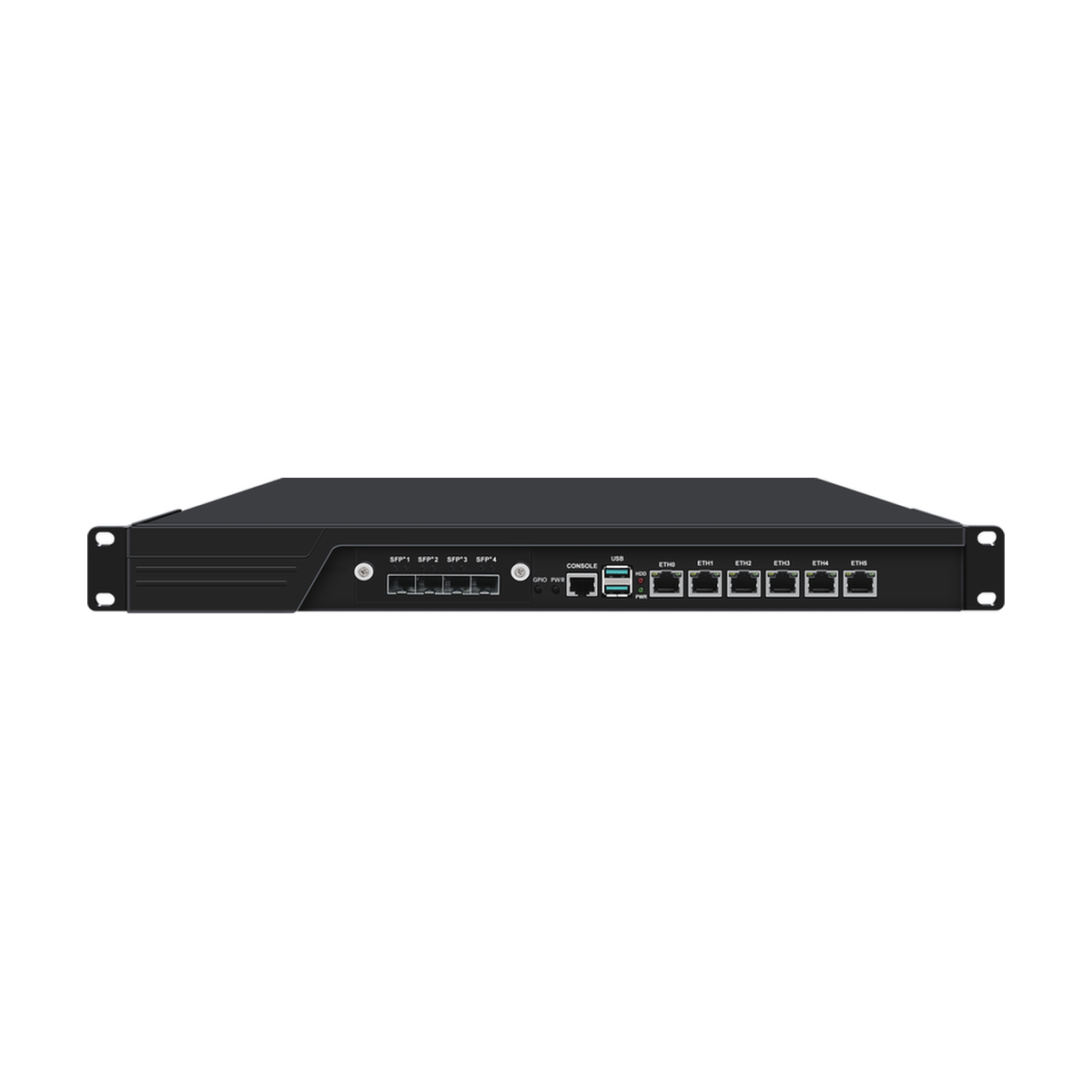

MC14N-1U6L enclosure and interface view

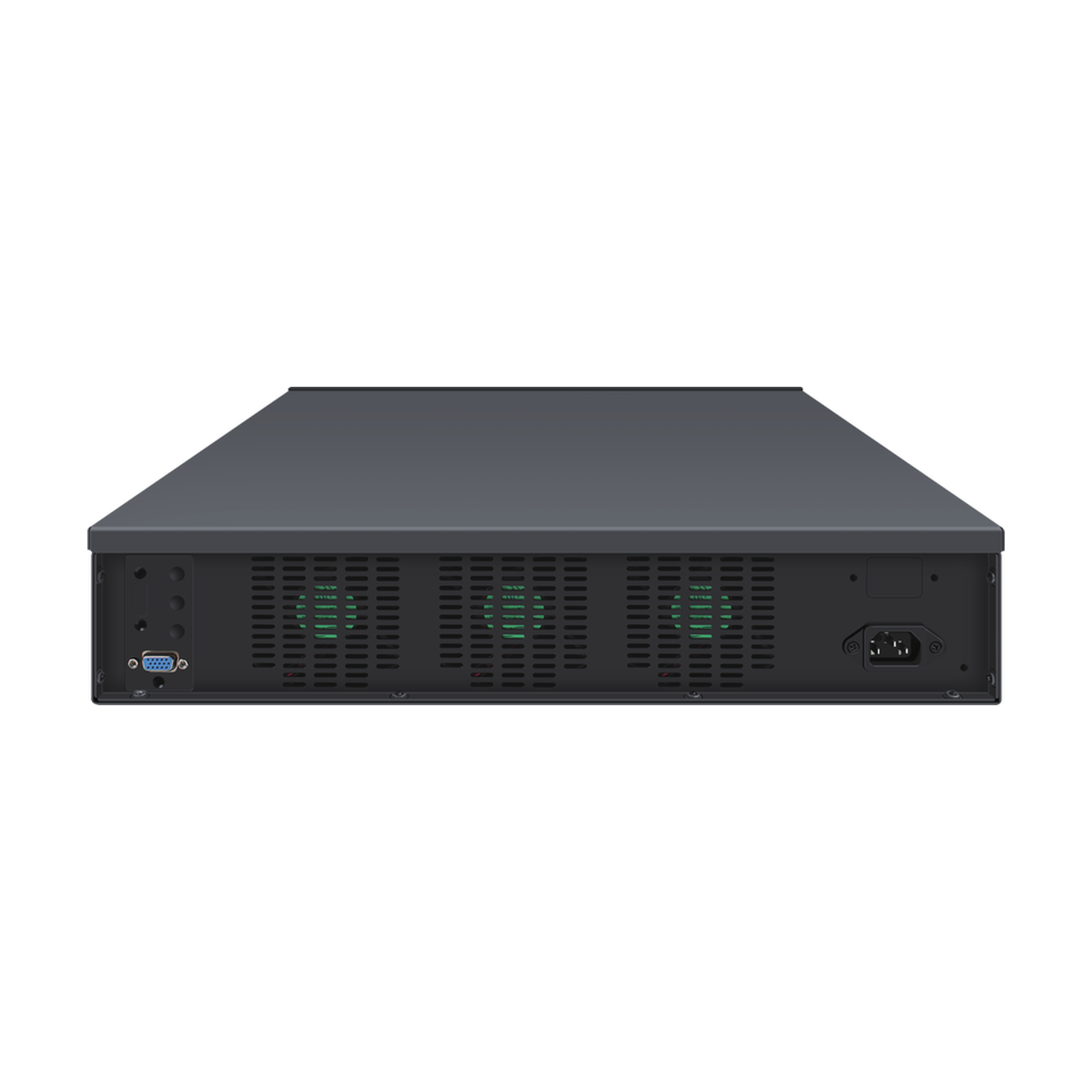

MC14N-1U6L product view 2

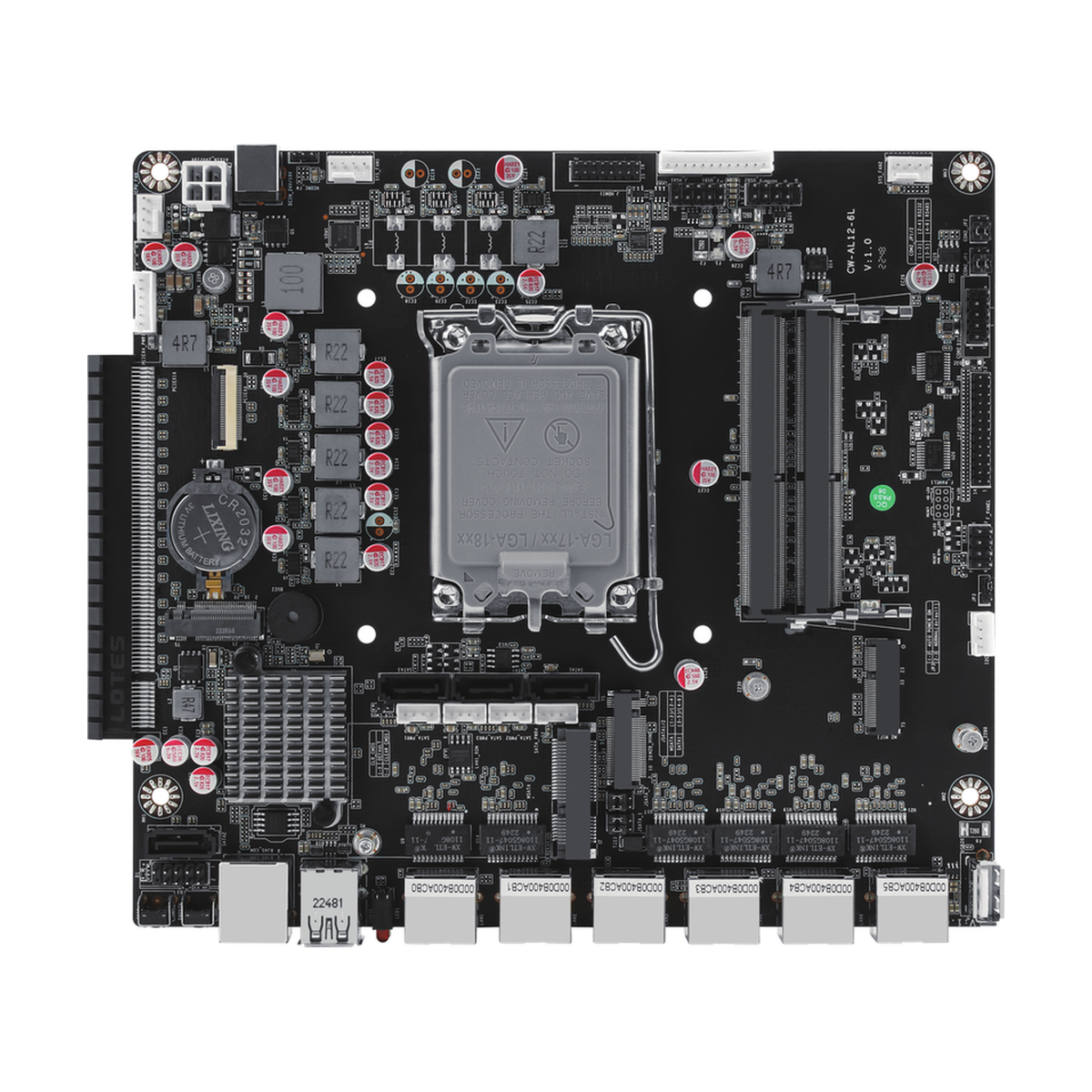

MC14N-1U6L product view 3
Technical Specifications
Industrial-grade configuration details
MC14N-1U6L Specification Matrix
Available hardware configurations
Operating Range
0°C to 60°C
Model
MC14N-1U6L
CPU
Intel® 12th Alder Lake / Intel® 13 -14th Raptor Lake
Chipset
Intel® B660
Graphics
Depends on CPU
Video
1 * VGA / 1 * JHDMI(Array pin)
Memory
2 * SO-DIMM DDR4 2400/2666/3200MHz maximum 64GB
Material
Made of aluminum alloy
USB
2 x USB 3.2(Interface)1 * USB 2.0(Vertical) / 4 x USB 2.0(Array pin)
Power
100-240V AC, 50/60 Hz; mainboard input: 4-pin 19-24V or DC 19-24V (5.5 x 2.5 mm)
Network
6 x Intel i226-V 2.5Gb Ethernet port
Storage
1 * M.2 NVMe 2280 PCIe4.0 x4 / 1 * M.2 NVMe 2280 PCIe3.0 x4; 4 * SATA 3.0 6Gbps / 1 * mSATA
Expansion
2 x Intel i226/i211/i210AT LAN; 4 x Intel i226/i211/i210AT LAN; optional 2 x Intel 82599 SFP+ or 4 x Intel X710 SFP+; RJ45 console; 2 x COM array-pin headers; M.2 B-Key; 8 x GPIO; Wake-on-LAN; PXE
Front I/O
1 x Power Button; 1 x GPIO/1 x RJ45 Console; 1 x Status LED/1 x Hard Drive LED; 6 x Intel i226V 2.5Gb Ethernet port; 2 x USB 3.2
Rear I/O
1 x VGA Port; 2 x Ball bearing fans; 1 x Grounding screw; 1 x AC Reserved Seat; 1 x AC Outlet
Internal I/O
2 x DDR4 SO-DIMM slots; mSATA; 4 x SATA 3.0; 1 x M.2 NVMe 2280 PCIe 4.0 x4; 1 x M.2 NVMe 2280 PCIe 3.0 x4; 8 x GPIO pins; 2 x COM headers; JHDMI and JVGA headers; 6 x USB 2.0 array-pin headers; 2 x vertical USB 2.0 ports; SATA power; F_PANEL
Dimensions
1U: 440 x 320 x 45 mm; 2U: 435 x 440 x 90 mm
BIOS
AMI UEFI BIOS EFI
TDP
Depends on CPU
System
Windows 10/11, Windows Server, Linux
Working Environment
Operating: 0°C to 60°C; storage: -10°C to 70°C; operating humidity: 10%-90%; storage humidity: 5%-95%, non-condensing
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MC14N-1U6L uses a B660 platform with 12th through 14th Gen Intel processors, six 2.5GbE ports, dual NVMe, four SATA ports, and rackmount expansion.
1U Rackmount Format
Rackmount chassis and integrated AC power suit equipment rooms, network cabinets, and centralized deployments.
Storage and Expansion
Model-specific SATA, NVMe, PCIe, and wireless or cellular options support varied server and network roles.
Broad Compute Range
The series spans low-power Intel platforms, desktop-class processors, and dual Xeon server configurations.
