MC23-1U6L
Six-port 1U Intel network appliance
MC23-1U6L is a 1U six-port Intel network platform with DDR3 memory, four SATA interfaces, mSATA storage, and an integrated AC power supply.
Product Gallery
A closer look at MC23-1U6L
Different product views highlight the enclosure design, interface layout, and installation details.

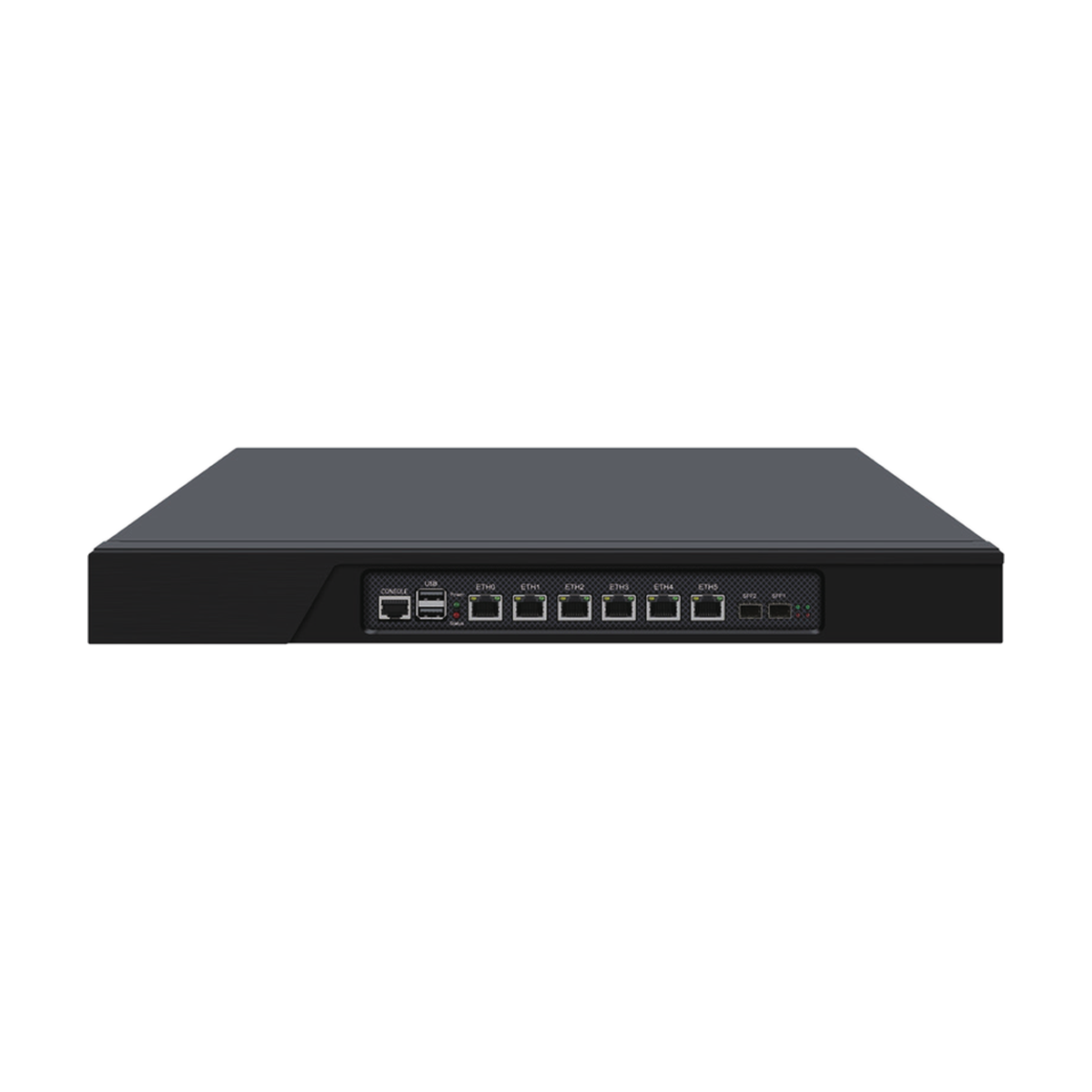

MC23-1U6L enclosure and interface view

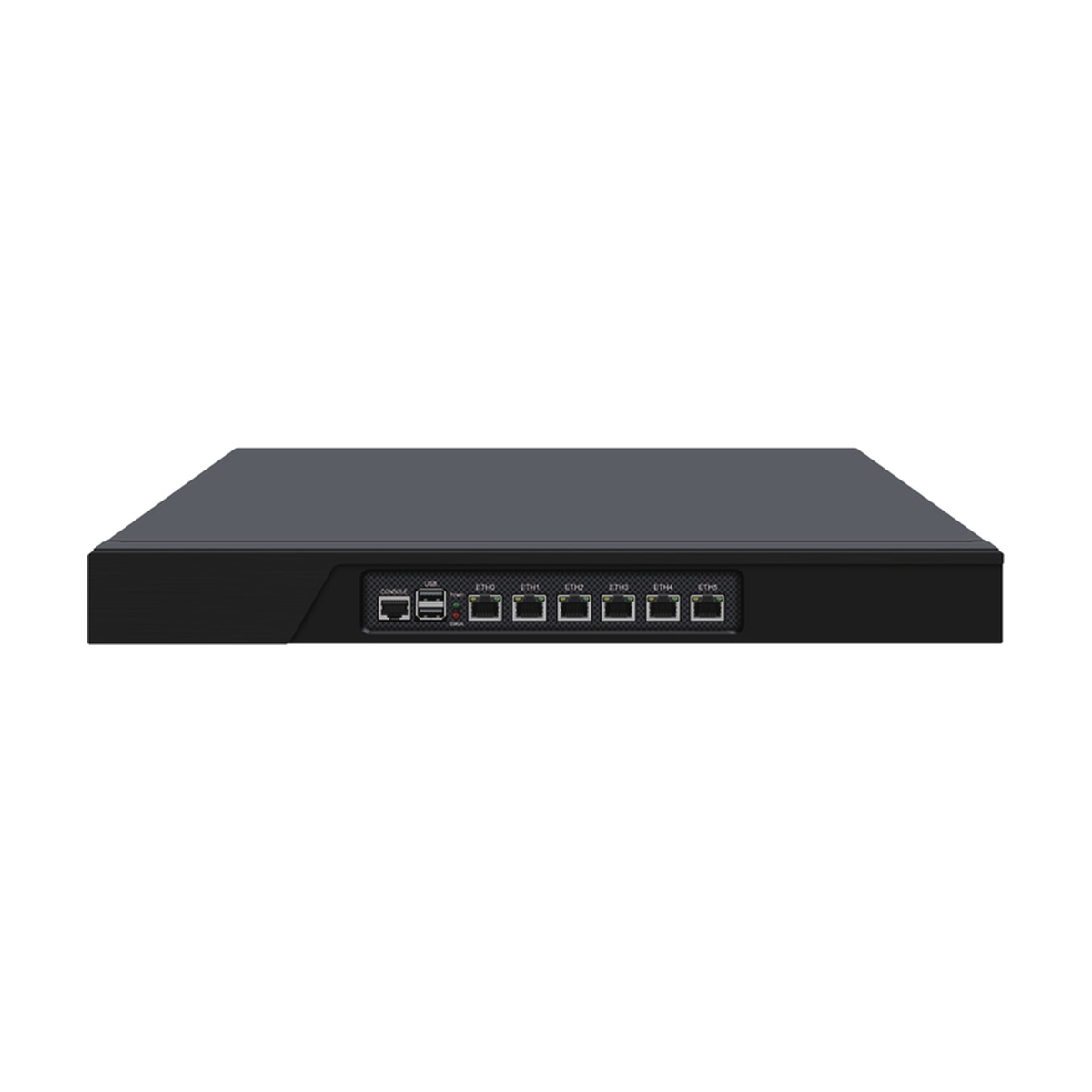

MC23-1U6L product view 2

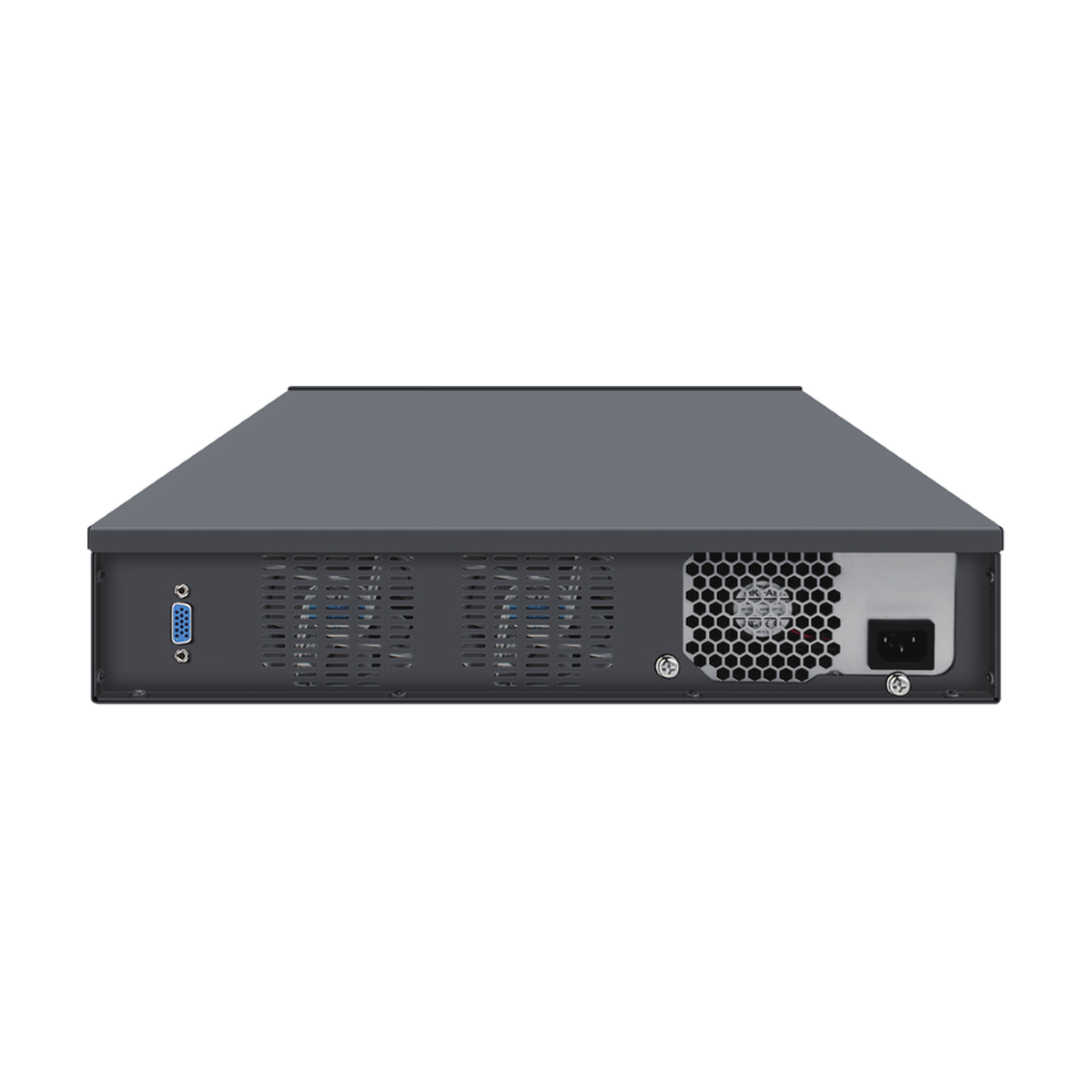

MC23-1U6L product view 3
Technical Specifications
Industrial-grade configuration details
MC23-1U6L Specification Matrix
Available hardware configurations
Operating Range
0°C to 60°C
Model
MC23-1U6L
CPU
Intel i3-3240/i5-3470/i7-3770/E3-1230V2/E3-1245V2
Graphics
Intel HD 2500(i3-3240; i5-3470)/4000(i7-3770)/P4000(1230V; 1245V) Graph
Video
1 x VGA
Memory
2 x SO-DIMM DDR3 1333/1600MHz maximum 16GB
Material
Made of aluminum alloy
USB
2 x USB 2.0(Interface); 4 x USB 2.0(Header/Pin)
Power
100-240V~50/60Hz(Mainboard:ATX 24+4 PIN)
Network
6 x Intel i210-AT/i350-AM2 100/1000MBps 2.5G adapting
Storage
4 x SATA 3.0; 1 x mSATA
Expansion
8 x programmable GPIO; RJ45 console / JCOM; Mini PCIe Wi-Fi; optional 4G/5G; Wake-on-LAN; PXE
Front I/O
1 x RJ45 Console/1 x JCOM; 6 x Intel i226V 2.5Gb Ethernet port; 2 x USB 3.0
Rear I/O
1 x Switch; 1 x DC_IN 100~240V; 1 x VGA/1 x J_HDMI
Internal I/O
mSATA and SATA 3.0 storage; GPIO; RJ45 console / JCOM; Mini PCIe Wi-Fi; optional 4G/5G connectivity; Wake-on-LAN; PXE
Dimensions
1U: 440 x 225 x 45 mm; 2U: 435 x 405 x 90 mm
PCB Dimensions
200 x 180 mm (W x L)
BIOS
AMI UEFI BIOS, PEX, WOL, GPIO
TDP
Depends on CPU
System
Windows 10 / Windows 11 / Linux
Working Environment
0°C to 60°C; 10%-90% relative humidity, non-condensing
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MC23-1U6L is a 1U six-port Intel network platform with DDR3 memory, four SATA interfaces, mSATA storage, and an integrated AC power supply.
1U Rackmount Format
Rackmount chassis and integrated AC power suit equipment rooms, network cabinets, and centralized deployments.
Storage and Expansion
Model-specific SATA, NVMe, PCIe, and wireless or cellular options support varied server and network roles.
Broad Compute Range
The series spans low-power Intel platforms, desktop-class processors, and dual Xeon server configurations.
