MC30S DDR4
Four-port 2.5GbE fanless routing appliance
MC30S DDR4 provides four Intel 2.5GbE ports, dual display output, NVMe and SATA storage, and cellular or wireless expansion for multi-WAN and segmented-network deployments.
Product Gallery
A closer look at MC30S DDR4
Different product views highlight the enclosure design, interface layout, and installation details.

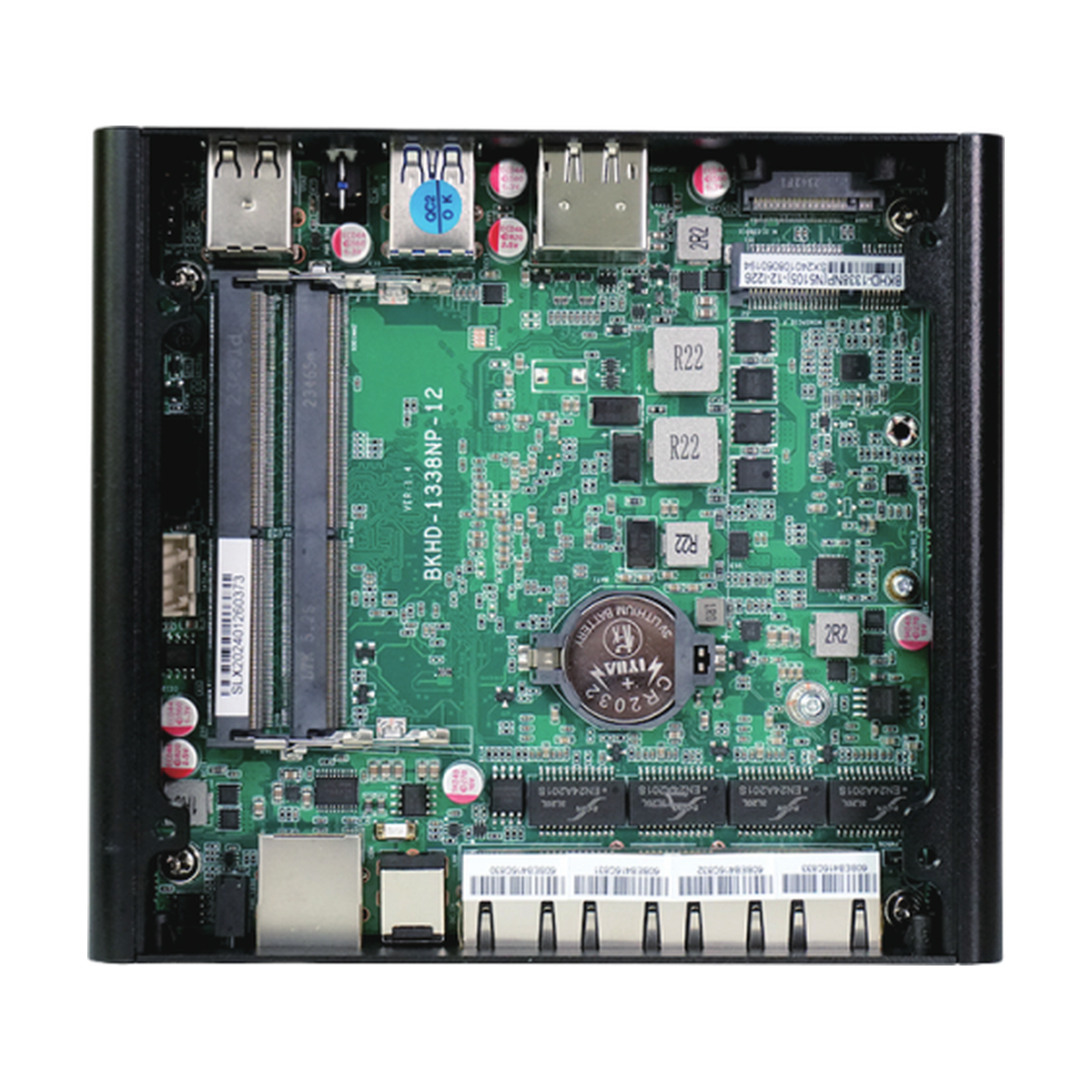

MC30S DDR4 enclosure and interface view

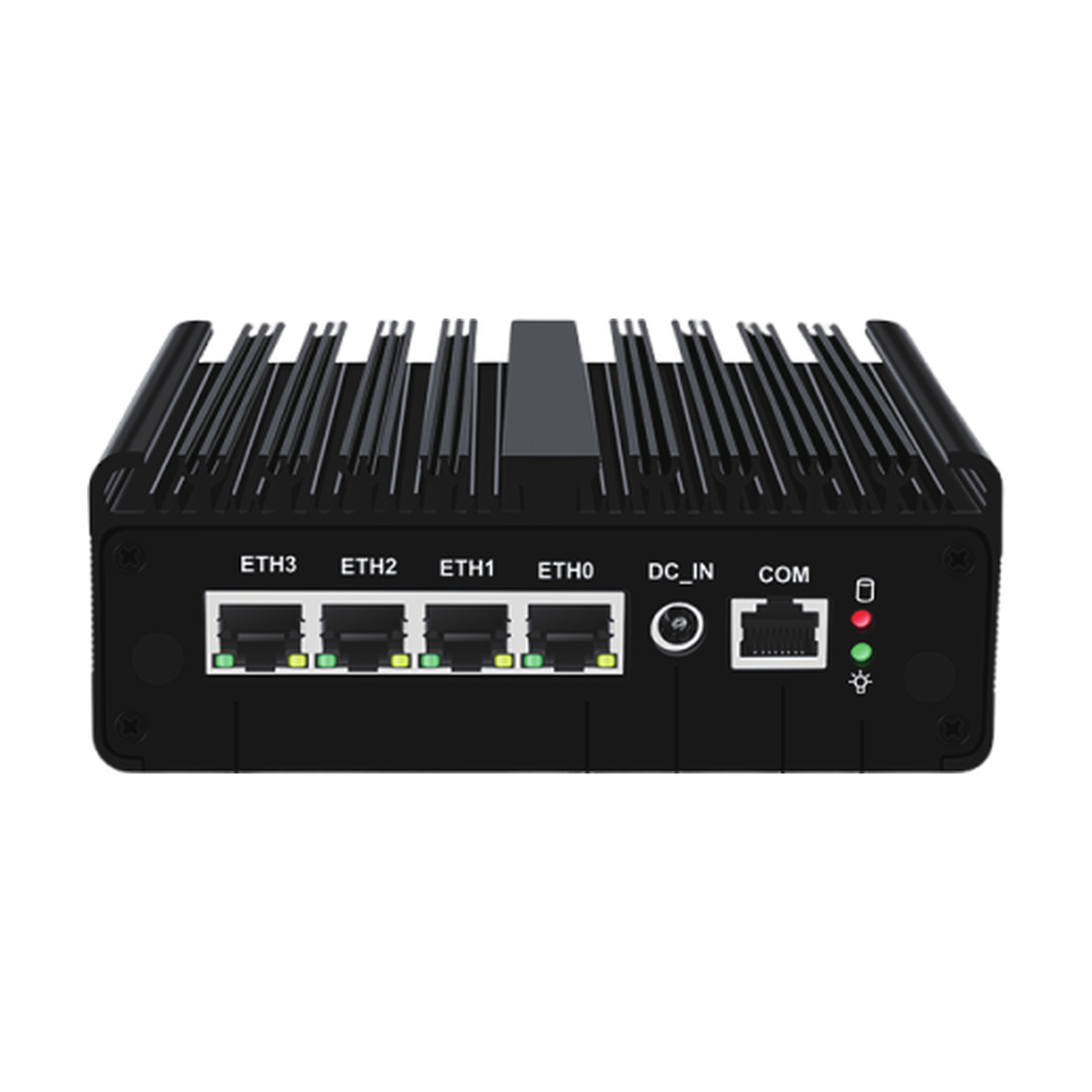

MC30S DDR4 product view 2
Technical Specifications
Industrial-grade configuration details
MC30S DDR4 Specification Matrix
Available hardware configurations
Operating Range
0°C to 50°C
Model
MC30S DDR4
CPU
Intel N6415/J5005/J6413/N5105 processor
Graphics
Intel HD 600 Graphics Card
Video
1 x DP port; 1 x HDMI port
Memory
1 x DDR4 SO-DIMM Up to 16GB
Material
Aluminum alloy
USB
2 x USB 3.0 4 x USB 2.0 (Built-in pin)
Power
DC 12V-4A 5.5 x 2.5
Network
4 x Intel i226 2.5GbE
Storage
1 x M.2 NVMe 2280 1 x SATA 3.0 (Support 2 5 inch HDD/SSD)
Expansion
1 x Mini PCIe Channel for Wi-Fi/Bluetooth/4G; 1 x M.2 2242 (Support 5G Communication)
Front I/O
1 x Power Adapter port; 4 x 2.5G Ethernet port; 1 x RJ45 COM; 1 x Power HDD LED; 1 x Power LED

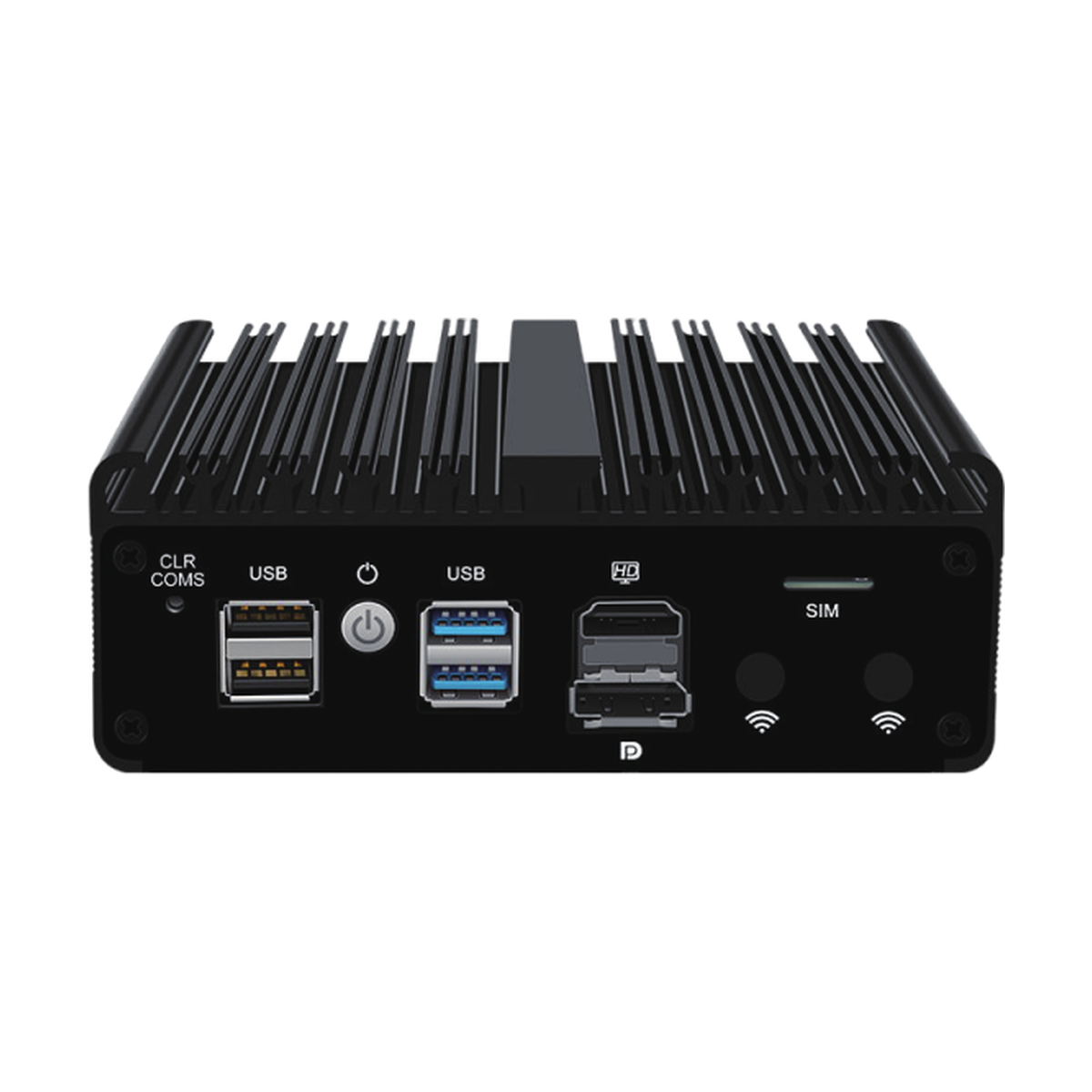

Rear I/O
2 x USB 3.0/2 x USB 2.0; 1 x HDMI (With audio output); 1 x DP; 1 x Power Button; 1 x CLR-CMOS; 1 x 4G/5G SIM Card slot
Internal I/O
1 x SATA Interface; 1 x M.2 Interface; 1 x Mini PCIe Channel for Wi-Fi/Bluetooth/4G; 1 x F-PANEL pin
Dimensions
146 x 133 x 57mm
BIOS
AMI UEFI BIOS
TDP
Depends on CPU
System
Windows 10 / Windows 11/Linux
Working Environment
0°C to 50°C; 0%-95% relative humidity, non-condensing
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MC30S DDR4 provides four Intel 2.5GbE ports, dual display output, NVMe and SATA storage, and cellular or wireless expansion for multi-WAN and segmented-network deployments.
Four Dedicated Network Ports
Four-port layouts support multi-WAN routing, network segmentation, and branch gateway configurations.
Wireless and Cellular Expansion
Selected models provide Mini PCIe or M.2 expansion for compatible Wi-Fi and cellular modules.
Local Display Connectivity
HDMI and DisplayPort options simplify setup, diagnostics, and local management where required.
