MCE5-1U6L
Dual-Xeon 1U server platform with IPMI
MCE5-1U6L is a deep 1U dual-socket Xeon server with ECC memory, IPMI management, extensive SATA and NVMe storage, and multiple PCIe expansion slots.
Product Gallery
A closer look at MCE5-1U6L
Different product views highlight the enclosure design, interface layout, and installation details.

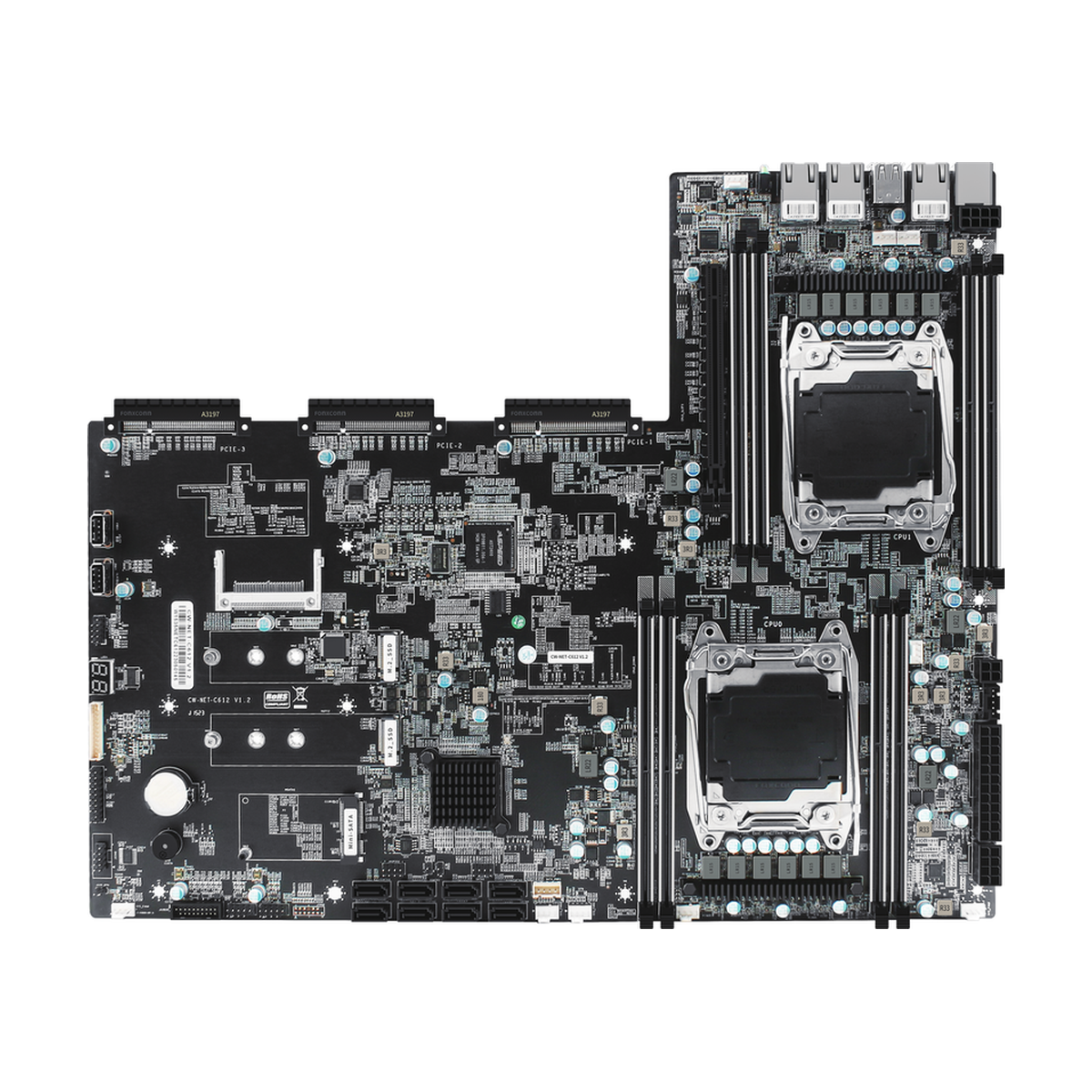

MCE5-1U6L enclosure and interface view

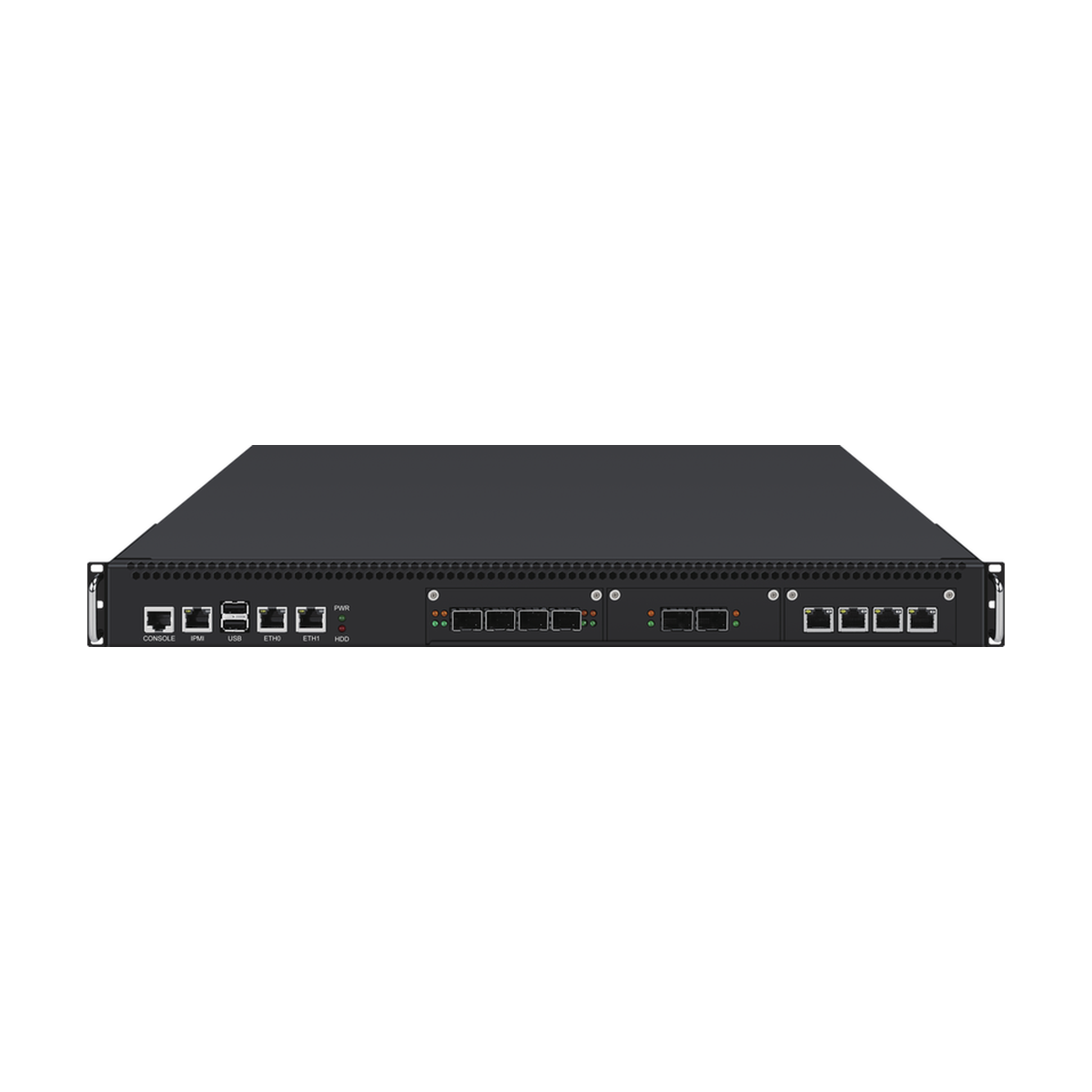

MCE5-1U6L product view 2

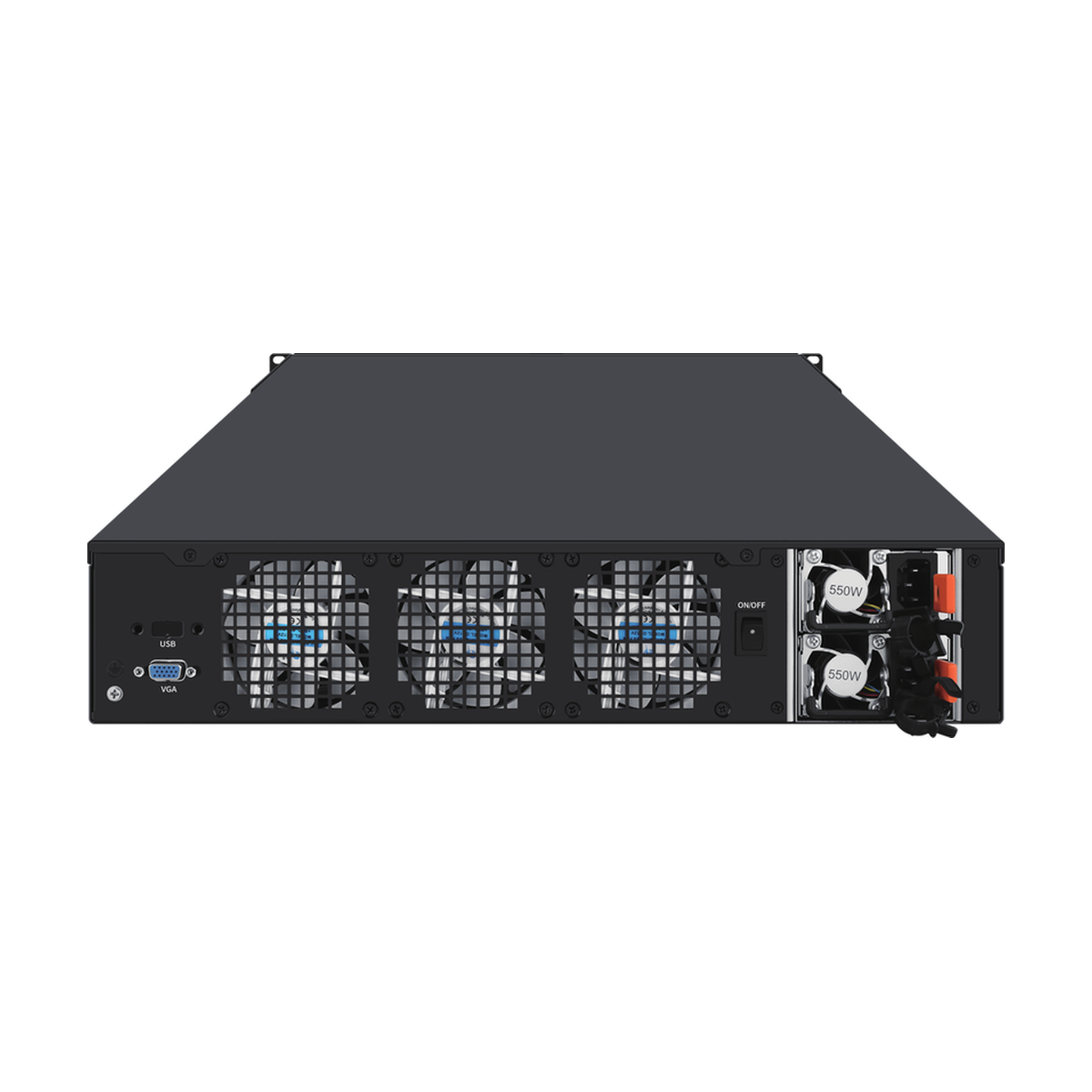

MCE5-1U6L product view 3
Technical Specifications
Industrial-grade configuration details
MCE5-1U6L Specification Matrix
Available hardware configurations
Operating Range
0°C to 60°C
Model
MCE5-1U6L
CPU
2 x intel Xeon Broadwell E5 V3/V4
Chipset
Intel® C612
Graphics
Depends on CPU
Video
1 *VGA (Aspeed AST2400)
Memory
8 x ECC/ECC-REG DIMM DDR4 2133P 2400T 2666V 1.2V maximum 256GB
Material
Made of aluminum alloy
USB
2 x external USB 2.0 ports; 1 x USB 3.0 array-pin header; 2 x vertical USB 2.0 ports; 4 x USB 2.0 array-pin headers
Power
100-240V~50 / 60Hz(Mainboard: ATX 24Pin+8Pin+8Pin)
Network
1 x Realtek RTL8211E IPMI port; 2 x Intel Gigabit Ethernet RJ45 ports
Storage
2 x M.2 NVMe 2280 (PCIe 3.0 x4); 8 x SATA 3.0 6 Gb/s; 1 x mSATA; 1 x CF
Expansion
3 x PCIe x8; 1 x PCIe x16; 8 x GPIO; RJ45 console; 2 x COM array-pin headers; 1 x Mini PCIe; IPMI; Wake-on-LAN; PXE
Front I/O
1 x IPMI/1 x RJ45 Console; 1 x Status LED/1 x Hard Drive LED; 2 x i210AT GbE; 2 x USB 2.0
Rear I/O
1 x VGA Port; 1 x Power Switch; 1 x Grounding screw; 3 x Ball bearing fans; 1 x AC Outlet; 1 x USB reserved seat
Internal I/O
mSATA; 4 x SATA 3.0; 1 x PCIe x16; 3 x PCIe x8; 8 x GPIO pins; 2 x COM headers; JVGA header and CF slot; 1 x USB 3.0 array-pin header; 4 x USB 2.0 array-pin headers; 2 x vertical USB 2.0 ports; SATA power; F_PANEL
Dimensions
1U: 440 x 600 x 45 mm; 2U: 440 x 600 x 90 mm
BIOS
AMI UEFI BIOS EFI
TDP
Depends on CPU
System
Windows 10/11, Windows Server, Linux
Working Environment
Operating: 0°C to 60°C; storage: -10°C to 70°C; operating humidity: 10%-90%; storage humidity: 5%-95%, non-condensing
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCE5-1U6L is a deep 1U dual-socket Xeon server with ECC memory, IPMI management, extensive SATA and NVMe storage, and multiple PCIe expansion slots.
1U Rackmount Format
Rackmount chassis and integrated AC power suit equipment rooms, network cabinets, and centralized deployments.
Storage and Expansion
Model-specific SATA, NVMe, PCIe, and wireless or cellular options support varied server and network roles.
Broad Compute Range
The series spans low-power Intel platforms, desktop-class processors, and dual Xeon server configurations.
