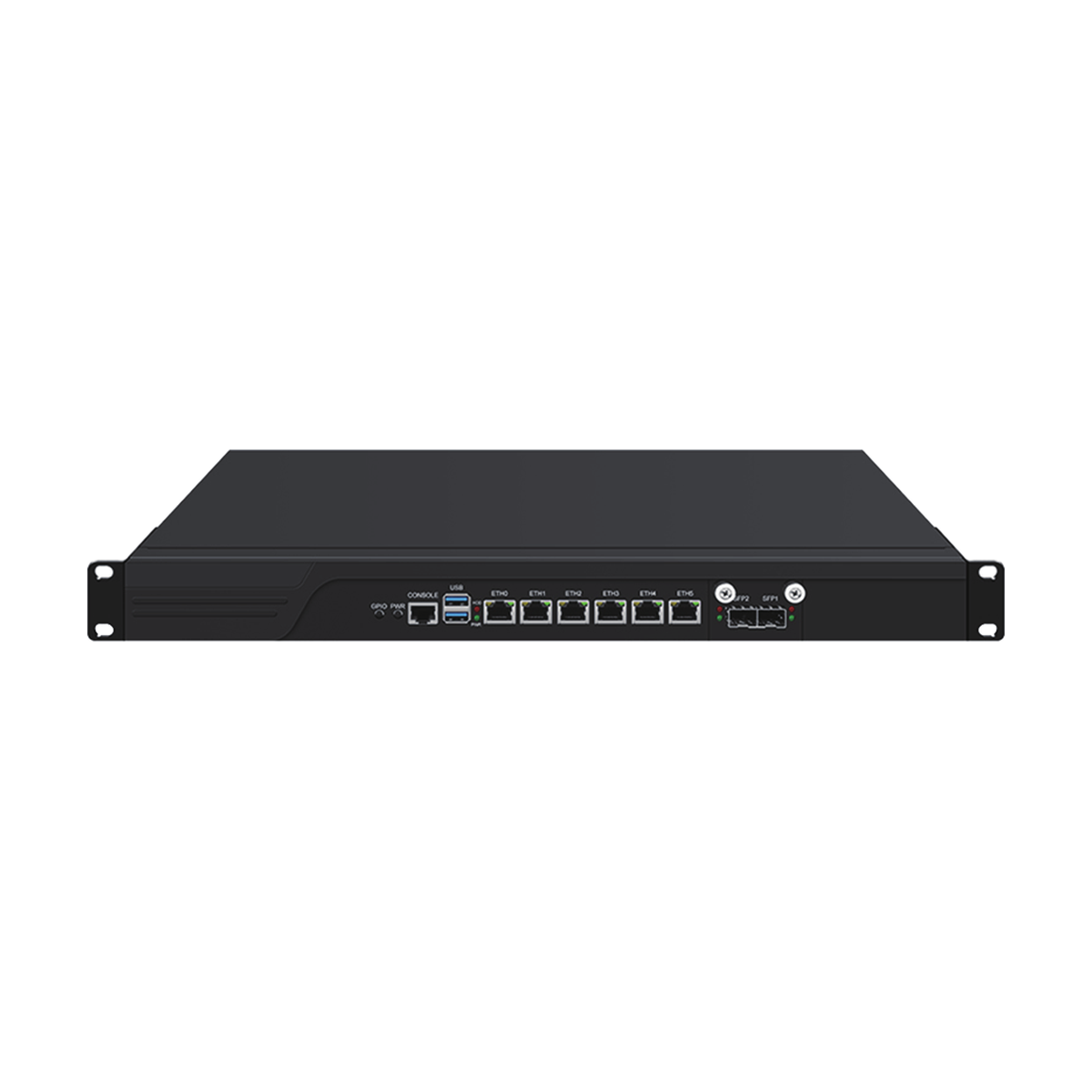

MCJ6-1U6L
Low-power six-port 1U network server
MCJ6-1U6L combines an Intel Celeron J6412 platform with six Intel 2.5GbE ports, up to 64GB DDR4, flexible storage, and integrated AC power in a 1U chassis.
Product Gallery
A closer look at MCJ6-1U6L
Different product views highlight the enclosure design, interface layout, and installation details.

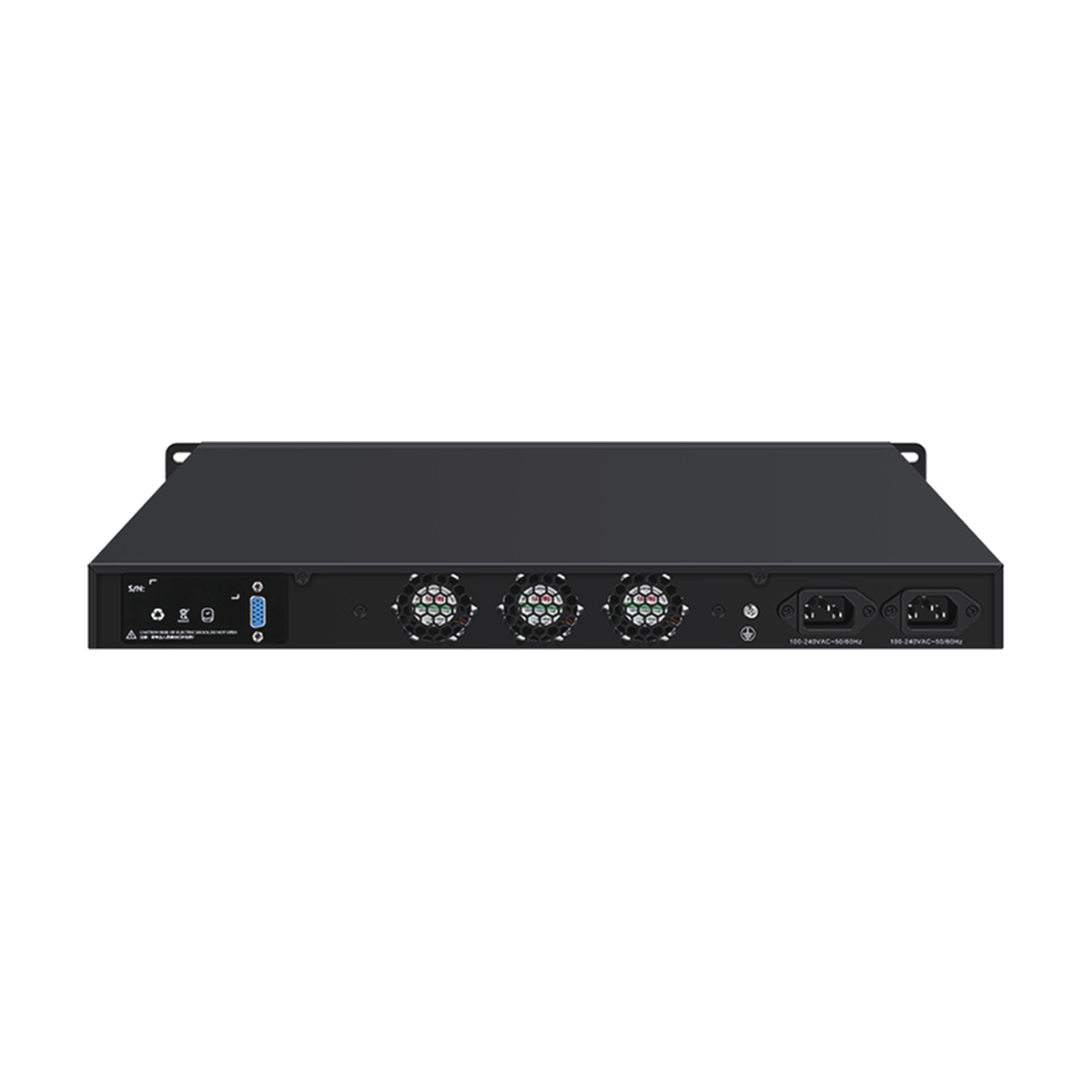

MCJ6-1U6L enclosure and interface view

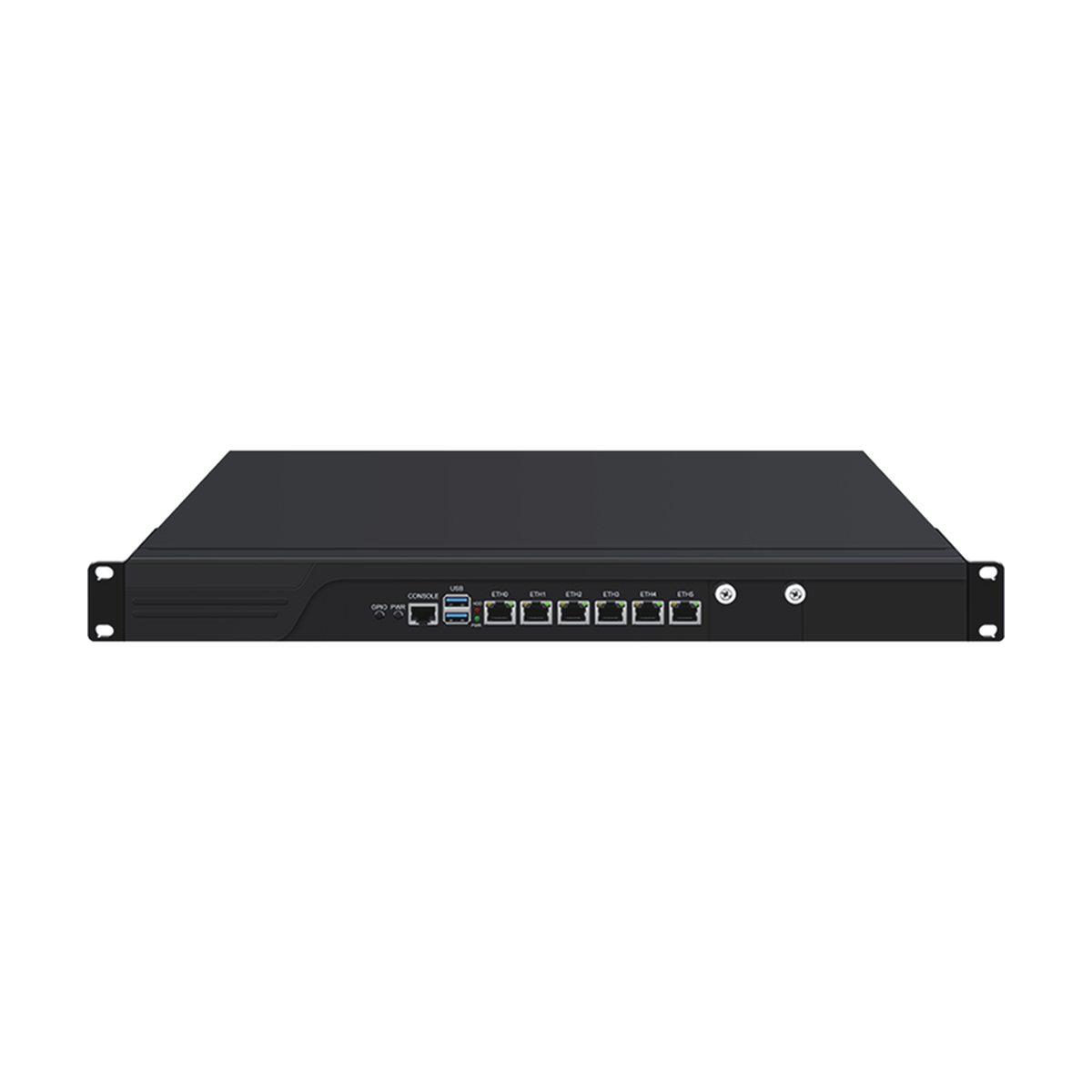

MCJ6-1U6L product view 2

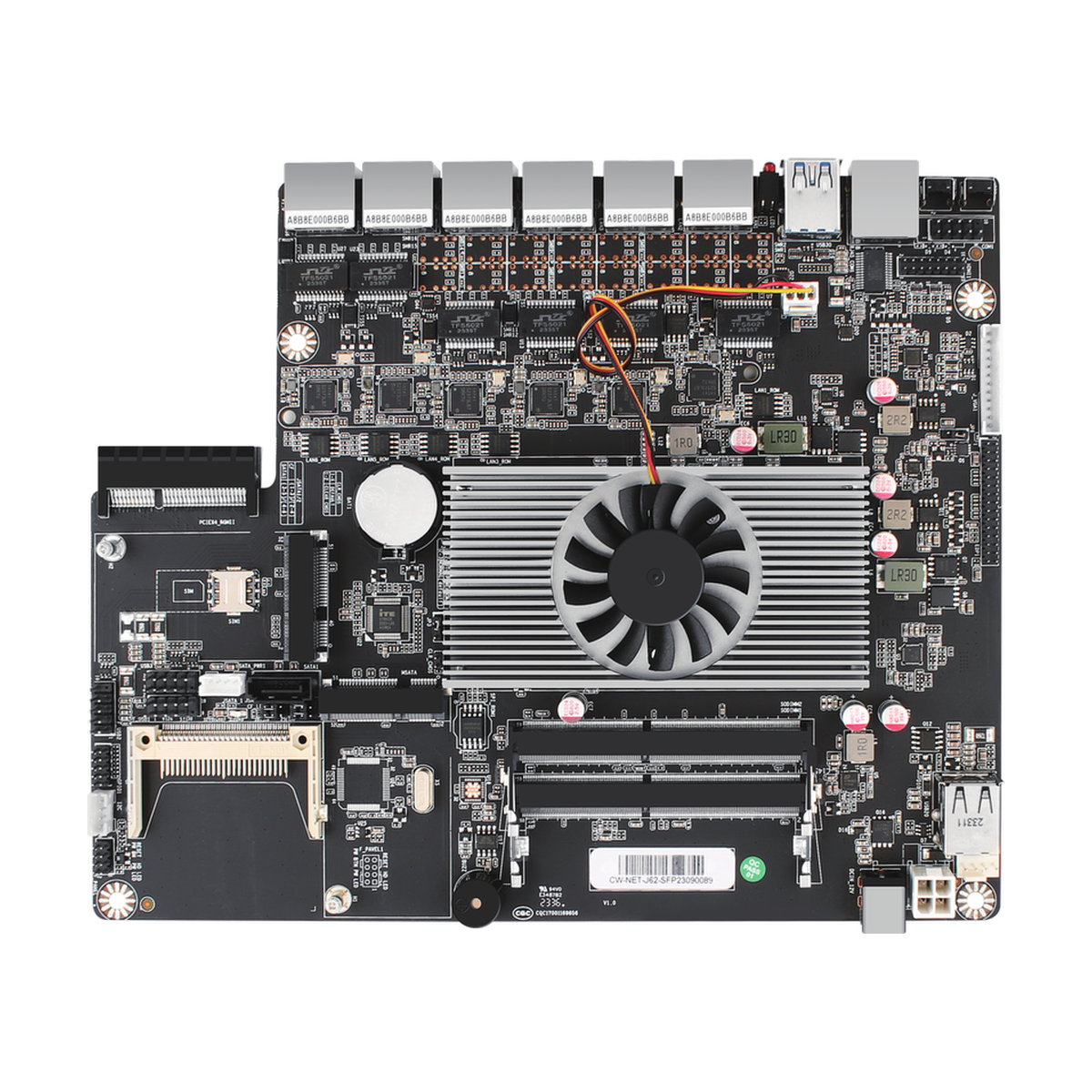

MCJ6-1U6L product view 3
Technical Specifications
Industrial-grade configuration details
MCJ6-1U6L Specification Matrix
Available hardware configurations
Operating Range
0°C to 60°C
Model
MCJ6-1U6L
CPU
Intel® Celeron® Processor J Series J6412
Graphics
Depends on CPU
Video
1 x VGA/1 x JHDMI/1 x EDP
Memory
2 x SO-DIMM DDR4 3200MHz maximum 64 GB
Material
Made of aluminum alloy
USB
2 x external USB 3.0 ports; 6 x USB 2.0 array-pin headers; 2 x vertical USB 2.0 ports
Network
6 x Intel i226-V 2.5Gb Ethernet port
Storage
1 x SATA / 1 x mSATA / 1 x CF (select one of three)
Expansion
1 x PCIe x4 integrated-LAN slot; 8 x programmable GPIO; RJ45 console; 1 x COM array-pin header; Mini PCIe; SIM; Wake-on-LAN; PXE
Front I/O
1 x Power Button; 1 x GPIO; 1 x RJ45 Console; 6 x Intel i226V 2.5Gb Ethernet port; 2 x USB 3.0
Rear I/O
1 x VGA Port; 3 x Ball bearing fans; 1 x Grounding screw; 2 x AC Outlet
Internal I/O
2 x DDR4 SO-DIMM slots; mSATA and SATA 3.0; 1 x PCIe x4 integrated-LAN slot; 8 x GPIO pins; 1 x COM header; HDMI, VGA and eDP headers; 6 x USB 2.0 array-pin headers; 2 x vertical USB 2.0 ports; SATA power; F_PANEL; CF slot
Dimensions
1U: 440 x 319 x 45 mm
PCB Dimensions
223 x 180 mm (W x L)
BIOS
AMI 128M BIOS with ACPI support and automatic power-on
TDP
Depends on CPU
System
Windows 10/11, Windows Server, Linux
Working Environment
0°C to 60°C; 10%-90% relative humidity, non-condensing
Power
100-240V~50/60Hz(Mainboard:ATX 4 PIN 12V 5.5 x 2.5 mm)
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCJ6-1U6L combines an Intel Celeron J6412 platform with six Intel 2.5GbE ports, up to 64GB DDR4, flexible storage, and integrated AC power in a 1U chassis.
1U Rackmount Format
Rackmount chassis and integrated AC power suit equipment rooms, network cabinets, and centralized deployments.
Storage and Expansion
Model-specific SATA, NVMe, PCIe, and wireless or cellular options support varied server and network roles.
Broad Compute Range
The series spans low-power Intel platforms, desktop-class processors, and dual Xeon server configurations.
