MCR10
Dual-10GbE and dual-2.5GbE compact appliance
MCR10 combines two 10GbE interfaces with two Intel 2.5GbE ports, DDR5 memory, dual HDMI, and NVMe plus SATA storage for high-speed network edge deployments.
Product Gallery
A closer look at MCR10
Different product views highlight the enclosure design, interface layout, and installation details.

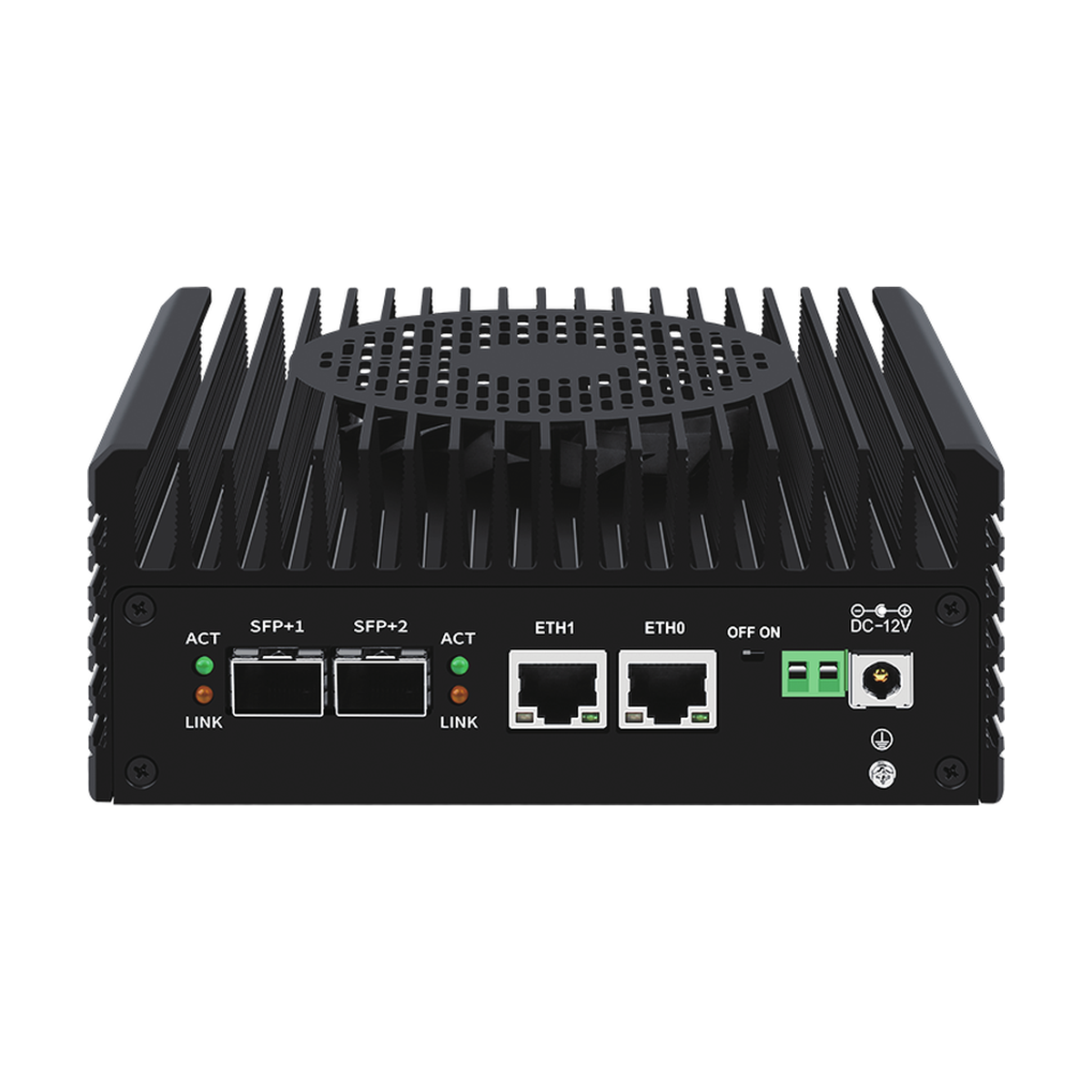

MCR10 enclosure and interface view

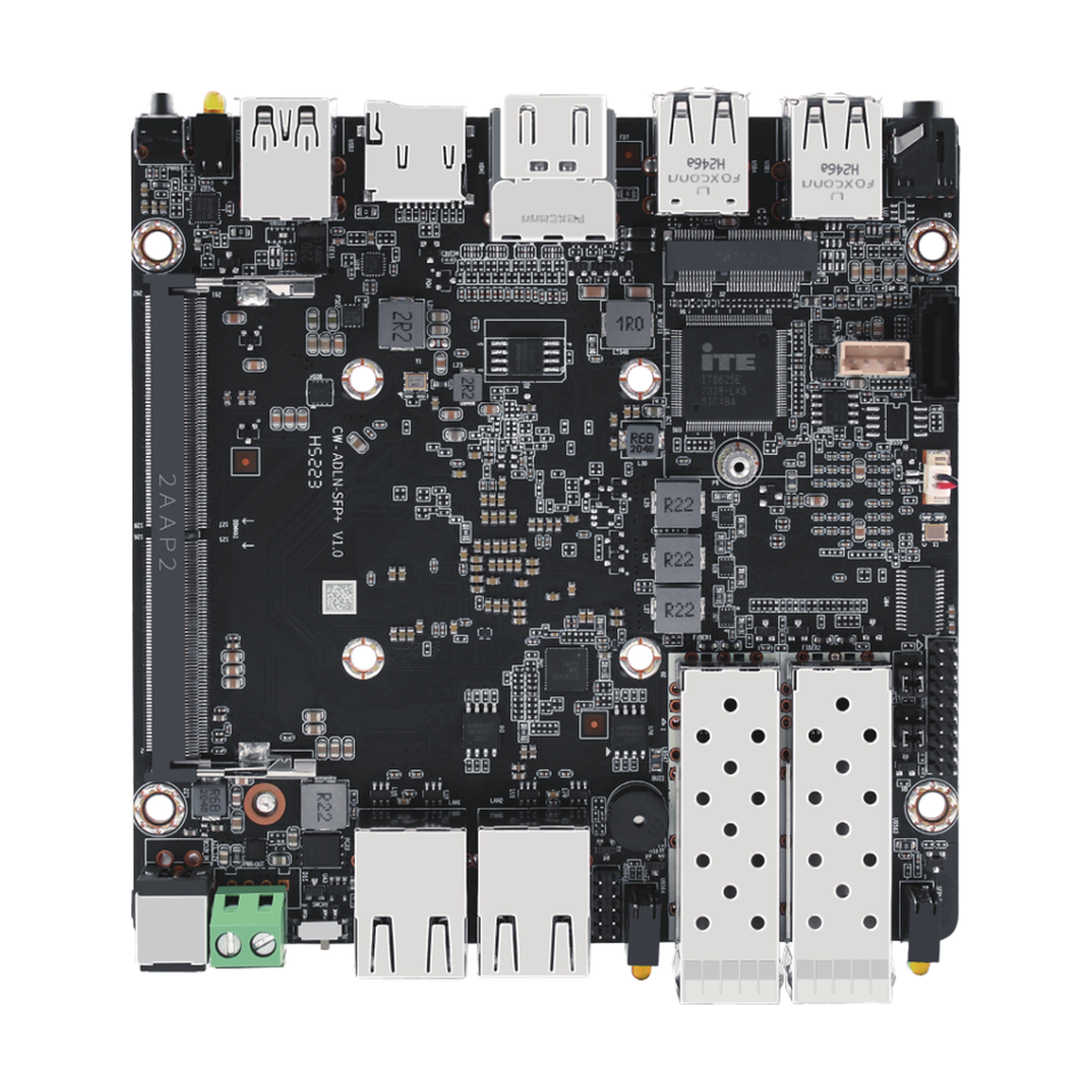

MCR10 product view 2
Technical Specifications
Industrial-grade configuration details
MCR10 Specification Matrix
Available hardware configurations
Operating Range
0°C to 70°C
Model
MCR10
CPU
Intel Alder Lake-N N100/i3-N305
Chipset
Intel Alder Lake-N
Graphics
Intel UHD Graphics
Video
2 x HDMI2.0 SUpport 4K@60Hz
Memory
1 x SO-DIMM DDR5 Slot Support up to 32GB 4800MHz
Material
Made of aluminum alloy
USB
1 x USB 3.2 Gen1; 1 x Type-C 3.2 Gen1; 4 x USB 2.0
Network
2 x Intel 82599ES 10GbE; 2 x Intel i226-V 2.5GbE
Storage
1 x PCIe M.2 NVMe 2280 (SATA/NVME)
Expansion
1 x 20Pin COM; 2 x 232/485 COM switching header; 1 x 4Pin SATA 3.0 slot; 2 x 4Pin FAN mount

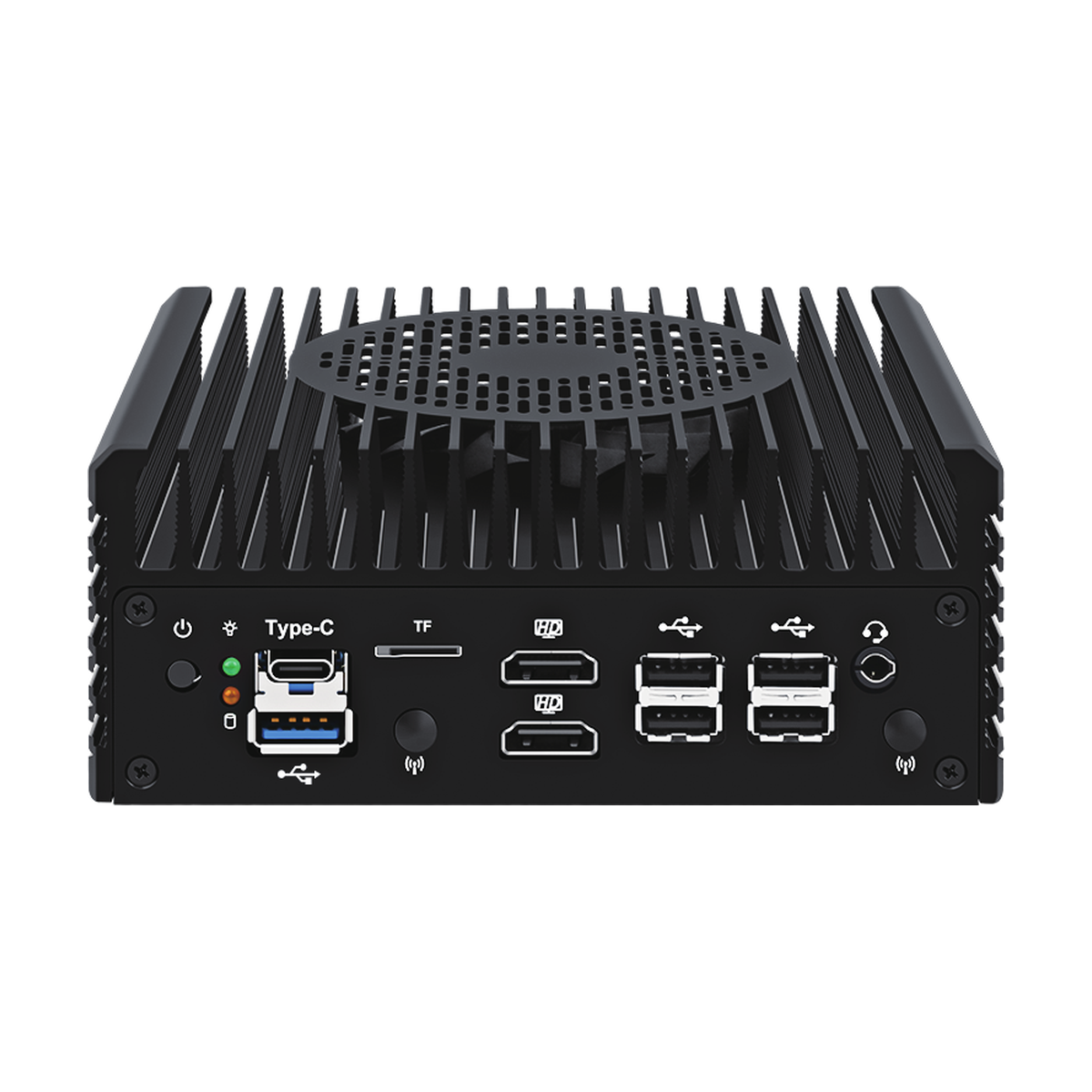

Front I/O
2 x USB 3.2 Gen1; 1 x Type-C 3.2Gen1; 1 x HDMI 2.0; 1 x Power Button; 1 x TF Card slot; 4 x USB 2.0; 1 x 3.5mm Audio; 1 x COM RST Button
Rear I/O
2 x Intel 82599ES 10Gb Ethernet port; 2 x Intel i226-V 2.5Gb Ethernet port; 1 x DC_IN 12V; 1 x Phoenix terminals
Internal I/O
1 x 20Pin COM; 2 x 232/485 COM switching header; 1 x 4Pin SATA 3.0 slot; 2 x 4Pin FAN mount
Dimensions
148mm*127mm*60mm
BIOS
AMI UEFI BIOS; PC Health 128M flash ROM
TDP
6W~15W
System
Windows 10/Windows 11; Linux
Working Environment
0°C to 70°C; 5%-85% relative humidity, non-condensing
Power
DC12V Wide Voltage Supply(5.5 x 2.5 mm)
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCR10 combines two 10GbE interfaces with two Intel 2.5GbE ports, DDR5 memory, dual HDMI, and NVMe plus SATA storage for high-speed network edge deployments.
10GbE Connectivity
Selected models combine 10GbE RJ45 or SFP+ links with 2.5GbE interfaces for high-speed network edge designs.
Copper and Fiber Options
Choose the model and interface format that matches the required uplink and local network infrastructure.
Purpose-Built Network Platform
Dedicated multi-port hardware suits compatible routing, firewall, gateway, and network-service software.
Interested in MCR10?
Contact our team for pricing, lifecycle planning, customization, and bulk order support.
