MCSR613U
13th Gen Intel Core six-port 2.5GbE appliance
MCSR613U supports 13th Gen Intel Core U-series processors, six Intel 2.5GbE ports, DDR5 memory, USB4, dual NVMe, and dual SATA for demanding branch and edge workloads.
Product Gallery
A closer look at MCSR613U
Different product views highlight the enclosure design, interface layout, and installation details.

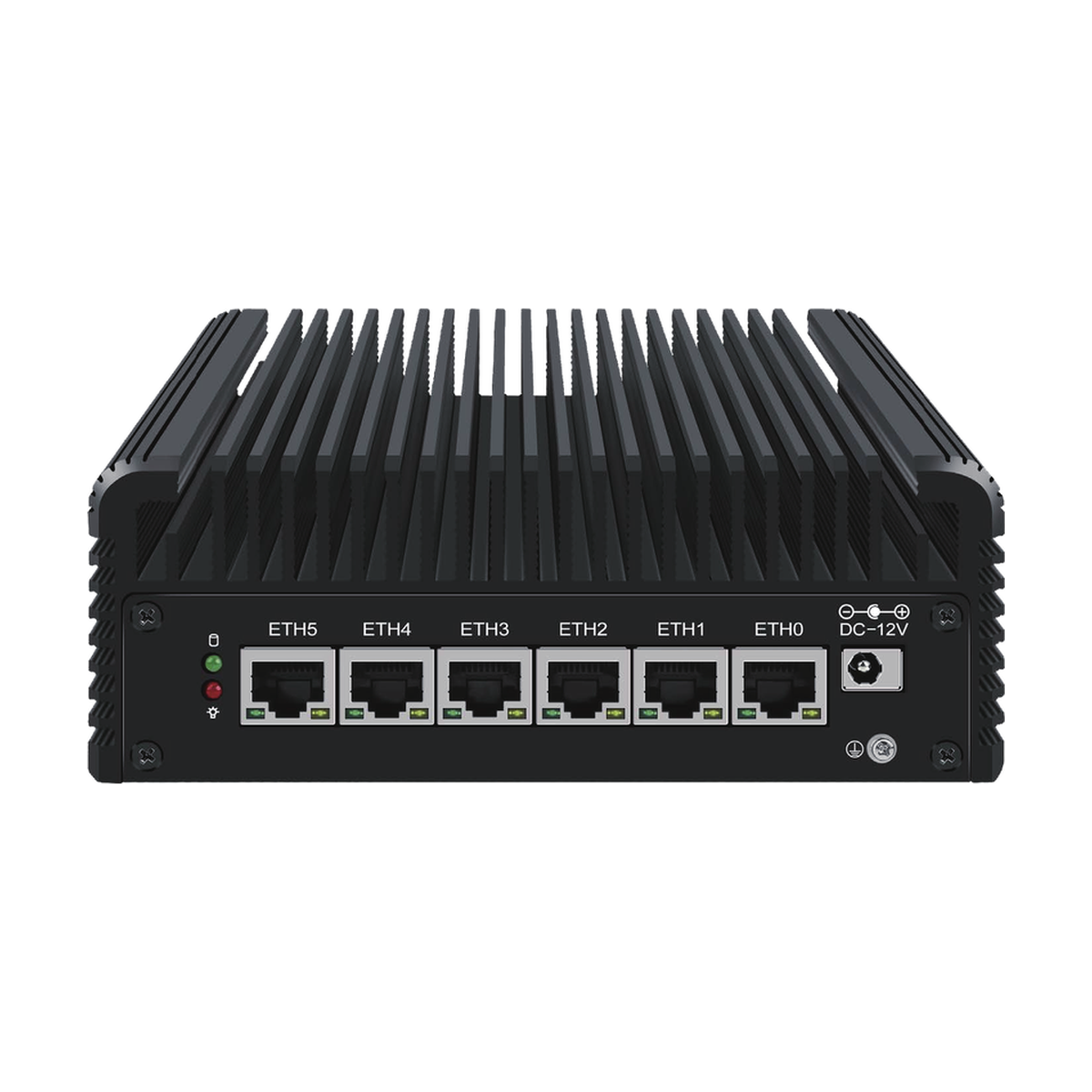

MCSR613U enclosure and interface view

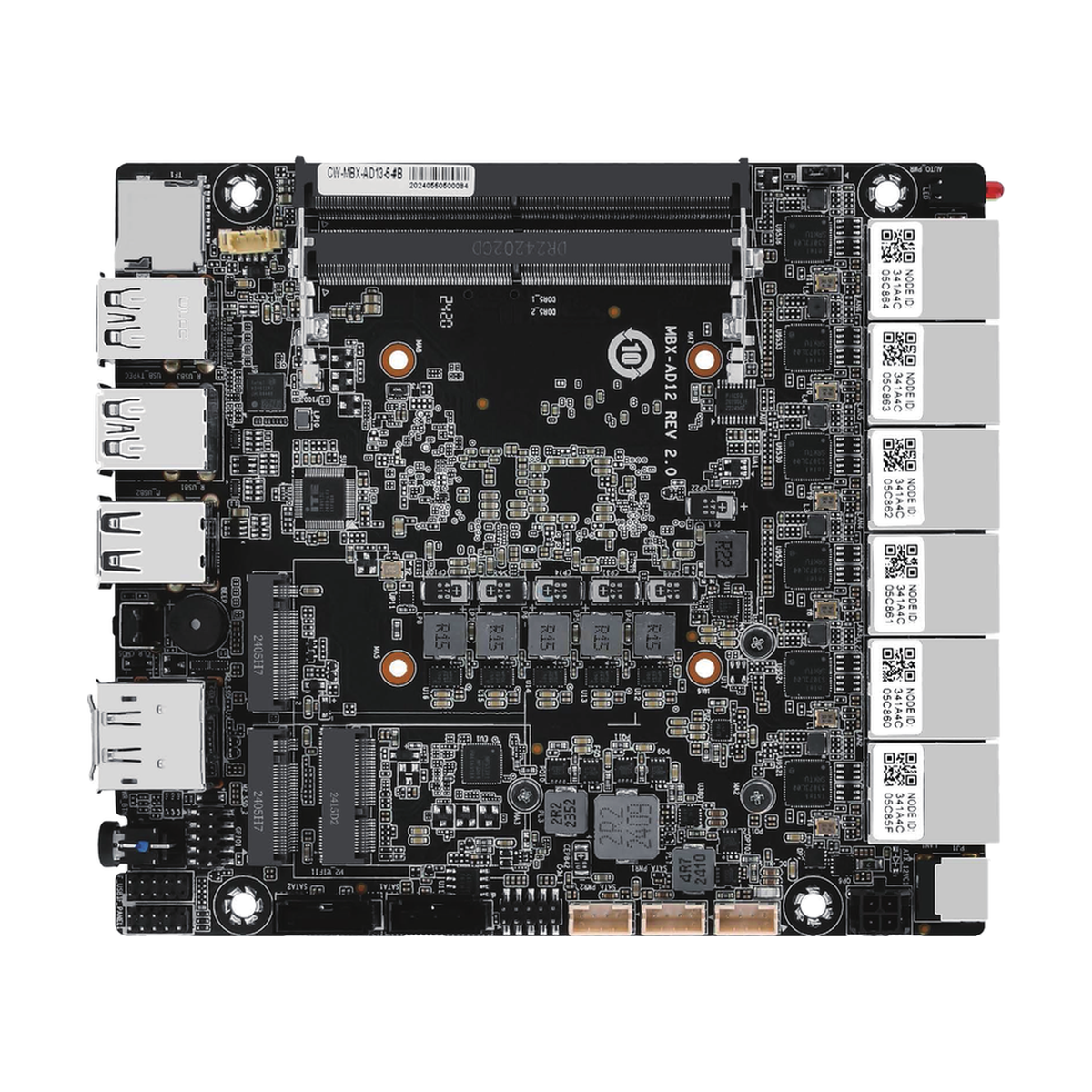

MCSR613U product view 2
Technical Specifications
Industrial-grade configuration details
MCSR613U Specification Matrix
Available hardware configurations
Operating Range
0°C to 70°C
Model
MCSR613U
CPU
Intel 12/13th i3-1315U/i5-1335U/i7-1355U
Chipset
Intel 12th Alder Lake/13th Raptor Lake
Graphics
Intel UHD Graphics/Intel lris Xe Graphics
Video
HDMI 2.0 (4K at 60 Hz); DisplayPort 1.4 (4K at 60 Hz); USB4 Type-C display output
Memory
2 x SO-DIMM DDR5 4800/5200/00MHz maximum 64GB
Material
Made of aluminum alloy
USB
3 x USB 2.0; 2 x USB 3.2(10Gbps)
Network
6 x Intel i226-V(2.5GbE port)
Storage
2 x M.2 NVMe x4 2280; 2 x SATA 3.0
Expansion
1 x 4Pin FAN_CPU(5V); 1 x COM Pin; 1 x USB 2.0 Pin; M.2 E-Key 2230 PCIe Compatible with CNVI
Front I/O
1 x Power Button; 1 x HDMI 1.4; 1 x DP 1.4a; 1 x Type-C(data&display); 1 x BISO Restore Key; 2 x USB 3.2; 3 x USB 2.0; 1 x TF card
Rear I/O
1 x DC12-19V Power interface; 6 x Intel 2.5Gb Ethernet port; 1 x Hard disk indicator; 1 x Power indicator
Internal I/O
2 x SO-DIMM DDR5 Memory slots; 1 x M.2 Wi-Fi Pin(Expandable Wi-Fi6 Wi-Fi7); 1 x M.2 NVMe PCIe3.0x4 Pin; 1 x 4Pin power Pin; 1 x 12V CPUFAN 4Pin; 1 x COM Pin; 1 x USB 2.0Pin; 1 x F-PANEL Pin; 2 x SATA Power port; 2 x SATA 3.0 Port; 1 x M.2 SSD1(PCIe4.0x4); 1 x GPIO Pin
BIOS
Supports power-on self-test, GPIO, wake-on-LAN features
TDP
15W(Basic), 55W(Turbo)
System
Windows 10/Windows 11; Linux
Working Environment
0°C to 70°C; 5%-85% relative humidity, non-condensing
Color
Black
Power
DC12-19V wide voltage Supply(5.5 x 2.5 mm) Type-C Power 19V 65W
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCSR613U supports 13th Gen Intel Core U-series processors, six Intel 2.5GbE ports, DDR5 memory, USB4, dual NVMe, and dual SATA for demanding branch and edge workloads.
Six-Port Network Architecture
Six dedicated interfaces provide additional flexibility for branch, SD-WAN, and segmented-network designs.
Intel Core Performance Options
Selected models use Intel Core U-series processors with higher memory capacity for more demanding services.
Multi-Drive Storage
NVMe and SATA options support operating systems, logs, local applications, and project-specific storage needs.
