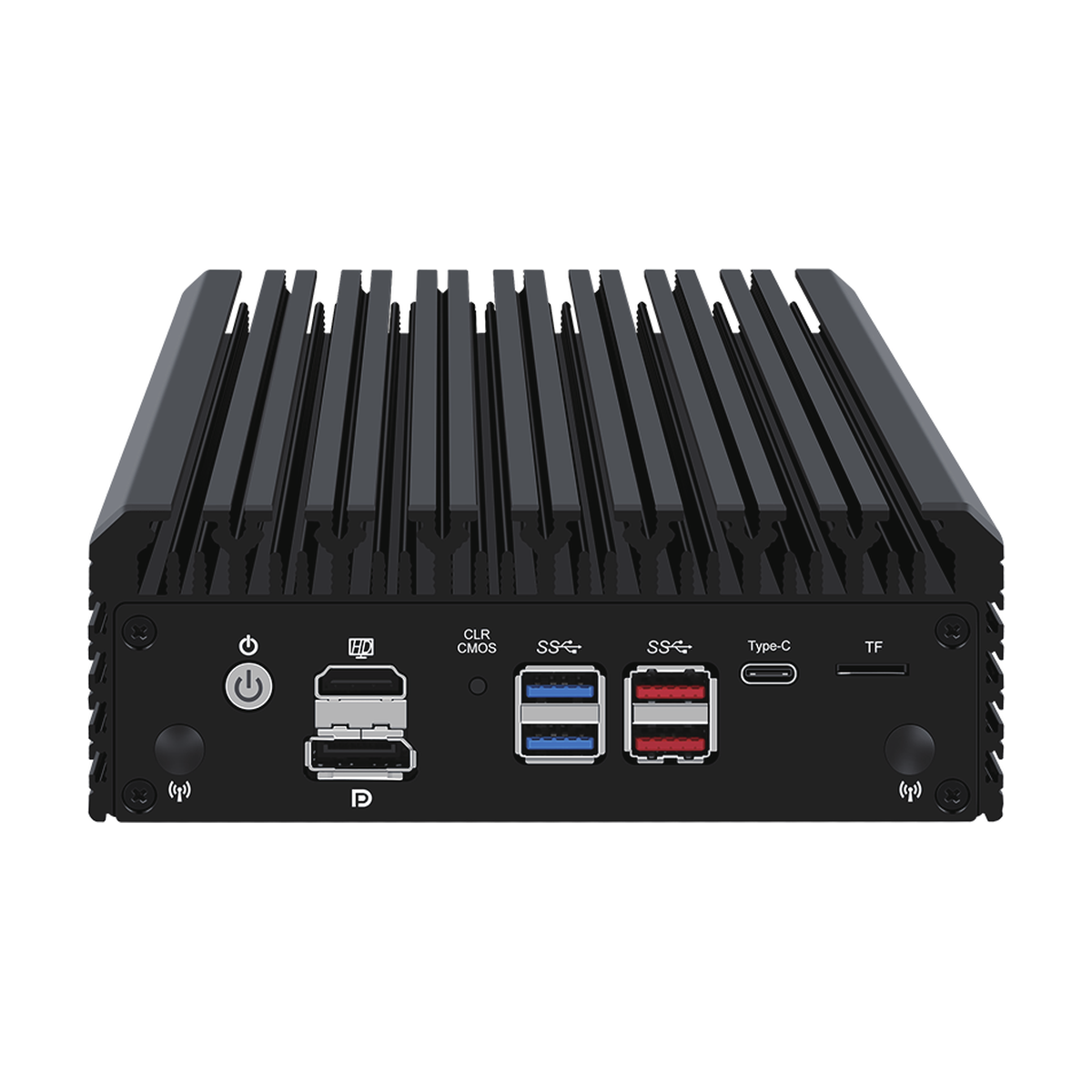

MCSR6N12U
12th Gen Intel Core six-port network appliance
MCSR6N12U combines 12th Gen Intel Core U-series processing with six Intel 2.5GbE ports, DDR4 memory, Type-C display connectivity, and multi-drive storage.
Product Gallery
A closer look at MCSR6N12U
Different product views highlight the enclosure design, interface layout, and installation details.

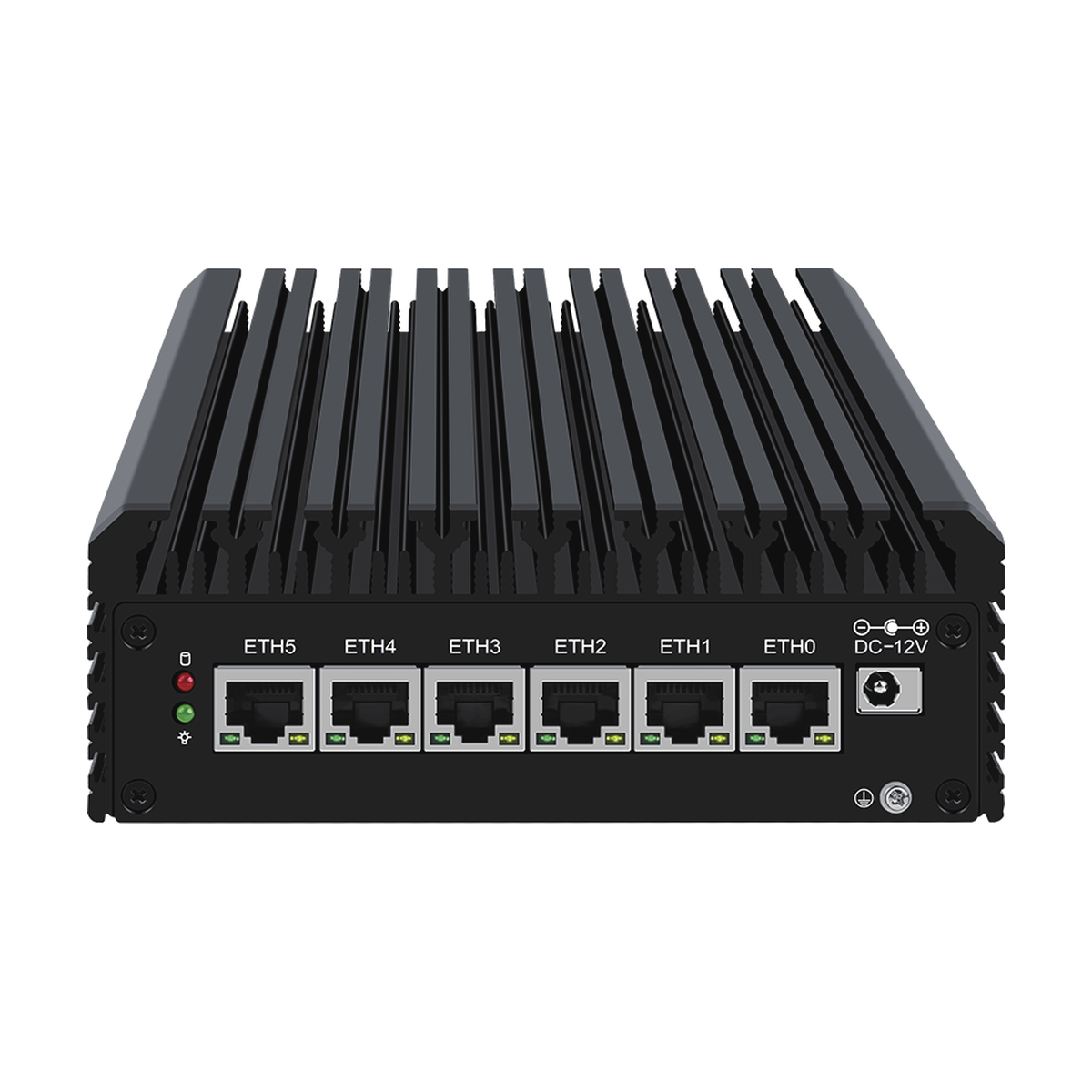

MCSR6N12U enclosure and interface view

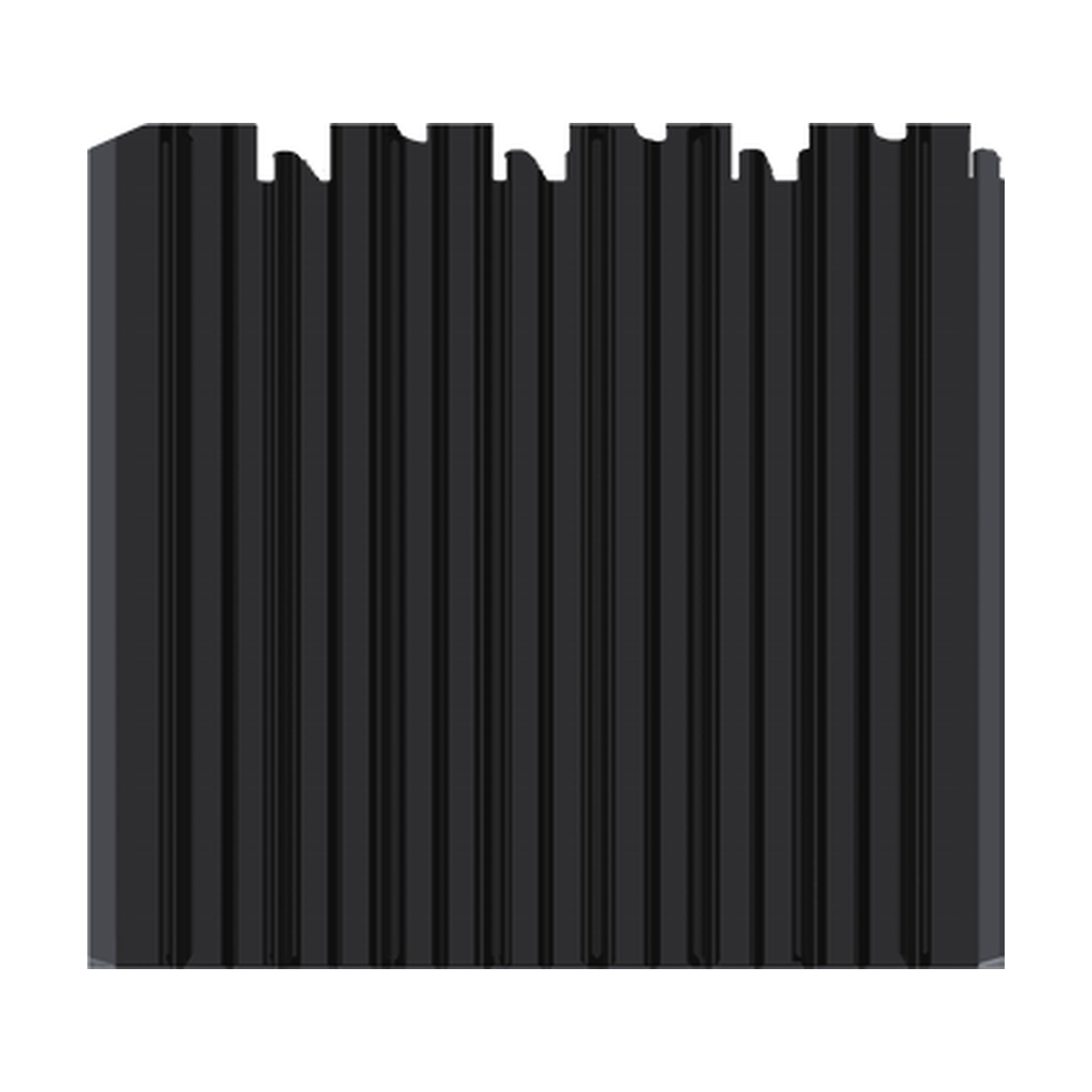

MCSR6N12U product view 2

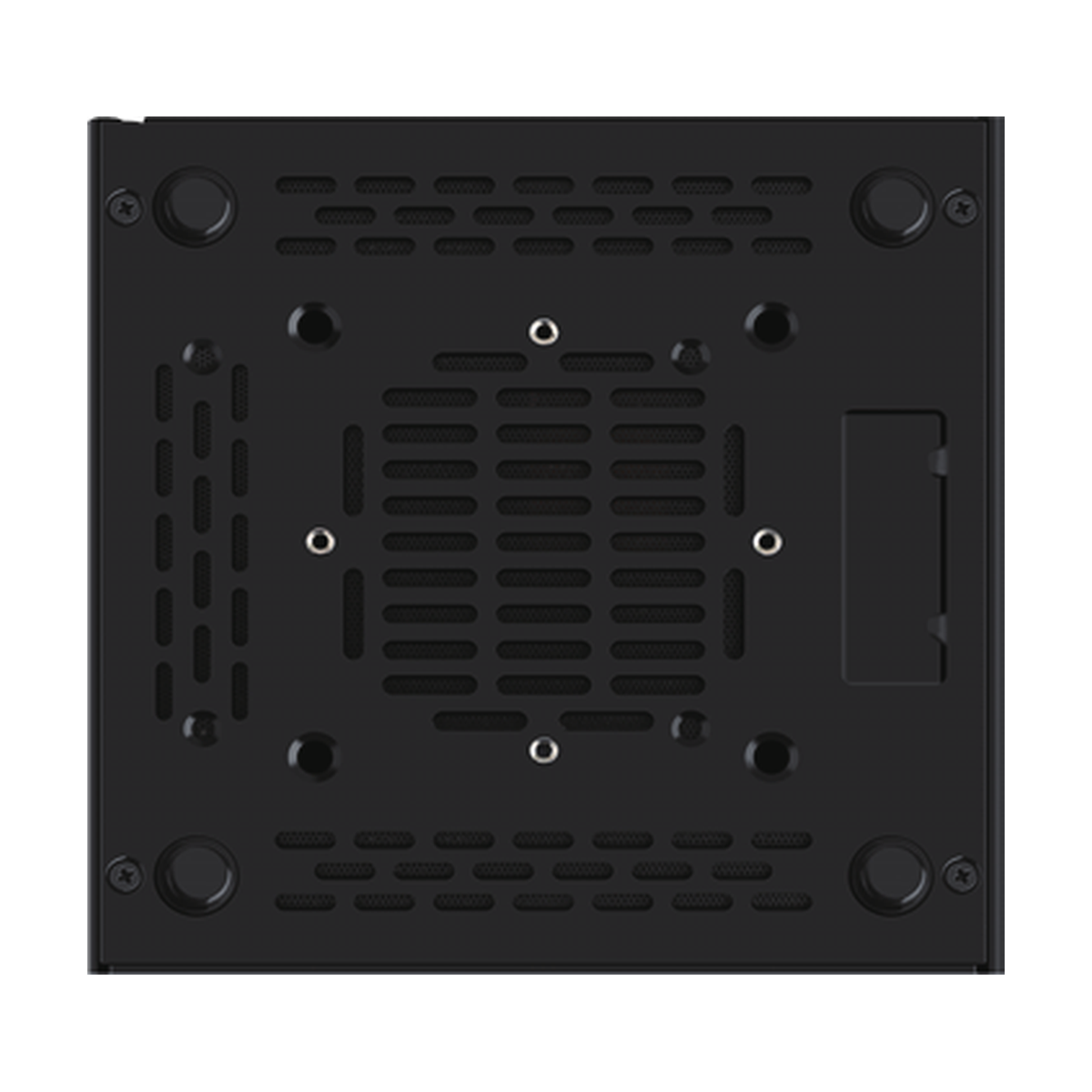

MCSR6N12U product view 3
Technical Specifications
Industrial-grade configuration details
MCSR6N12U Specification Matrix
Available hardware configurations
Operating Range
-10°C to 70°C
Model
MCSR6N12U
CPU
Intel 12th Core i3-1215U/i5-1235U/i7-1265U
Chipset
Intel Alder Lake-U
Graphics
Iris Xe Graphics 1.10GHz/Iris Xe Graphics 1.20GHz
Video
1 x HDMI 1.4; 1 x DP 1.4a; 1 x Type-C
Memory
2 x SO-DIMM DDR4 3200/2666/2400MHz maximum 64GB
Material
Made of aluminum alloy
USB
2 x USB 3.0; 2 x USB 3.2
Power
DC12-19V wide voltage
Network
6 x Intel i226-V(2.5GbE port)
Storage
1 x M.2 NVMe x4; 2 x SATA 3.0
Expansion
1 x 4Pin CPUFAN; 1 x COM Pin; 1 x USB Pin
Front I/O
1 x PowerButton; 1 x HDMI 1.4; 1 x DP 1.4a; 1 x RST buttom; 2 x USB 3.0; 1 x USB 3.2; 1 x Type-C; 1 x TF card
Rear I/O
1 x DC12-19V Power interface; 6 x Intel 2.5Gb Ethernet port; 1 x Hard disk indicator; 1 x Power indicator
Internal I/O
2 x SO-DIMM DDR4 Memory slots; 1 x M.2 Wi-Fi Pin(Expandable NVMe signals); 1 x M.2 NVMe x4 Pin; 1 x Buzzer; 1 x 4Pin power Pin; 1 x 12V CPUFAN 4Pin; 1 x COM Pin; 1 x USB Pin; 1 x 12Pin Non-standard SATA seat; 1 x F-PANEL Pin
Dimensions
145.6mm*145.4mm*53.6mm
BIOS
AMI UEFI BIOS supports auto power on
TDP
15W
System
Windows 10 / Windows 11 / Linux
Working Environment
-10°C to 70°C; 5%-95% relative humidity, non-condensing
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCSR6N12U combines 12th Gen Intel Core U-series processing with six Intel 2.5GbE ports, DDR4 memory, Type-C display connectivity, and multi-drive storage.
Six-Port Network Architecture
Six dedicated interfaces provide additional flexibility for branch, SD-WAN, and segmented-network designs.
Intel Core Performance Options
Selected models use Intel Core U-series processors with higher memory capacity for more demanding services.
Multi-Drive Storage
NVMe and SATA options support operating systems, logs, local applications, and project-specific storage needs.
