MCSR6N13U
13th Gen Intel Core six-port edge appliance
MCSR6N13U uses 13th Gen Intel Core U-series processors with six Intel 2.5GbE ports, up to 64GB DDR4, Type-C display output, and flexible NVMe plus SATA storage.
Product Gallery
A closer look at MCSR6N13U
Different product views highlight the enclosure design, interface layout, and installation details.

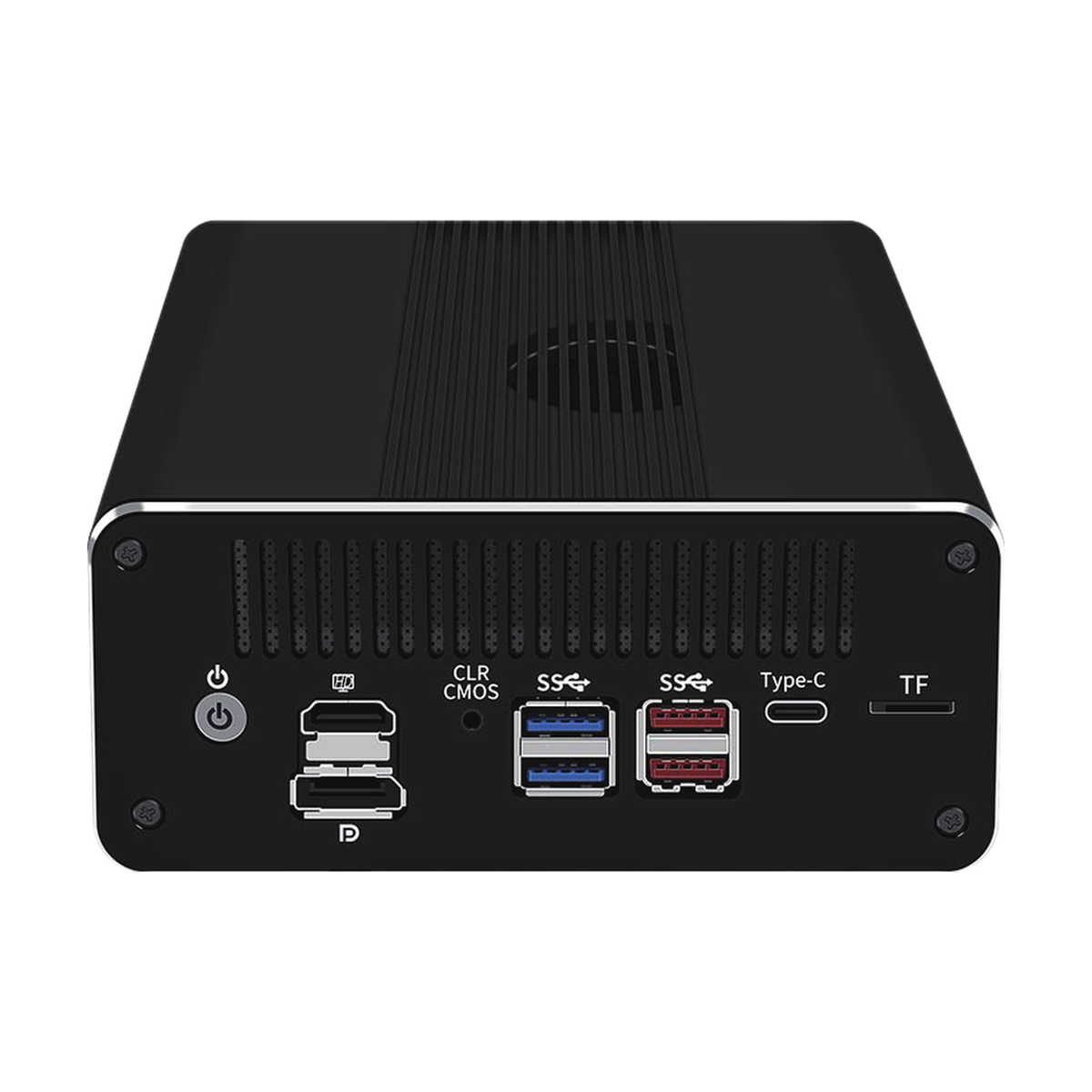

MCSR6N13U enclosure and interface view

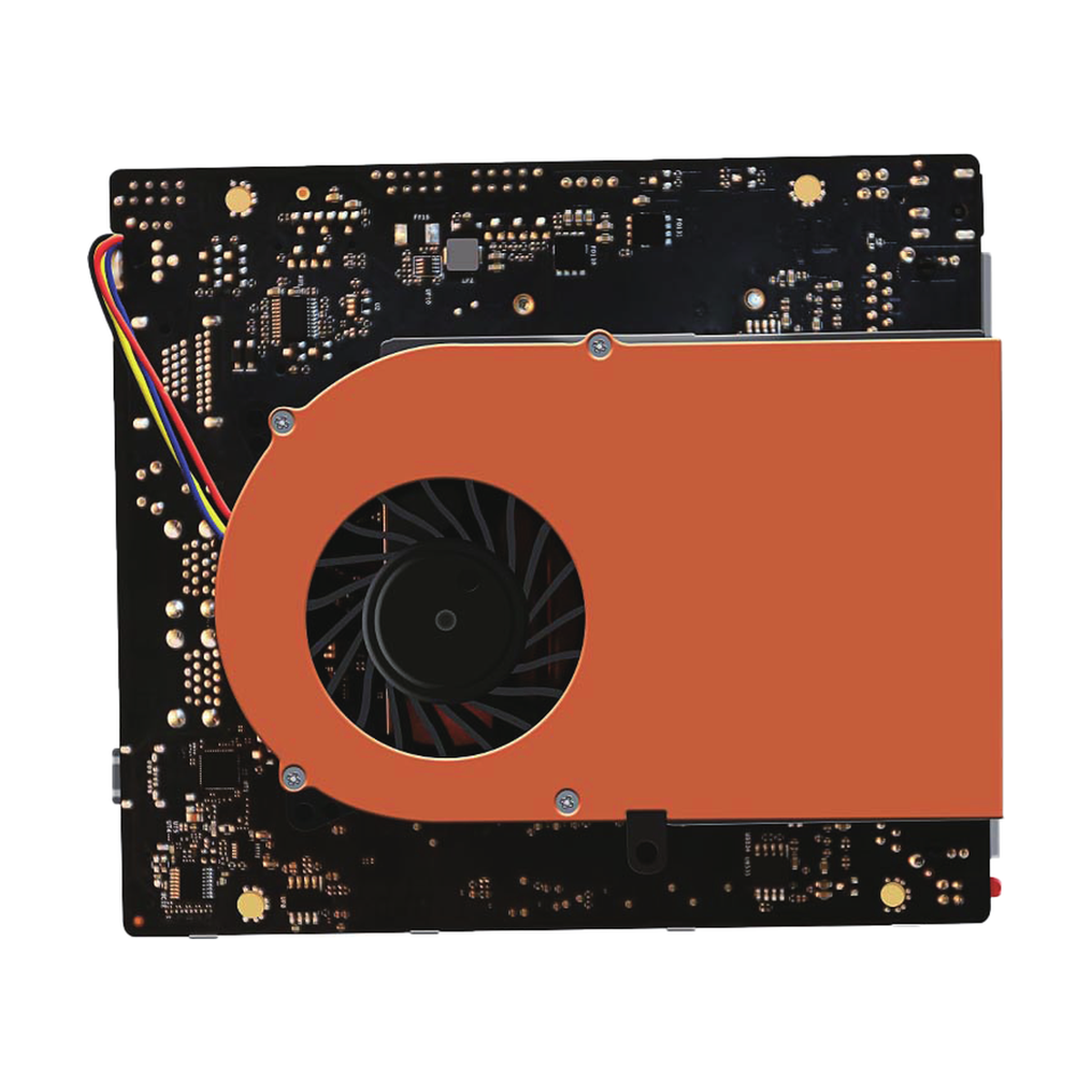

MCSR6N13U product view 2
Technical Specifications
Industrial-grade configuration details
MCSR6N13U Specification Matrix
Available hardware configurations
Operating Range
0°C to 70°C
Model
MCSR6N13U
CPU
Intel 13th U300/i3-1315U/i5-1335U/i7-1355U
Chipset
Intel Alder Lake-U
Graphics
13th Intel Integrated Graphics/Intel Iris Xe Graphics
Video
HDMI 1.4(4K@60Hz); DP 1.4a(8K@60Hz); Type-C(4096x2304@60Hz)
Memory
2 x SO-DIMM DDR4 3200/2666/2400MHz maximum 64GB
Material
Made of aluminum alloy
USB
2 x USB 3.0; 2 x USB 3.2(10Gbps)
Network
6 x Intel i226-V(2.5GbE port)
Storage
1 x M.2 NVMe x4; 2 x SATA(Unstandard 12 Pin 2.5-inch Interface)
Expansion
M.2 E-Key Wi-Fi socket can be comverted to; M.2 NVMe hard drive signal with an available expansion board.
Front I/O
1 x Power Button; 1 x HDMI 1.4; 1 x DP 1.4a; 1 x Type-C(data&display); 1 x CLR-COMS Buttom; 2 x USB 3.0; 2 x USB 3.2; 1 x TF card

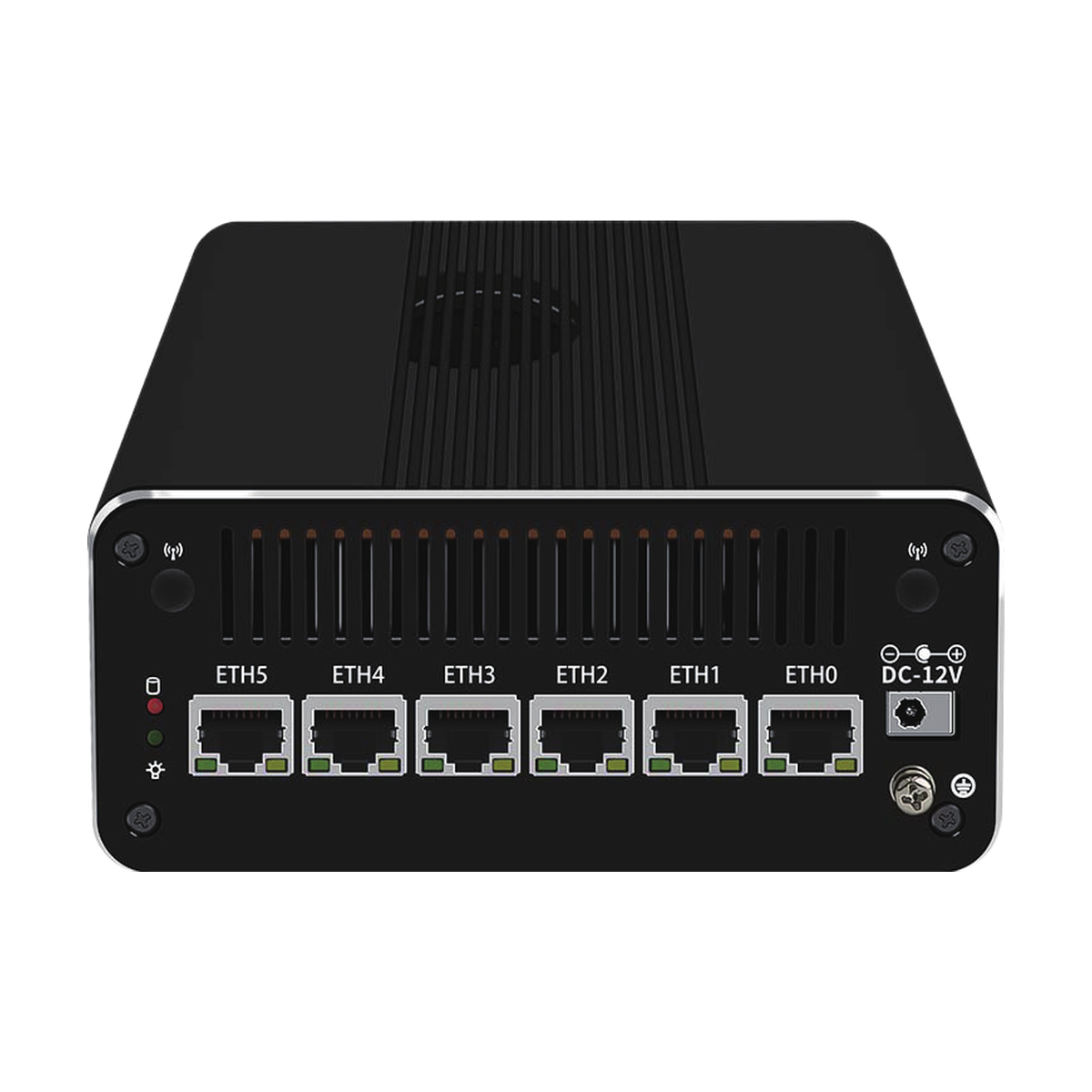

Rear I/O
1 x DC12-19V Power interface; 6 x Intel 2.5Gb Ethernet port; 1 x Hard disk indicator; 1 x Power indicator
Internal I/O
2 x SO-DIMM DDR4 Memory slots; 1 x M.2 Wi-Fi Pin(Expandable NVMe signals); 1 x M.2 NVMe x4 Pin; 1 x Buzzer; 1 x 4Pin power Pin; 1 x 12V CPUFAN 4Pin; 1 x COM Pin; 1 x USB Pin; 1 x 12Pin Non-standard SATA seat; 1 x F-PANEL Pin
Dimensions
145.4mm*131.7mm*60mm
BIOS
Supports power-on self-test, GPIO, wake-on-LAN features
TDP
15W(Basic), 55W(Turbo)
System
Windows 10 / Windows 11 / Linux
Working Environment
0°C to 70°C; 5%-95% relative humidity, non-condensing
Power
DC12-19V wide voltage Supply(5.5 x 2.5 mm)
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCSR6N13U uses 13th Gen Intel Core U-series processors with six Intel 2.5GbE ports, up to 64GB DDR4, Type-C display output, and flexible NVMe plus SATA storage.
Six-Port Network Architecture
Six dedicated interfaces provide additional flexibility for branch, SD-WAN, and segmented-network designs.
Intel Core Performance Options
Selected models use Intel Core U-series processors with higher memory capacity for more demanding services.
Multi-Drive Storage
NVMe and SATA options support operating systems, logs, local applications, and project-specific storage needs.
Interested in MCSR6N13U?
Contact our team for pricing, lifecycle planning, customization, and bulk order support.
