MCSRG31F
Intel Core four-port 2.5GbE edge appliance
MCSRG31F pairs 11th through 13th Gen Intel Core options with four Intel 2.5GbE interfaces, up to 64GB DDR4, and NVMe plus SATA storage.
Product Gallery
A closer look at MCSRG31F
Different product views highlight the enclosure design, interface layout, and installation details.

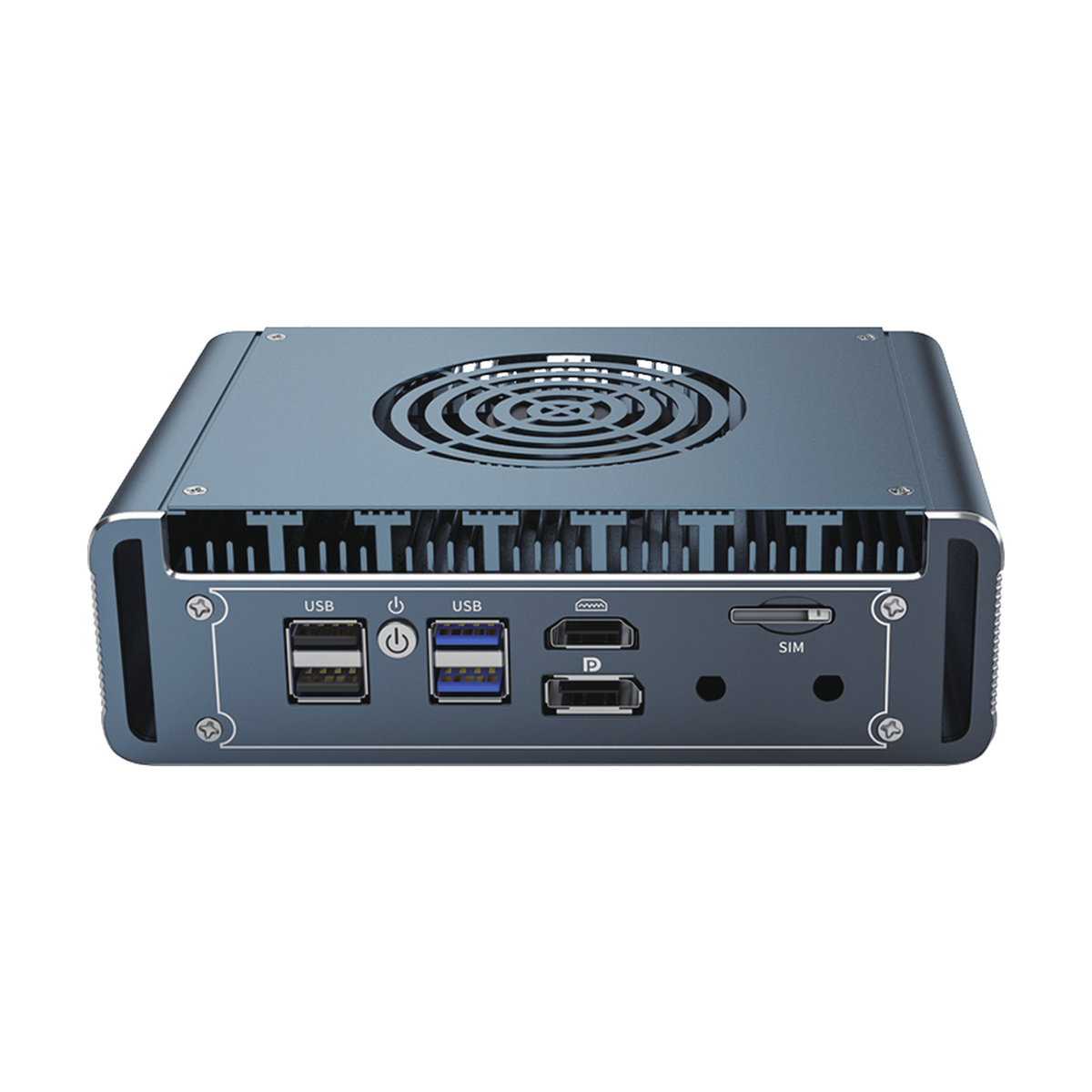

MCSRG31F enclosure and interface view

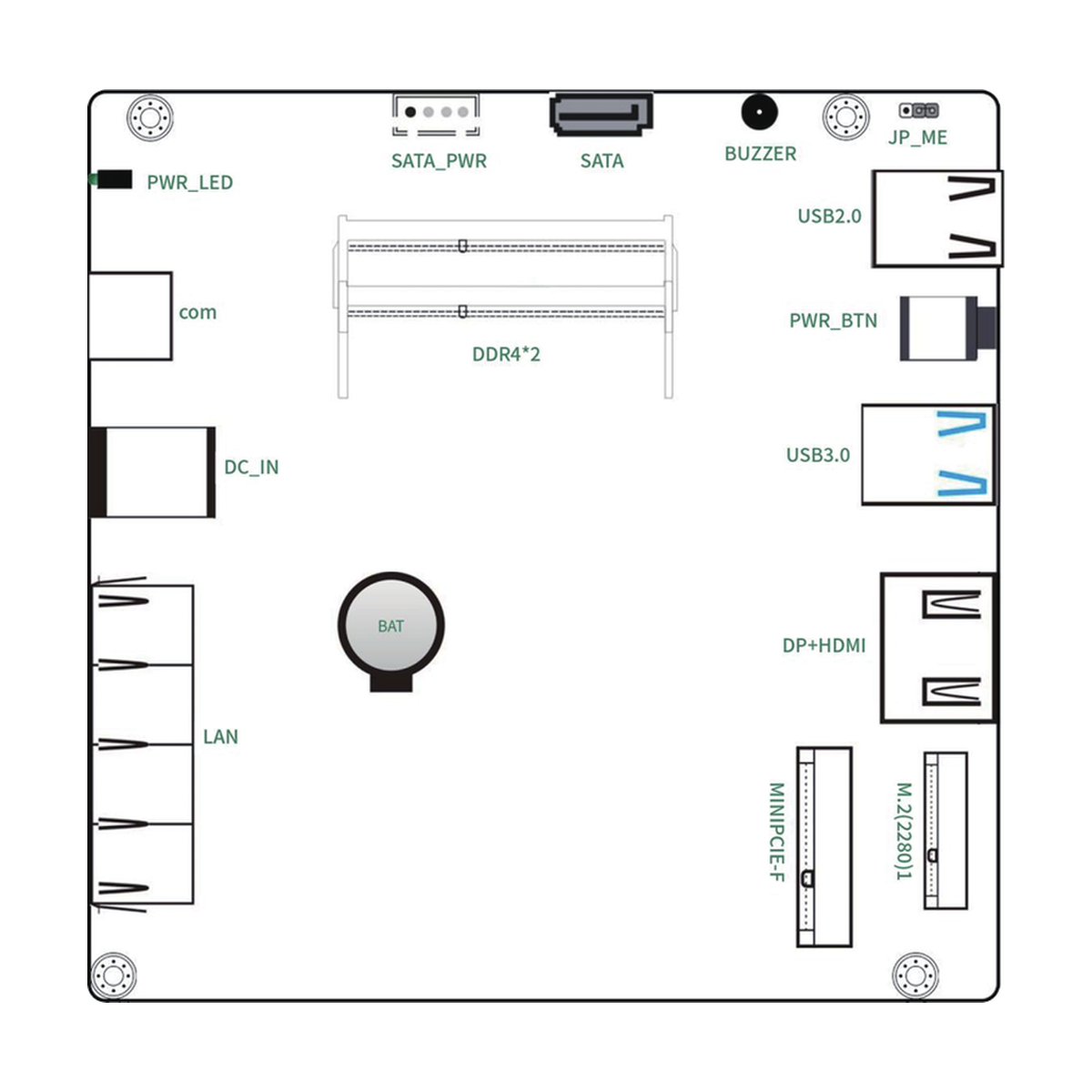

MCSRG31F product view 2
Technical Specifications
Industrial-grade configuration details
MCSRG31F Specification Matrix
Available hardware configurations
Operating Range
0°C to 60°C
Model
MCSRG31F
CPU
Intel 11/12/13th Core I3/I5/I7
Chipset
Intel Core series
Graphics
Intel UHD Graphics
Video
1 x HDMI port 1 x DP port; ；
Memory
2 x SO-DIMM DDR4 Slot Support up to 64GB 3200MHz
Material
Made of aluminum alloy
USB
4 x USB 3.0
Network
4 x Intel i226 2.5GbE
Storage
1 x M.2 NVMe (2280); 1 x SATA 6.0Gb/s (Support 2.5 inch HDD/SSD)
Expansion
1 x Mini PCIe for Wi-Fi/Bluetooth/4G Modules 1 x SIM Card

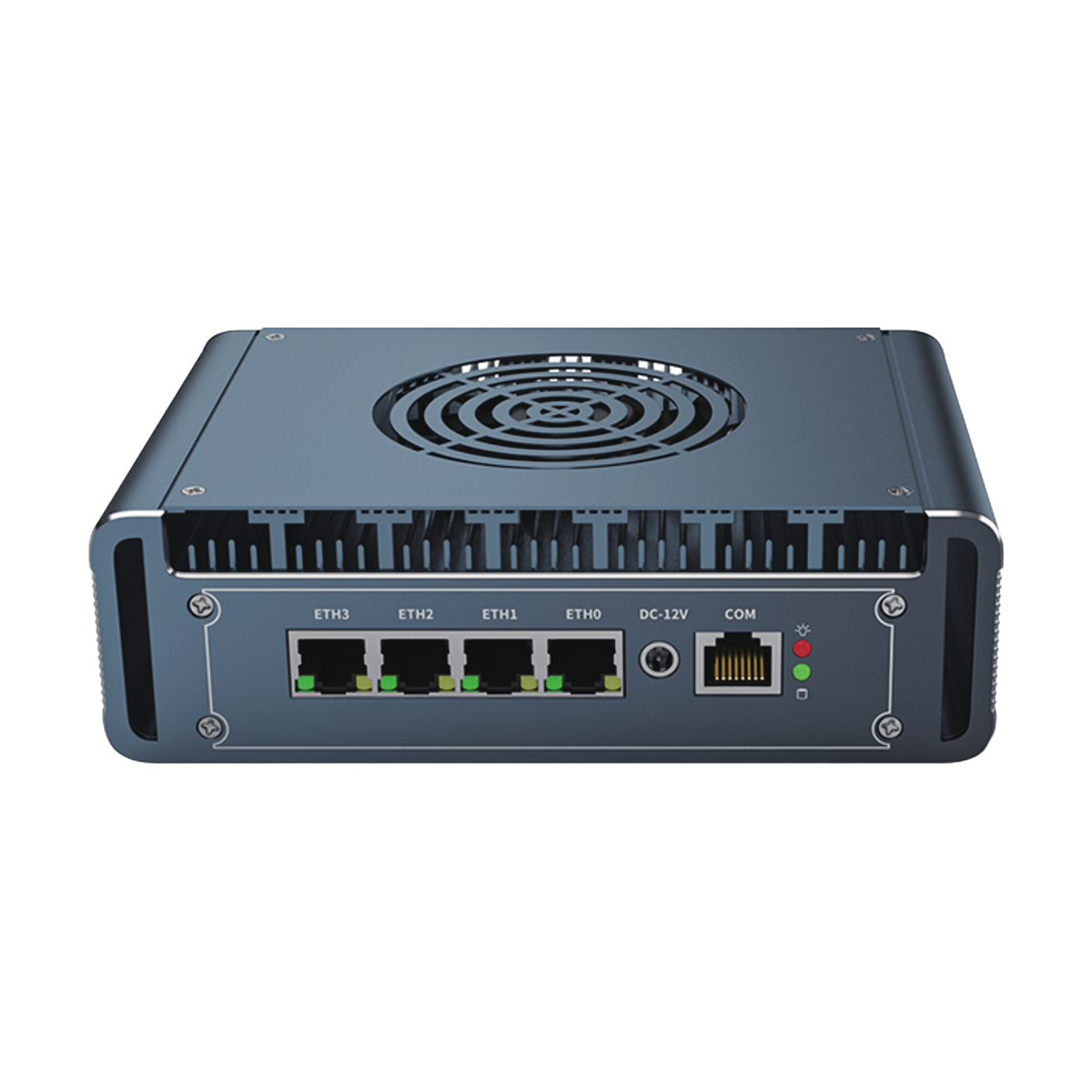

Front I/O
4 x Ethernet port; 1 x RJ45 Console; 1 x DC_IN; 1 x Power HDD LED
Rear I/O
4 x USB 3.0; 1 x HDMI Port (With audio output); 1 x DP Port; 1 x Power Button; 1 x SIM Card slot
Internal I/O
2 x SO-DIMM DDR4 Slot; 1 x Mini PCIe for Wi-Fi/Bluetooth/4G Module; 1 x M.2 NVMe (2280); 1 x SATA 6.0Gb/s; 1 x SIM Card slot
Dimensions
178mm*126mm*56mm
BIOS
AMI UEFI BIOS; Power-on boot; Scheduled boot; Wake-up on LAN; PXE boot; Watchdog
TDP
Depends on CPU
System
Windows 10 / Windows 11 / Linux
Working Environment
0°C to 60°C; 10%-90% relative humidity, non-condensing
Power
DC12V-7/10A 5.5 x 2.5 mm
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCSRG31F pairs 11th through 13th Gen Intel Core options with four Intel 2.5GbE interfaces, up to 64GB DDR4, and NVMe plus SATA storage.
Four Dedicated Network Ports
Four-port layouts support multi-WAN routing, network segmentation, and branch gateway configurations.
Wireless and Cellular Expansion
Selected models provide Mini PCIe or M.2 expansion for compatible Wi-Fi and cellular modules.
Local Display Connectivity
HDMI and DisplayPort options simplify setup, diagnostics, and local management where required.
