MCSRG7
Six-port Intel Core fanless network appliance
MCSRG7 provides six Intel Gigabit Ethernet interfaces, broad 8th and 10th Gen Intel Core options, DDR4 memory, and mSATA plus SATA storage in a fanless enclosure.
Product Gallery
A closer look at MCSRG7
Different product views highlight the enclosure design, interface layout, and installation details.

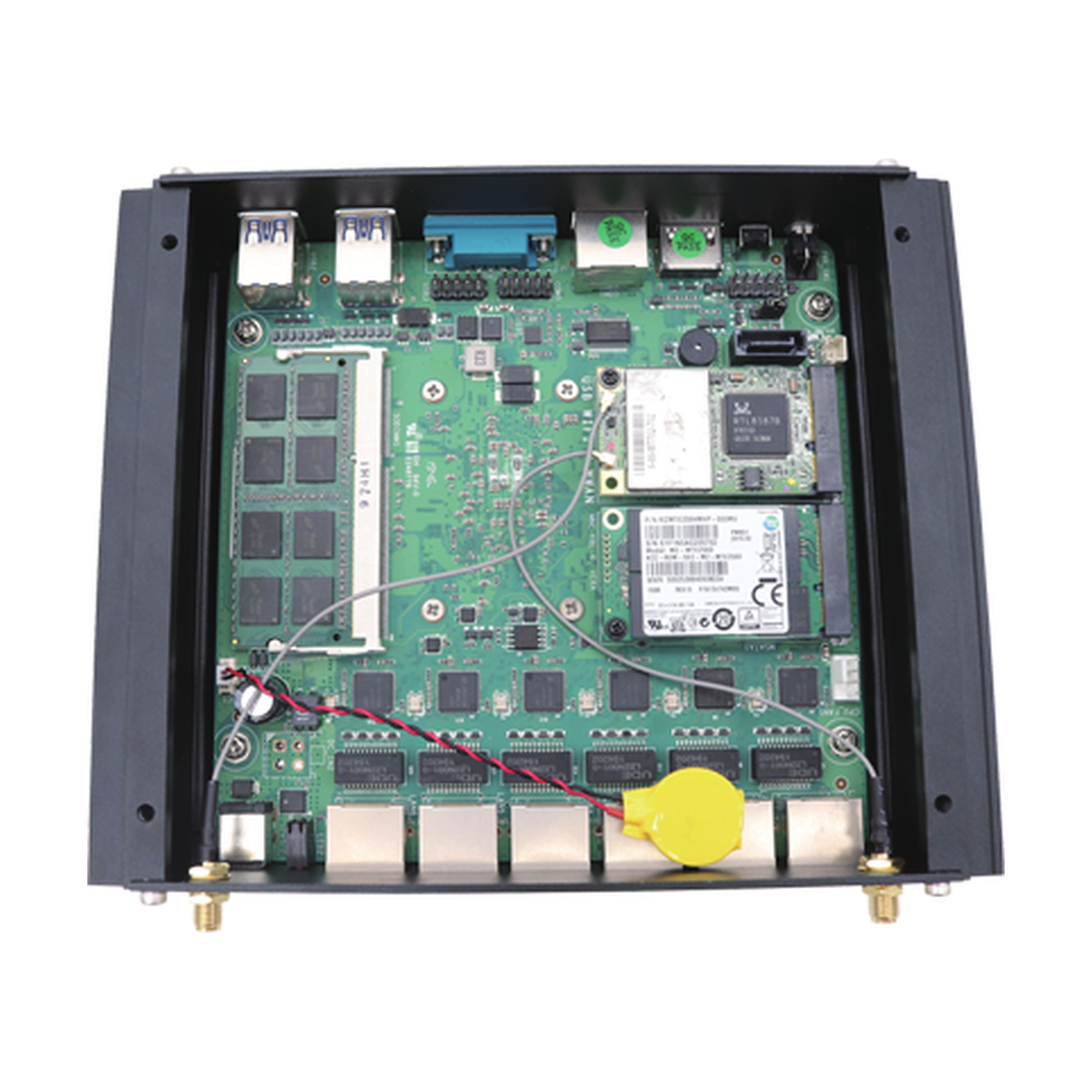

MCSRG7 enclosure and interface view
MCSRG7 product view 2
Technical Specifications
Industrial-grade configuration details
MCSRG7 Specification Matrix
Available hardware configurations
Operating Range
-20°C to 60°C
Model
MCSRG7
CPU
Intel Core i3-8145U / Intel Core i5-8250U / Intel Core i5-8265U /; Intel Core i7-8550U / Intel Core i5-10210U / Intel Core i7-10510U
Chipset
Intel Sunrise Point-LP, Intel Kaby Lake-U
Graphics
Depends on CPU
Video
HDMI/DP/Support for dual display synchronization
Memory
1 x SO-DIMM DDR4 Slot (Support 4GB/8GB/16GB/32GB)
Material
Made of aluminum alloy
USB
4 x USB 3.0
Power
DC +12V~+19V, recommend 12V/5A
Network
Intel(R) i210/i211 Gigabit Network 1000Mbps LAN
Storage
1 x M-SATA 3.0 for MSATA SSD; 1 x SATA 3.0 for SATA HDD or SSD
Expansion
1 x mini PCIe-full/mini PCIe-half port for 3G/4G/Wi-Fi module
Front I/O

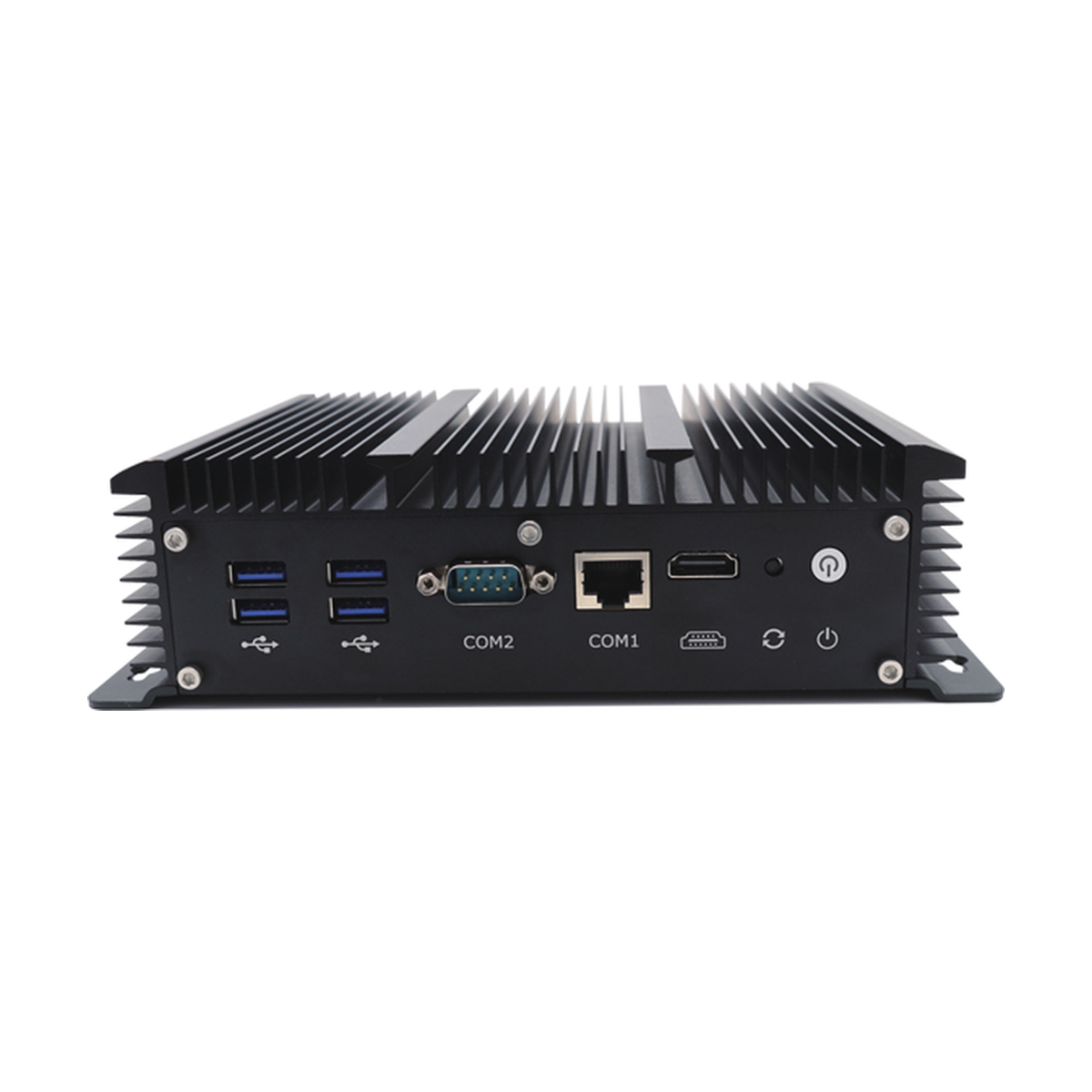

1 x Power On/Off Switch; 1 x Reset button; 1 x embedded SIM card slot onboard; 1 x DB9 RS232 COM, 1 x RJ45 RS232 COM; 1 x HDMI 1.4; 4 x USB 3.0
Rear I/O

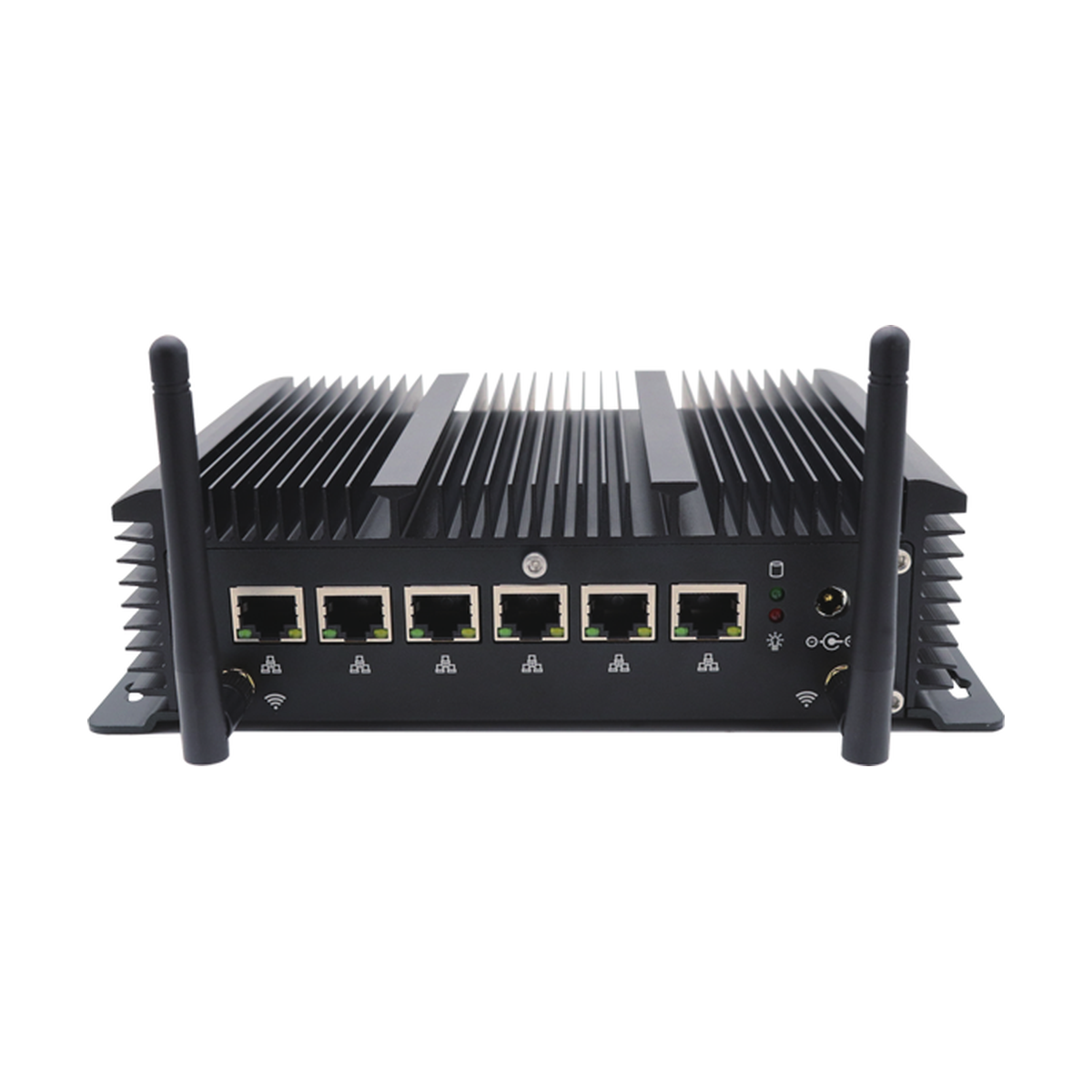

6 x RJ45 Giga LAN; 1 x 12V DC In; 1 x Power LED, 1 x HDD LED; 2 x Wi-Fi antennas hole
Internal I/O
1 x SO-DIMM DDR4 Slot; 1 x M-SATA 3.0 slot for MSATA SSD; x SATA. slot for SATA HDD or SSD; x mini PCIe-full/mini PCIe-half for G/Wi-Fi module
Dimensions
209 x 150 x 57mm
BIOS
American Megatrends Inc.5.12
TDP
Depends on CPU
System
Windows® 8/10/11, WES 7/10, Linux
Working Environment
-20°C to 60°C; 10%-90% relative humidity, non-condensing
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCSRG7 provides six Intel Gigabit Ethernet interfaces, broad 8th and 10th Gen Intel Core options, DDR4 memory, and mSATA plus SATA storage in a fanless enclosure.
Six-Port Network Architecture
Six dedicated interfaces provide additional flexibility for branch, SD-WAN, and segmented-network designs.
Intel Core Performance Options
Selected models use Intel Core U-series processors with higher memory capacity for more demanding services.
Multi-Drive Storage
NVMe and SATA options support operating systems, logs, local applications, and project-specific storage needs.
