MCSRH15
Atom C3000 appliance with four 10GbE SFP+ ports
MCSRH15 is a fanless network platform built around Intel Atom C3000 processors with four 10GbE SFP+ ports, four 2.5GbE interfaces, and expandable local storage.
Product Gallery
A closer look at MCSRH15
Different product views highlight the enclosure design, interface layout, and installation details.

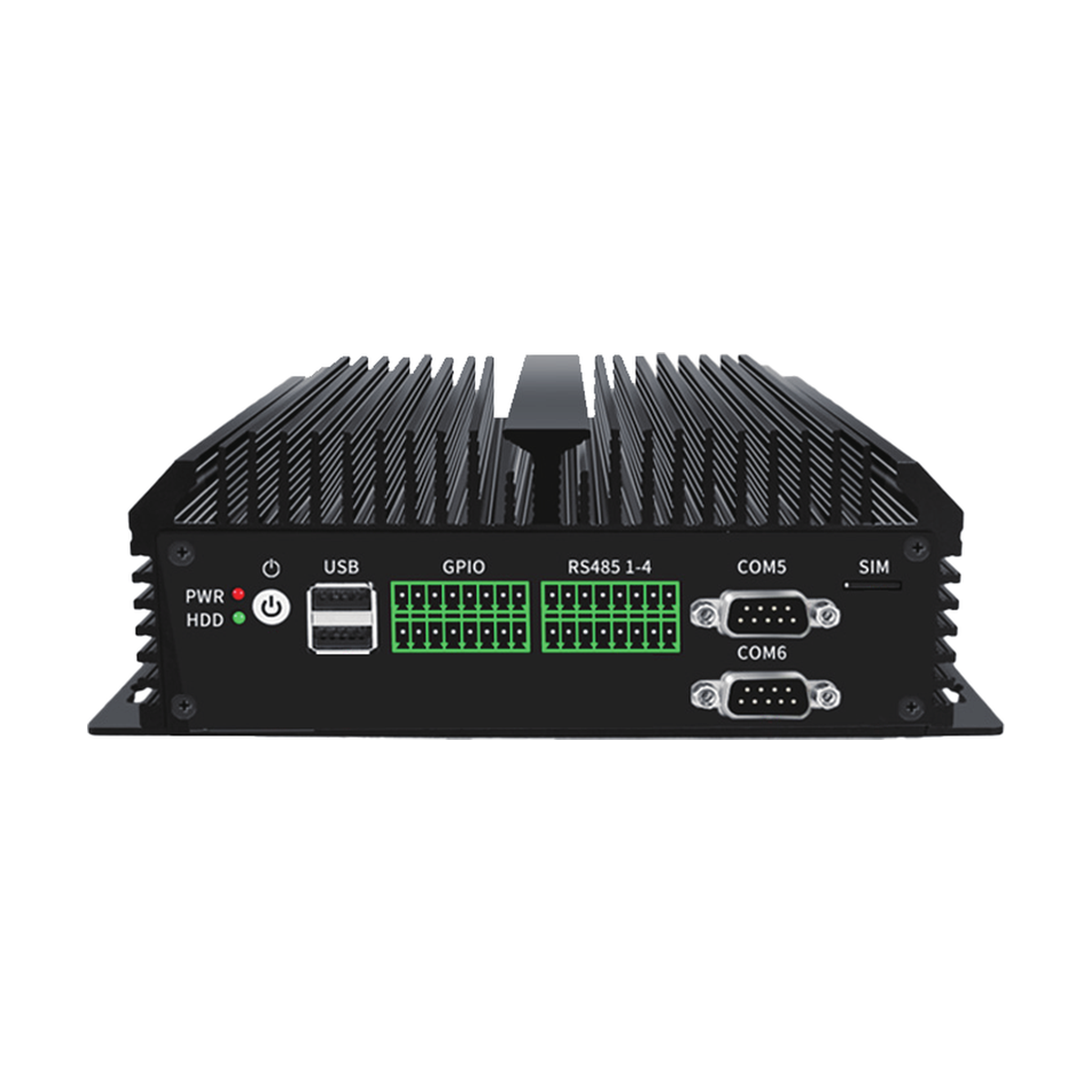

MCSRH15 enclosure and interface view

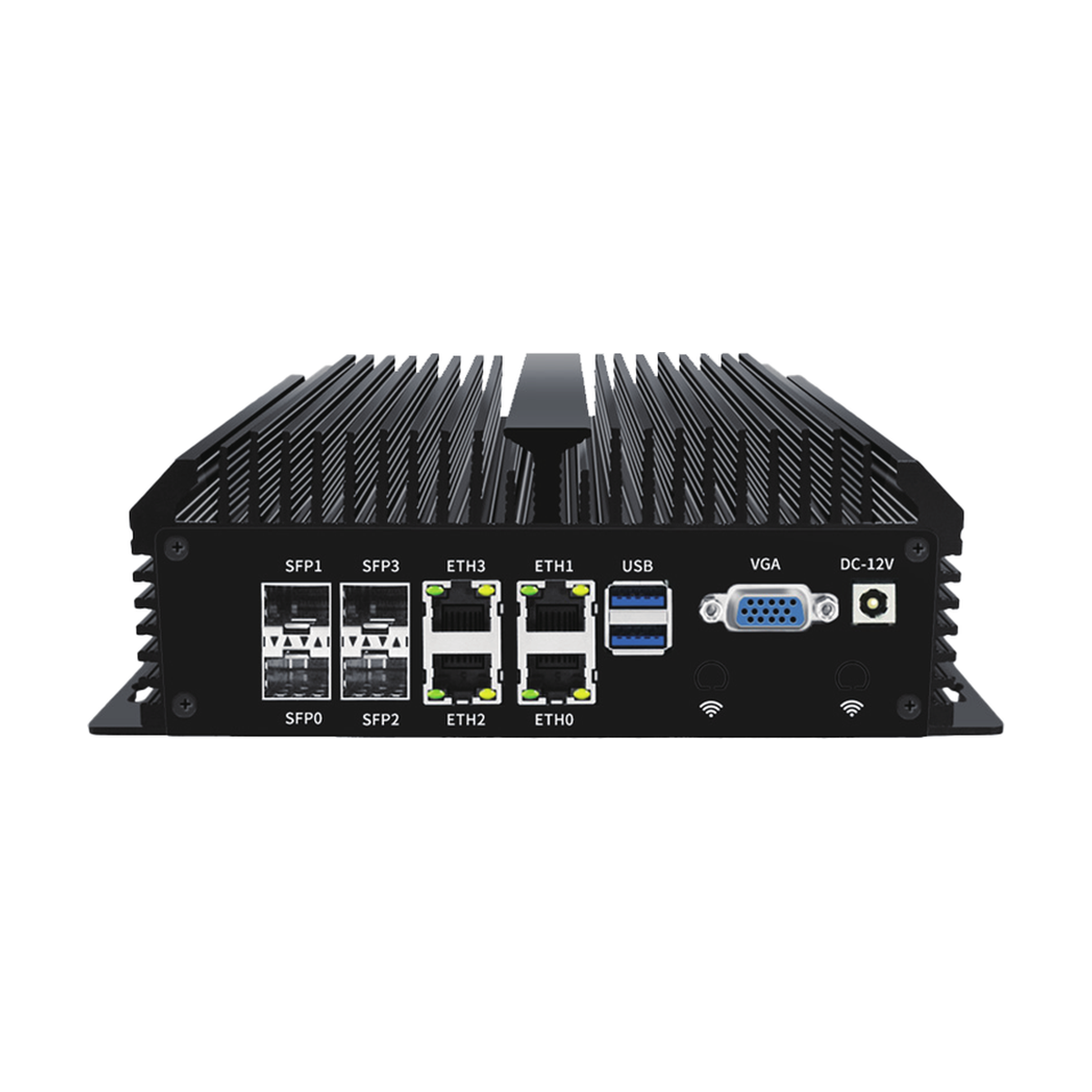

MCSRH15 product view 2
Technical Specifications
Industrial-grade configuration details
MCSRH15 Specification Matrix
Available hardware configurations
Operating Range
0°C to 50°C
Model
MCSRH15
CPU
Intel Atom C3758/C3858/C3958 (Select option)
Chipset
BKHD-1310NP-4L4S
Graphics
Intel® HD Graphics 600
Video
1 x VGA port
Memory
2 x DDR4 SO-DIMM Memory slot, Up to 64GB 2400MHz
Weight
Equipment: 2.50 kg; package: 3.00 kg (including accessories)
USB
2 x USB 3.0; 2 x USB 2.0
Power
Jack DC 5.5/2.5mm 12V 10A
Network
4 x Intel i226 2.5GbE; 4 x Intel x553 10G SFP+
Storage
1 x M.2 NVMe 2280 (PCIe Gen3 x4); 1 x SATA 6 Gb/s (supports 2.5-inch HDD/SSD)
Expansion
1 x mPCIe; Auto Power On; Wake-up on LAN; PXE; Watchdog
Front I/O
4 x SFP+; 4 x RJ45 Ethernet; 2 x USB 3.0; 1 x VGA; 1 x DC input
Rear I/O
1 x power button; 2 x USB 2.0; 1 x GPIO; 1 x RS-485 Phoenix terminal; 2 x RS-232 COM; 1 x SIM card slot
Internal I/O
2 x F_USB Pin Head; 1 x J_COM Pin Head; 1 x F_PANEL Pin Head; 2 x CPU/SYS_FAN Slot; 1 x GPIO Pin Head
Dimensions
197 x 165 x 67 (mm)
BIOS
AMI BIOS (Legacy / UEFI)
TDP
Depends on CPU
System
Windows 10 / Windows 11/Linux
Working Environment
0°C to 50°C; 5%-90% relative humidity, non-condensing
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCSRH15 is a fanless network platform built around Intel Atom C3000 processors with four 10GbE SFP+ ports, four 2.5GbE interfaces, and expandable local storage.
10GbE Connectivity
Selected models combine 10GbE RJ45 or SFP+ links with 2.5GbE interfaces for high-speed network edge designs.
Copper and Fiber Options
Choose the model and interface format that matches the required uplink and local network infrastructure.
Purpose-Built Network Platform
Dedicated multi-port hardware suits compatible routing, firewall, gateway, and network-service software.
