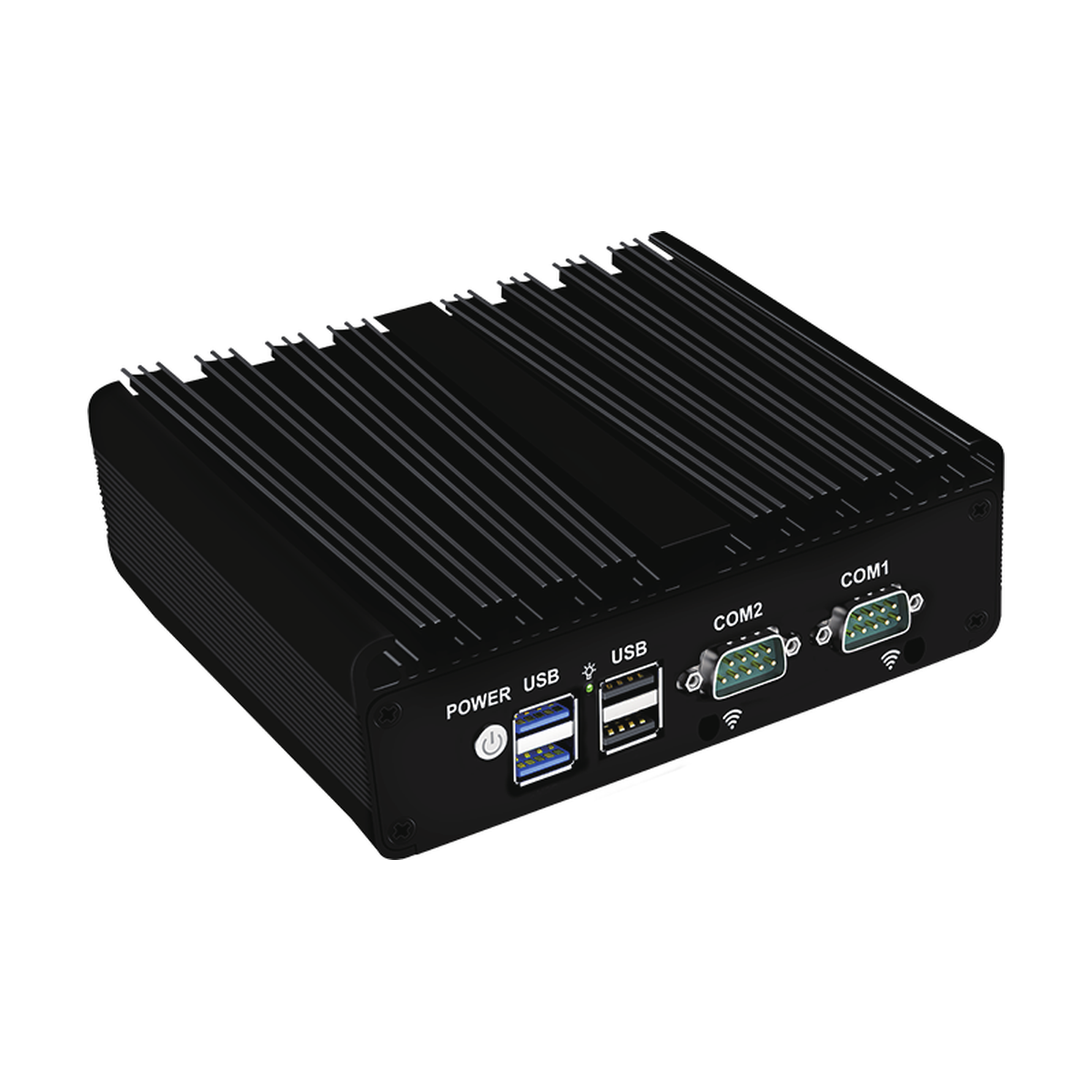

MCSRH30X
Compact four-port Alder Lake-N edge gateway
MCSRH30X is a compact four-port 2.5GbE platform with Alder Lake-N processors, dual display output, and NVMe plus SATA storage.
Product Gallery
A closer look at MCSRH30X
Different product views highlight the enclosure design, interface layout, and installation details.

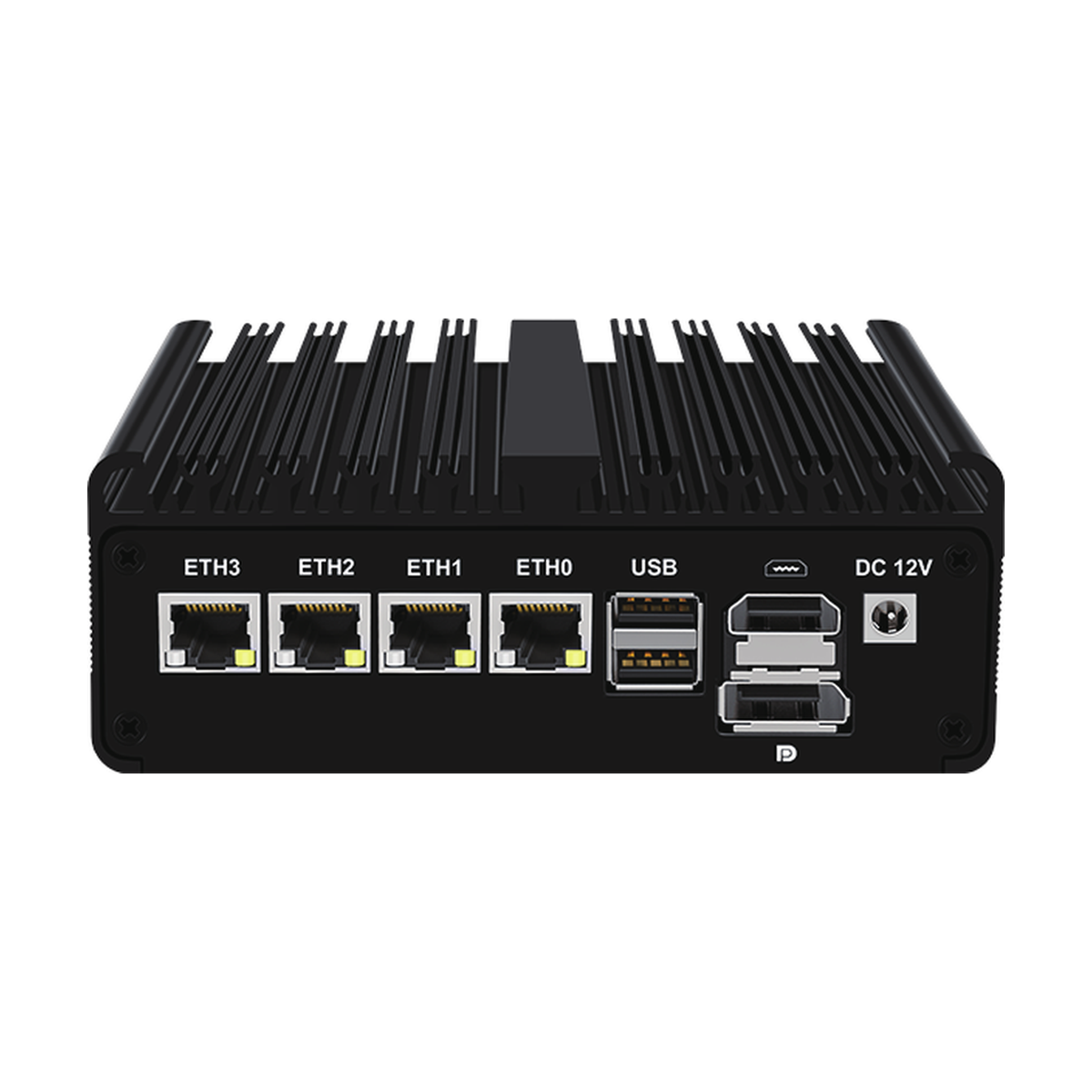

MCSRH30X enclosure and interface view

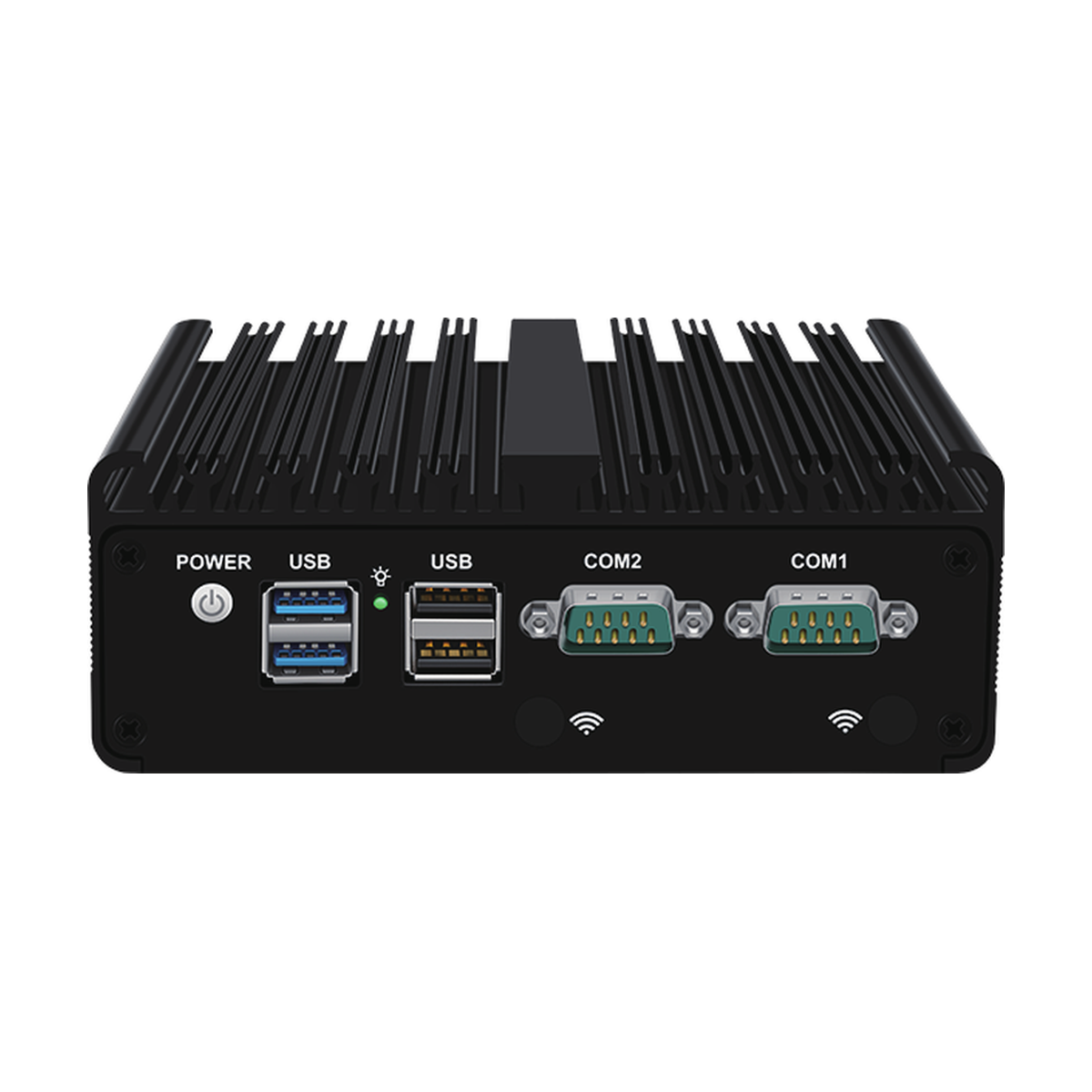

MCSRH30X product view 2
Technical Specifications
Industrial-grade configuration details
MCSRH30X Specification Matrix
Available hardware configurations
Operating Range
0°C to 50°C
Model
MCSRH30X
CPU
Intel N95 / N100 / N200 / Core i3-N305 (Alder Lake-N)
Chipset
Intel N-series N95/N100/N200/i3-N305
Graphics
Intel HD 600 Graphics Card
Video
1 x DP port; 1 x HDMI port
Memory
1 x DDR4 3200MHZ SO-DIMM Max 16GB
Weight
Gross Weight 1.25KG; Net Weight 0.75KG
USB
2 x USB 3.0 2 x USB 2.0
Power
DC 12V-4A 5.5 x 2.5
Network
4 x Intel i226 2.5GbE
Storage
1 x M.2 NVMe/1 x SATA 3.0
Expansion
1 x Mini PCIe Channel for Wi-Fi/Bluetooth/4G; Network Wakeup/PXE; Watchdog
Front I/O
1 x DC 12V; 4 x 2.5G Ethernet port; 2 x USB 2.0; 1 x HDMI; 1 x DP
Rear I/O
2 x USB 3.0; 2 x USB 2.0; 1 x Power Button; 1 x Power HDD LED; 2 x COM
Internal I/O
1 x SO-DIMM DDR4 Slot; 1 x AT-ATX; 1 x GPIO; 1 x SATA; 1 x JSPWR; 1 x F_USB; 1 x F-PANEL; 1 x MPE
Dimensions
138 x 128 x 48mm
BIOS
AMI UEFI BIOS
TDP
6W
System
Windows 10 / Windows 11/Linux
Working Environment
0°C to 50°C; 5%-90% relative humidity, non-condensing
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCSRH30X is a compact four-port 2.5GbE platform with Alder Lake-N processors, dual display output, and NVMe plus SATA storage.
Four Dedicated Network Ports
Four-port layouts support multi-WAN routing, network segmentation, and branch gateway configurations.
Wireless and Cellular Expansion
Selected models provide Mini PCIe or M.2 expansion for compatible Wi-Fi and cellular modules.
Local Display Connectivity
HDMI and DisplayPort options simplify setup, diagnostics, and local management where required.
