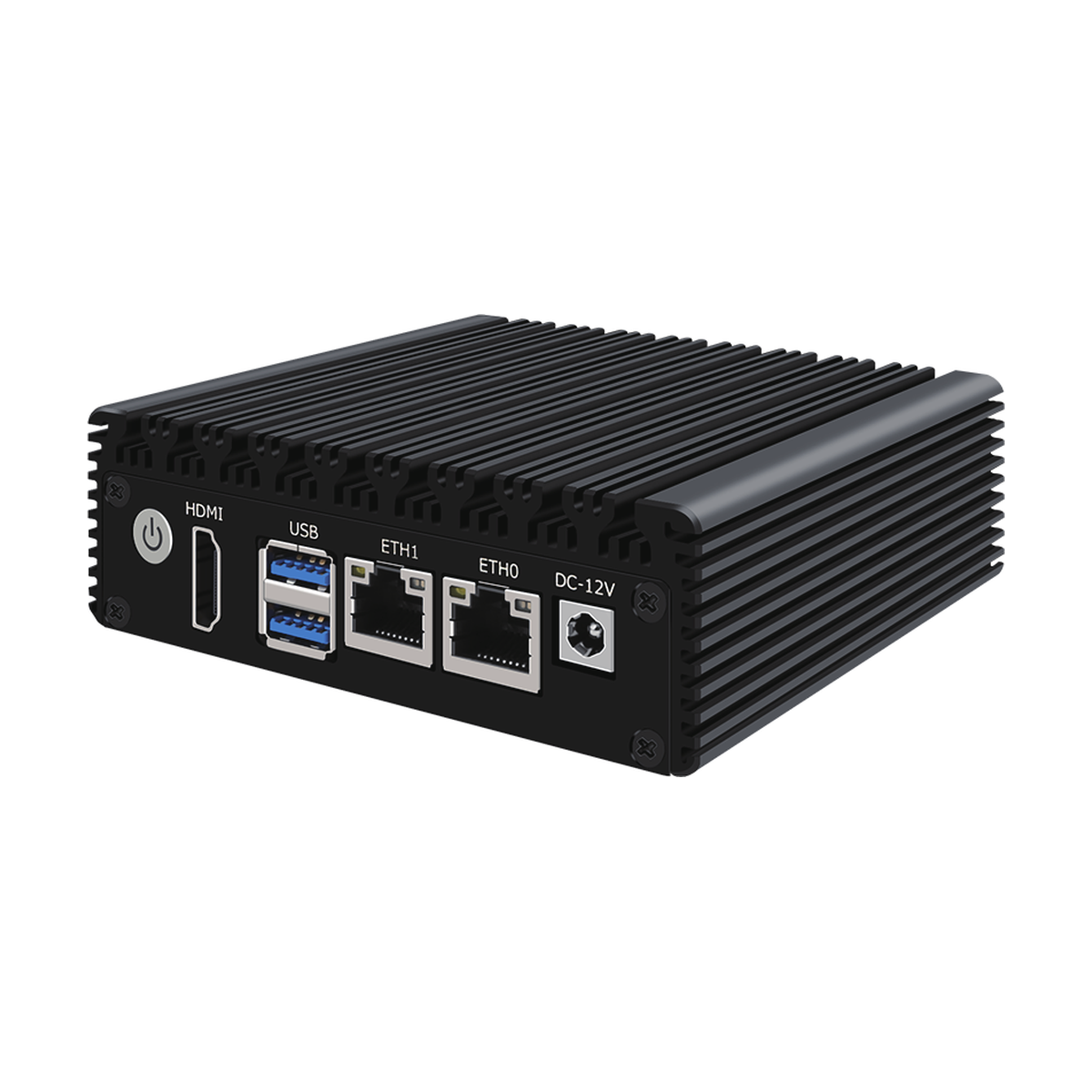

MCSRP1
Compact dual-Gigabit fanless network appliance
MCSRP1 is a compact x86 network appliance with two Gigabit Ethernet ports, HDMI output, and flexible SATA or mSATA storage for entry-level routing and gateway deployments.
Product Gallery
A closer look at MCSRP1
Different product views highlight the enclosure design, interface layout, and installation details.

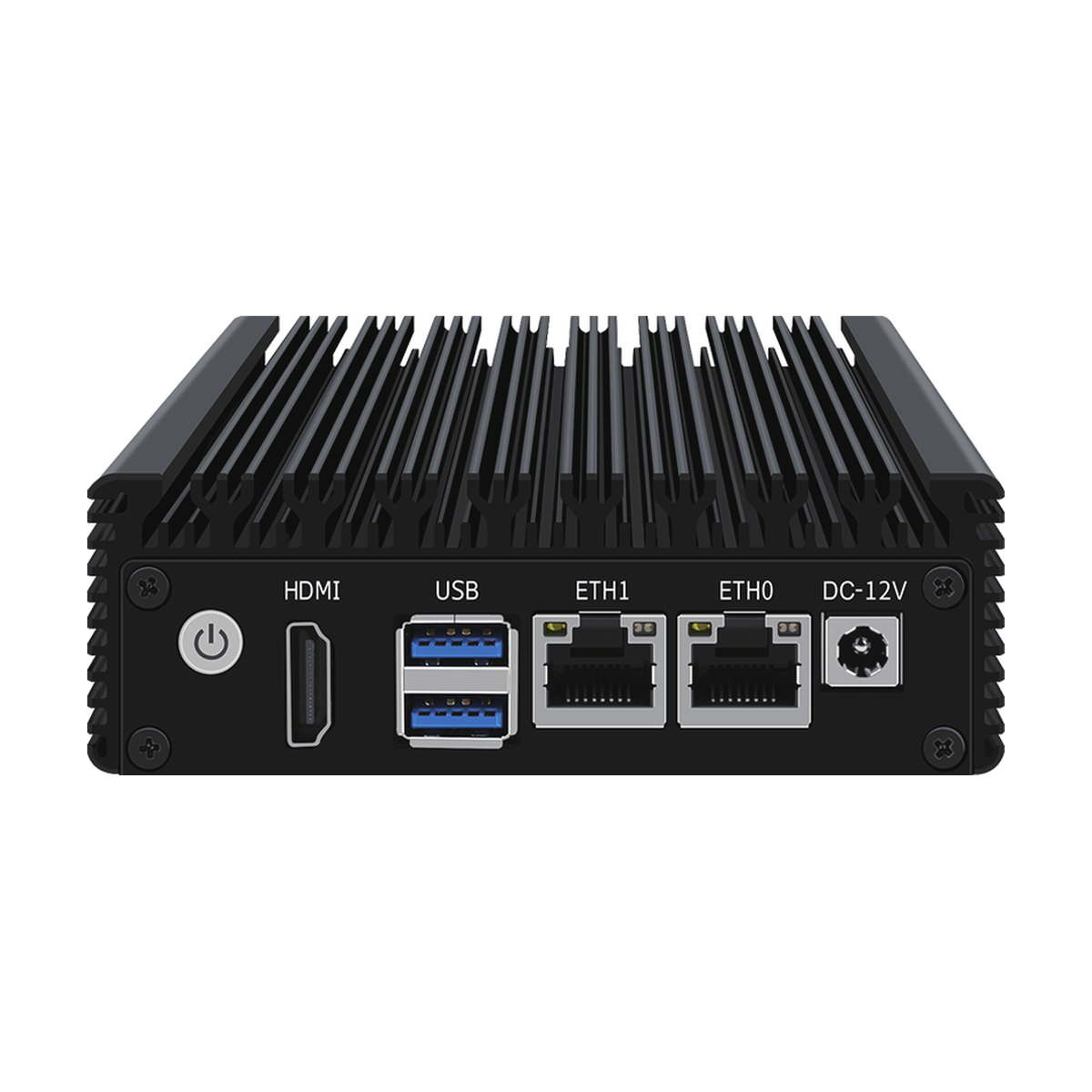

MCSRP1 enclosure and interface view

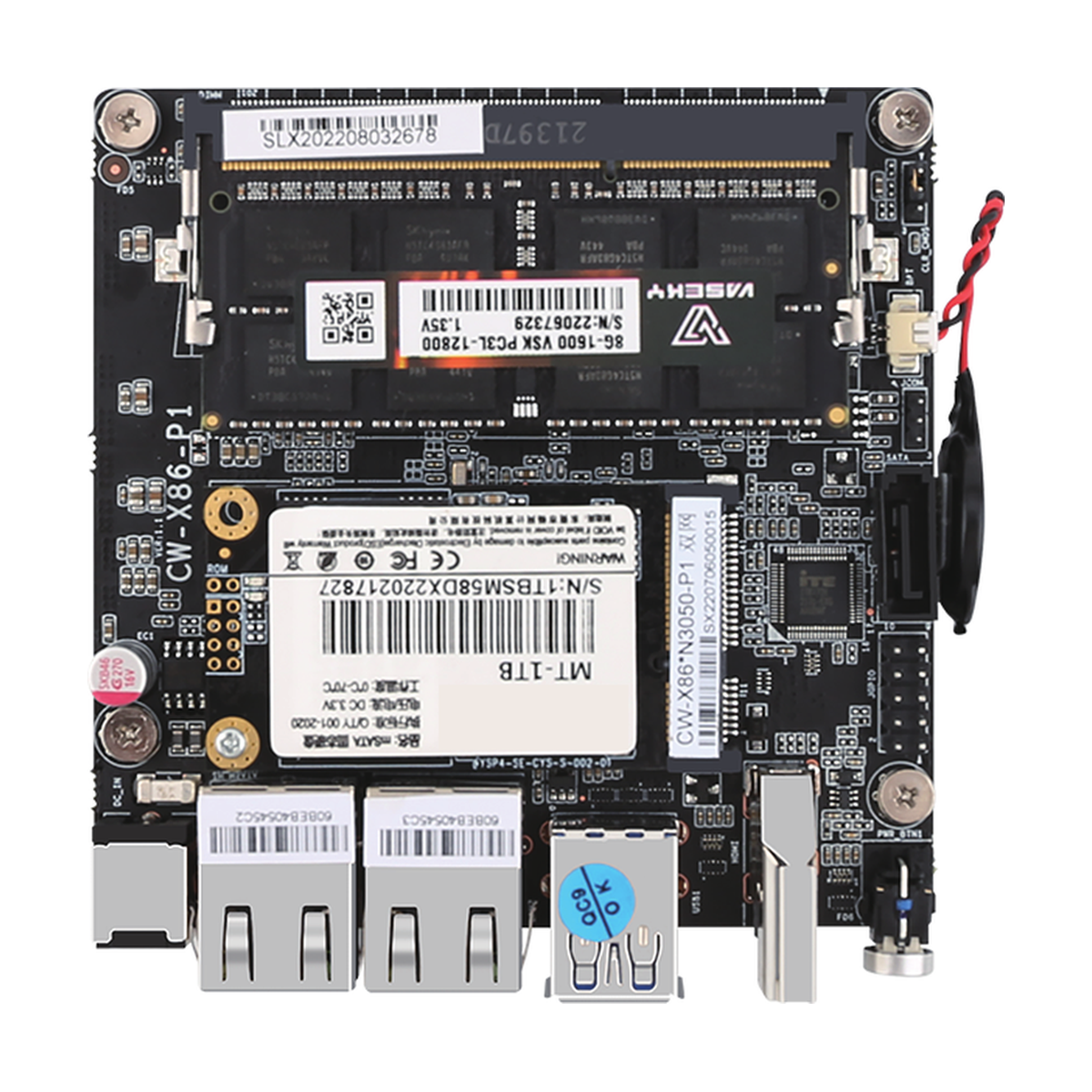

MCSRP1 product view 2
Technical Specifications
Industrial-grade configuration details
MCSRP1 Specification Matrix
Available hardware configurations
Operating Range
-20°C to 55°C
Model
MCSRP1
CPU
Intel Celeron N3050/N3160/Pentium N3700
Chipset
Intel Celeron/Pentium Processor N Series
Graphics
Intel HD Graphics N3000/HD Graphics400(N3160)
Video
1 x HDMI 1.4 port
Memory
SO-DIMM DDR3L 1333/1600MHz maximum 8GB
Material
Made of aluminum alloy
USB
2 x USB 3.0
Network
2 x Intel Realtek RTL8111H GbE port
Storage
1 x mSATA/1 x SATA 3.0
Expansion
1 x 10Pin GPIO; 1 x 4Pin 12V CPU FAN
Front I/O
1 x PowerButton; 2 x USB 3.0; 1 x DC_IN Power port; 1 x HDMI1.4 Port; 2 x LAN Port
Internal I/O
1 x 10 Pin GPIO Port(8 x GPIO); 1 x CPU_FAN Pin; 1 x 7Pin SATA
Dimensions
112.3mm*100mm*36.5mm
BIOS
AMI UEFI BIOS; Wake-up on LAN; PXE boot; GPIO
TDP
6w
System
Windows 10 / Windows 11 / Linux
Working Environment
-20°C to 55°C; 5%-90% relative humidity, non-condensing
Power
DC12V Wide Voltage Supply(5.5 x 2.5 mm)
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCSRP1 is a compact x86 network appliance with two Gigabit Ethernet ports, HDMI output, and flexible SATA or mSATA storage for entry-level routing and gateway deployments.
Focused Dual-Port Architecture
Two dedicated Ethernet interfaces suit compact WAN/LAN, firewall, VPN, and edge gateway deployments.
Compact x86 Platform
Low-power Intel processor options support compatible network operating systems and local services.
Local Storage Options
Model-specific NVMe, mSATA, and SATA options support the selected software and service configuration.
