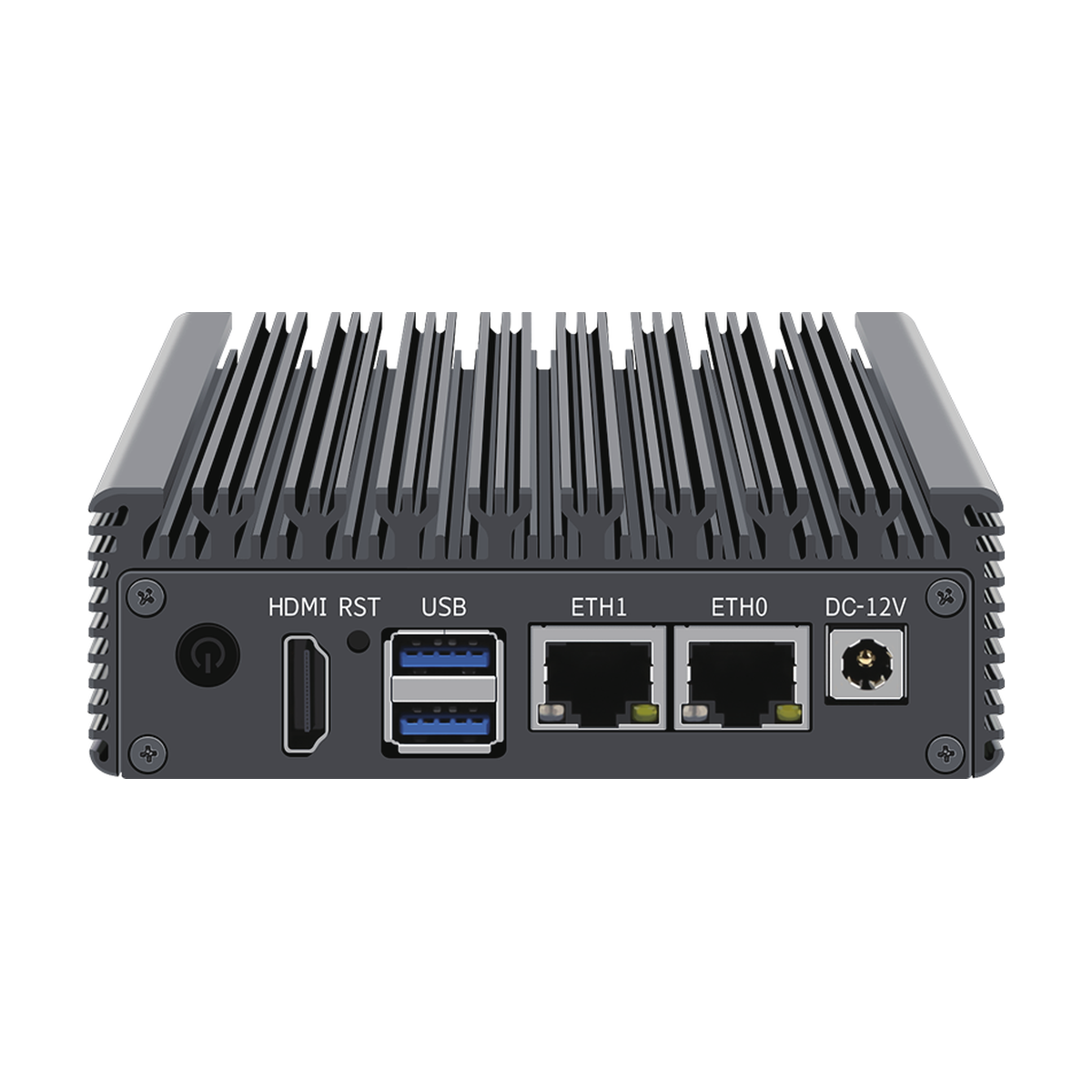

MCSRP2
Dual-2.5GbE compact network appliance
MCSRP2 combines two Intel 2.5GbE interfaces, DDR4 memory, HDMI output, and NVMe storage in a compact fanless enclosure for firewall, routing, and edge gateway projects.
Product Gallery
A closer look at MCSRP2
Different product views highlight the enclosure design, interface layout, and installation details.

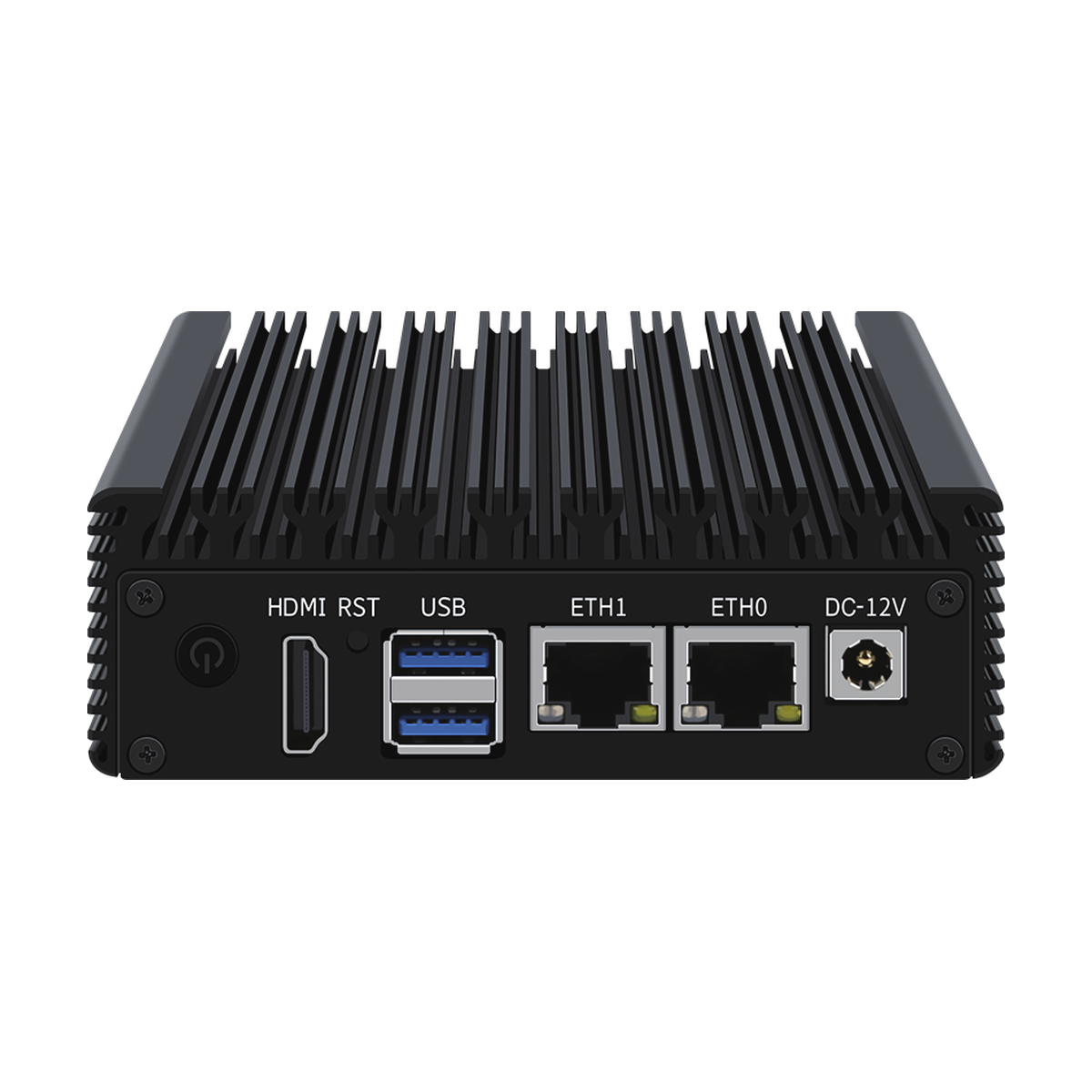

MCSRP2 enclosure and interface view

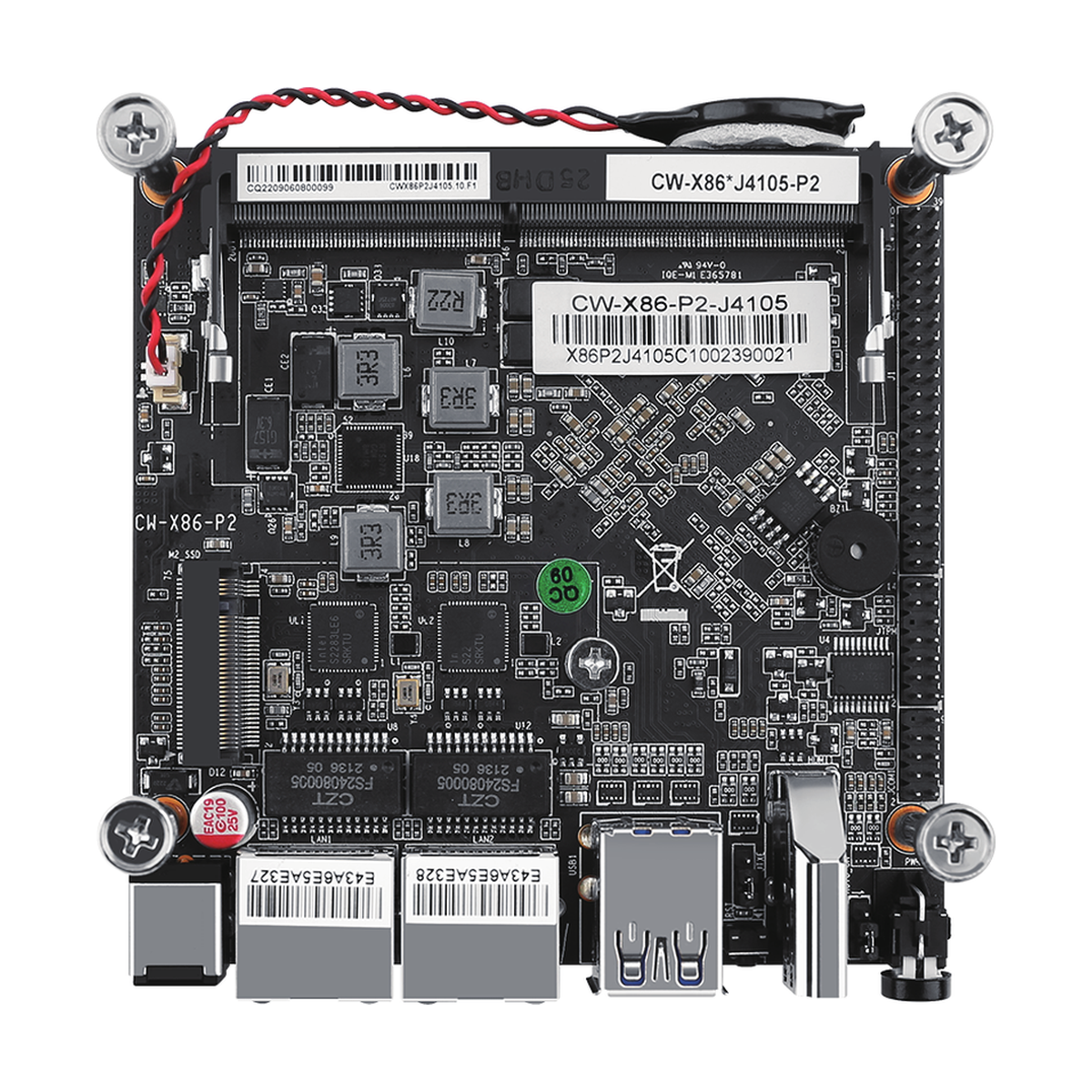

MCSRP2 product view 2
Technical Specifications
Industrial-grade configuration details
MCSRP2 Specification Matrix
Available hardware configurations
Operating Range
0°C to 70°C
Model
MCSRP2
CPU
Intel Celeron N4000/J4105/J4125
Chipset
Intel Celeron Processor N Series
Graphics
Intel HD Graphics 600
Video
1 x HDMI 1.4 port
Memory
SO-DIMM DDR4 2400MHz maximum 16GB
Material
Made of aluminum alloy
USB
2 x USB 3.0
Network
2 x Intel i226-V 2.5Gb Ethernet port
Storage
1 x M.2 NVMe x4 2242/2280
Expansion
1 x 4Pin FANCPU; 2 x 20Pin commector; 1 x COM; 2 x 7Pin TPM
Front I/O
1 x RST Button; 2 x USB 3.0; 1 x DC_IN Power port; 1 x HDMI1.4 Port; 2 x 2.5Gb Ethernet port
Internal I/O
1 x M.2 NVMe x4 2242/2280 Port; 1 x 4Pin FANCPU port; 2 x 20Pin commector; 1 x COM port; 2 x 7Pin TPM
Dimensions
112.3mm*100mm*36.5mm
BIOS
AMI UEFI BIOS, PEX, GPIO, wake-on-LAN features
TDP
15w
System
Windows 10 / Windows 11 / Linux
Working Environment
0°C to 70°C; 5%-85% relative humidity, non-condensing
Power
DC12V Wide Voltage Supply(5.5 x 2.5 mm)
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCSRP2 combines two Intel 2.5GbE interfaces, DDR4 memory, HDMI output, and NVMe storage in a compact fanless enclosure for firewall, routing, and edge gateway projects.
Focused Dual-Port Architecture
Two dedicated Ethernet interfaces suit compact WAN/LAN, firewall, VPN, and edge gateway deployments.
Compact x86 Platform
Low-power Intel processor options support compatible network operating systems and local services.
Local Storage Options
Model-specific NVMe, mSATA, and SATA options support the selected software and service configuration.
