MCSRP3
Expandable dual-2.5GbE edge appliance
MCSRP3 supports up to 32GB DDR4, dual Intel 2.5GbE, dual HDMI, NVMe and SATA storage, and wireless expansion for adaptable edge network deployments.
Product Gallery
A closer look at MCSRP3
Different product views highlight the enclosure design, interface layout, and installation details.

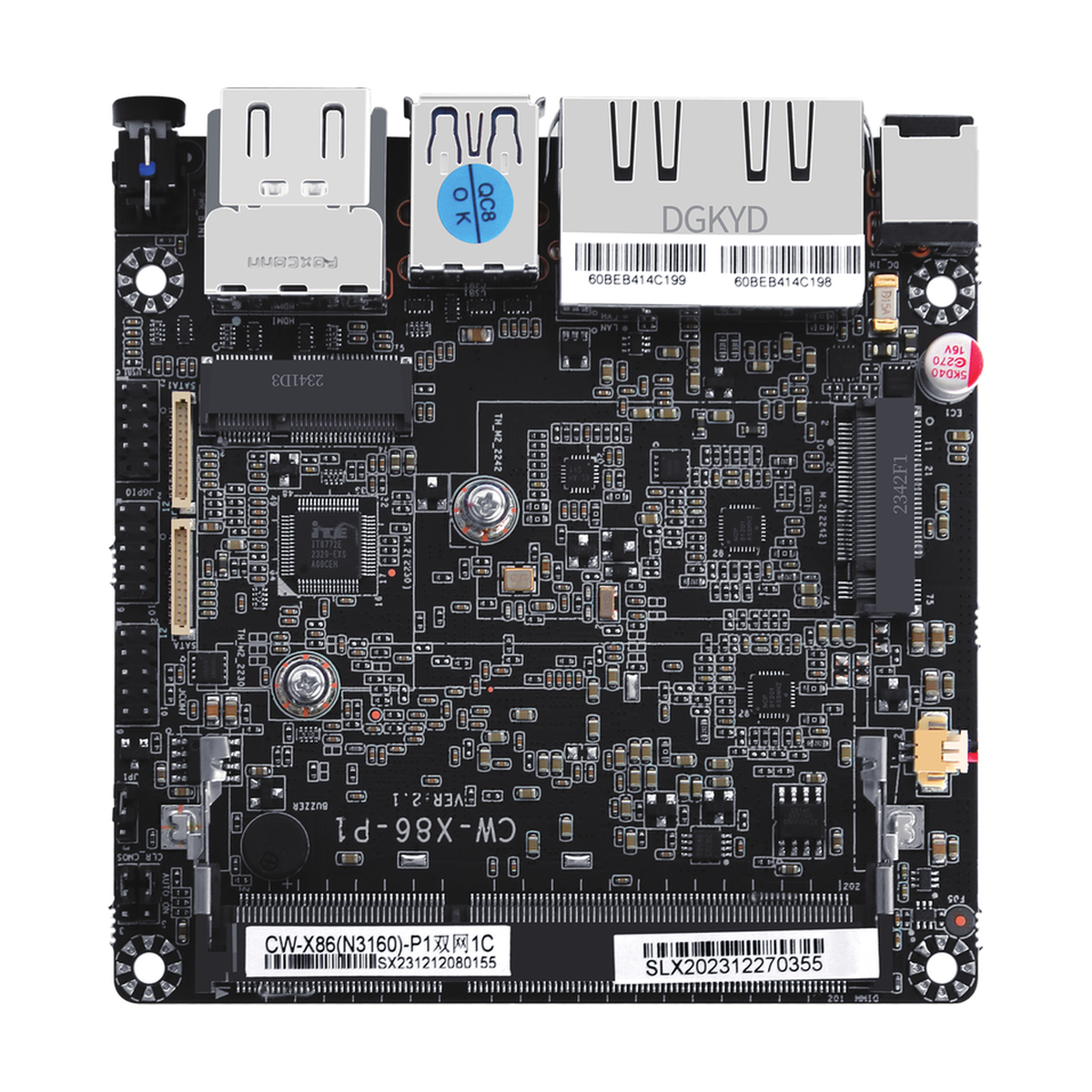

MCSRP3 enclosure and interface view

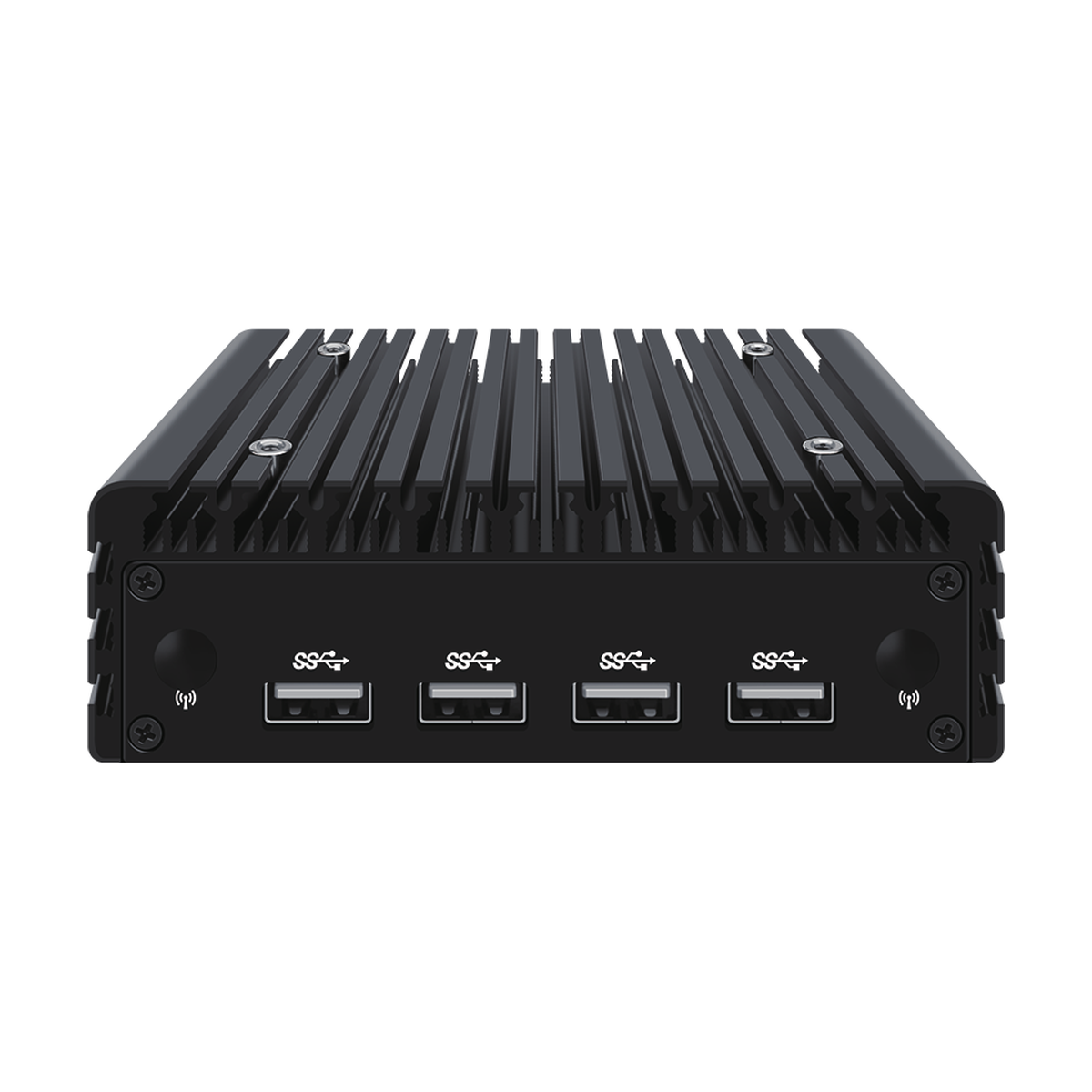

MCSRP3 product view 2
Technical Specifications
Industrial-grade configuration details
MCSRP3 Specification Matrix
Available hardware configurations
Operating Range
0°C to 70°C
Model
MCSRP3
CPU
Intel® N5100 / N5105 / N6005
Chipset
Intel 11th Gen Jasper Lake (10nm)
Graphics
Intel® UHD Graphics
Video
2x HDMI 1.4 (Supports dual display 4K@30Hz)
Memory
1x SO-DIMM DDR4 (Compatible with 2400/2666/3200MHz), Max 32GB
Material
luminum alloy; A
USB
2x USB 3.0, 4x USB 2.0 (via internal headers extendable to panel)
Power
12V DC-IN
Network
2x Intel i226-V 2.5G Ethernet LAN
Storage
1x M.2 NVMe 2242, 2x SATA 3.0
Wireless
1x M.2 E key (2230) slot, supports Wi-Fi 6 / Bluetooth module
Rear I/O
4x USB 2.0; 2x Wi-Fi Antennas; (Extensible Interface)
Internal I/O
1x M.2 E key Wi-Fi Slot; 1x Wi-Fi Module Standoff; 1x GPIO Header; 1x 12-Pin Non-standard SATA 3.0 Data/Power combo; 1x COM Header; 1x Clear CMOS / BIOS Restore Jumper; 1x M.2 NVMe 2242 Standoff; 1x M.2 M key PCIe 3.0 x4; 1x Jumper Pin; 2x USB 2.0 Headers; 1x SO-DIMM DDR4 Slot
Dimensions
112mm x 100mm x 36.3mm
TDP
15W
System
Win7/Win8/Windows 10/Linux
Working Environment
0°C to 70°C; 5%-90% relative humidity
Color
Gray / Black

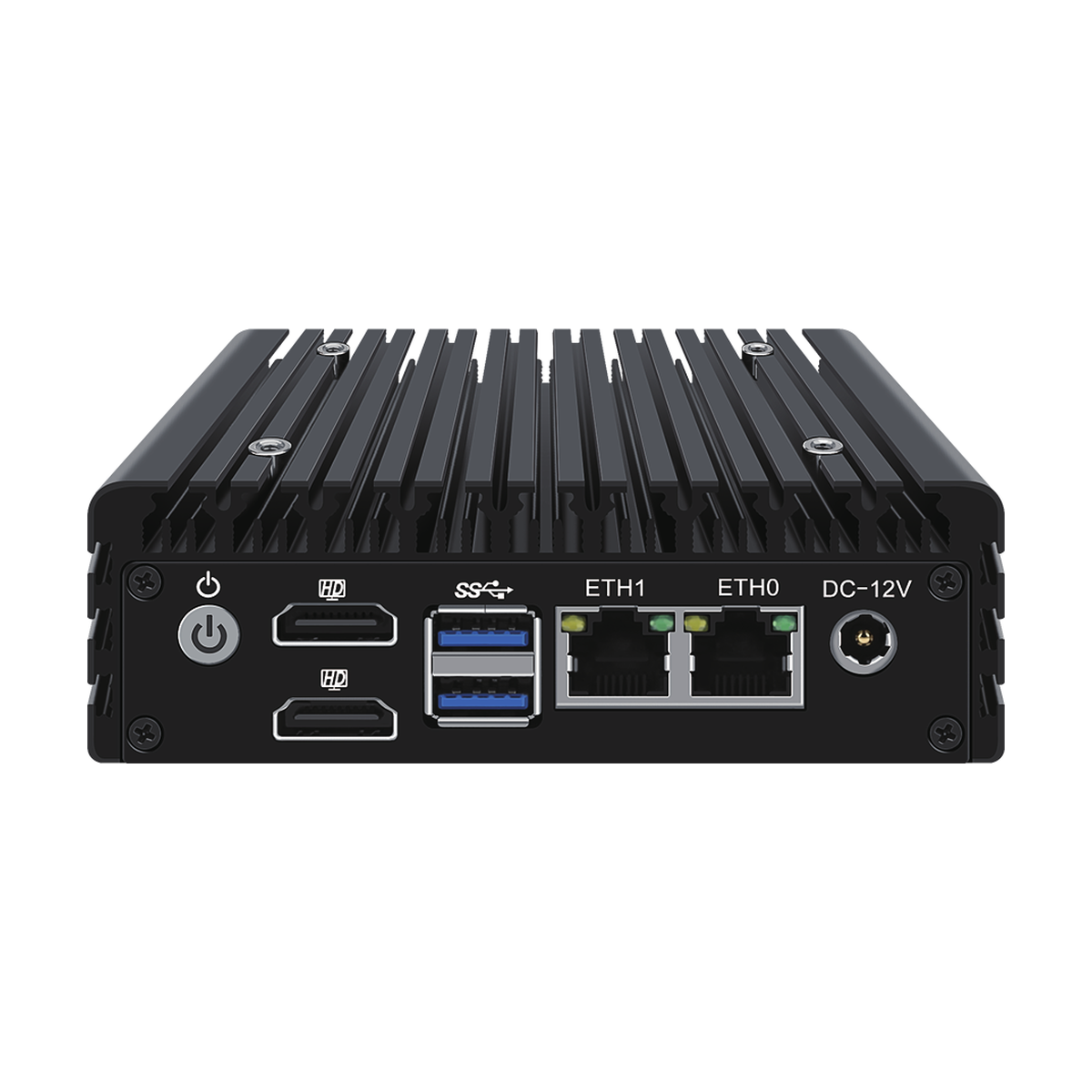

Front I/O
1x Power Button; 2x HDMI 1.4; 2x USB 3.0; 2x 2.5G LAN; 1x DC-12V (5.5 x 2.5 mm)
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCSRP3 supports up to 32GB DDR4, dual Intel 2.5GbE, dual HDMI, NVMe and SATA storage, and wireless expansion for adaptable edge network deployments.
Focused Dual-Port Architecture
Two dedicated Ethernet interfaces suit compact WAN/LAN, firewall, VPN, and edge gateway deployments.
Compact x86 Platform
Low-power Intel processor options support compatible network operating systems and local services.
Local Storage Options
Model-specific NVMe, mSATA, and SATA options support the selected software and service configuration.
Interested in MCSRP3?
Contact our team for pricing, lifecycle planning, customization, and bulk order support.
