MCSRP4
Elkhart Lake dual-2.5GbE network appliance
MCSRP4 is a compact Elkhart Lake appliance with dual 2.5GbE, dual 4K-capable HDMI, NVMe and SATA storage, and an extended operating range.
Product Gallery
A closer look at MCSRP4
Different product views highlight the enclosure design, interface layout, and installation details.

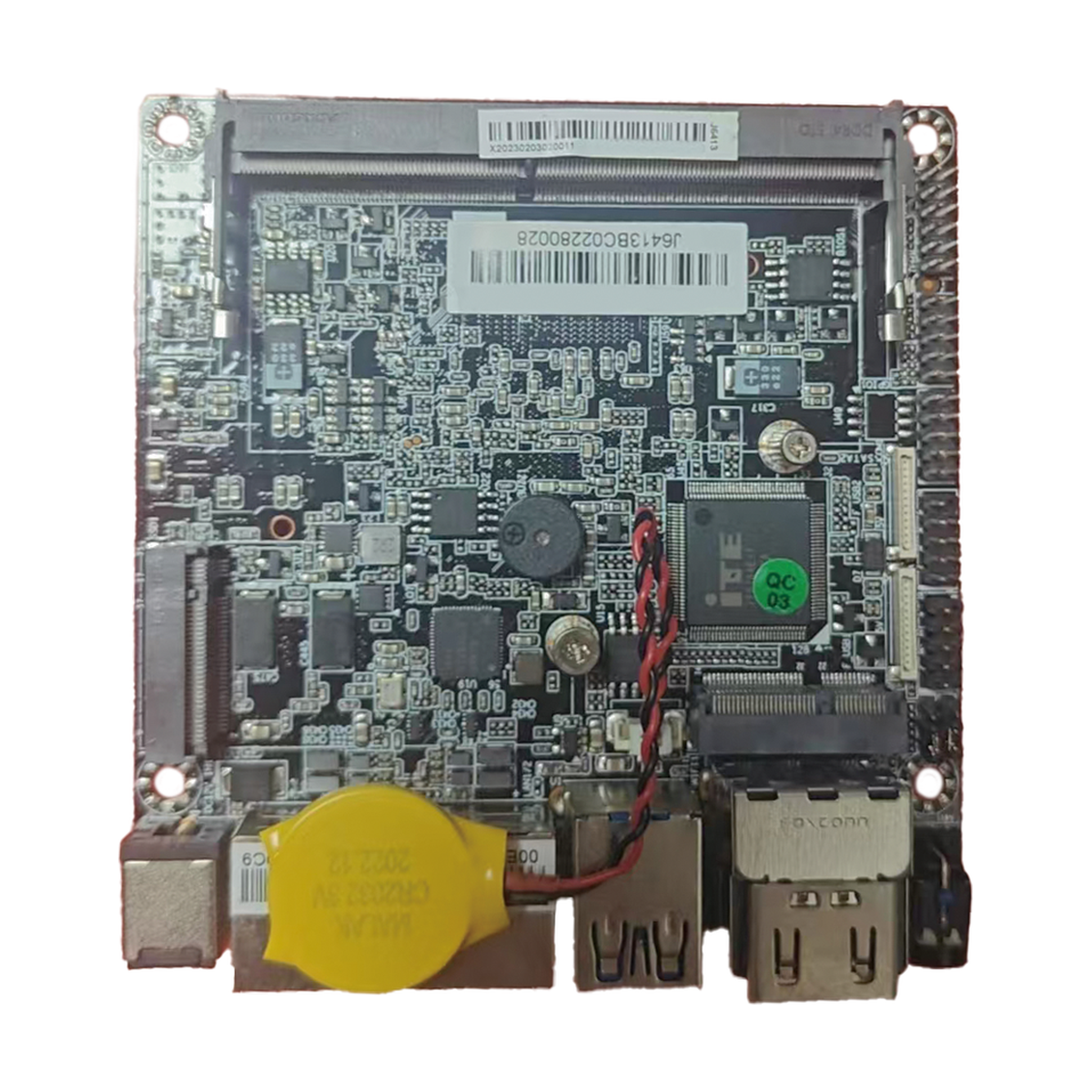

MCSRP4 enclosure and interface view

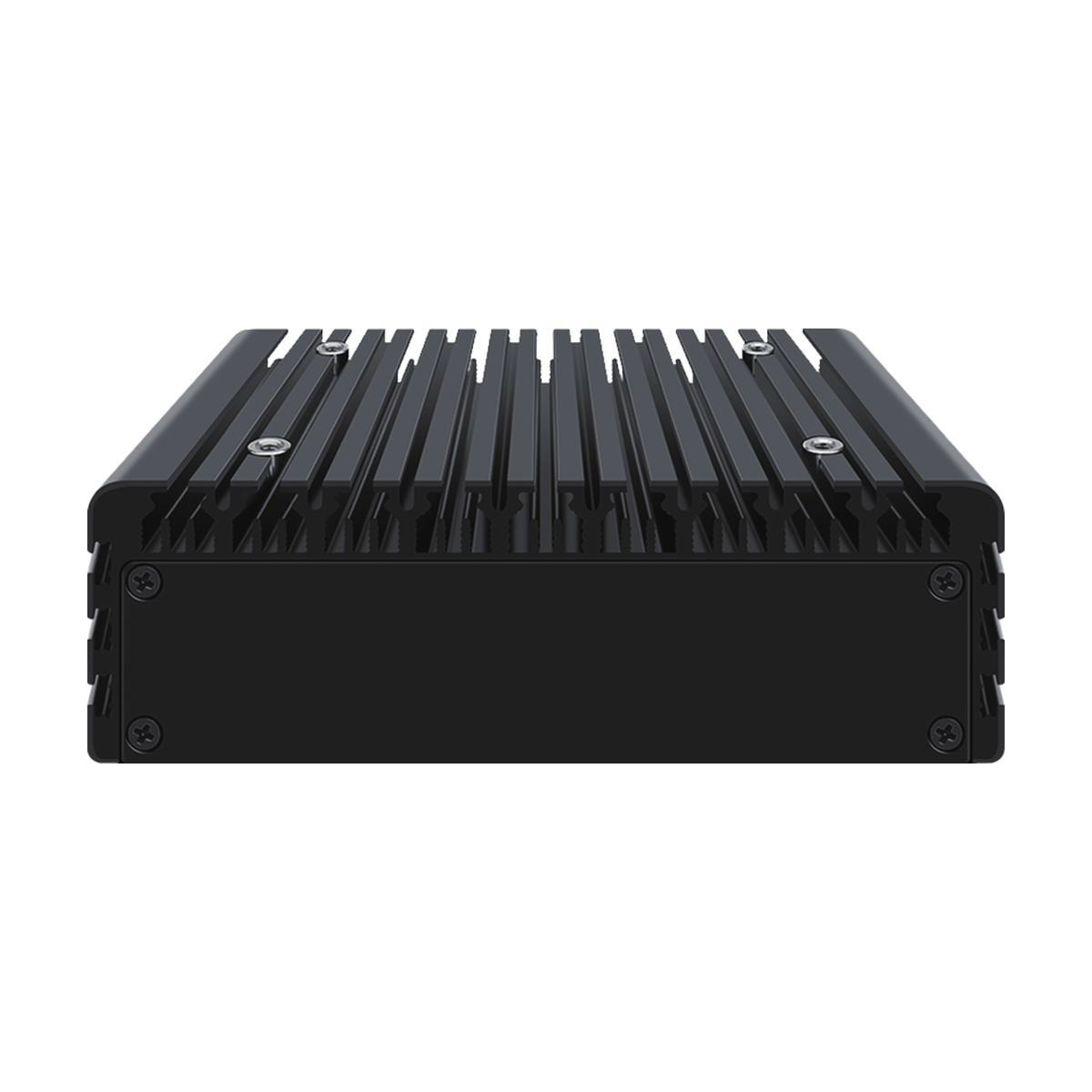

MCSRP4 product view 2
Technical Specifications
Industrial-grade configuration details
MCSRP4 Specification Matrix
Available hardware configurations
Operating Range
-10°C to 60°C
Model
MCSRP4
CPU
Intel® Celeron J6412 2.0GHz quad-core processor with 10W TDP.; Compatible with all Intel® Elkhart Lake CPUs.
Graphics
Intel ® UHD Graphics
Video
2* HDMI2.0
Memory
1* SO-DIMM 3200MHz DDR4 slot up to 32GB.
Material
Aluminum alloy
USB
2* USB 3.1; 4* USB 2.0 Interface 2 x 5Pin
Network
2 * Intel i226-V 2.5G Ethernet LAN
Storage
1* M.2 Key-M 2242 PCIe NVME; 2* SATA 3.0 6Gbps
Expansion
1* M.2 Key-E slot, supports WIFI module; Wake-on-LAN/PXE; Support hardware reset function (256 levels, 0~255 seconds)
Front I/O
1 * DC IN 12~19V; 2* HDMI2.0; 1 * 2.5G Ethernet LAN; 2* USB 3.1; 1 * Power Button
Internal I/O
1* COM 2 x 5Pin(support 1 RS232 and 1 RS485 optional); 4* USB 2.0 2 x 5Pin; 1* TPM2.0 2 x 6Pin; 1 x GPIO; 1 x 4pin 1.25mm CPU fanPin; 1 x 3Pin system fanPin
Dimensions
100mm*112mm*39.7mm
BIOS
128Mb Flash ROM
System
Windows 10/Linux
Working Environment
-10°C to 60°C; 5%-95% relative humidity, non-condensing
Color
Black
Power
DC 12V (5.5 x 2.5 mm)
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCSRP4 is a compact Elkhart Lake appliance with dual 2.5GbE, dual 4K-capable HDMI, NVMe and SATA storage, and an extended operating range.
Focused Dual-Port Architecture
Two dedicated Ethernet interfaces suit compact WAN/LAN, firewall, VPN, and edge gateway deployments.
Compact x86 Platform
Low-power Intel processor options support compatible network operating systems and local services.
Local Storage Options
Model-specific NVMe, mSATA, and SATA options support the selected software and service configuration.
