MCSRP5
Alder Lake-N dual-2.5GbE gateway platform
MCSRP5 brings DDR5 memory, two Intel 2.5GbE ports, dual HDMI 2.0, and NVMe storage to a compact Alder Lake-N network platform.
Product Gallery
A closer look at MCSRP5
Different product views highlight the enclosure design, interface layout, and installation details.

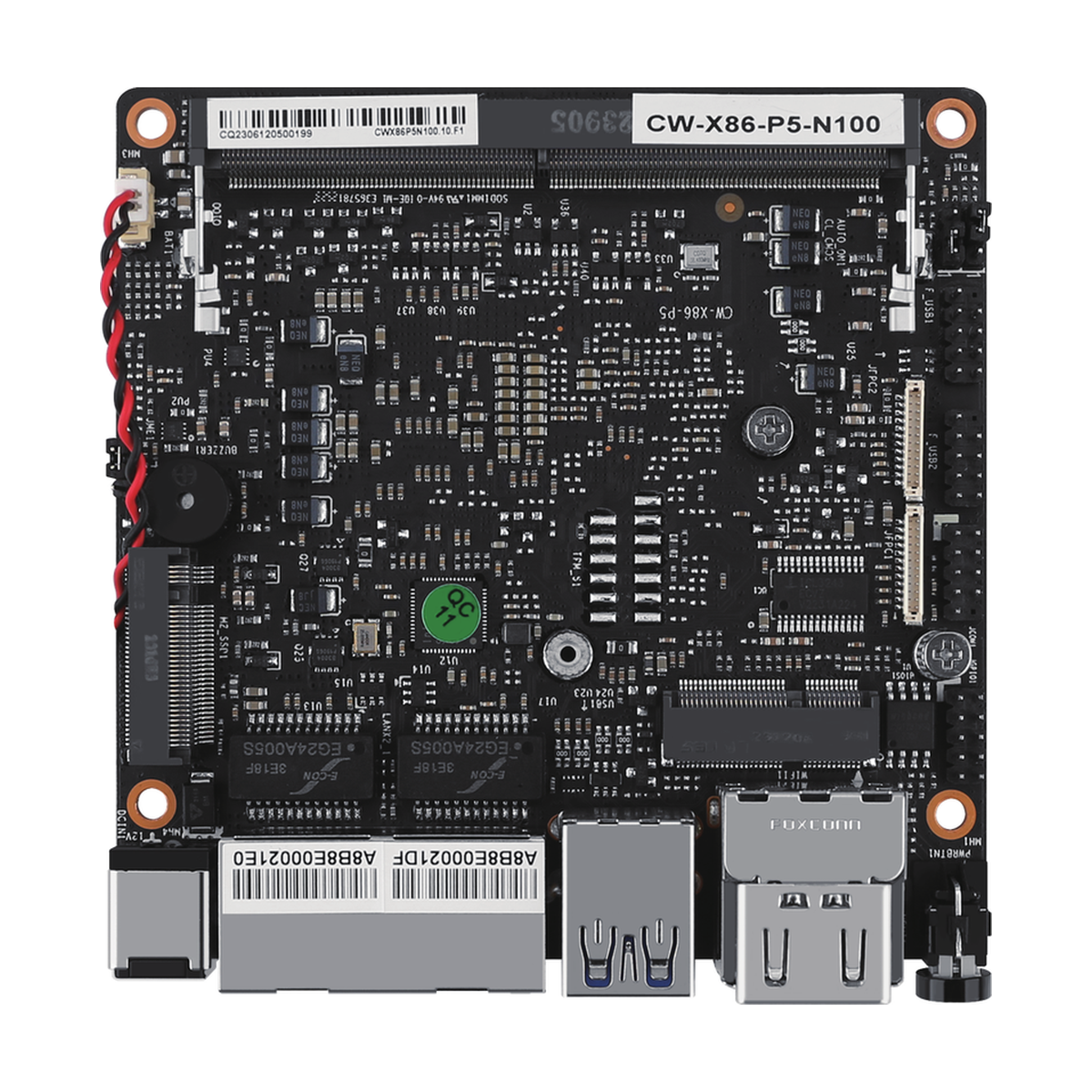

MCSRP5 enclosure and interface view

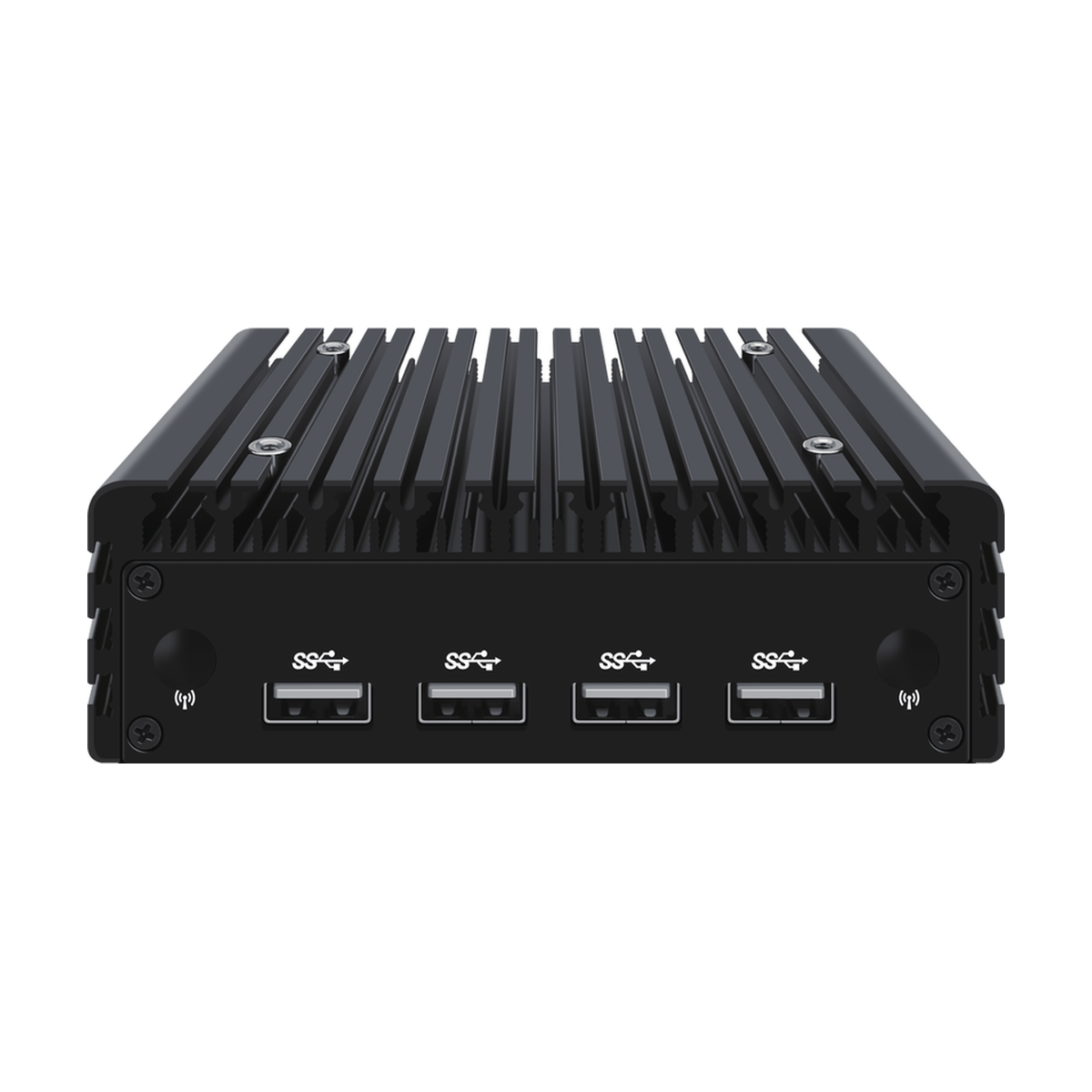

MCSRP5 product view 2
Technical Specifications
Industrial-grade configuration details
MCSRP5 Specification Matrix
Available hardware configurations
Operating Range
-10°C to 70°C
Model
MCSRP5
CPU
Intel N100 / Intel N200 / Intel Core™ i3-N305
Chipset
Intel SoC (Integrated into the CPU)
Graphics
Intel® UHD Graphics (Integrated)
Video
2x HDMI 2.0 (4K @ 60Hz)
Memory
1x SO-DIMM DDR5 Max 32GB
Material
luminum alloy; A
USB
2x USB 3.2, 2x USB 2.0 (via headers)
Power
12V DC-IN
Network
2x Intel i226-V 2.5G Ethernet LAN
Storage
M.2 NVMe 2242 / 2280
Front I/O
1x DC-in; 2x LAN; 2x HDMI; 2x USB 3.2; 1x Power Button
Rear I/O
4x USB 2.0; 2x Wi-Fi Antennas; (Extensible Interface)
Internal I/O
1x 10-pin GPIO (4-in/4-out); 2x CPU Fan (4-pin 12V, PWM); 1x COM; 2x USB 2.0; 1x Auto Power-On Jumper
Dimensions
112mm x 100mm x 36.3mm
BIOS
AMI BIOS (Supports PXE, Wake-on-LAN, Auto Power-On, GPIO)
TDP
6W
System
Win7/Win8/Windows 10/Linux
Working Environment
-10°C to 70°C; 5%-90% relative humidity, non-condensing
Color
Black / Dark Green / Iron Gray
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCSRP5 brings DDR5 memory, two Intel 2.5GbE ports, dual HDMI 2.0, and NVMe storage to a compact Alder Lake-N network platform.
Focused Dual-Port Architecture
Two dedicated Ethernet interfaces suit compact WAN/LAN, firewall, VPN, and edge gateway deployments.
Compact x86 Platform
Low-power Intel processor options support compatible network operating systems and local services.
Local Storage Options
Model-specific NVMe, mSATA, and SATA options support the selected software and service configuration.
