MCSRP6
Compact Alder Lake-N and Twin Lake network appliance with dual 2.5GbE
MCSRP6 is a compact aluminum-alloy network and edge appliance with Intel Alder Lake-N and Twin Lake processor options. It combines dual Intel 2.5GbE LAN, DDR5 memory, HDMI and DisplayPort output, wide 12-24V DC input, M.2 storage, and extensive internal expansion in a 115 x 114.3 x 40 mm chassis.
A closer look at MCSRP6
Different product views highlight the enclosure design, interface layout, and installation details.

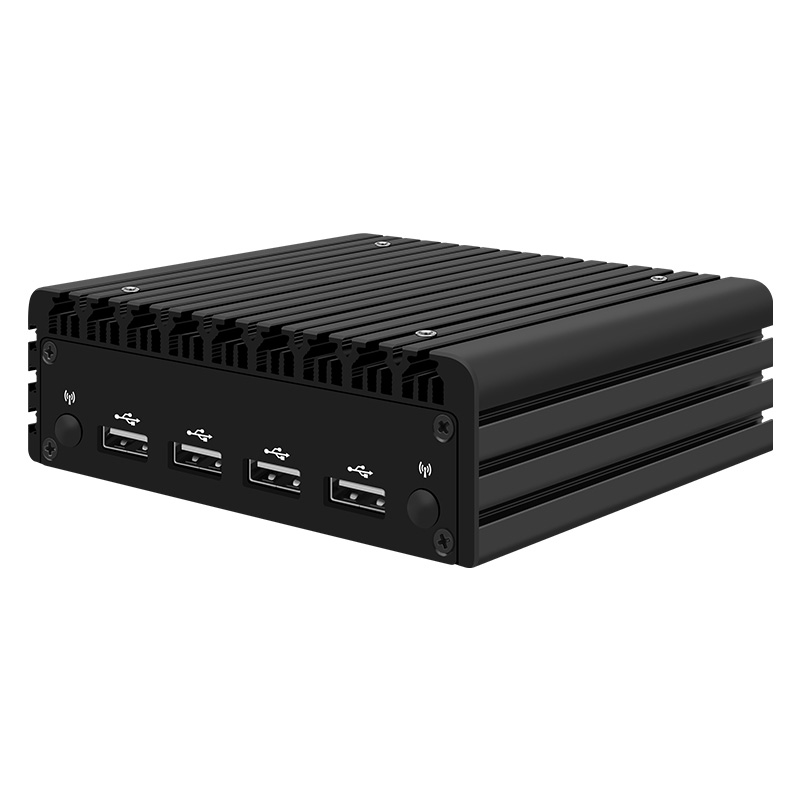

Compact aluminum-alloy chassis
A compact enclosure brings the power, display, dual-network, and USB connections together in an easy-to-access layout.

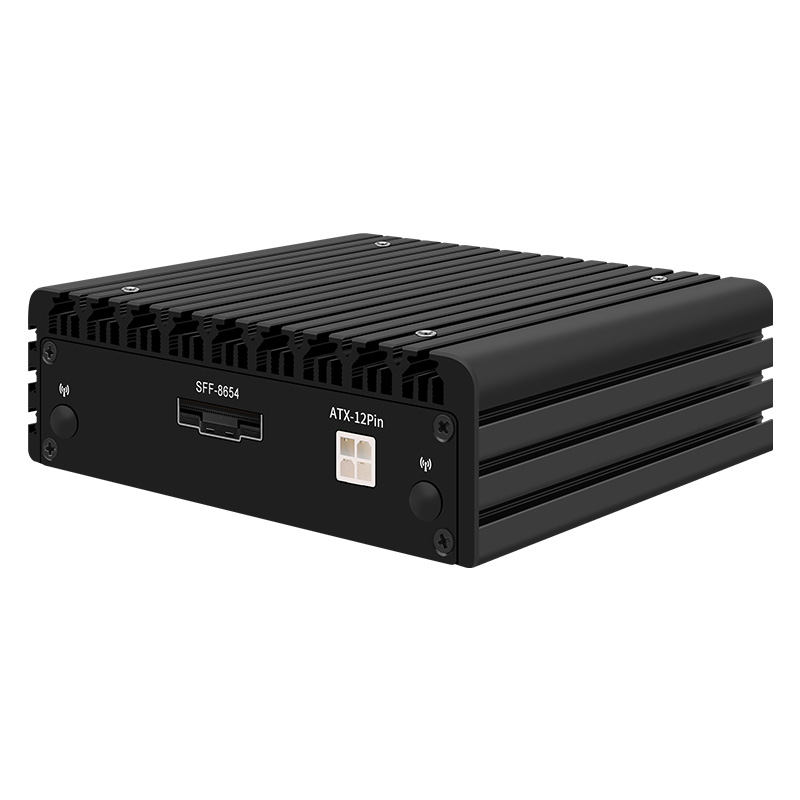

Rear expansion connectivity
The rear panel provides space for SFF-8654, ATX 4-pin power, and dual wireless antenna connections.

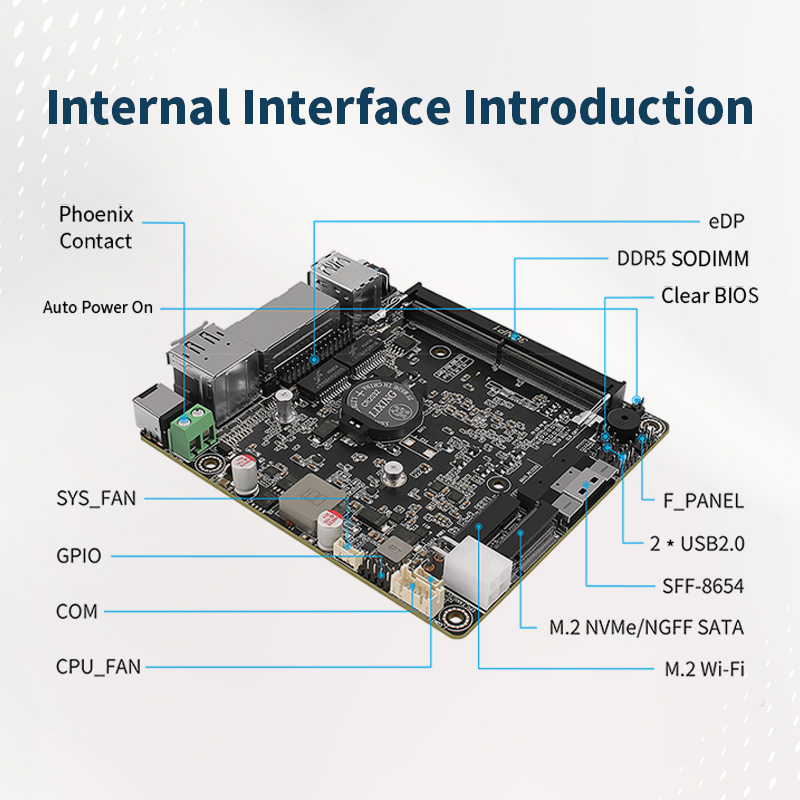

Clearly labeled internal expansion
Internal headers and slots support storage, Wi-Fi, GPIO, COM, cooling, front-panel controls, and additional USB connectivity.
Industrial-grade configuration details
Available hardware configurations
Operating Range
0°C to 75°C
Model
MCSRP6
CPU
Alder Lake-N N100/N200/i3-N305& Twin Lake N150/N250/i3-N355
Chipset
Alder Lake-N & Twin Lake
Graphics
Intel® Graphics
Video
HDMI2.0(4K@60Hz) / DP1.4(4K@60Hz)
Memory
1 * SO-DIMM DDR5 4800MHz(Support 5200/5600MHz)Max 48GB
Material
luminum alloy; A
USB
2 * USB 3.2 Gen2 10Gbps
Network
2 * Intel i226-V 2.5G Ethernet LAN
Storage
1 * M.2 NVMe x1
Expansion
1 * SFF-8654 8i; 1 * ATX-4Pin(12V); 1 * Phoenix Contact; 1 * GPIO; 2 USB 2.0; 1 * F_PANEL; 1 * JCOM; 1 * eDP; 2 * 4Pin Fan Pin Head
Rear I/O
1 * SFF-8654 8i; 1 * ATX-4PIN(12V); 2 * Wi-Fi
Internal I/O
1 * Phoenix Contact; 1 * Auto Power On; 1 * SYS_FAN; 1 * GPIO; 1 * COM; 1 * CPU_FAN; 1 * eDP; 1 * DDR5 SO-DIMM Slot; 1 * Clear BIOS Button; 1 * F_PANEL; 2 * USB 2.0; 1 * SFF-8654; 1 * M.2 NVMe/NGFF SATA; 1 * M.2 Wi-Fi
Dimensions
115mm*114.3mm*40mm
TDP
9-15W(Depends on CPU)
System
Win7/Win8/Windows 10/Linux
Working Environment
0°C to 75°C; 10%-90% relative humidity, non-condensing
Color
Black
Power
DC 12-24V (5.5 x 2.5 mm)
Front I/O
1 * DC IN 5.5 x 2.5 mm; 1 * HDMI 2.0; 1 * DP 1.4; 1 * 2.5G Ethernet LAN; 1 * USB 3.2; 1 * Power Button
Ready for control cabinets, edge gateways, and machine-side computing
MCSRP6 combines modern low-power Intel processor options, dual 2.5GbE networking, DDR5 memory, 4K dual-display output, and a broad set of internal expansion connections in a compact aluminum-alloy enclosure.
Dual Intel 2.5GbE Networking
Two Intel i226-V ports provide high-speed wired connectivity for compact routing and edge-network deployments.
Wide-Voltage DC Input
The 12-24V DC input supports installation across a wider range of network and embedded environments.
Expansion-Ready Platform
M.2 storage, M.2 Wi-Fi, SFF-8654, GPIO, COM, eDP, fan, and front-panel connections support flexible integration.

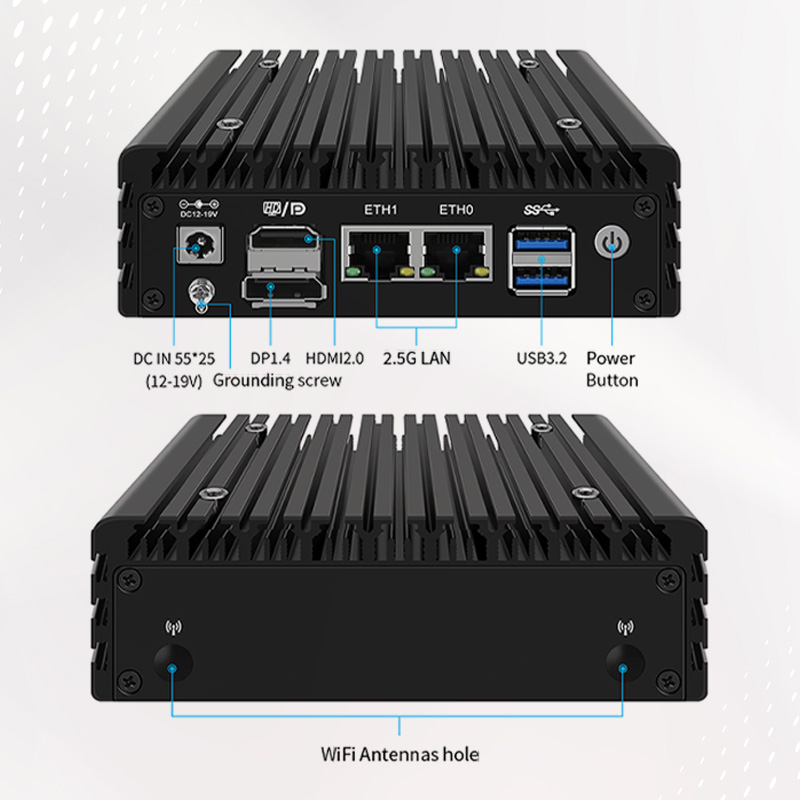

Standard interface layout
The standard front and rear interface map makes installation planning and cable routing straightforward.

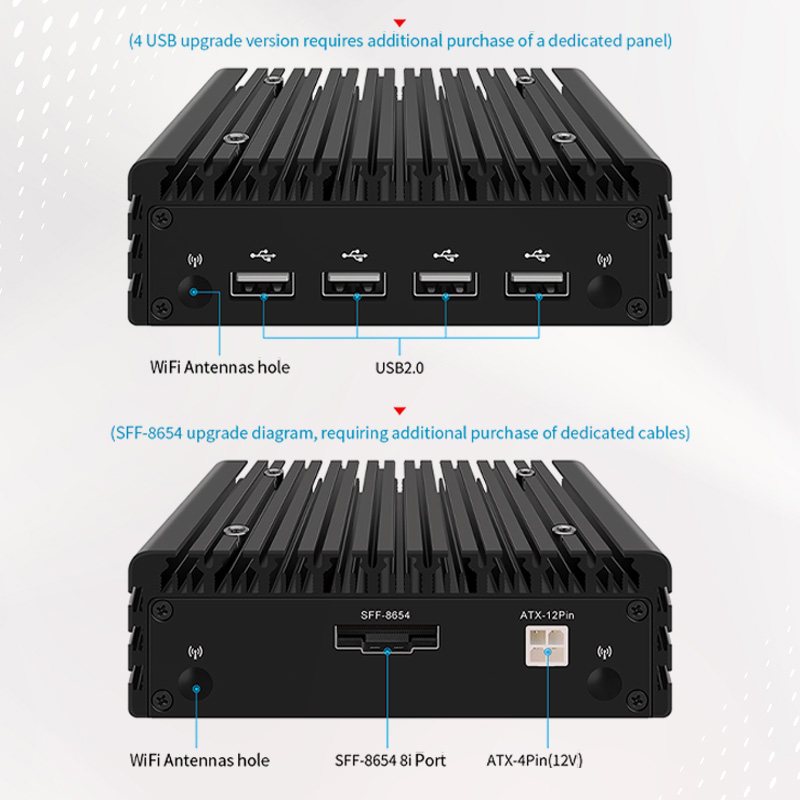

Optional expansion-panel configurations
Optional rear-panel configurations support additional USB 2.0 connections or SFF-8654 and ATX power expansion with the corresponding parts and cables.

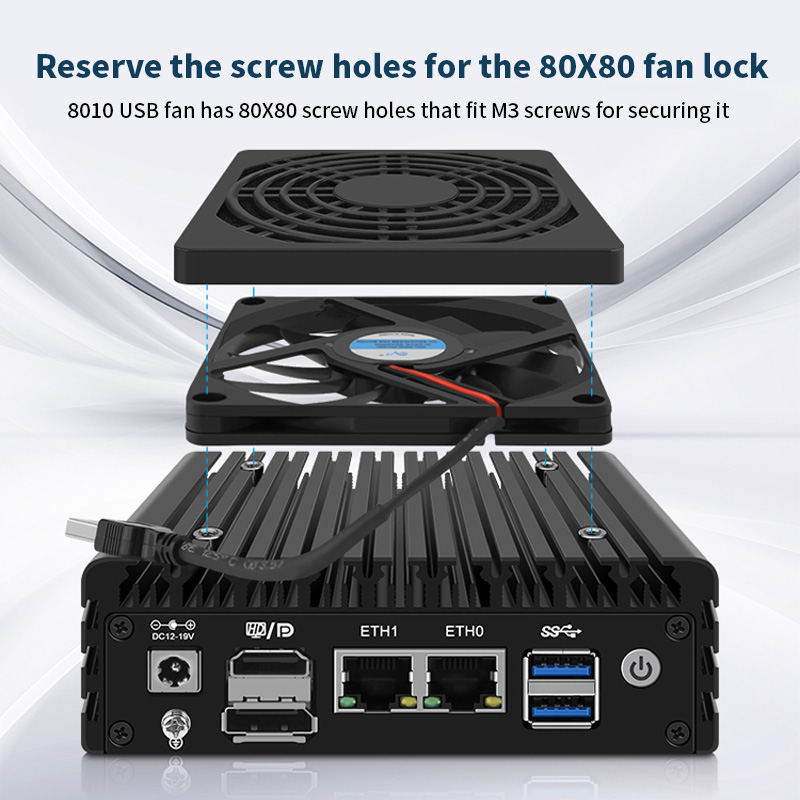

80 x 80 mm fan mounting support
Reserved mounting holes allow an 80 x 80 mm fan to be added when the deployment requires active airflow.
Broad edge and network applications
MCSRP6 supports varied edge and network deployments, including AI robots, smart homes, smart hardware, soft routers, 3D printers, and education.
