MGSRN100-V1
DDR5 four-port 2.5GbE network platform
MGSRN100-V1 combines Alder Lake-N processors, four Intel 2.5GbE interfaces, DDR5 memory, HDMI 2.1, DisplayPort 1.4, and PCIe NVMe storage.
Product Gallery
A closer look at MGSRN100-V1
Different product views highlight the enclosure design, interface layout, and installation details.
MGSRN100-V1 enclosure and interface view
MGSRN100-V1 product view 2
Technical Specifications
Industrial-grade configuration details
MGSRN100-V1 Specification Matrix
Available hardware configurations
Operating Range
0°C to 70°C
Model
MGSRN100-V1
CPU
Intel 12th Gen Alder Lake-N N100/N200/i3-N305
Chipset
Alder Lake-N
Graphics
Intel UHD Graphics N100(24EU)/N200(32EU)/i3-N305(32EU)
Video
1 x HDMI 2.1; 1 x DP1.4(All support 4k@60Hz)
Memory
1 x SO-DIMM DDR5 4800/5600 MHz maximum 32 GB
Material
Made of aluminum alloy
USB
4 x USB 2.0
Network
4 x Intel i226-V(2.5G Ethernet port)
Storage
1 x M.2 NVME x4(Support multiple M.2 or mSATA/SATA)
Wireless
1 x M.2KEY-E(Bluetooth&WIFI6)
Front I/O

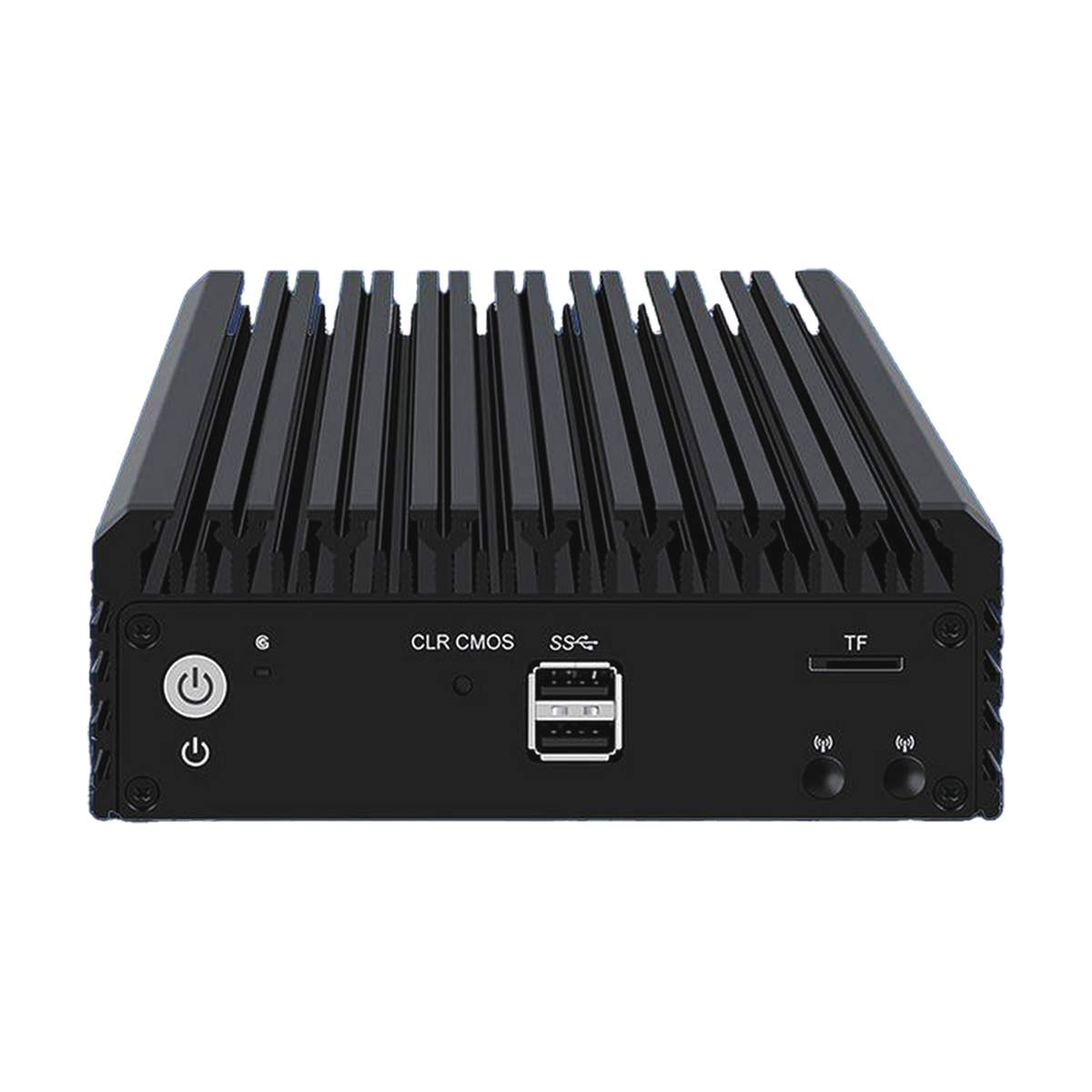

1 x Power Button; 1 x CLR CMOS; 1 x TF Slot; 2 x Wi-Fi Antennas holes; 2 x USB 2.0
Internal I/O
2 x 4Pin fan header with temperature control; 1 x COM Pin Head; 1 x USB Pin Head; 1 x SW (Power off and disconnect USB pin)
Dimensions
145.6mm*145.4mm*53.6mm
BIOS
AMI UEFI BIOS supports Auto-Power-On, Wake-On-Lan, PXE
TDP
6W/15W
System
WIN10/WIN11/Linux
Working Environment
0°C to 70°C; 5%-85% relative humidity, non-condensing
Power
1 x DC-IN 12V(5.5 x 2.5 mm)

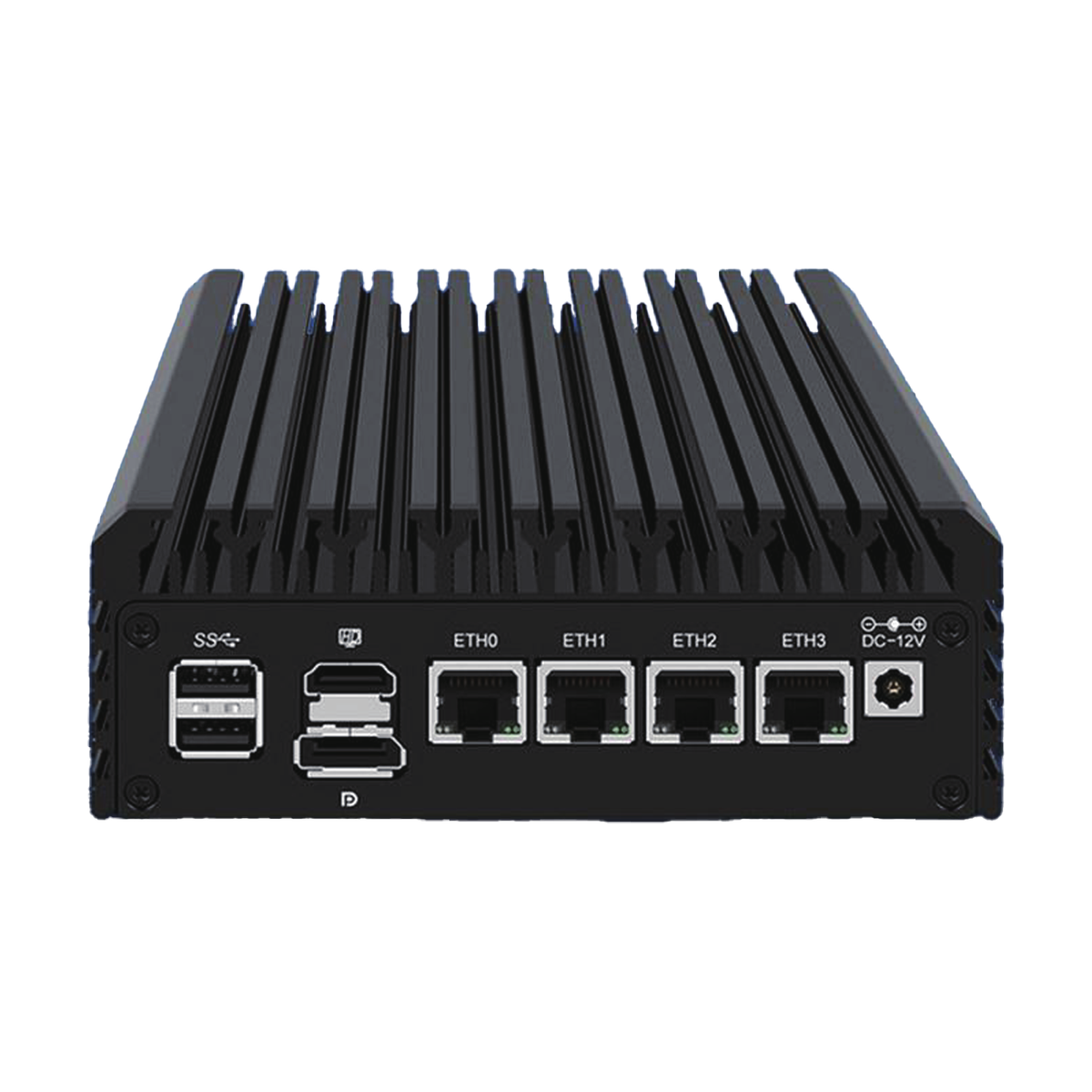

Rear I/O
1 x DC-IN 12V(5.5 x 2.5 mm); 4 x Intel i226-V 2.5G Ethernet port; 2 x USB 2.0; 1 x HDMI 2.1(Support 4k@60Hz); 1 x DP1.4(Support 4k@60Hz)
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MGSRN100-V1 combines Alder Lake-N processors, four Intel 2.5GbE interfaces, DDR5 memory, HDMI 2.1, DisplayPort 1.4, and PCIe NVMe storage.
Four Dedicated Network Ports
Four-port layouts support multi-WAN routing, network segmentation, and branch gateway configurations.
Wireless and Cellular Expansion
Selected models provide Mini PCIe or M.2 expansion for compatible Wi-Fi and cellular modules.
Local Display Connectivity
HDMI and DisplayPort options simplify setup, diagnostics, and local management where required.
