MCIPC2A multi-COM industrial computer with dual LAN
MCIPC2A is a multi-COM industrial computer with dual-LAN architecture. Review the processor, memory, storage, and interface options listed on this page to select a suitable configuration.
Product Gallery
A closer look at MCIPC2A
Different product views highlight the enclosure design, interface layout, and installation details.

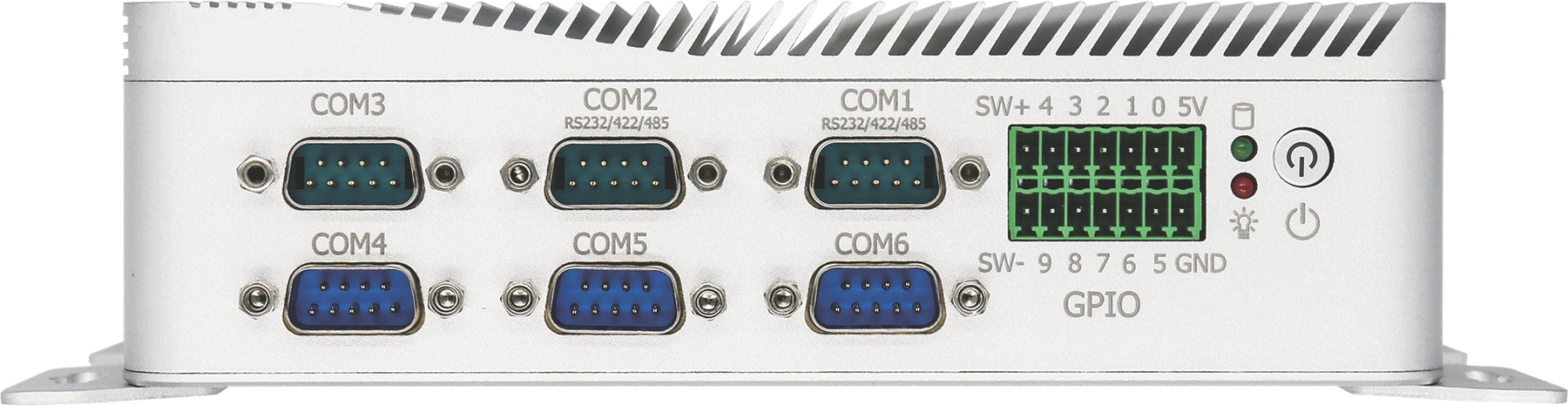

MCIPC2A rear I/O and enclosure

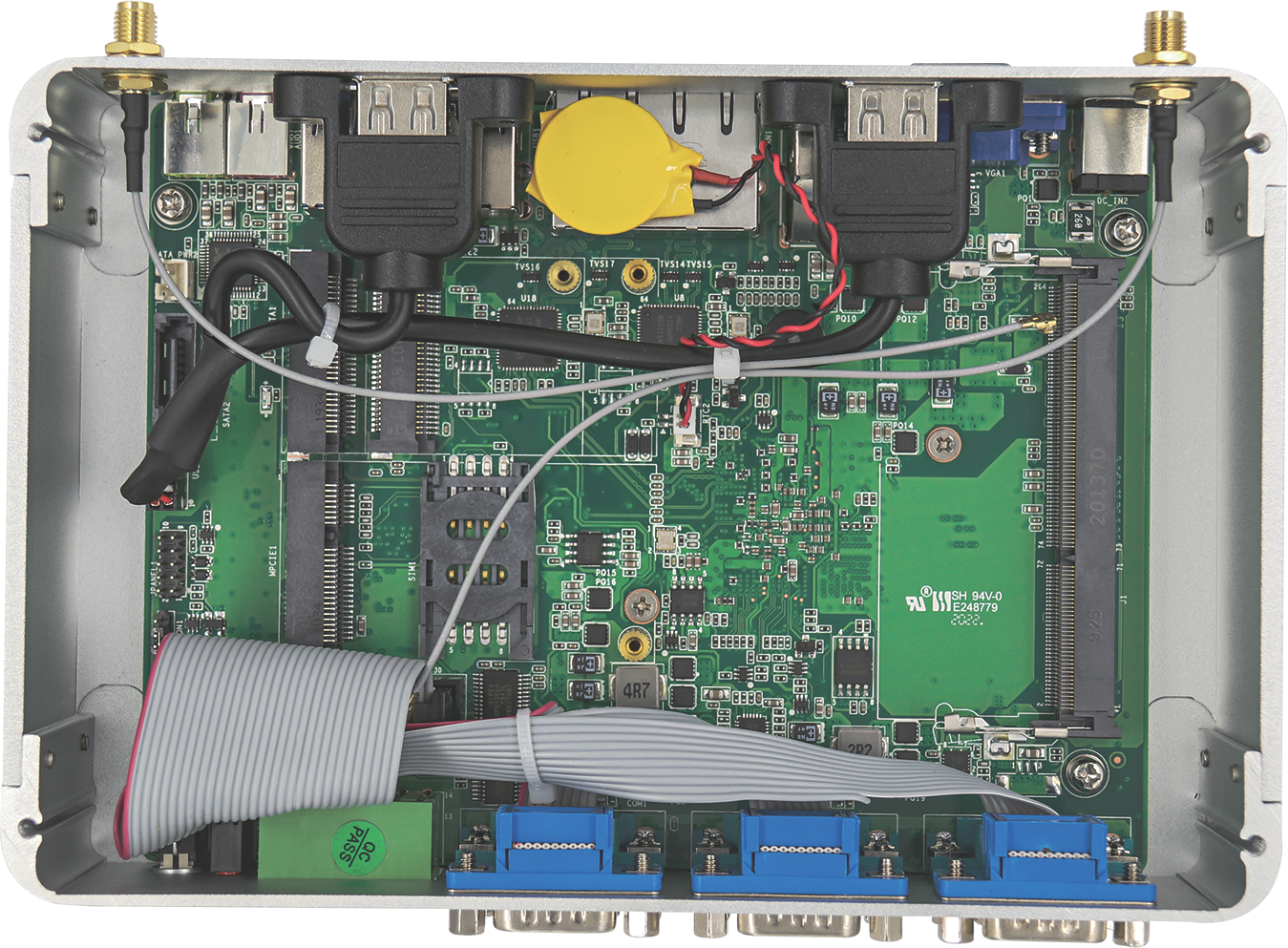

MCIPC2A internal board layout
The motherboard is shown as a supporting engineering view, after the complete enclosure views.
Technical Specifications
Industrial-grade configuration details
MCIPC2A Specification Matrix
Available hardware configurations
Operating Range
Working Temp: -20°C to 70°C
Model
MCIPC2A
Series
C Series
CPU
Optional Intel® Atom™ J1900 Quad Core 2.0GHz
Display
HDMI, VGA
Memory
1x DDR3L SODIMM slot, maximum support 8GB
USB
5x USB 2.0, 1x USB 3.0
Network
2x GbE RJ45 LAN
Serial
2x DB-9 COM1&COM2 (RS-232/422/485)
Power
DC 12V
System
Windows 7/8/10, WES 7, LINUX
Operating Environment
Working Temp: -20°C to 70°C
Dimensions
150 x 135 x 49 mm
Product Advantages
Ready for control cabinets, edge gateways, and machine-side computing
MCIPC2A is a multi-COM industrial computer with dual-LAN architecture. Review the processor, memory, storage, and interface options listed on this page to select a suitable configuration.
Multi-COM Architecture
C-series systems provide multiple serial interfaces for equipment control and data acquisition.
Dual-LAN Connectivity
Dual network interfaces support connected automation and industrial edge roles.
Multiple Compute Platforms
Processor and memory options vary by model and selected configuration.
